(In Stock!) Maytech New 12.5KW Electric Waterjet Propulsion System MTWJ12KW For Electric Boat Jetboard

(In Stock!) Maytech New 12.5KW Electric Waterjet Propulsion System MTWJ12KW For Electric Boat Jetboard

SKU:MTWJ12KW

Preço normal $1,015.90
Preço normal Preço de saldo $1,015.90
Em promoção Esgotado
Envio calculado na finalização da compra.
Version

Have Doubts? Contact US!!

Maytech New 12.5KW Electric Waterjet Propulsion System MTWJ12KW For Electric Boat Jetboard

Specifications: Including Motor + Jet pump

Max Thrust at Different Volts At Full Throttle

Voltage (V) Current (A) Input Power (W) RPM Motor Temp
(℃)
Thrust
(kgf)
Throttle (%) Thrust/Power
(kgf/kw)
1 60 134 8040 6508 47 70.6 100 8.781094527
2 67 155 10385 7133 56 77.2 100 7.433798748
3 72 163 11736 7631 67 80.2 100 6.833674165
4 75 165 12375 7987 64 83.1 100 6.715151515
5 80 167 13360 8364 79 85.4 100 6.392215569
6 84 171 14364 8793 99 87.1 100 6.063770537
Model No  MTWJ12KW-125
Voltage range(LiPo) 60-84V(20S)
Max Spin Speed(RPM) 10500
KV Speed Constance kV(RPM/V) 125KV
A Torque Constance Kt(N*M/A) 0.10082
Current @8.4V without Loading(A) 2.2A
Max Power(KW) 15.8
Peak current(A) 300
Max Effeciency 94%
Max torque@60%(N*M) 31.8
Rating Power(KW) 12.5
Rating Torque (N*M) 21
Construction 12N/10P
Max working temperature 120︒C
Insulation voltage & leak current AC500V/10MA/3S

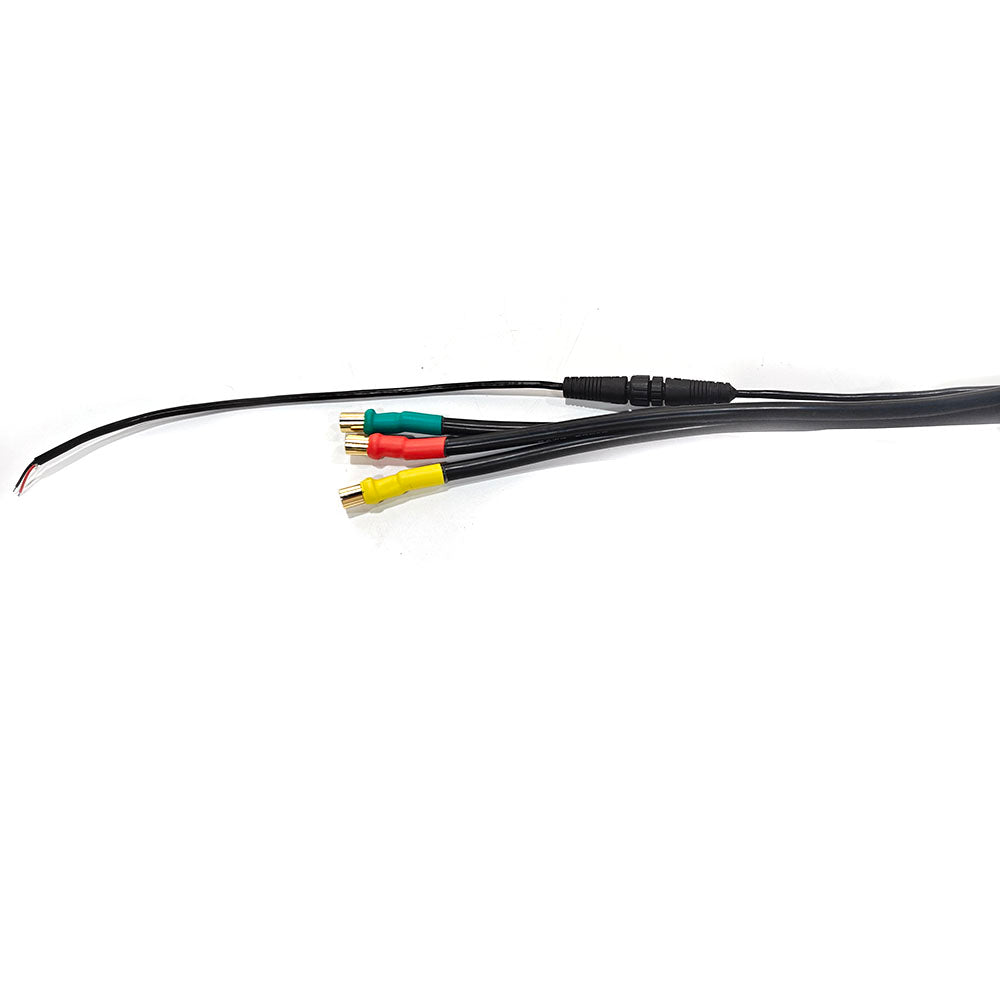

Lead wires extension 6AWGx300mm
Thermal resistor TP1000
Thermal resistor connector Runlai RL-M12-2
Plug TM25-6

Download:

MTWJ12KW Water Jet Motor Test Curve at 60V

Maytech MTWJ12KW Water Jet with Motor Testdata

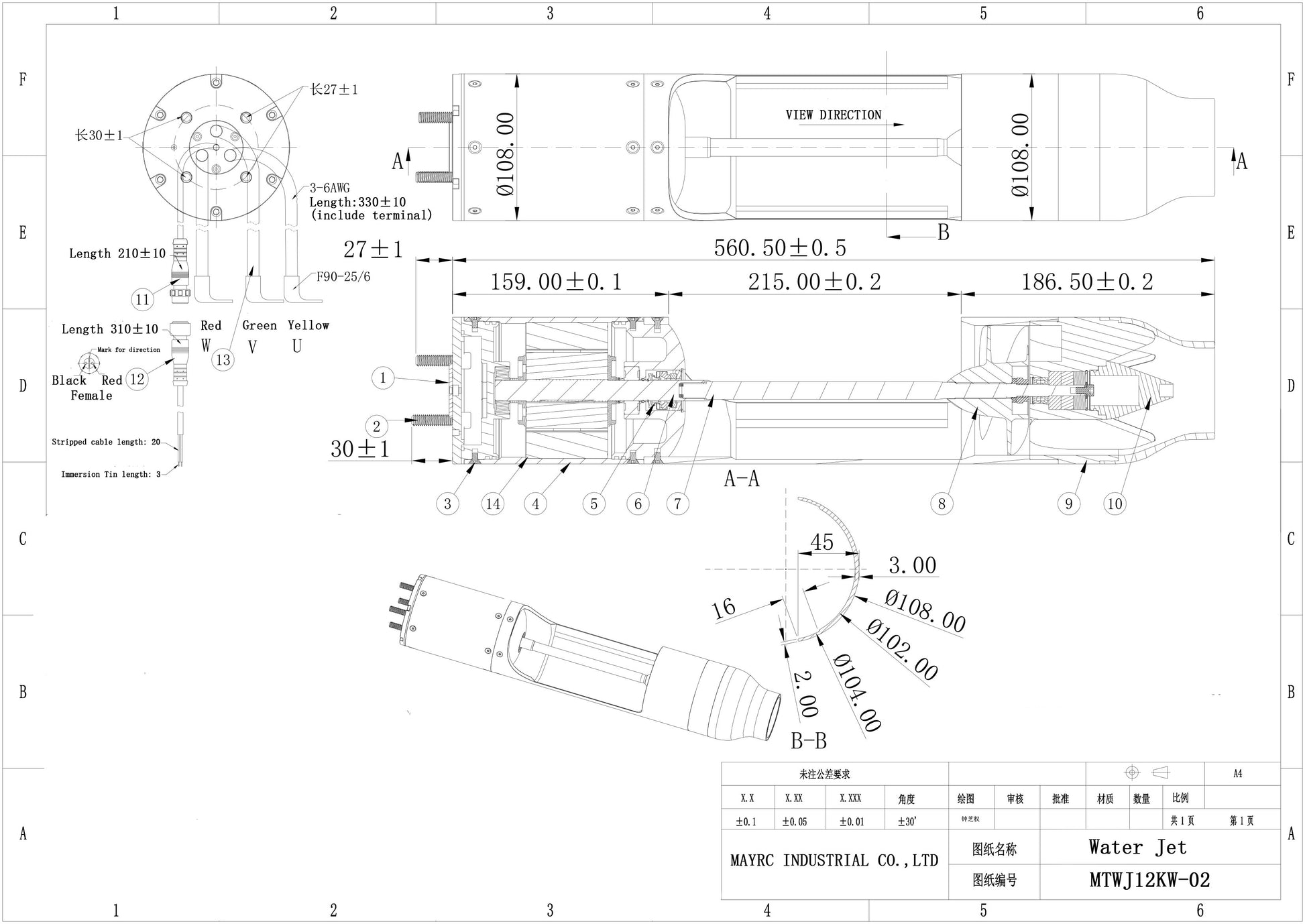

Drawing:

Maytech New 12.5KW Electric Waterjet Propulsion System MTWJ12KW For Electric Boat Jetboard

Test Curves:

Maytech New 12.5KW Electric Waterjet Propulsion System MTWJ12KW For Electric Boat Jetboard

Test Datas:

Maytech New 12.5KW Electric Waterjet Propulsion System MTWJ12KW For Electric Boat Jetboard
Maytech New 12.5KW Electric Waterjet Propulsion System MTWJ12KW For Electric Boat Jetboard
Maytech New 12.5KW Electric Waterjet Propulsion System MTWJ12KW For Electric Boat Jetboard
Maytech New 12.5KW Electric Waterjet Propulsion System MTWJ12KW For Electric Boat Jetboard

Test Video:
