New Efoil Motor 6579 110KV Fully Waterproof Brushless Motor for Electric SUP Efoil DIY Electric Foil
Please check and download clear test files by following links:
>>Check Test Data of 6579 Motor with Plastic Propeller (Max 28KG Thrust)
>>Check Test Data of 6579 Motor with Stainless Steel Propeller (Max 41KG Thrust)

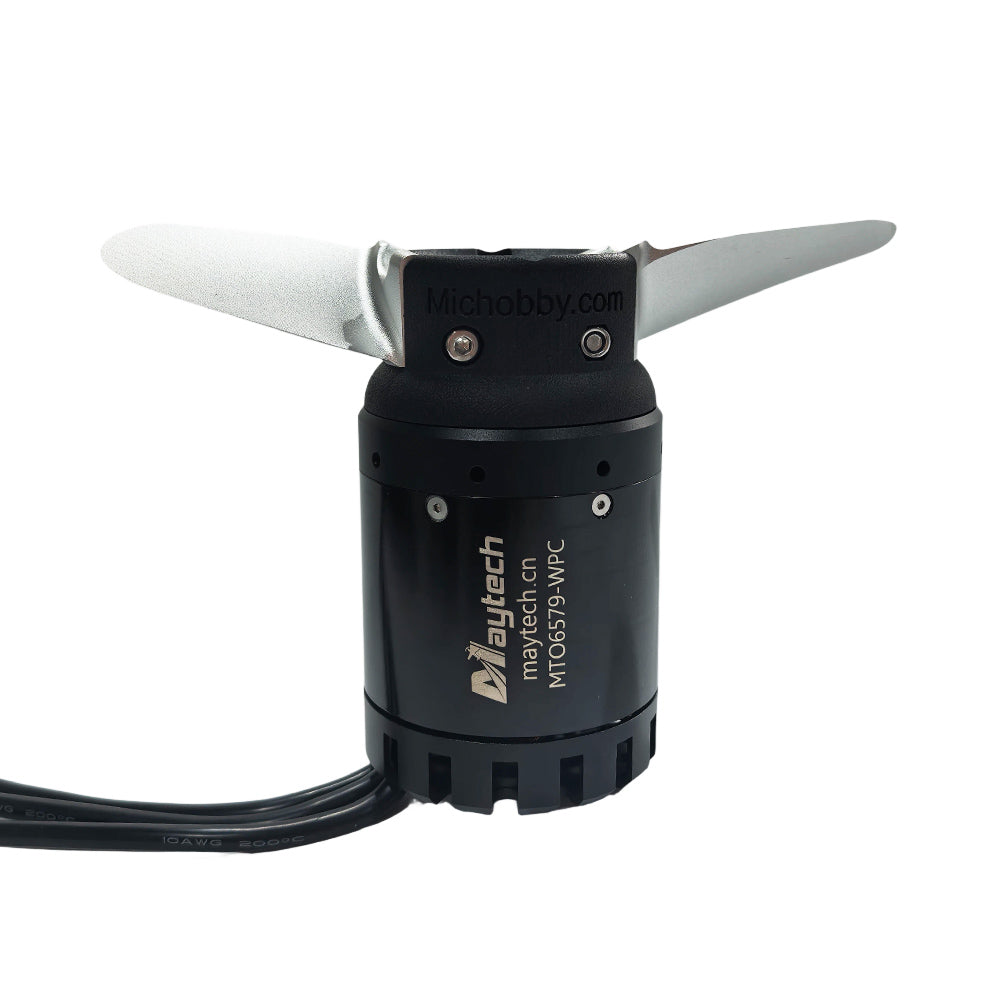

1. Fully Waterproof 6579 110KV Motor with New Waterproof Treatment Technology on Rotor and Stator.

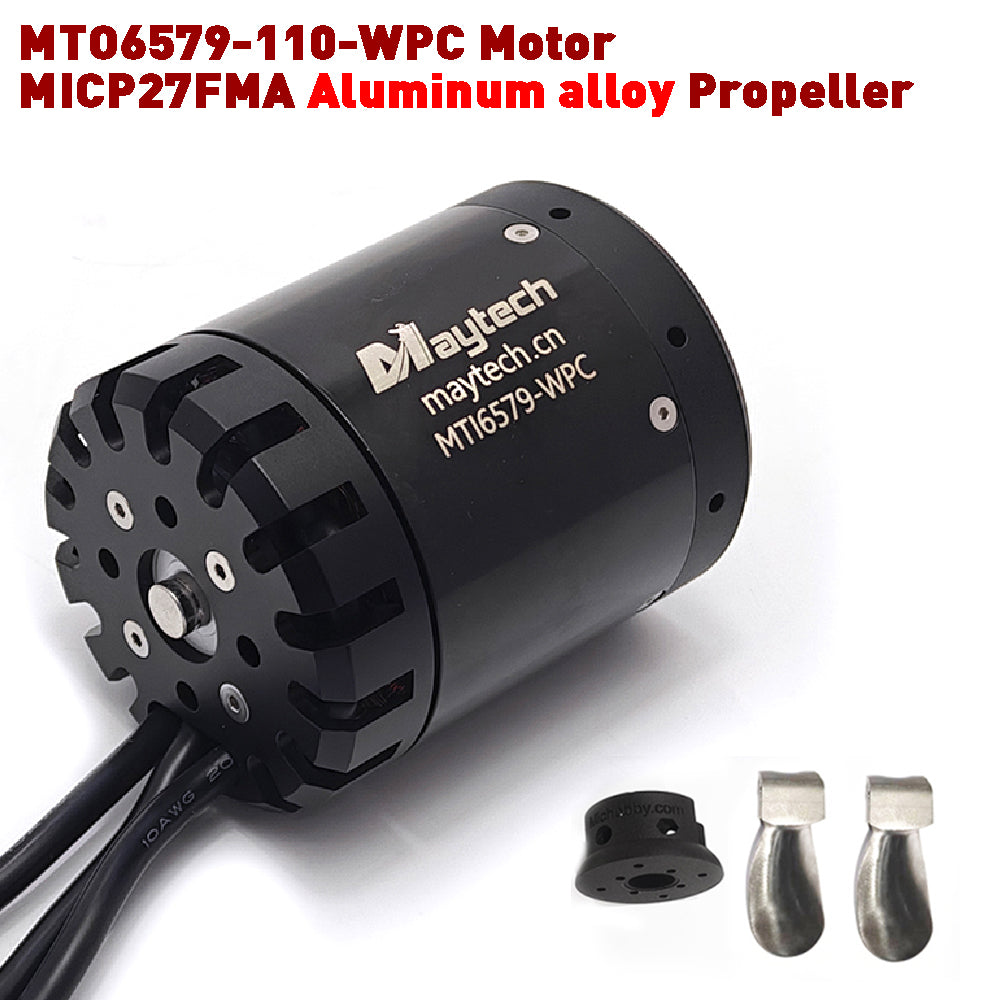

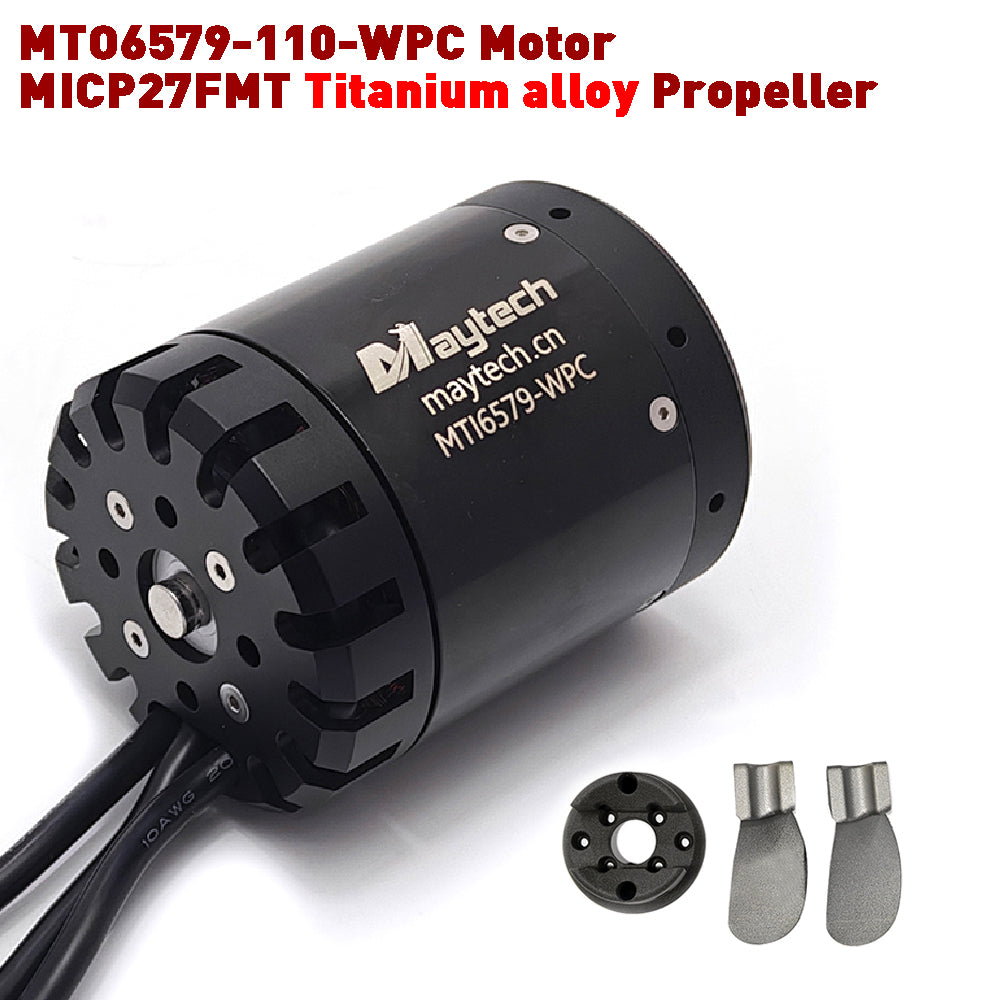

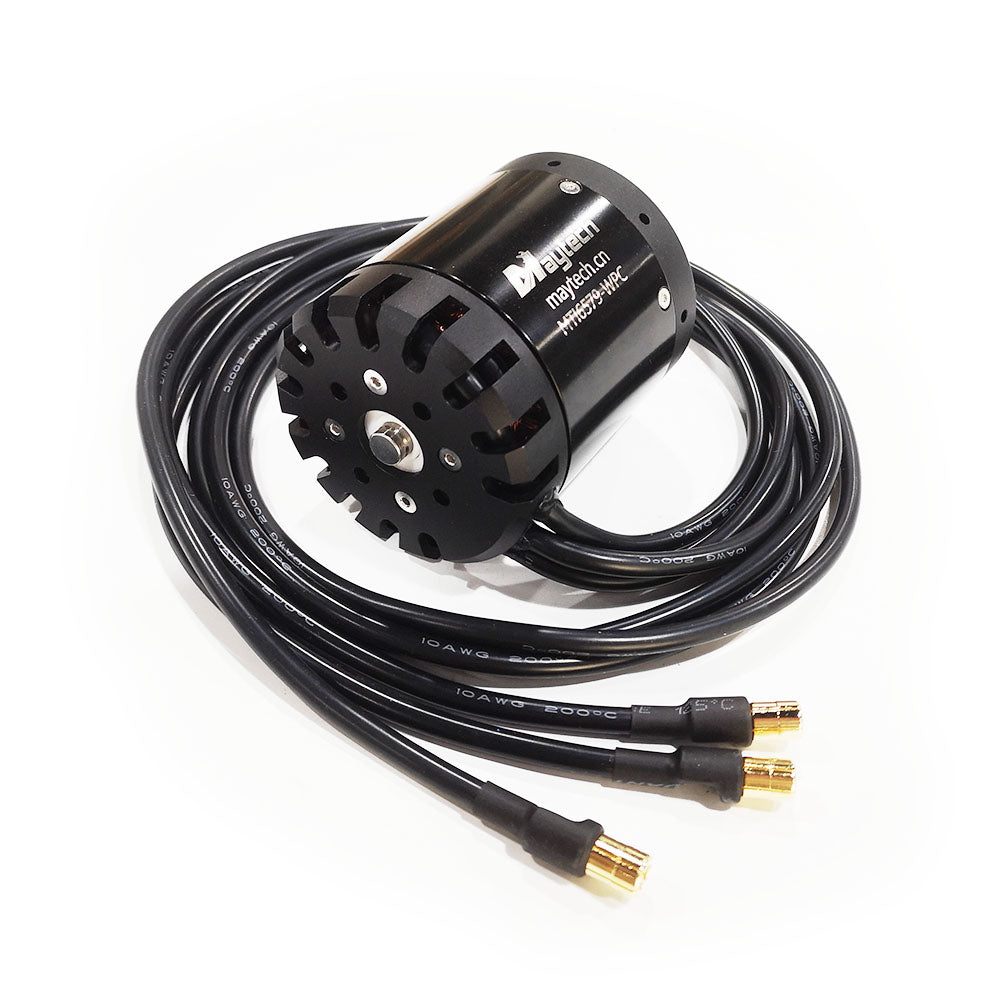

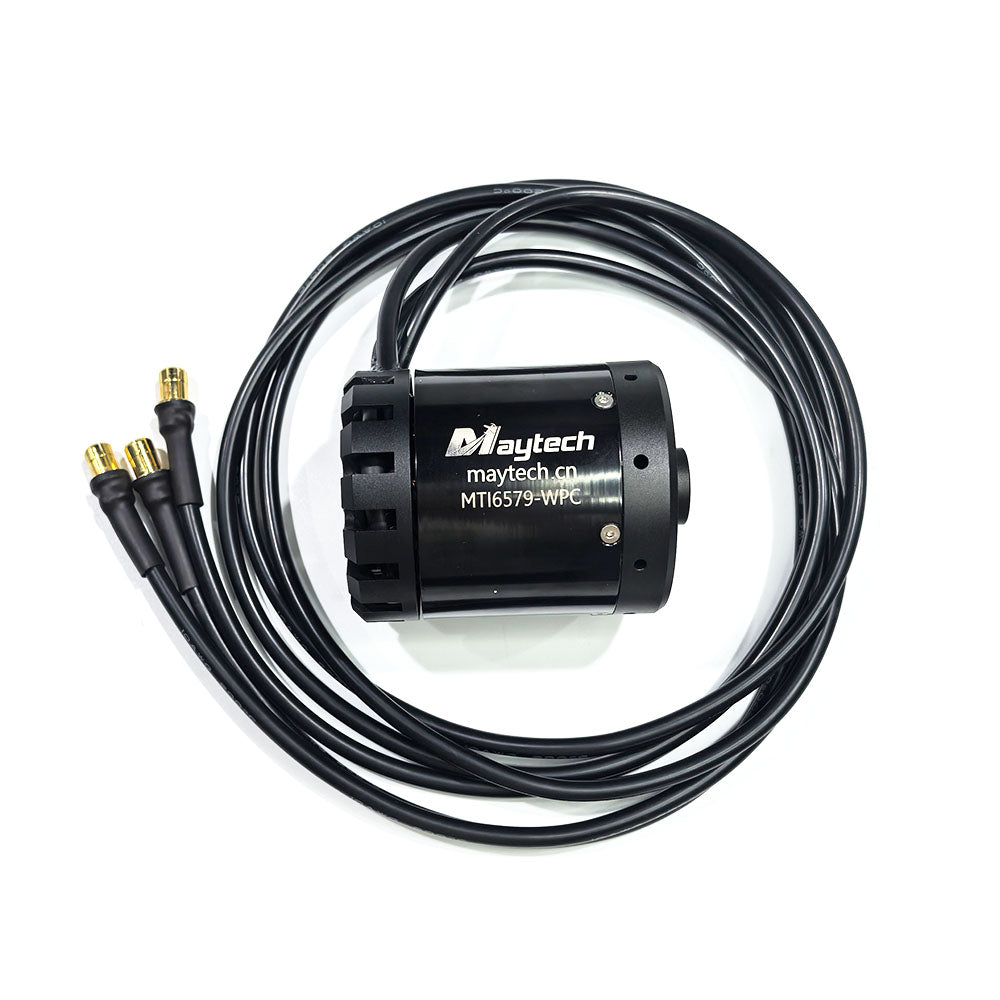

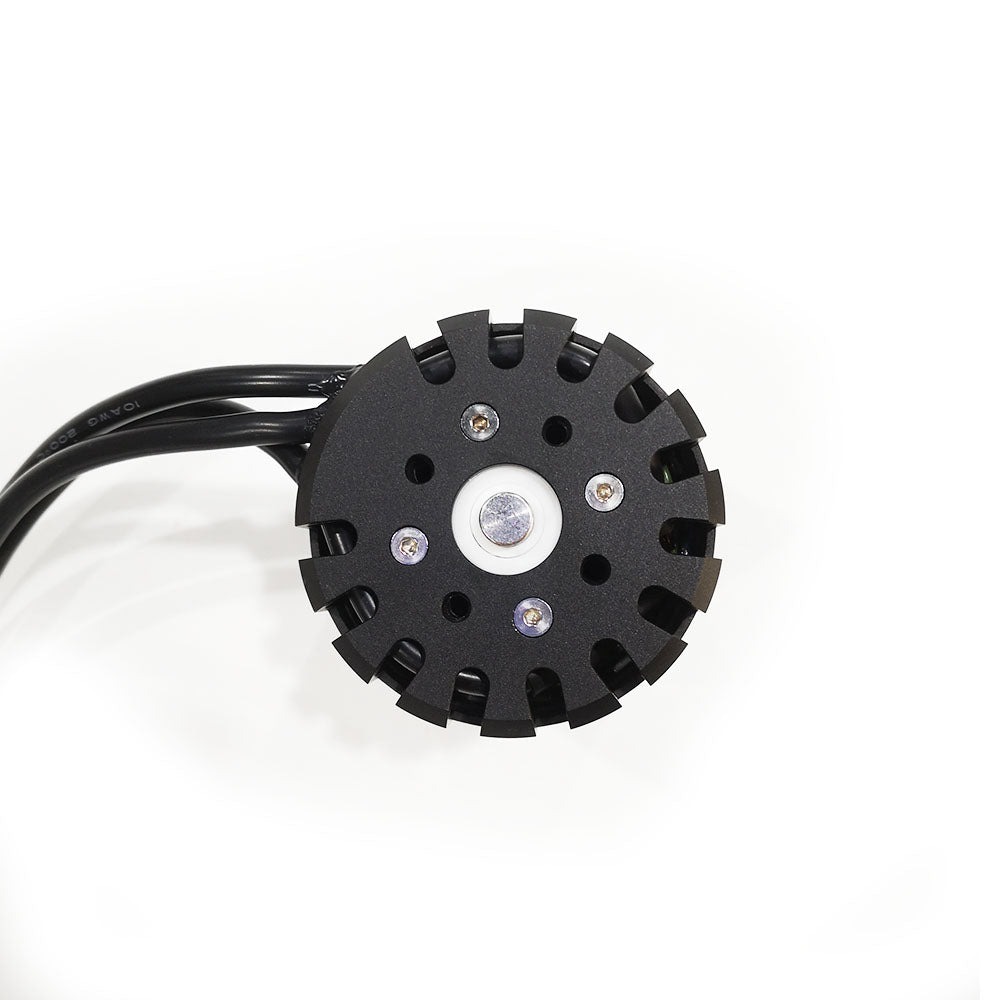

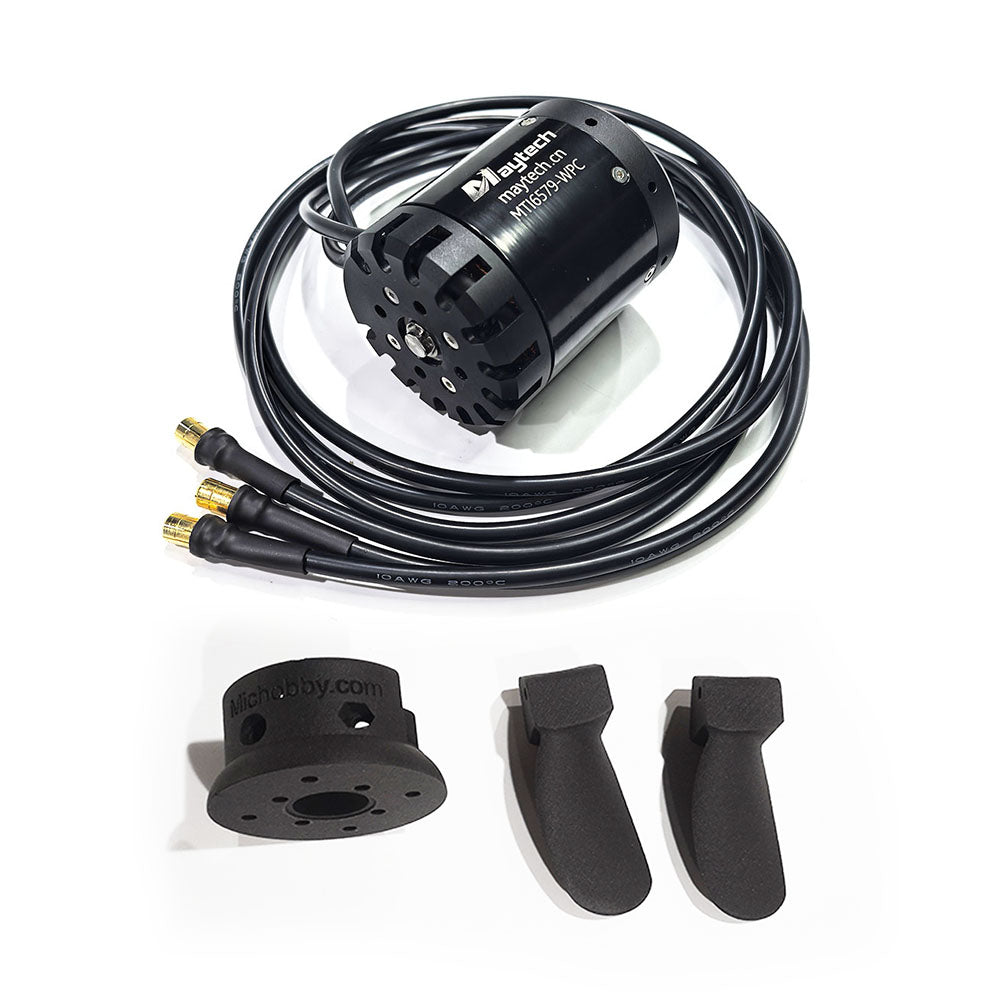

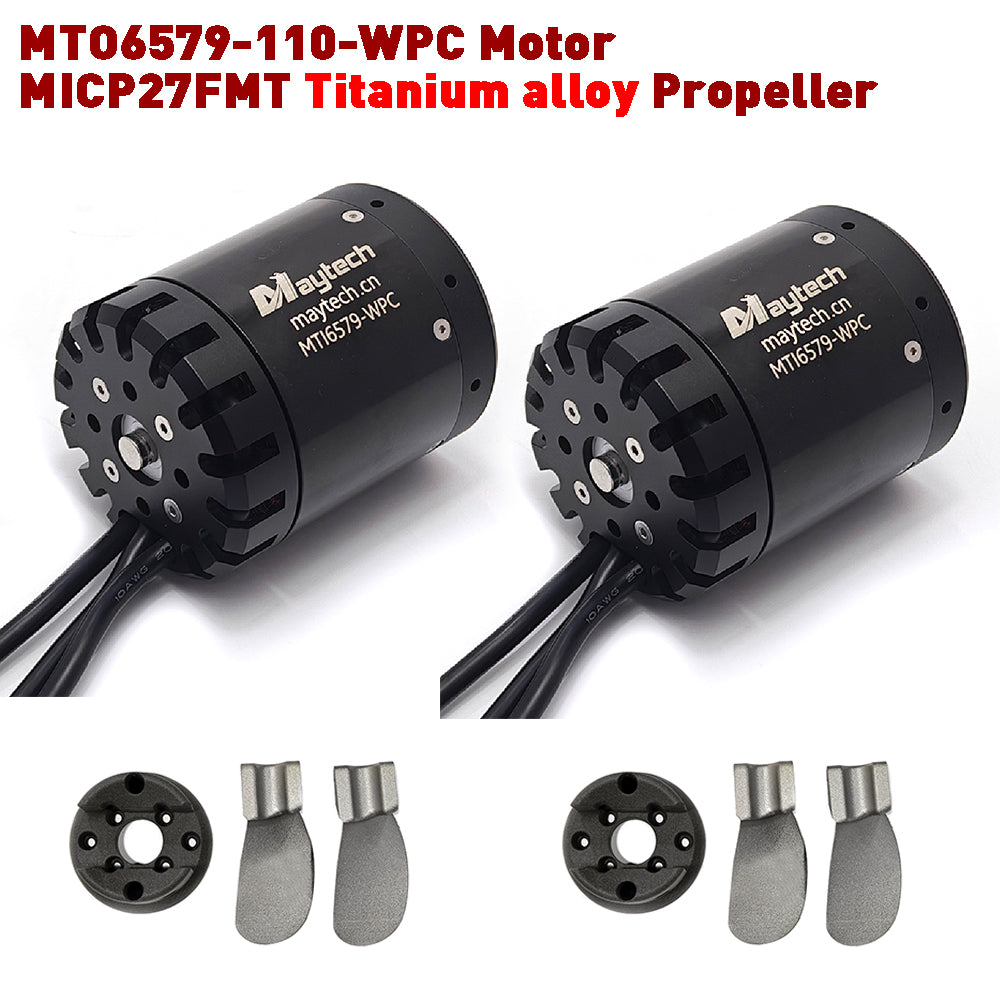

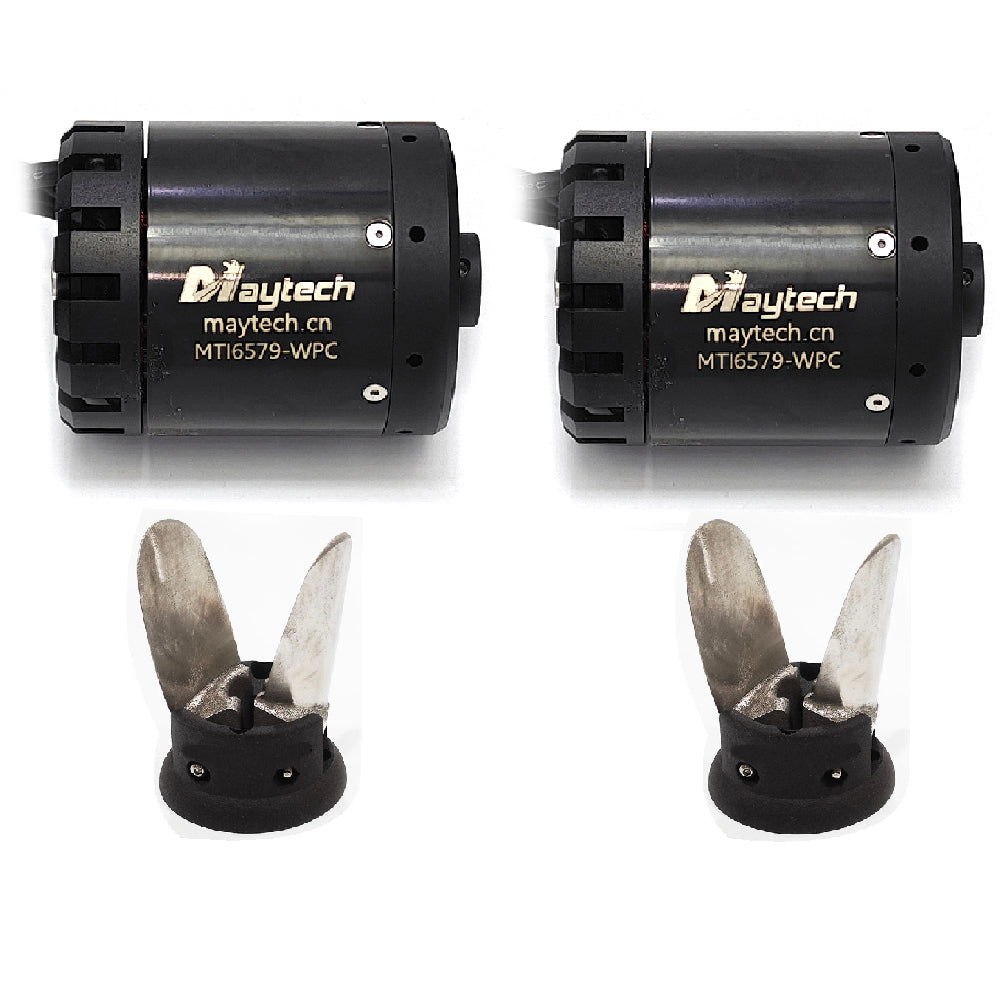

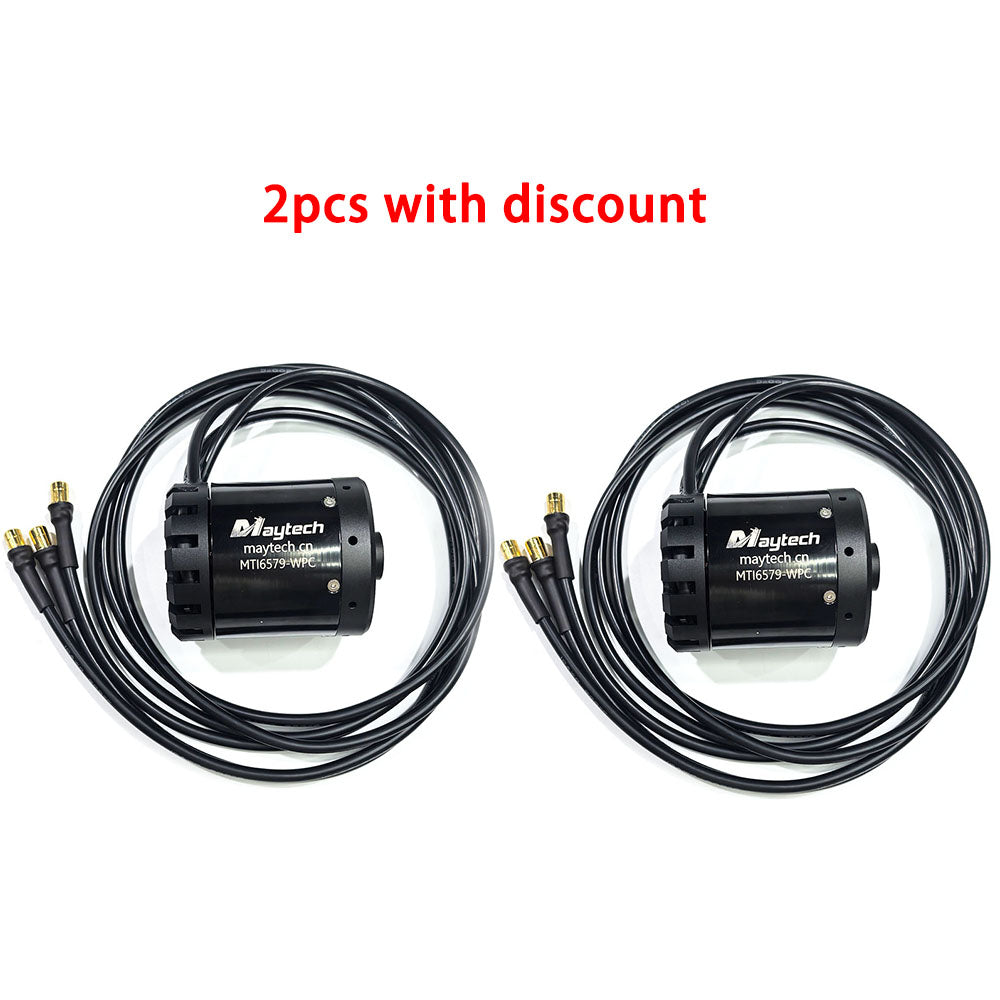

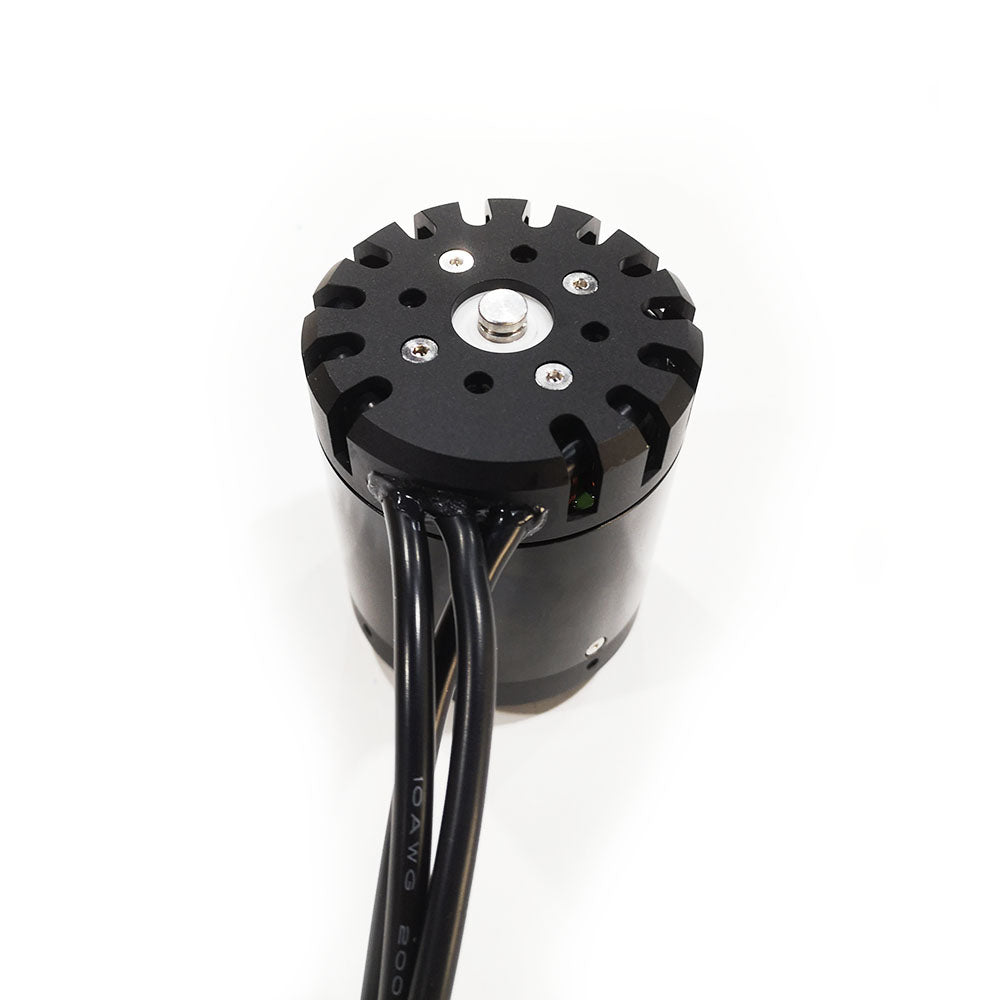

MTO6579-110-WPC 6579 Outrunner Motor
Waterproof Rating: IP68 Fully Waterproof (can be immersed in water)
Motor KV: 110 (RPM/V) KV can be customized.
Shaft: No output shaft
Max. Current: 150A
Input Volt: 20-90V
Max. Output Watt: 7.5KW
Max Torque 6.1N.M

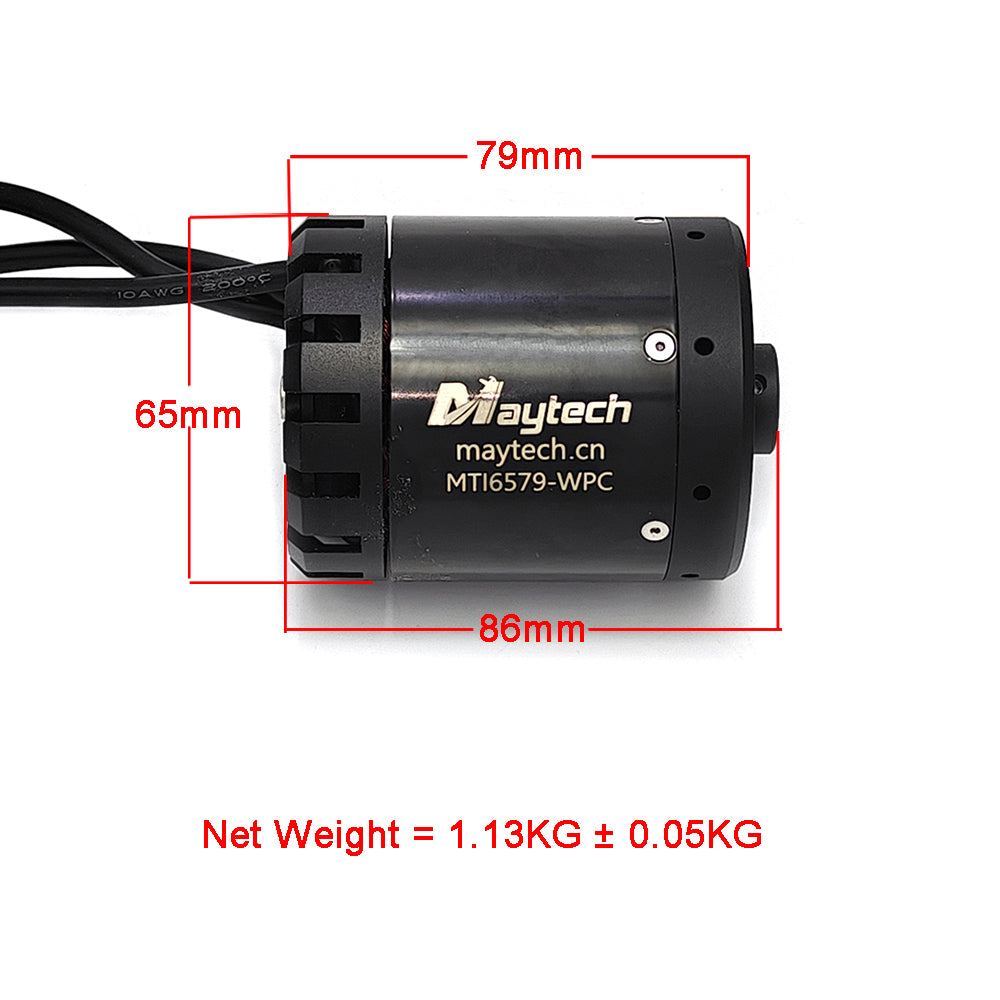

Motor size: 65x79 mm (please subject to drawing)
Motor next weight: about 1.1kg
Motor structure: 24N/20P
Bearing: Ceramic bearings

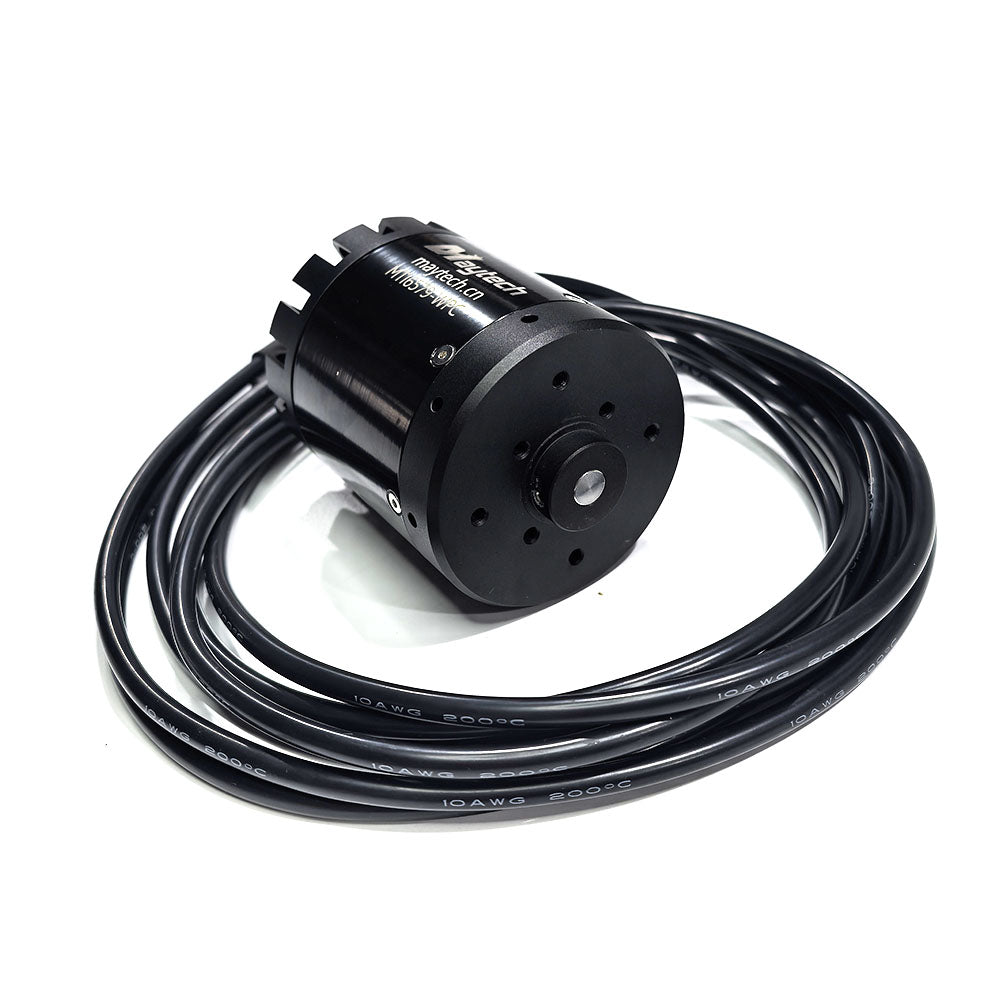

Wire length: about 1meter
Cable Guage: 3x 10AWG
Connector: 3x 8.0mm golden connectors
Without Hall Sensor
Application: For Wing foil, wind surf foil, sup foil board, electric foil board, kite foil board, underwater thruster, underwater robot, ROV, Electric Kayaks, etc.
Our advanced waterproof technology:
Rotor magnets with anti-oxidation and anti-rust treatment;
Stator with insulation paint;
Coil Copper wires with transparent insulating varnish;
Ceramic bearings.

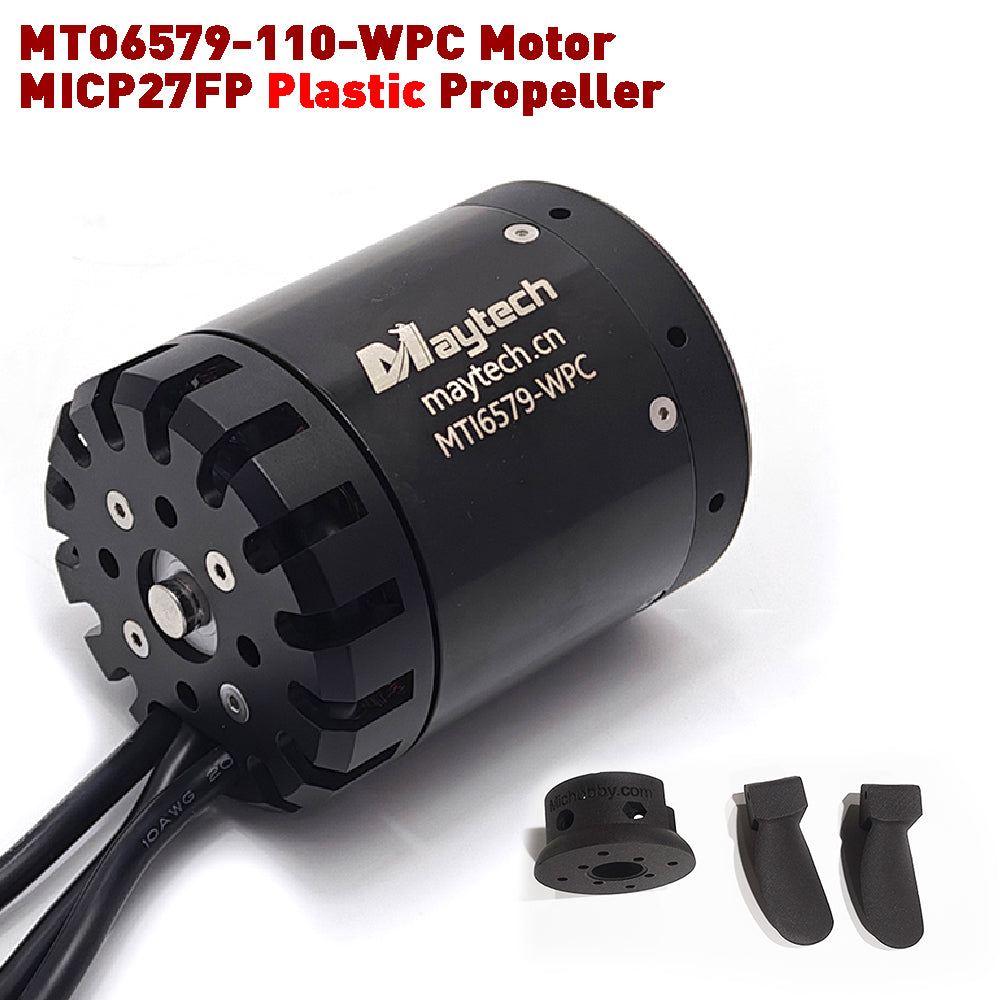

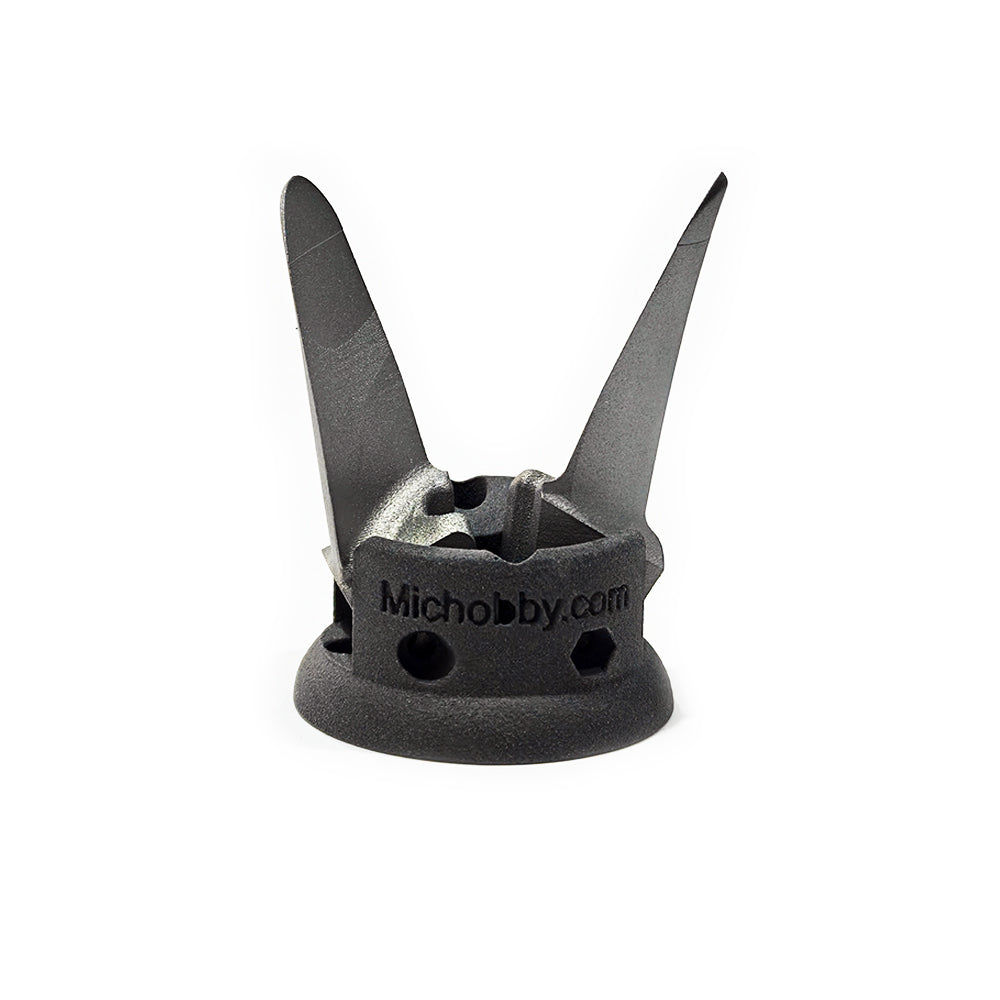

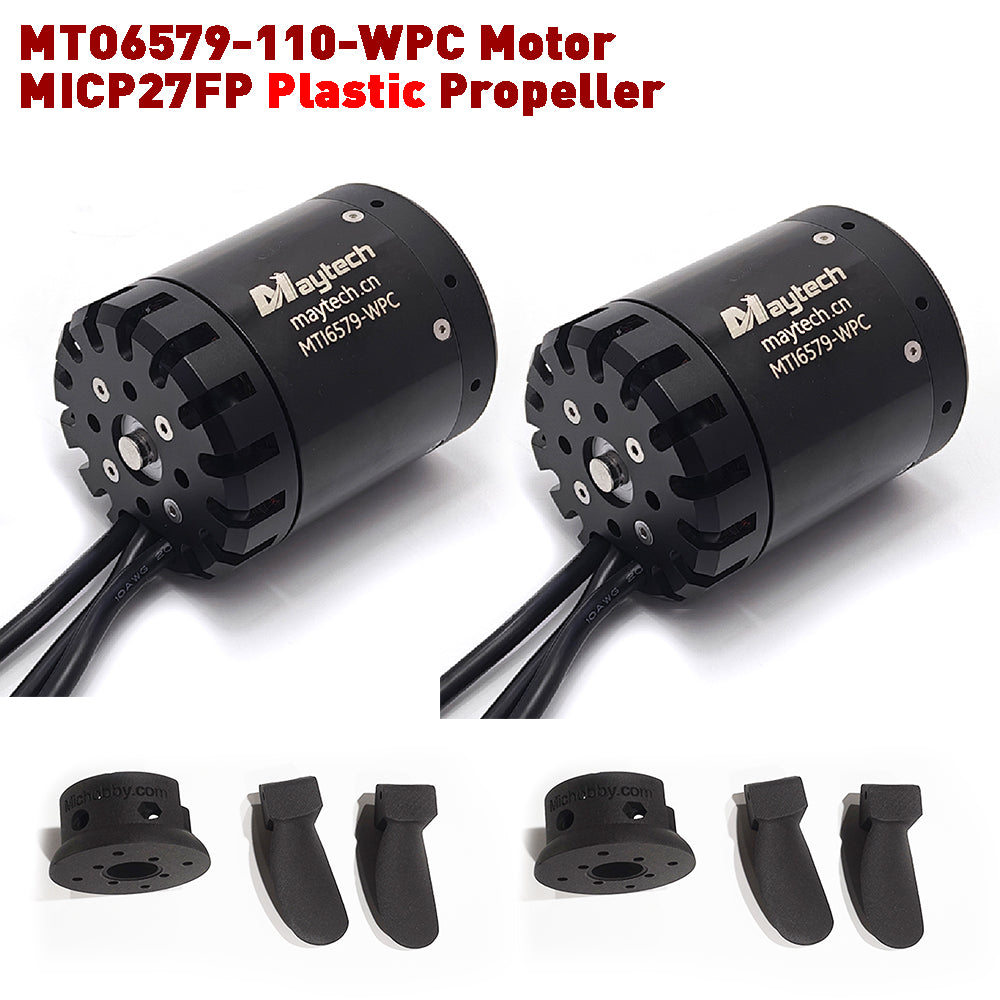

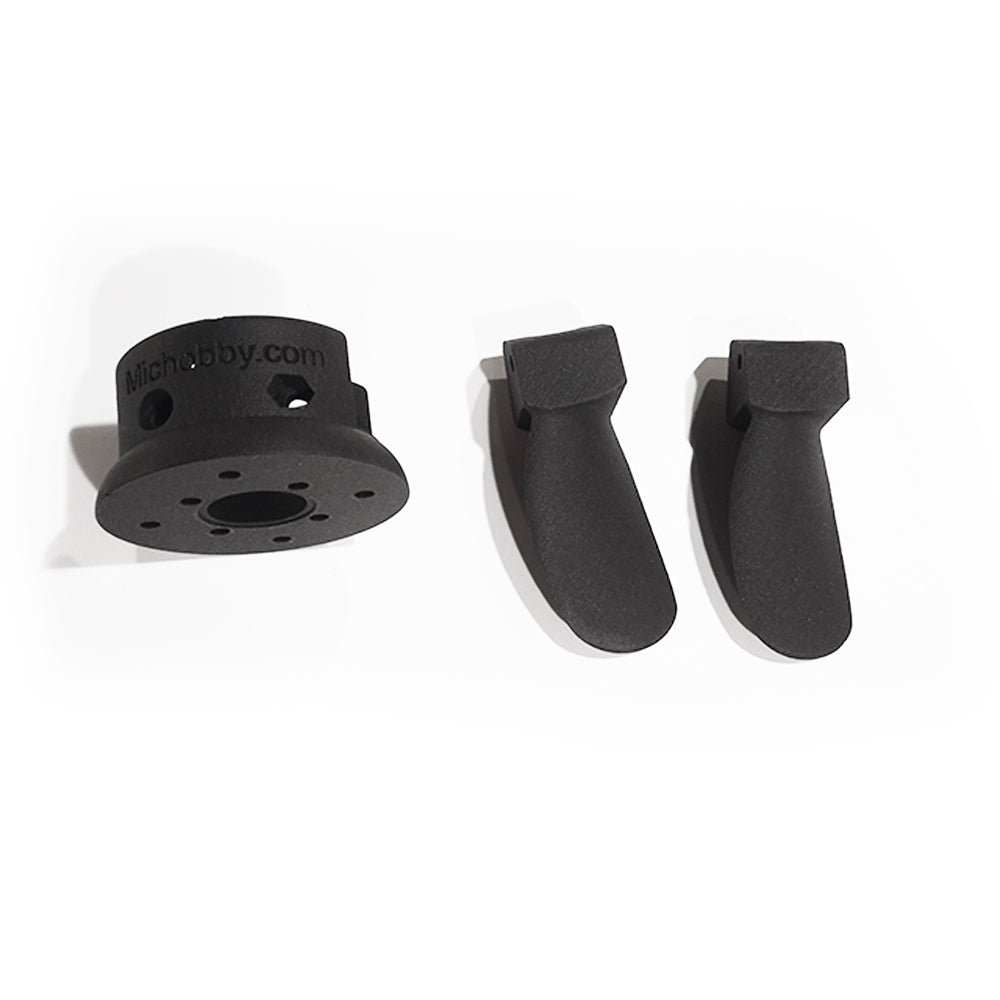

2. MICHOBBY MICP27F 3D Printed Plastic (nylon) folding propeller
Material: Nylon Powder
Color: Black

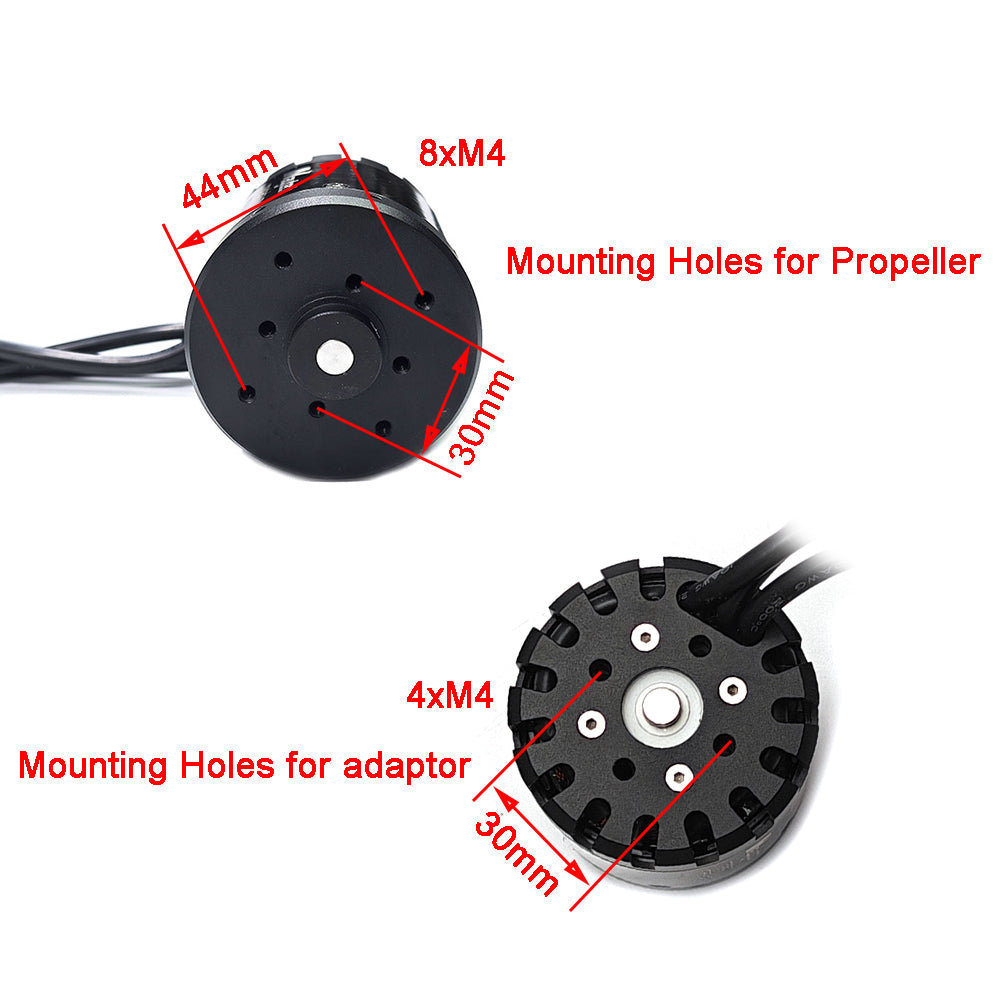

Mounting Holes: 8xM4

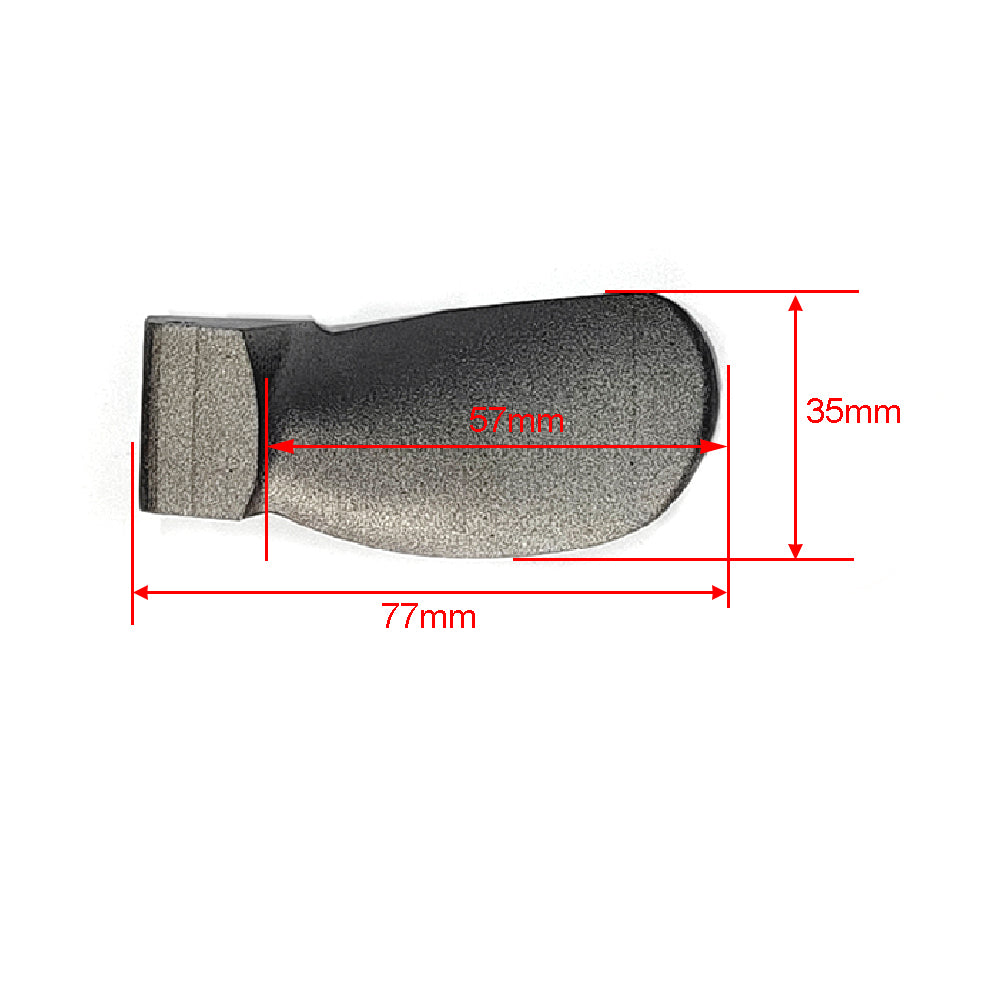

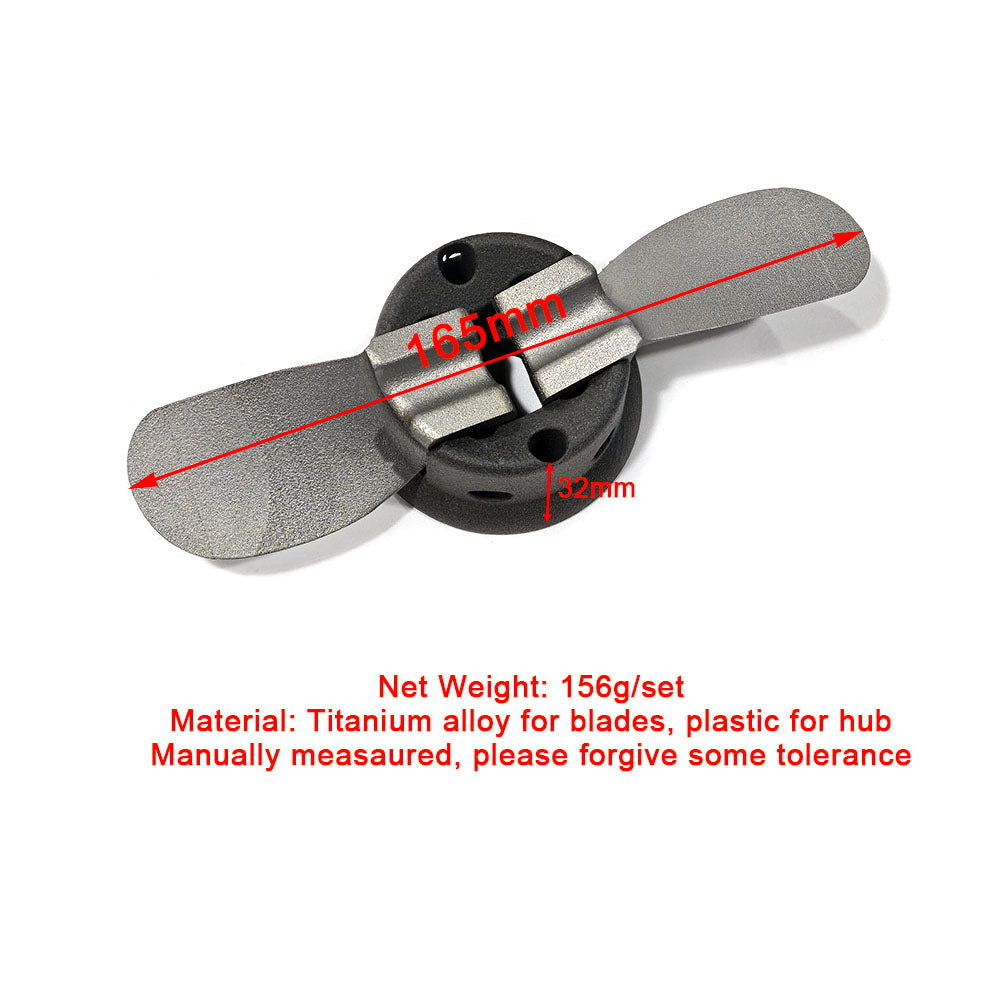

Max Rotation Diameter: 165mm/6.5'' (Approx.)
Height: 32mm/1.25'' (Approx.)

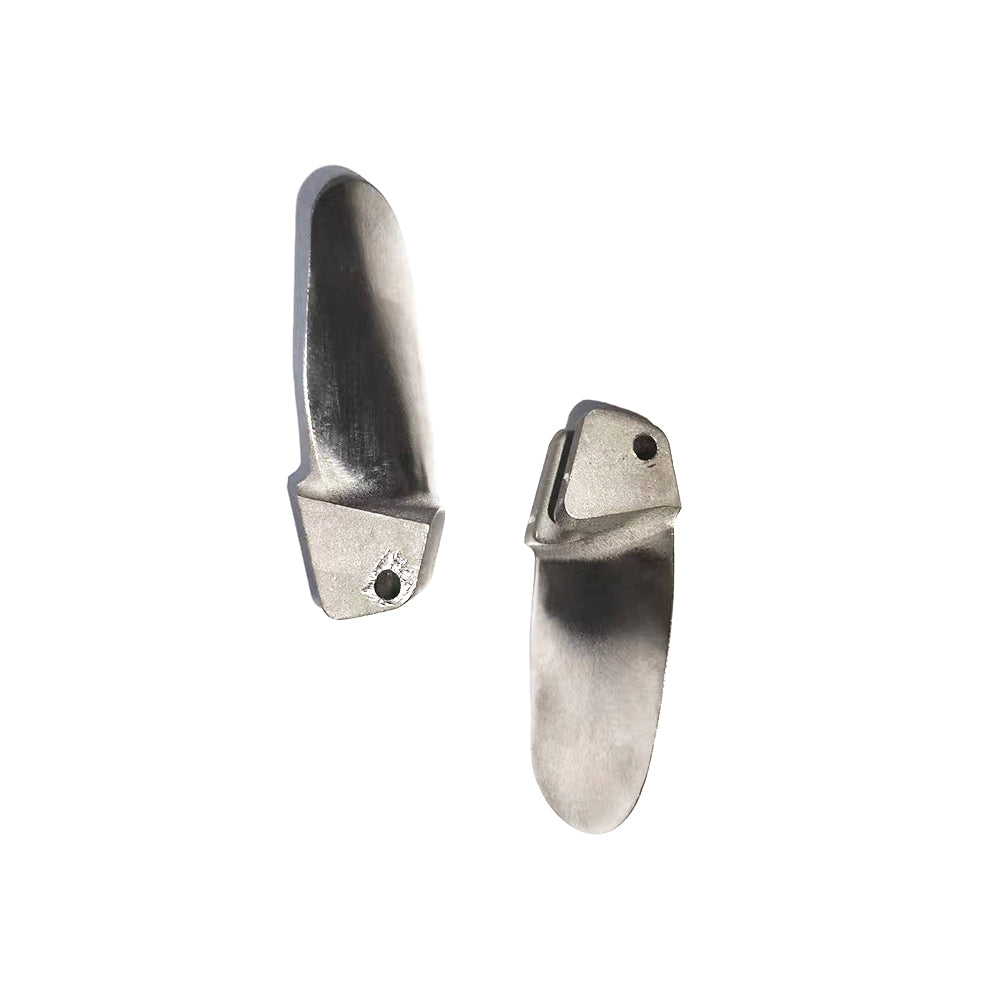

Blade Material: 316L Stainless Steel
Color: Black
Mounting Holes: 8xM4
Max Rotation Diameter: 165mm/6.5'' (Approx.)
Height: 32mm/1.25'' (Approx.)
