【IP68】Maytech New 32Bit 160A ESC Waterproof Speed Controller for Light Weight Efoil

【IP68】Maytech New 32Bit 160A ESC Waterproof Speed Controller for Light Weight Efoil

SKU:

Regular price $19.99
Regular price Sale price $19.99
Sale Sold out
Shipping calculated at checkout.
Option

Have Doubts? Contact US!!

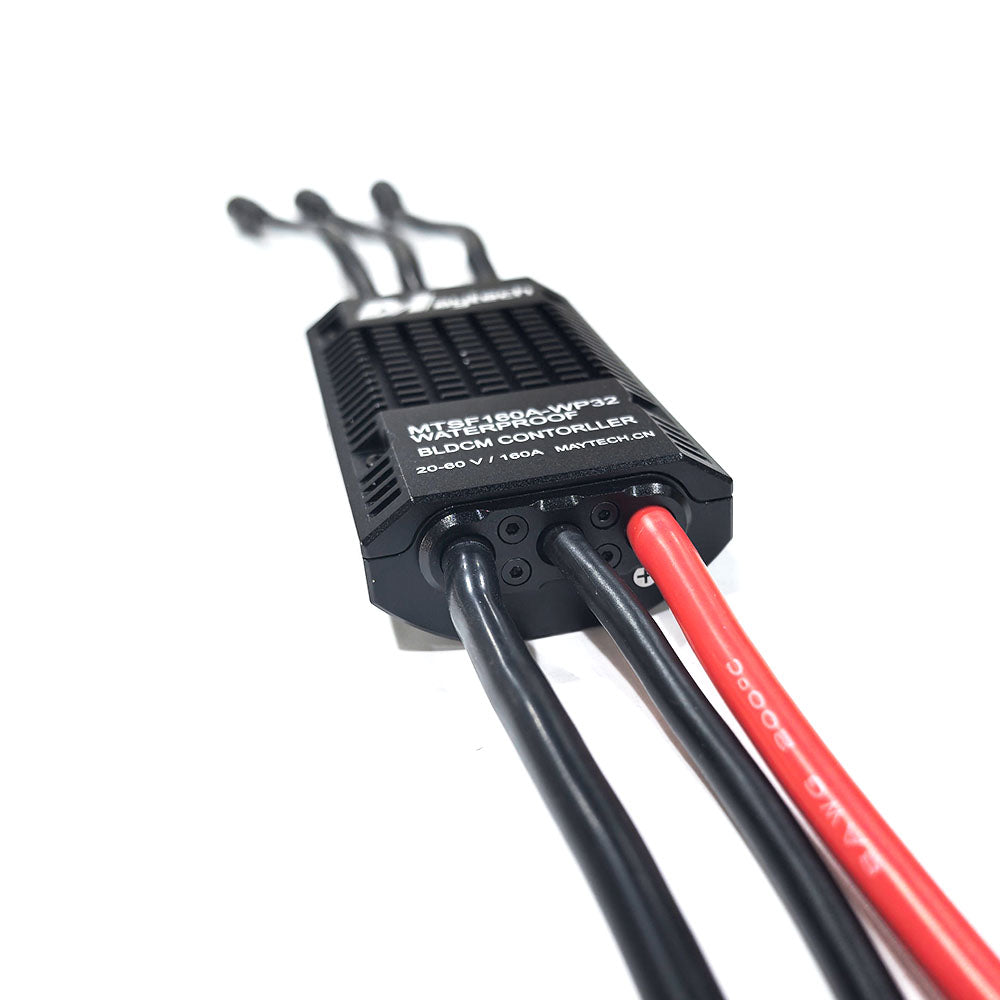

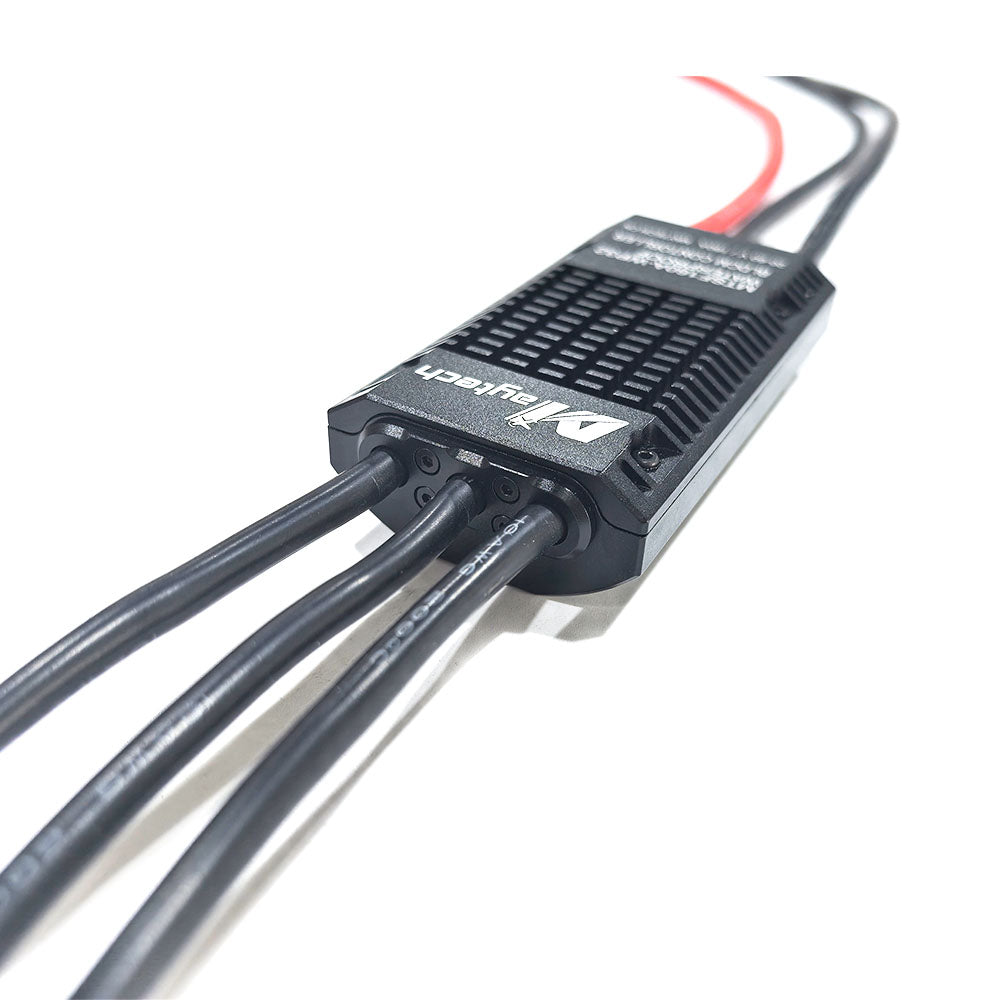

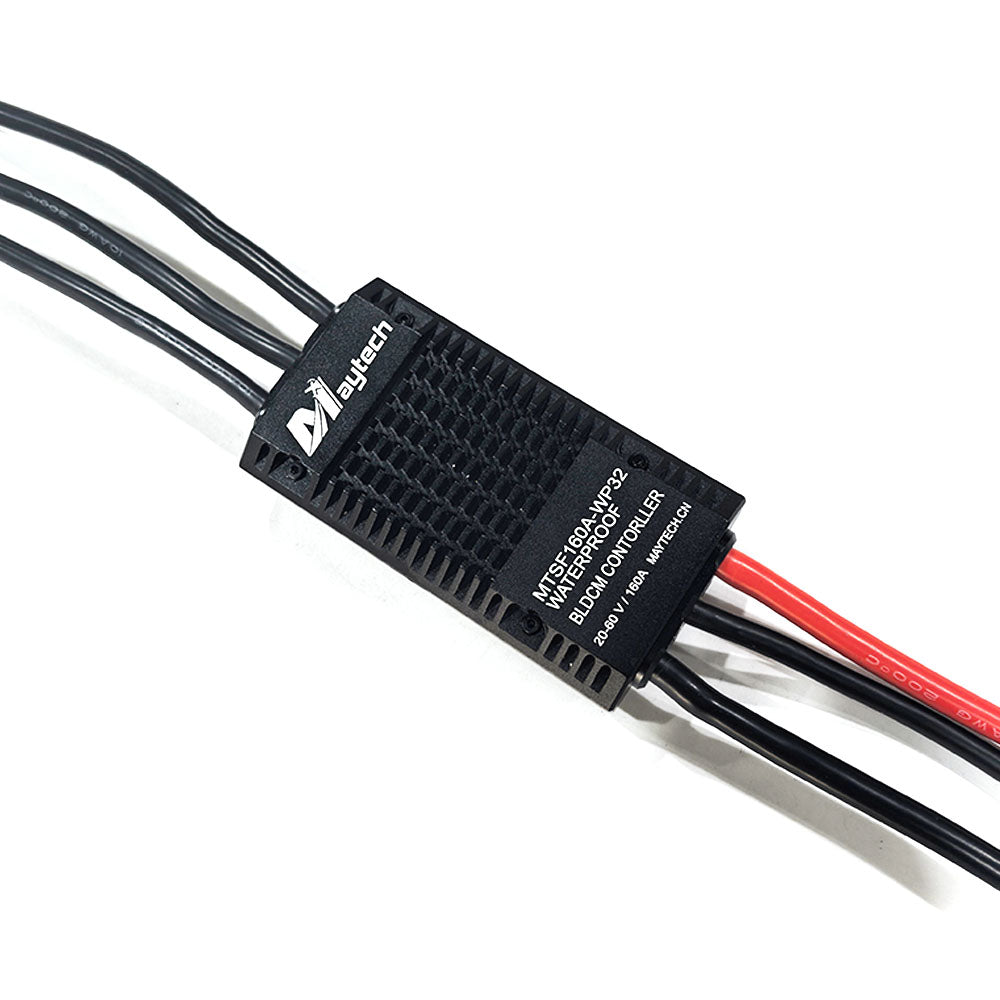

【IP68】Maytech New 32Bit 160A ESC Waterproof Speed Controller for Light Weight Efoil

Suitable for: MTI65121-130-SF / MTI65162-120-SF / MTI70182-120-SF Waterproof inrunner motors or MTO6579-110-WPC Waterproof Ourunner Motor.

1. Model No.: MTSF160A-WP32
Waterproof Rank: IP68
Cont Current: 160A
Peak Current (at 10S): 180A
Input Voltage: 6-14S Lipo (22.2V-58.8V)
With 5V/0.5A BEC
Size: 95*49*23mm
Weight: about 180g;  including wires 510g ( about 15cm wires for motor, 1-1.15m for battery)

▶ 32BIT Micropprocessor
▶ Fully sealed, IP68 water-proof (water-proof version ESC)
▶ 8-layer 3oz PCB plate, 3.4mm, support high current
▶Compact size, high efficiency, low heat.
▶Only use geniune US and Japan imported electric components.
▶Low voltage protection.
▶100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.

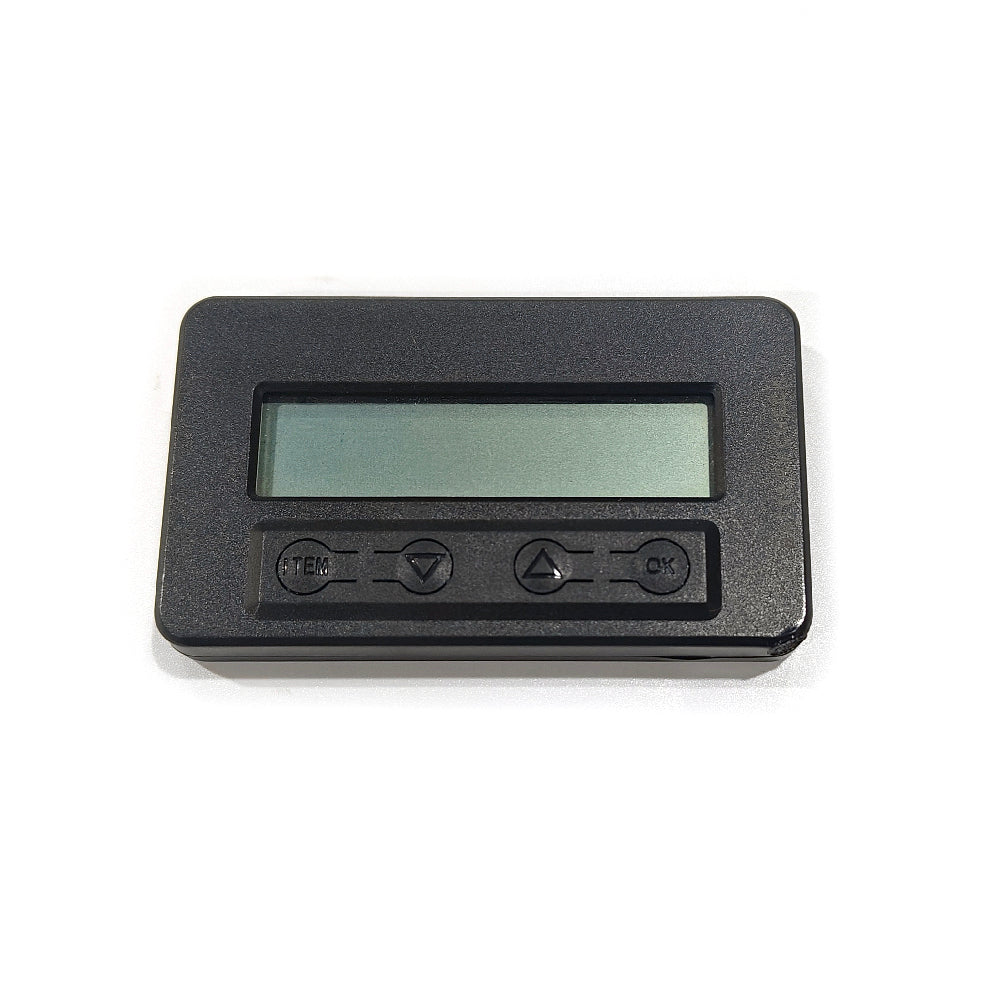

2. Progcard for programming the ESC

Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.

Please download Manual Here for orders before Oct, 2024.

Please Download Manual Here for orders from 11th Oct, 2024.

Size is updated from 11th Oct, 2024:

【IP68】Maytech New 32Bit 160A ESC Waterproof Speed Controller for Light Weight Efoil
Features:
1. Fully new circuit design, excellent algorithm
--With high performance 32bit MCU processor, greatly improved data computing ability;
--Faster respond, smoother startup;
--Throttle linear is optimized, more accurate and smoother, better compatibility;
2. Seperate control board and power board design
--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.
3. Support forward and reverse rotation
--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.
--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,
4. With kinetic energy recovery function
--Save more energy;
--Extend battery working time;
--Reduce heat

5. Low voltage protection
【IP68】Maytech New 32Bit 160A ESC Waterproof Speed Controller for Light Weight Efoil
