【IP68】Maytech New 32Bit 160A ESC Waterproof Speed Controller for Light Weight Efoil
【IP68】Maytech New 32Bit 160A ESC Waterproof Speed Controller for Light Weight Efoil
SKU:MTSF160A-WP32+Progcard
Regular price
$236.50
Regular price
Sale price
$236.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Have Doubts? Contact US!!
Have Doubts? Contact US!!

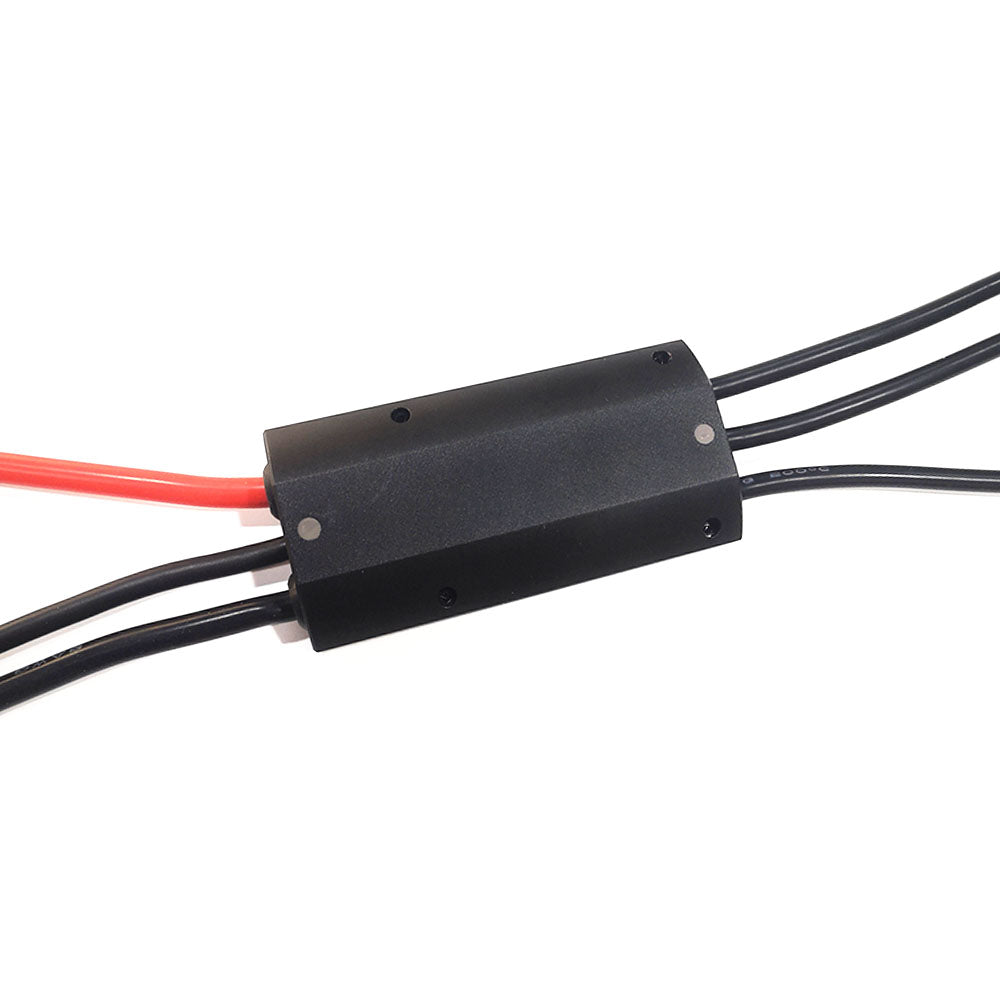

【IP68】Maytech New 32Bit 160A ESC Waterproof Speed Controller for Light Weight Efoil
1. Model No.: MTSF160A-WP32
Waterproof Rank: IP68
Cont Current: 160A
Peak Current (at 10S): 180A
Input Voltage: 6-14S Lipo (22.2V-58.8V)
With 5V/0.5A BEC

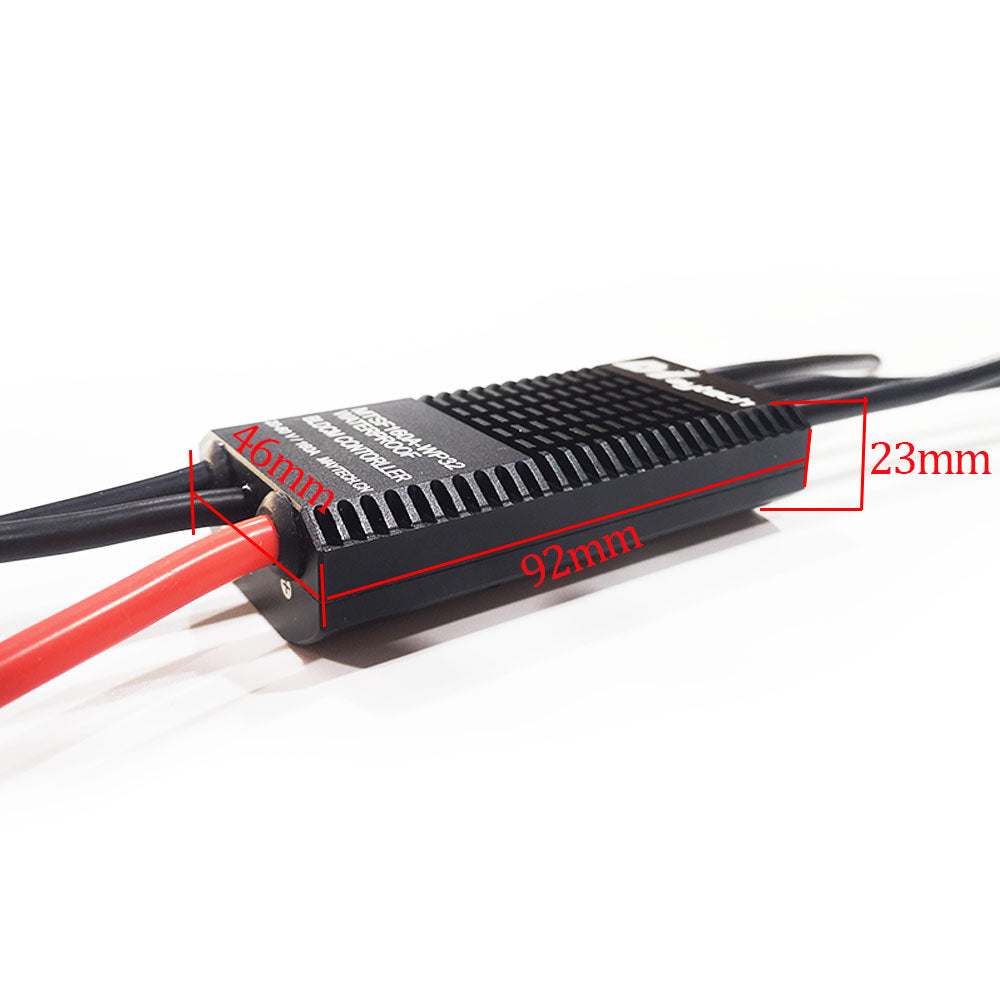

Size: 92*46*23mm
Weight: 180g
Suitable for: MTI65162-120-SF Waterproof motor or MTO6384-140-WPC Waterproof Motor.
▶ 32BIT Micropprocessor
▶ Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature, speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
▶ Fully sealed, IP68 water-proof (water-proof version ESC)
▶ 8-layer 3oz PCB plate, 3.4mm, support high current
▶Compact size, high efficiency, low heat.
▶Only use geniune US and Japan imported electric components.
▶Over-heat, over-voltage, over-current, low voltage protection.
▶100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.
▶ Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature, speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
▶ Fully sealed, IP68 water-proof (water-proof version ESC)
▶ 8-layer 3oz PCB plate, 3.4mm, support high current
▶Compact size, high efficiency, low heat.
▶Only use geniune US and Japan imported electric components.
▶Over-heat, over-voltage, over-current, low voltage protection.
▶100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.

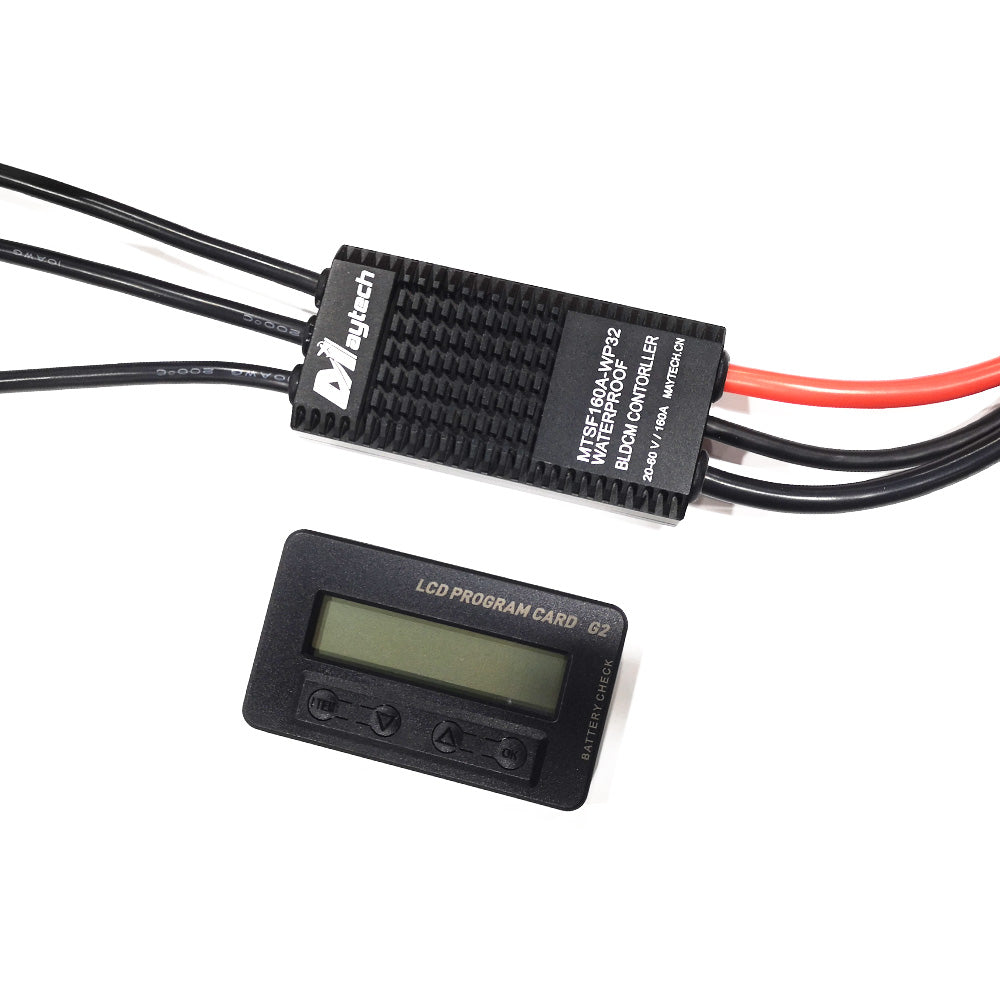

2. Progcard for programming the ESC
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.
Features:
1. Fully new circuit design, excellent algorithm
--With high performance 32bit MCU processor, greatly improved data computing ability;
--Faster respond, smoother startup;
--Throttle linear is optimized, more accurate and smoother, better compatibility;
2. Seperate control board and power board design
--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.
3. Support forward and reverse rotation
--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.
--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,
4. With kinetic energy recovery function
--Save more energy;
--Extend battery working time;
--Reduce heat
5. Multiple protections
--Startup protection;
--Over-temp protection;
--Low voltage protection;
--Phase loss protection;
--Signal loss protection
