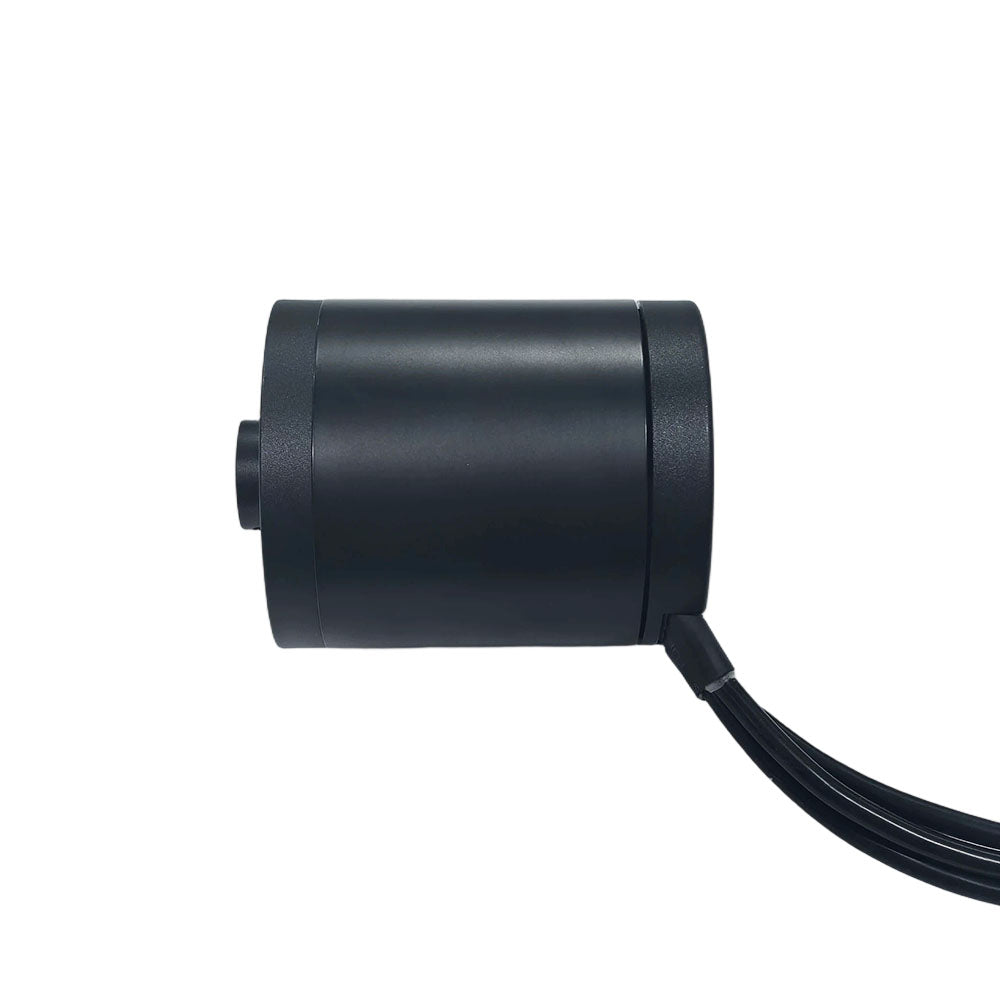

Efoil Motor 6384 140KV Fully Waterproof Brushless Motor for Electric SUP Efoil DIY Electric Foil
Efoil Motor 6384 140KV Fully Waterproof Brushless Motor for Electric SUP Efoil DIY Electric Foil
SKU:MTO6384-140-WPC
Couldn't load pickup availability
Have Doubts? Contact US!!
Have Doubts? Contact US!!
Efoil Motor 6384 140KV Fully Waterproof Brushless Motor for Electric SUP Efoil DIY Electric Foil
Maytech New Motor/ESC/Remote Kit, easily to convert your non-electric foil, wind foil, kite surf, sup board, wing foil, etc to electric.1. Fully Waterproof 6384 140KV Motor with New Waterproof Treatment Technology on Rotor and Stator.

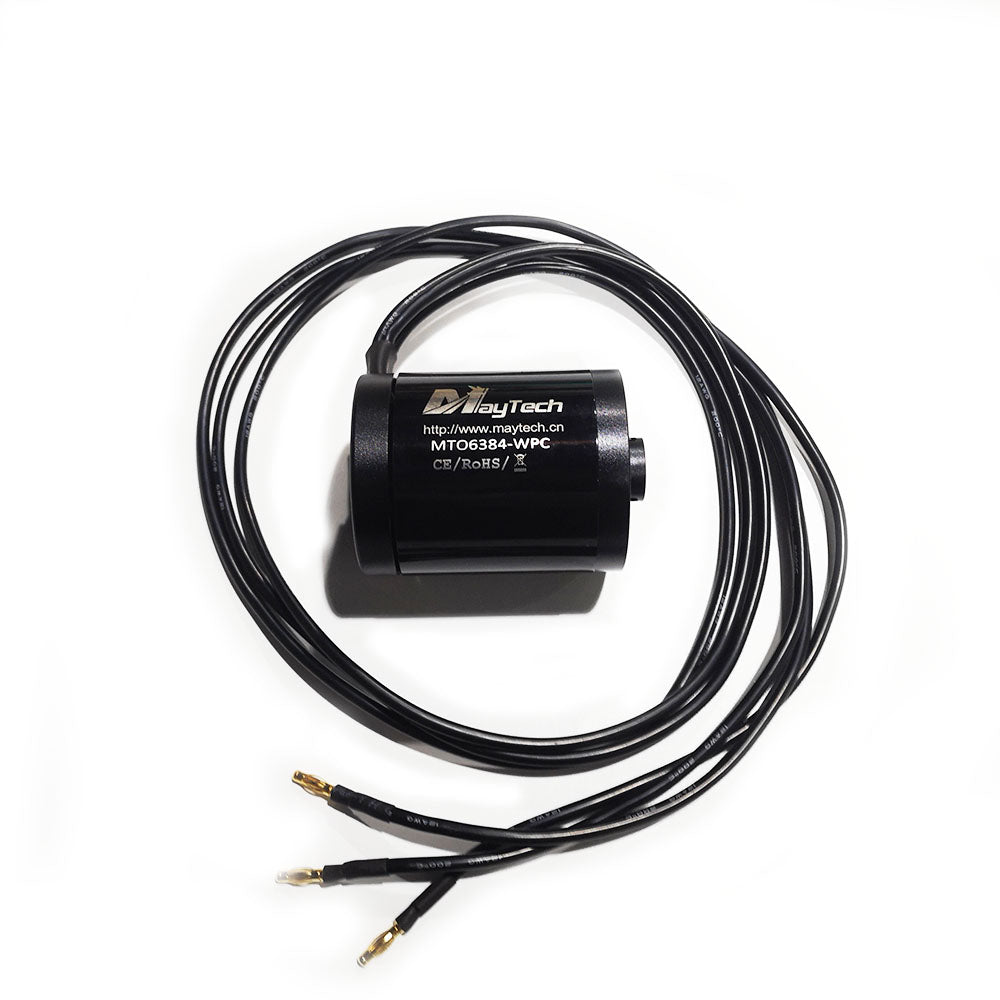

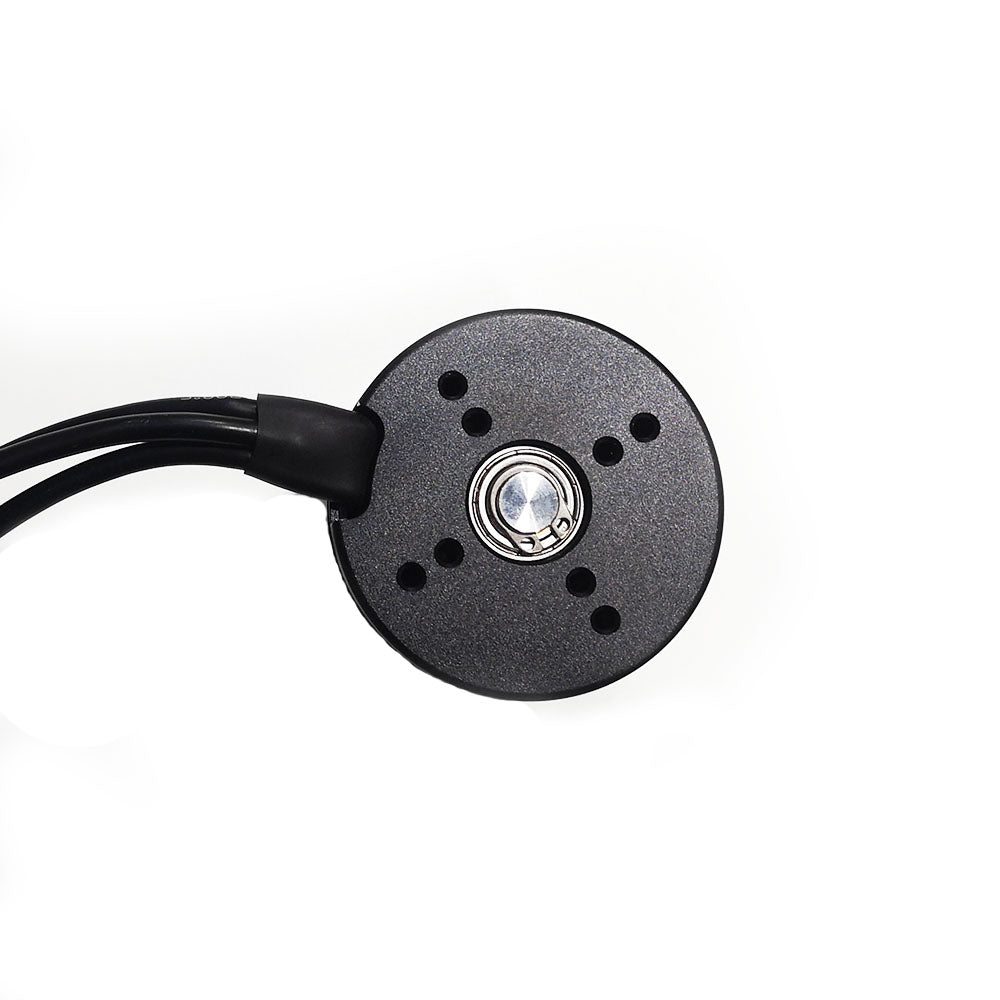

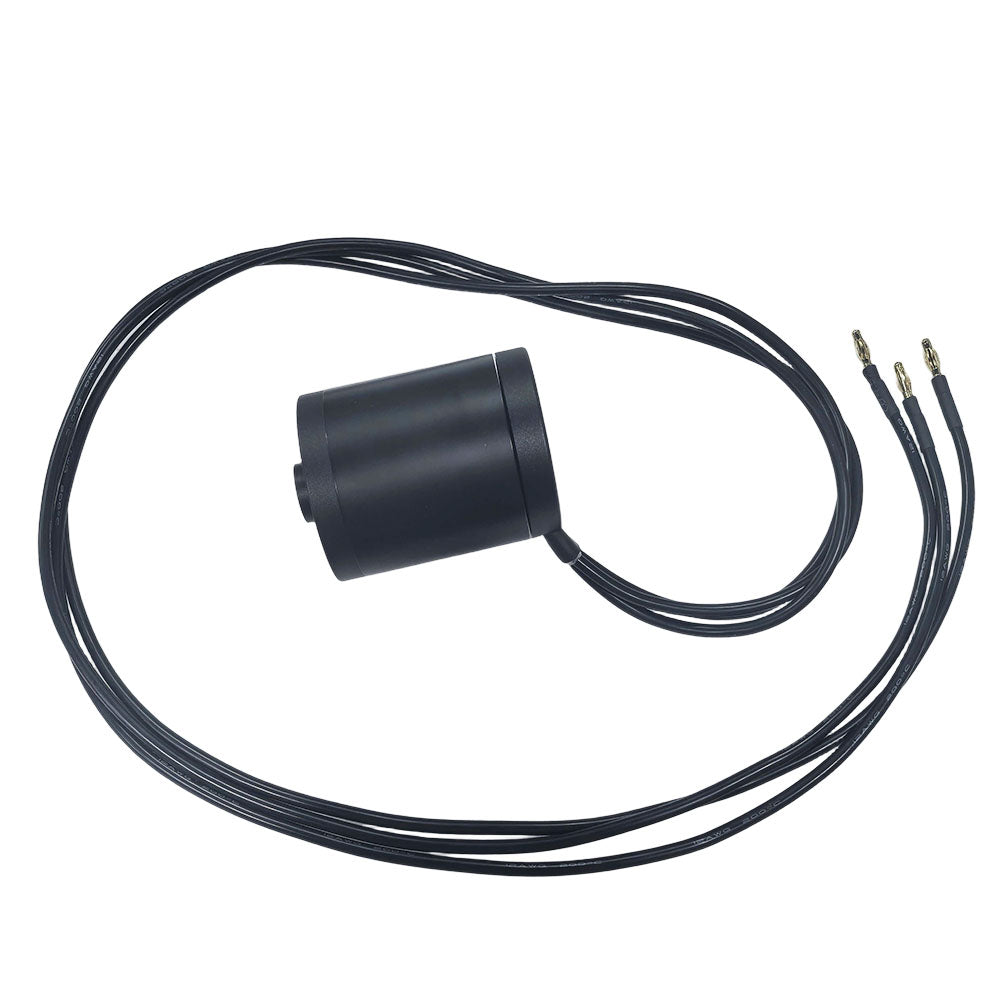

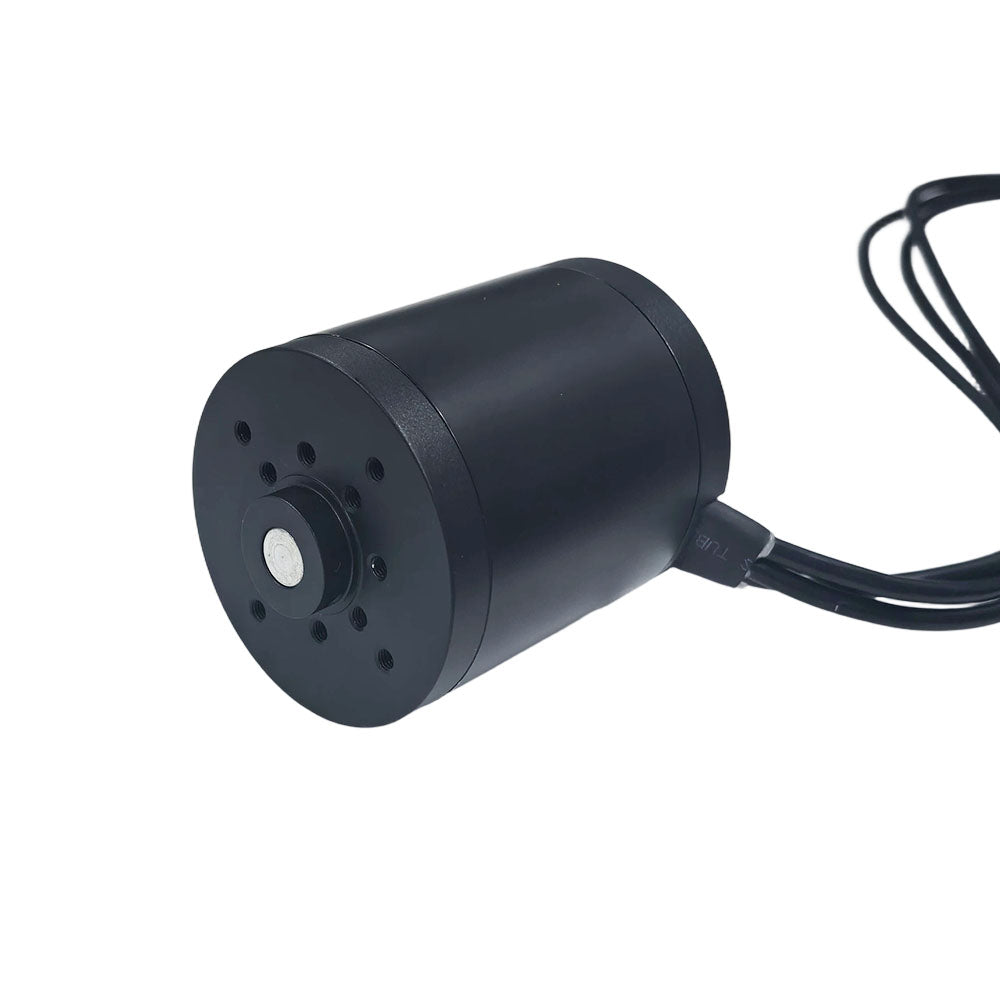

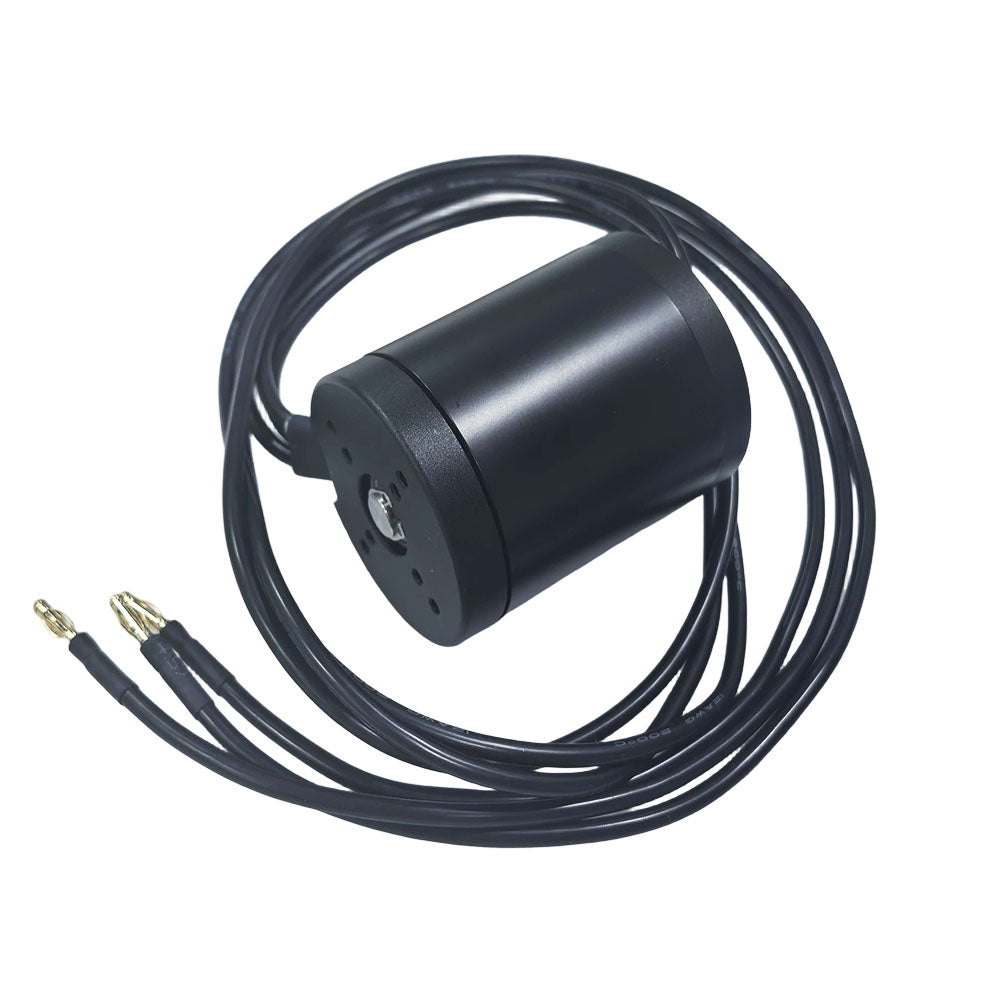

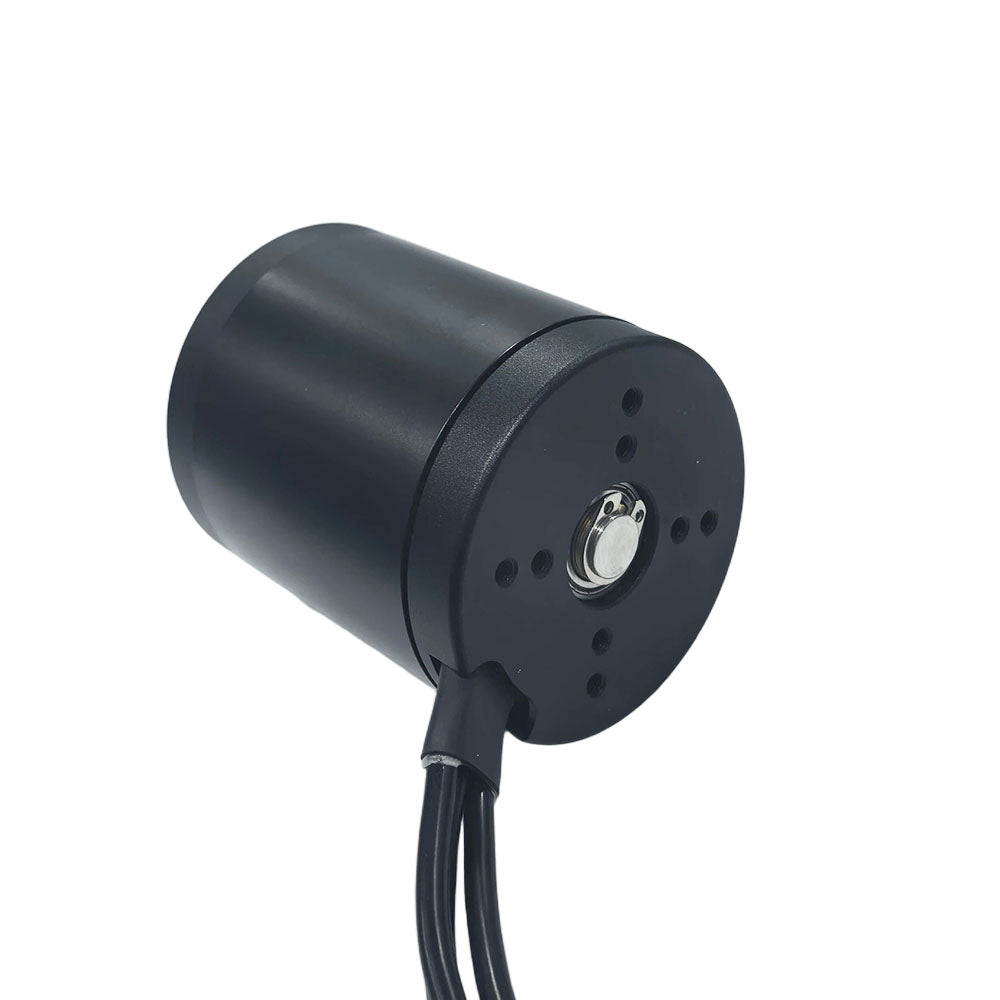

MTO6384-140-WPC 6384 Outrunner Motor
Fully Waterproof (can be immersed in water)
Max Torque 8.8N.M;
Motor KV: 140 (RPM/V) KV can be customized.
Shaft: No output shaft
Max. Current: 100A
Input Volt: 3-12Lipo cell
Max. Output Watt: 5000W

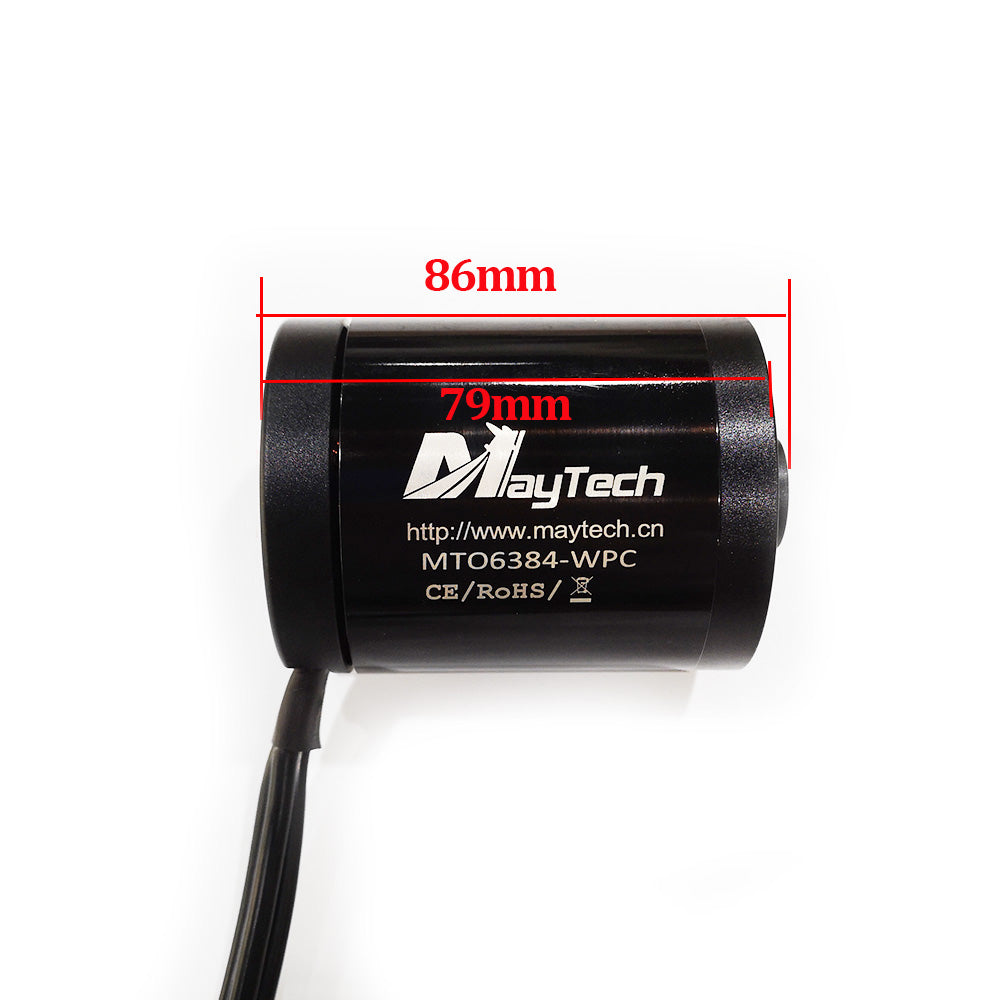

Motor size: 62.6*84mm
Motor next weight: about 1.2kg; including wires about 1.32kg
Wire length: about 1meter
Without Hall Sensor
Application: For Wing foil, wind surf foil, sup foil board, electric foil board, kite foil board, underwater thruster, underwater robot, ROV, Electric Kayaks, etc.
Our advanced waterproof technology:
Rotor magnets with anti-oxidation and anti-rust treatment;
Stator with insulation paint;
Coil Copper wires with transparent insulating varnish;
Stainless Steel bearing.
Stainless Steel Bearing:
Because seawater is corrosive, after some time use may get rust, need to wash with fresh water everytime after use, and keep
the motor all dry, so to expand lifespan.

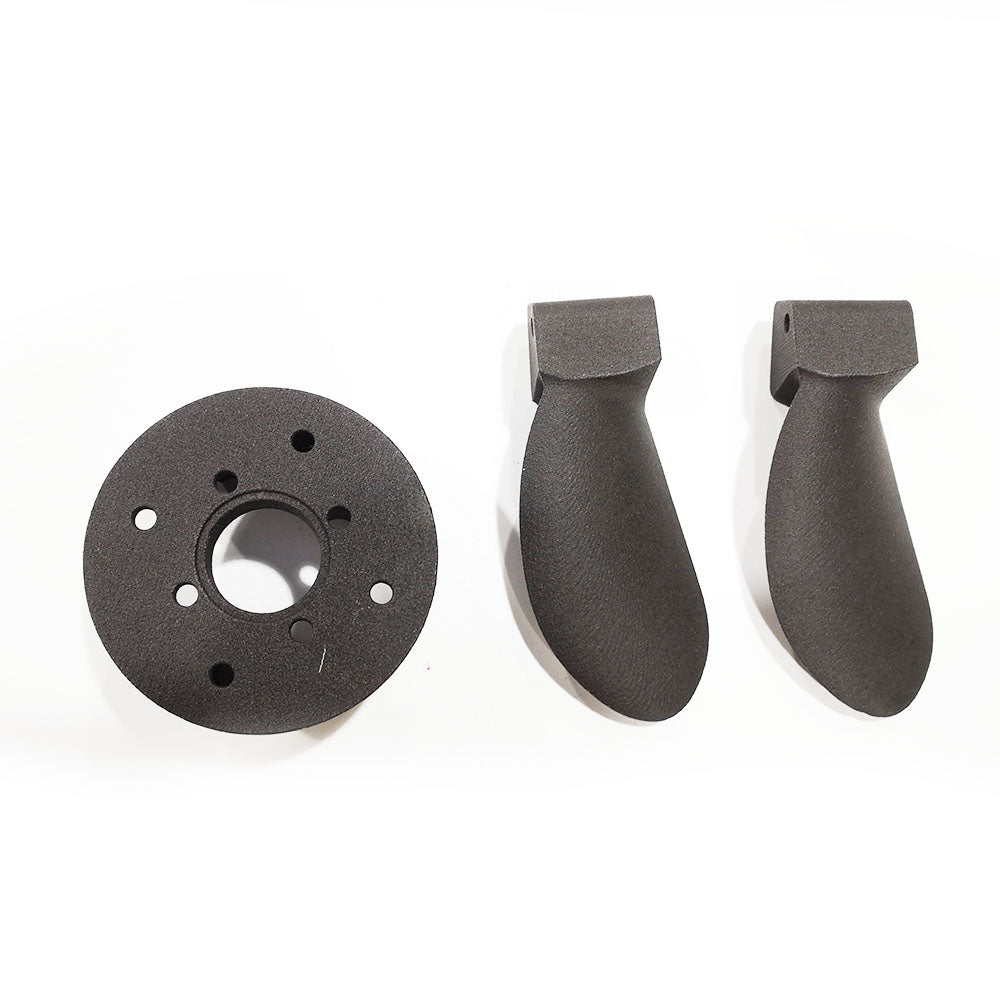

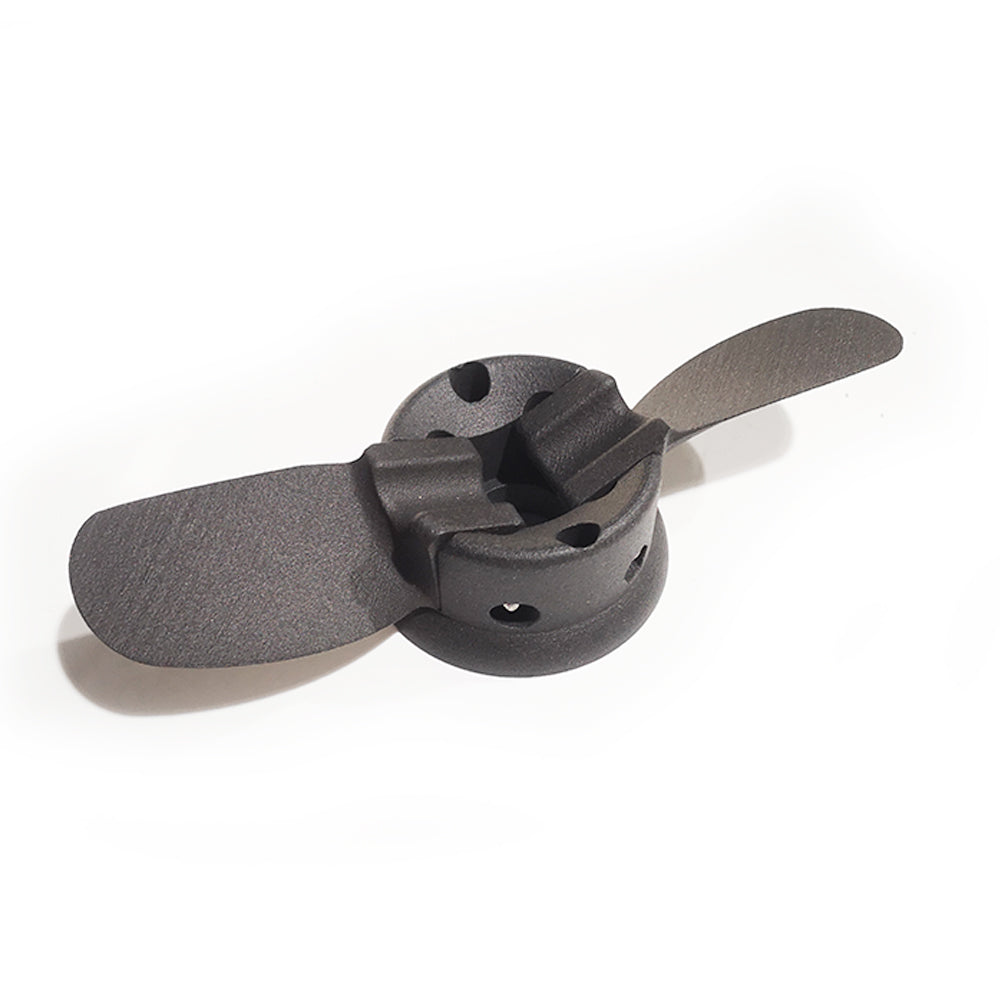

2. MICHOBBY MICP27F 3D Printed folding propeller
Material: Nylon Powder
Blade: 2 folding Blades
Color: Black
Mounting Holes: 8xM4
Size: 2.7inch from tip to installation
Max Rotation Diameter: 190mm/7.5'' (Approx.)
Height: 32mm/1.25'' (Approx.)
