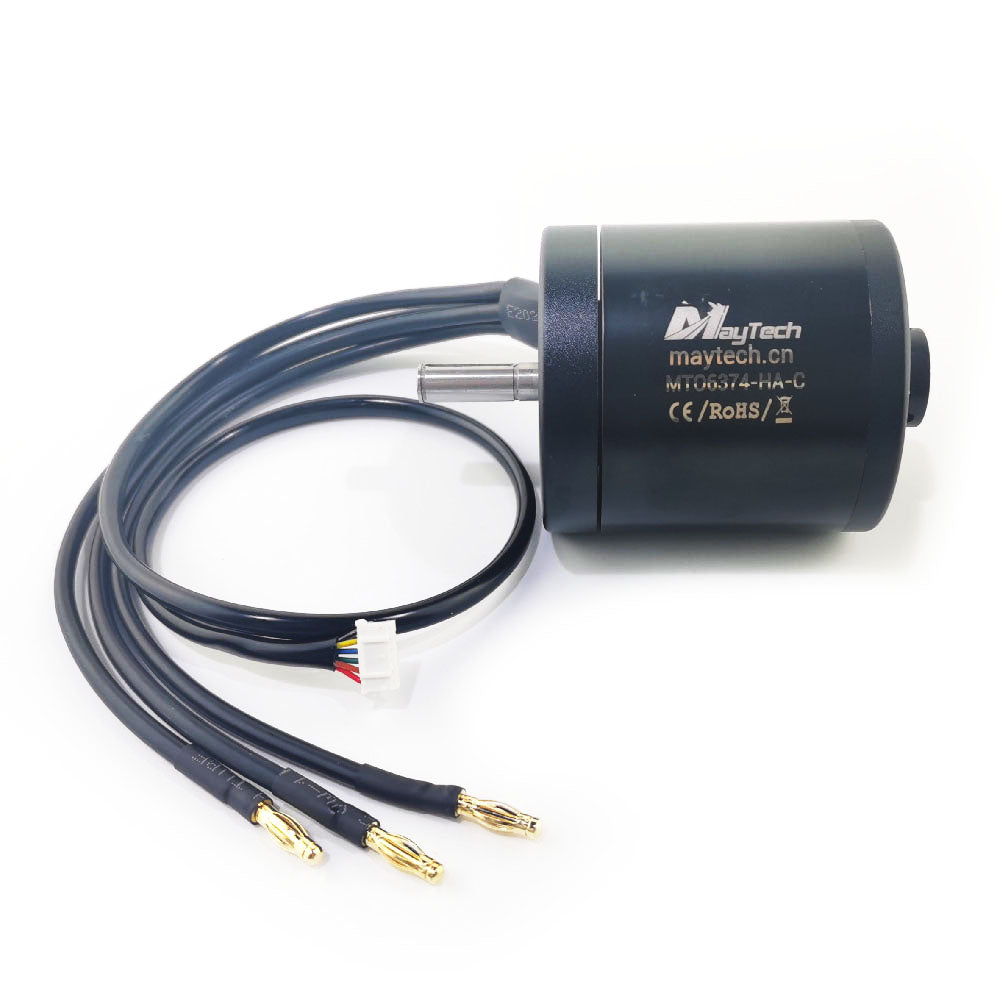

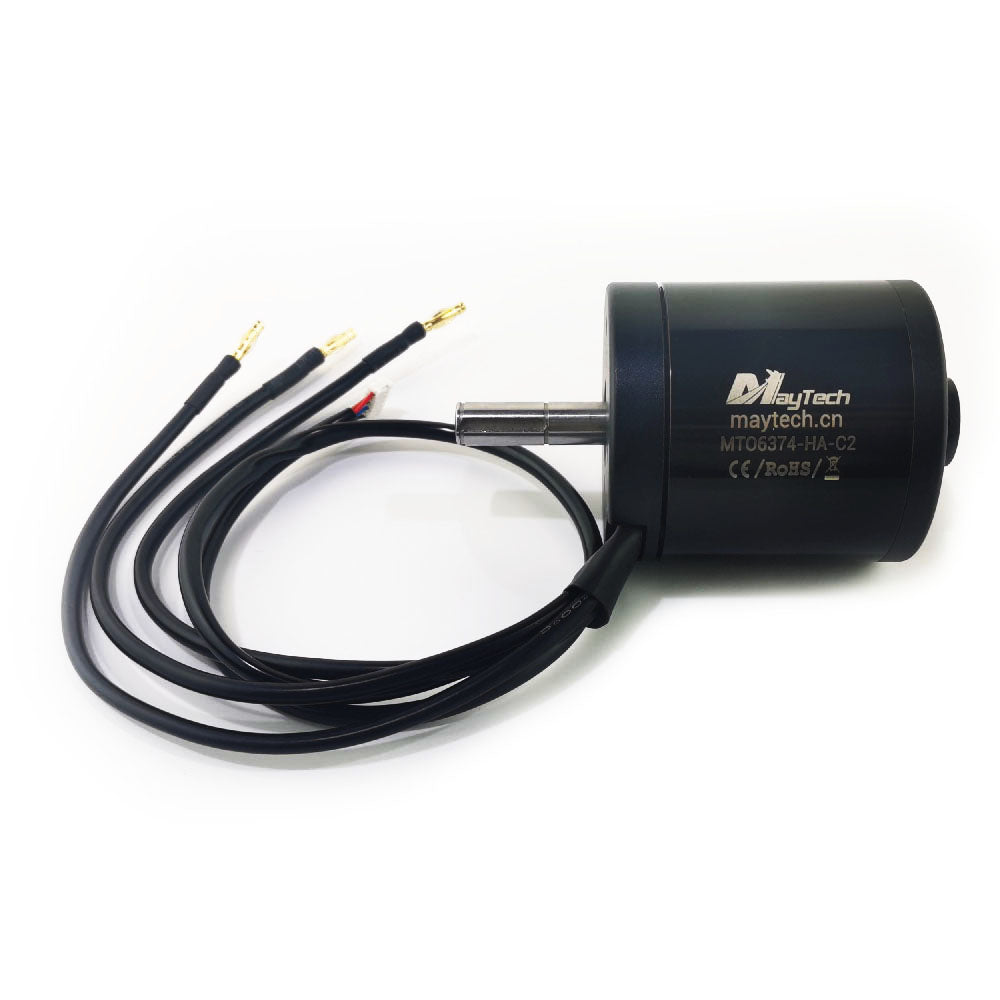

MTO6374-190-HA-C4/C5 Maytech Sensored Outrunner Motor 6374 190KV 8mm/10mm shaft with Stainless Steel Cooling Mesh
MTO6374-190-HA-C4/C5 Maytech Sensored Outrunner Motor 6374 190KV 8mm/10mm shaft with Stainless Steel Cooling Mesh
SKU:MTO6374-190-HA-C4
Preço normal
$114.00
Preço normal
Preço de saldo
$114.00
Preço unitário
por
Envio calculado na finalização da compra.
Não foi possível carregar a disponibilidade de recolha
Have Doubts? Contact US!!
Have Doubts? Contact US!!
Specifications of MTO6374-190-HA-C4/C5 Maytech Sensored Outrunner Motor 6374 190KV 8mm/10mm shaft with Stainless Steel Cooling Mesh for electric scooter E-Skateboard Robots:
| Model NO | MTO6374-190-HA-C4/C5 |
| Motor KV | 190(RPM/V) or other customized KV |
| Shaft | C4 8mm / C510mm |
| Idle Current | 0.8A |
| Max. Current | 65A |
| Input Volt | 2-12Lipo cell |
| Max. Output Watt | 3550W |
| Max. Pull | 13000g |
| Net Weight | 830g |
| Motor Diameter | 63mm |
| Internal Resistance | 0.0402 |
| Hall sensor | With |
| Application | For electric skateboard/e-bike |
| Features | With Stainless Steeel Cooling Mesh and Arc tile-typed magnets |
-

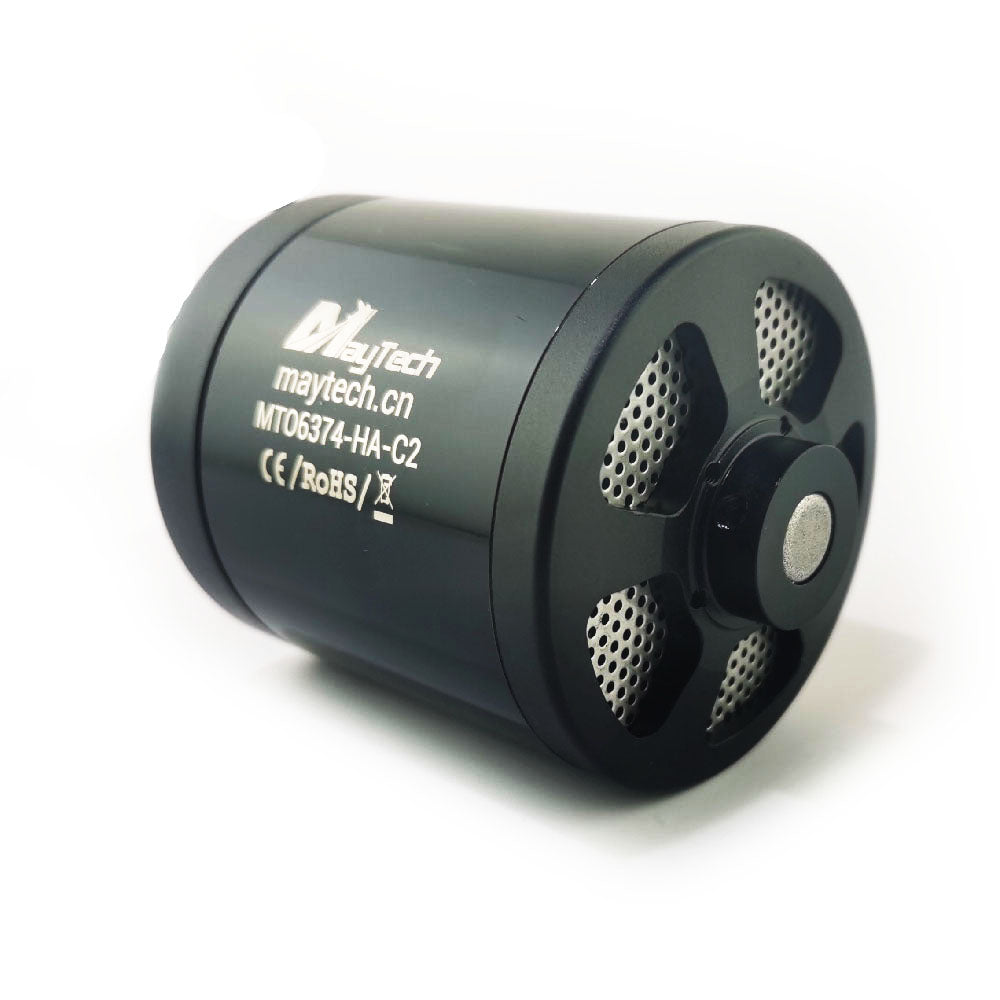

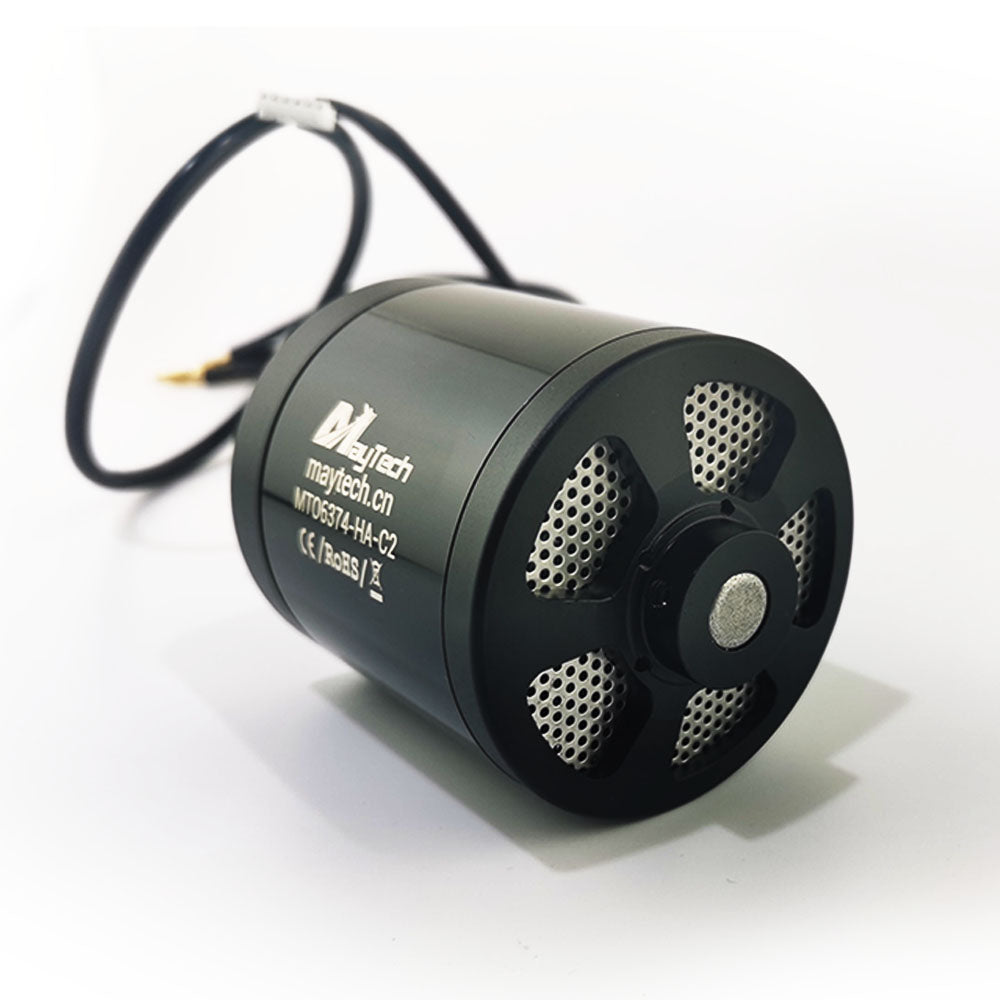

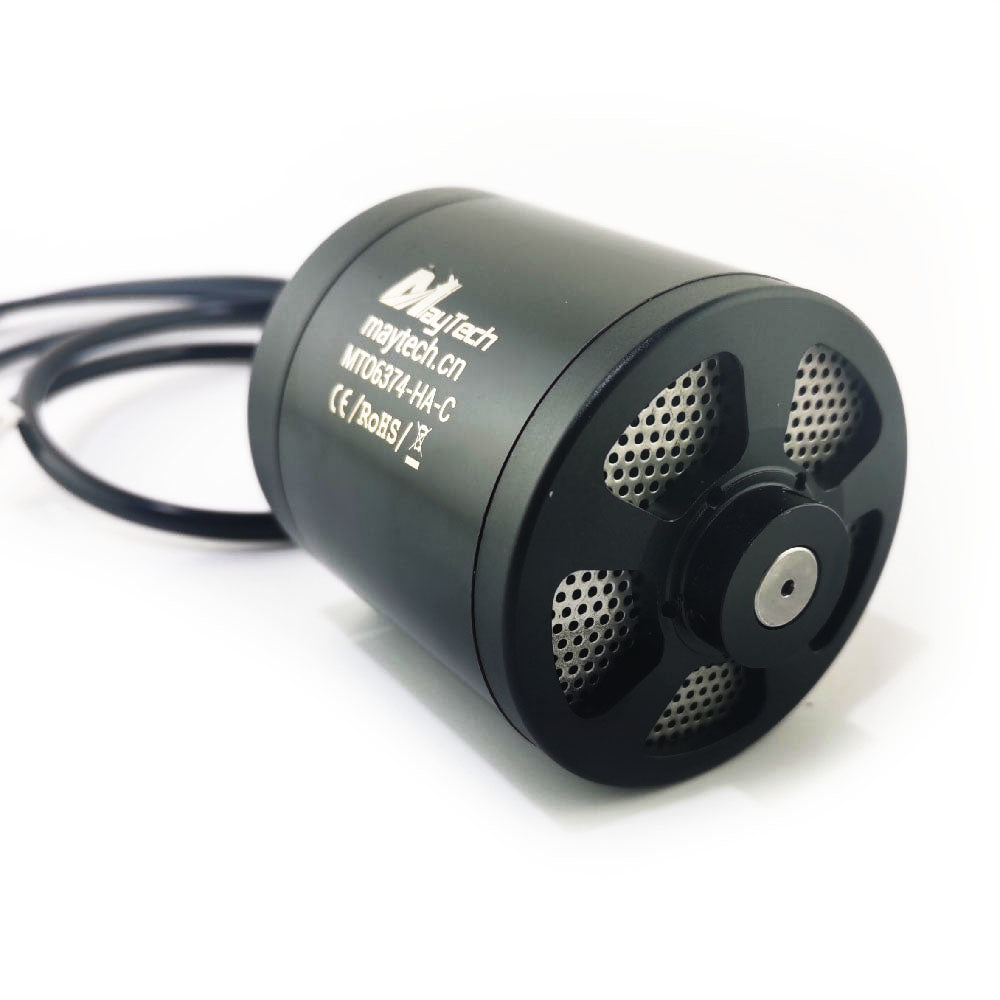

This motor is with stainless steel cooling mesh;
-
This motor is with Arc Curved magnets (tile-typed):
- The motors are suitable for the electric skateboards or electric bikes.
- The up and bottom caps are made of aluminium alloy.
- The motor case is made of steel.
- The static balance is confirm.
- NMB Japanese bearings
- 45h sintered ndfeb magnets
- Stator is stacked with silicon steel
- Use high temperature and oxygen-free copper wire
- Stainless steel shaft
- High-temperature micro ball-bearing
Drawing of Maytech waterproof and dustproof sensored outrunner motor 6374 for electric scooter :
1. MTO6374-HA-C4 Drawing:
2. MTO6374-HA-C5 Drawing:
