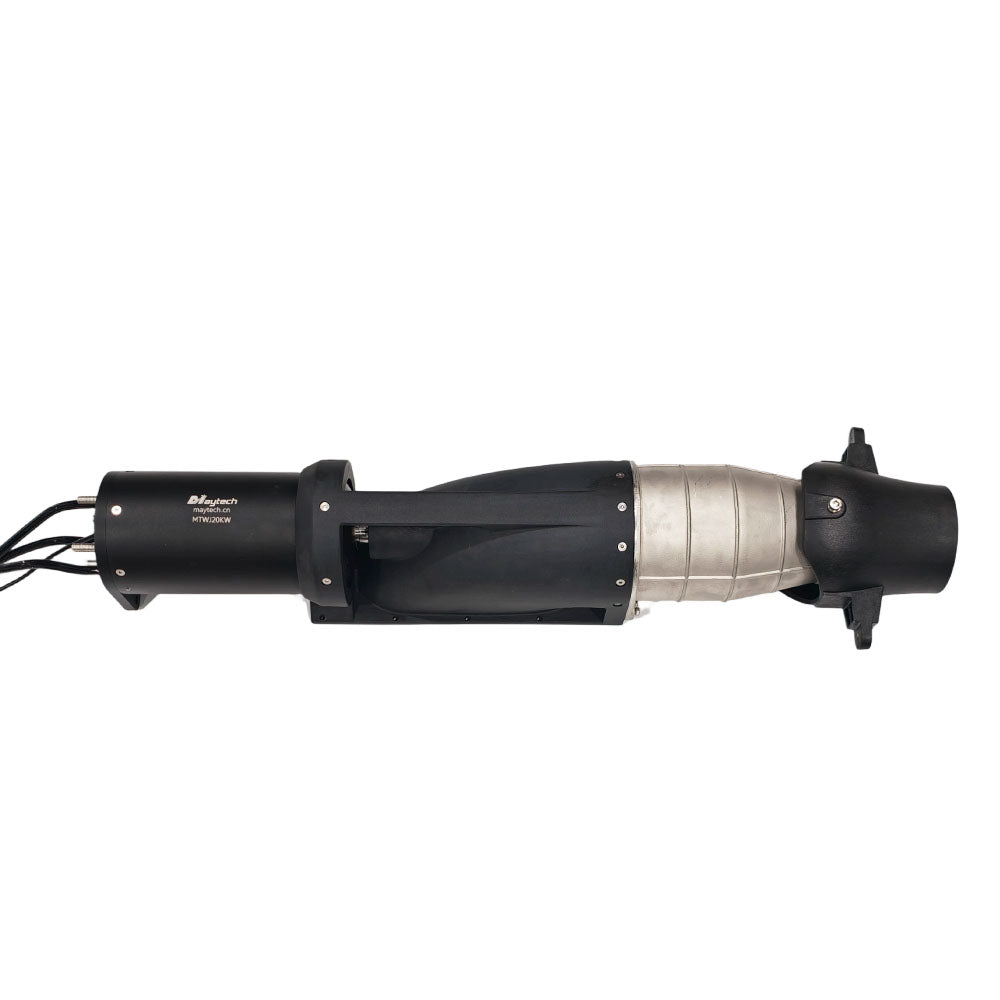

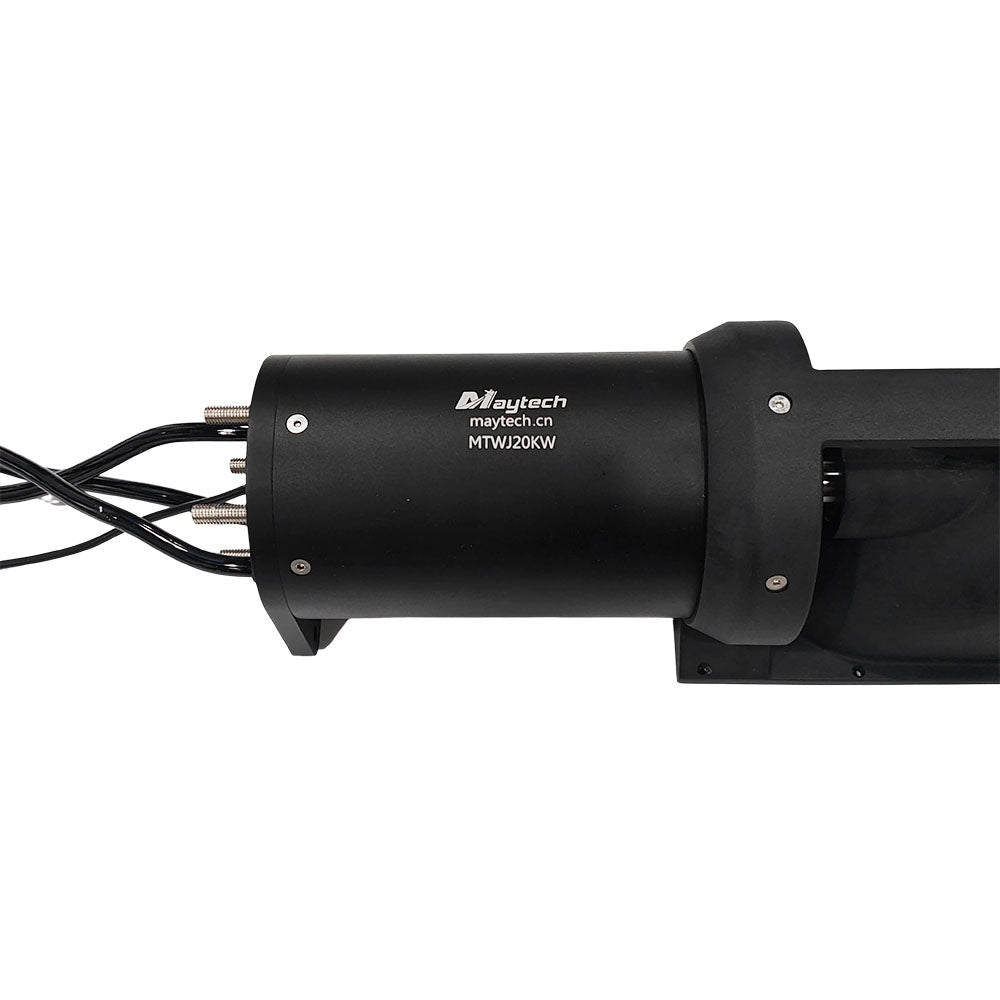

MTWJ20KW 20KW 128.4KG-Thrust Jet Pump - Maytech Electric Waterjet MTWJ20KW For Electric Marine Boat Jetski
MTWJ20KW 20KW 128.4KG-Thrust Jet Pump - Maytech Electric Waterjet MTWJ20KW For Electric Marine Boat Jetski
SKU:MTWJ20KW with steering (no Servo)
Preço normal
$1,206.90
Preço normal
Preço de saldo
$1,206.90
Preço unitário
por
Envio calculado na finalização da compra.
Não foi possível carregar a disponibilidade de recolha
Have Doubts? Contact US!!
Have Doubts? Contact US!!
20KW 128.4KG Thrust Jet Pump - Maytech Electric Waterjet MTWJ20KW For Electric Marine Boat Jetski
Specifications: Including Motor + Jet pump
| Model No. | MTWJ20KW |
| Voltage | 36-84V |
| Motor KV | 100 |
| Max Power | 20.5KW |
| Peak Current | 239A@84V |
| Max Torque | 128.4kg at 84V |
| Pole Number | 10P |
| Working Temperature | -20℃-60℃ |
| Plug | 10mm bullet male connector |
| Temp Sensor | With |
| Customize | Logo, shaft, cable, connector, etc., contact Email: support@michobby.com |
| Appliacation | Jetski, jetboat, jetboard, underwater thruster, electric jetsurf, electric boat, electric surfboard, sup board, jet drive outboard, jet drive kayak, boat thruster etc. |
Max Thrust at Different Volts at Full Throttle
|
|
Voltage (V)
|
Current (A)
|
Input Power (W)
|
RPM
|
Thrust
(kgf)
|
Throttle (%)
|
Thrust/Power
(kgf/kw) |
|
1
|
36
|
71
|
2556
|
3370
|
38.1
|
100
|
14.91
|
|
2
|
42
|
92
|
3864
|
3895
|
50.9
|
100
|
13.17
|
|
3
|
48
|
119
|
5712
|
4379
|
64.3
|
95
|
11.26
|
|
5
|
60
|
174
|
10440
|
5309
|
92.9
|
95
|
8.90
|
|
6
|
72
|
219
|
15768
|
6185
|
118.3
|
95
|
7.50
|
|
7
|
84
|
239
|
20076
|
7229
|
128.4
|
95
|
6.40
|
Download:
MTWJ20KW Specifications/Test Datas/Test Curves

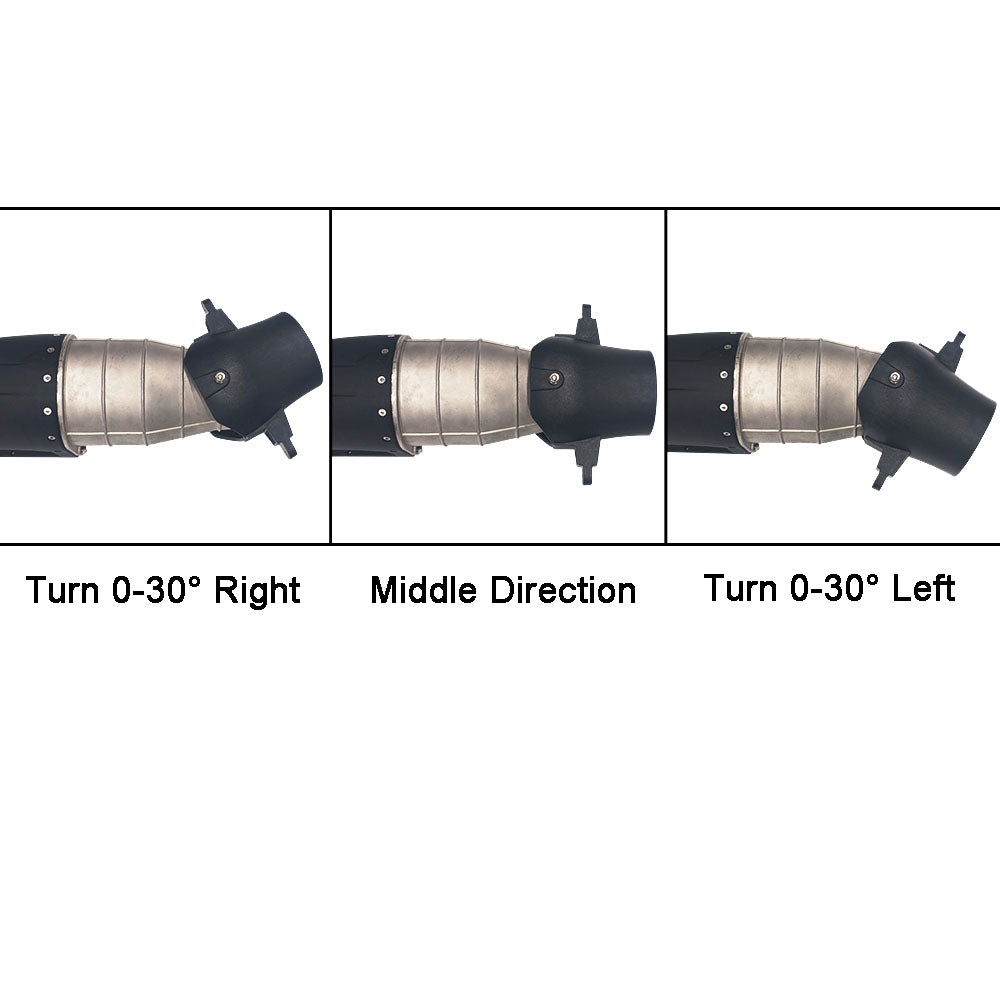

Drawing: With Steering (you can remove the steering nozzle yourself if you don't need it)
Test Video:
Test Curves and Test Datas:
