【IP68】Maytech 300A 85V Marine ESC High Voltage for Electric Surfboard Jetboard Boat

Name: 【IP68】Maytech 300A 85V Marine ESC High Voltage for Electric Surfboard Jetboard Boat
Brand: Maytech
SKU: MTSF300A-WP32-HVPRO
Price: 472.9 USD
Availability: InStock

SKU:MTSF300A-WP32-HVPRO

$472.90

Em promoção Esgotado

Envio calculado na finalização da compra.

Option ESC Only ESC with Programming BT

Variantes de produtos

Quantidade

Have Doubts? Contact US!!

【IP68】Maytech 300A 85V Marine ESC High Voltage for Electric Surfboard Jetboard Boat

----------------------------------------------------------------------------------------------

Frequently Asked Question:

Do I have to use a water pump if the ESC is air-cooled?

This ESC is fully waterproof IP68 rating. If use the ESC directly in water for cooling, then it doesn’t need water pump; If use it in air, then it need water pump for cooling. Here is waterpump link: 12V 30W water pump and DC-DC module for electric surfboard efoil electric boat ESCs/Motors

12V 30W water pump and DC-DC module for electric surfboard efoil electric boat ESCs/Motors

---------------------------------------------------------------------------------------------

Specification:

Model No.: MTSF300A-WP32-HVPRO

Waterproof Rank: IP68

Cont Current: 300A

Peak Current (at 10S): 320A

Input Voltage: 6-20S Lipo (22.2V-85V)

Cable Guage: 6AWG

Max ERPM: 100000

32BIT Micropprocessor

Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.

Please download 300A 85V ESC manual here.

-----------------------------

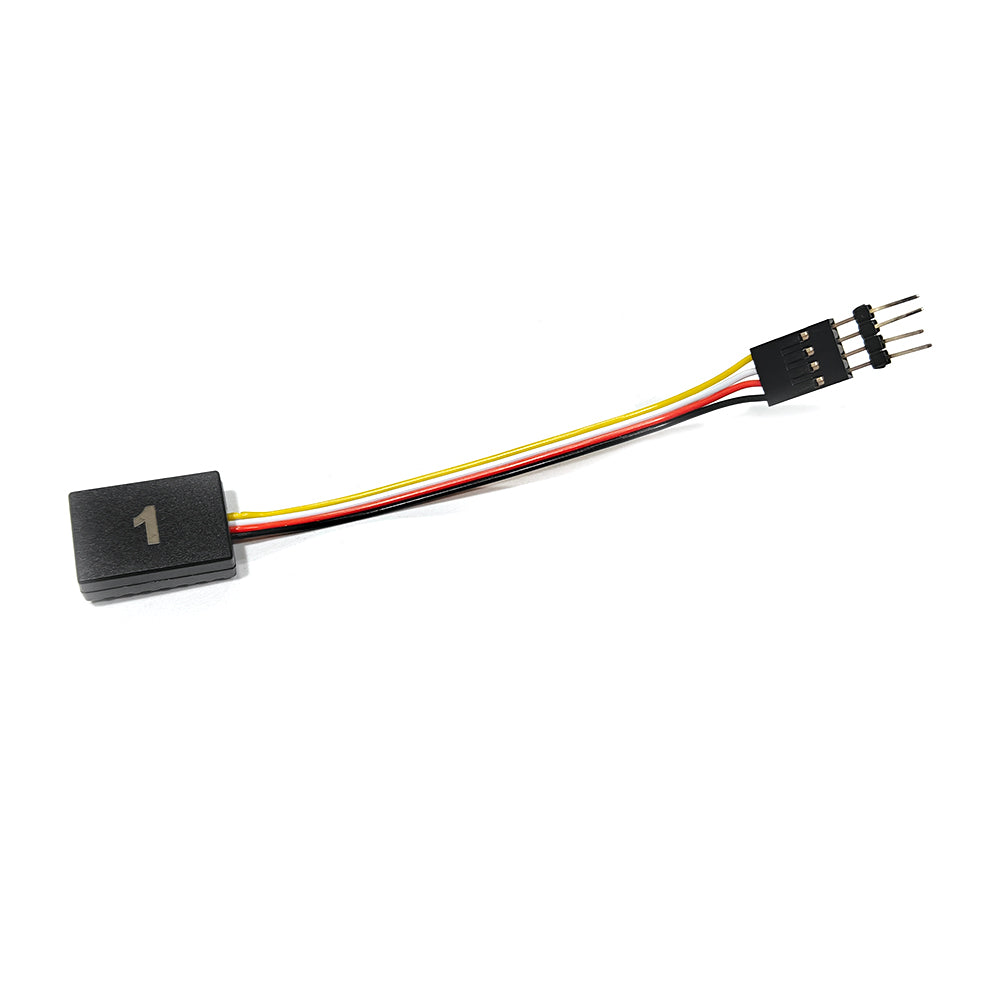

Please download Android Phone APP for adjusting the ESC settings by bluetooth.

▶ 32BIT Micropprocessor
▶ Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature,
speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
▶ Fully sealed, IP68 water-proof (water-proof version ESC)
▶ 8-layer 3oz PCB plate, 3.4mm, support high current
▶Compact size, high efficiency, low heat.
▶Only use geniune US and Japan imported electric components.
▶Over-heat, over-voltage, over-current, low voltage protection.
▶100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.

Features:

1. Fully new circuit design, excellent algorithm

--With high performance 32bit MCU processor, greatly improved data computing ability;

--Faster respond, smoother startup;

--Throttle linear is optimized, more accurate and smoother, better compatibility;

2. Seperate control board and power board design

--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.

3. Support forward and reverse rotation

--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.

--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,

4. With kinetic energy recovery function

--Save more energy;

--Extend battery working time;

--Reduce heat

5. Built in upgrade high power BEC with on & off

6. Multiple protections

--Startup protection;

--Over-temp protection;

--Low voltage protection;
