Maytech Electric Skateboard Conversion Kit Sensored 6374 Motor 6355 Outrunner Remote Controller 2.4ghz Vesc Controller

MTSKT310DB+2xMTSKPS2005+2xMTO5065-220-HA +4xMTSKW8352G+2xSUPERFOC6.8+Canbus cable+MTSKR20WFV2
  • $647.04
  • Save $161.76


Notice before order: This kit SUPERFOC6.8 ESC is out of stock now because of chip shortage. Recommend to order following similar VESC based ESCs:

1. In Stock! Maytech MTVESC50A 50A SuperESC based on VESC4.12 speed controller Bejamin Vedder VESC

2. In Stock! Maytech High Voltage 75V 50A 100A VESC7.5 based controller MTSVESC7.5R

--------------------------------------

Maytech Electric Skateboard Conversion Kit Sensored 6374 Motor 6355 Outrunner Remote Controller 2.4ghz Vesc Controller

Price includes 1sets trucks with motor mounts, 2sets pulleys and belts kits, 2pcs motors, 4pcs 83mm Green wheels OR 90mm Black/Orange Wheels,  2xSUPERFOC6.8 50A VESC6 based controllers with Canbus cable, 1pcs MTSKR20WFV2 V2 Screen Remote

12 Combs Available (Unassembled):

Combo1/2/3:

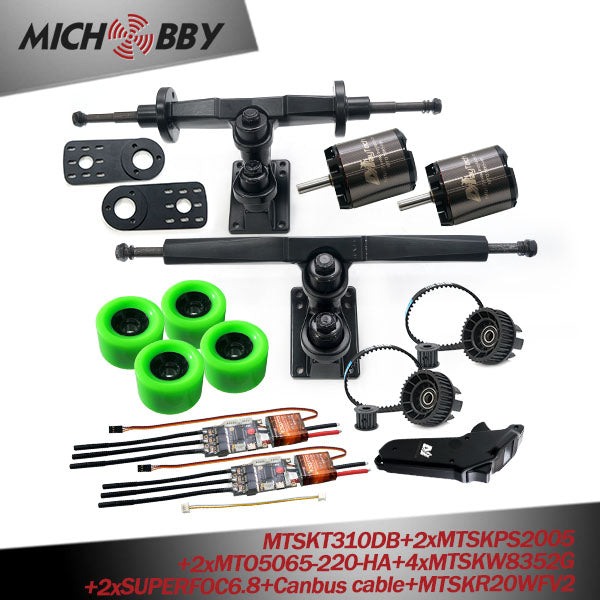

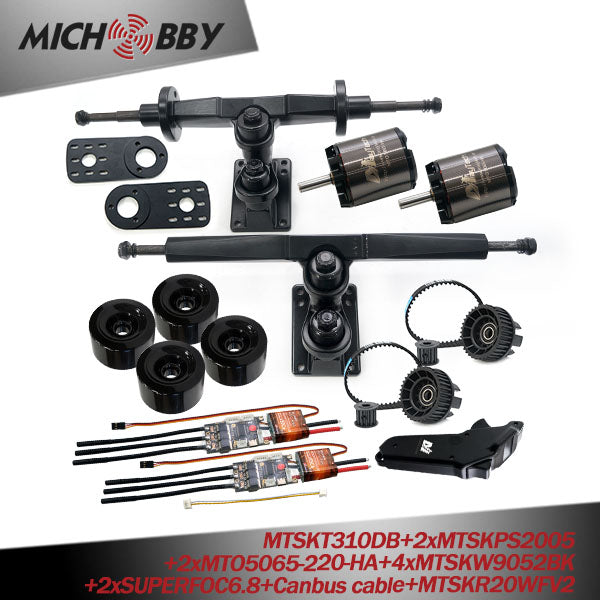

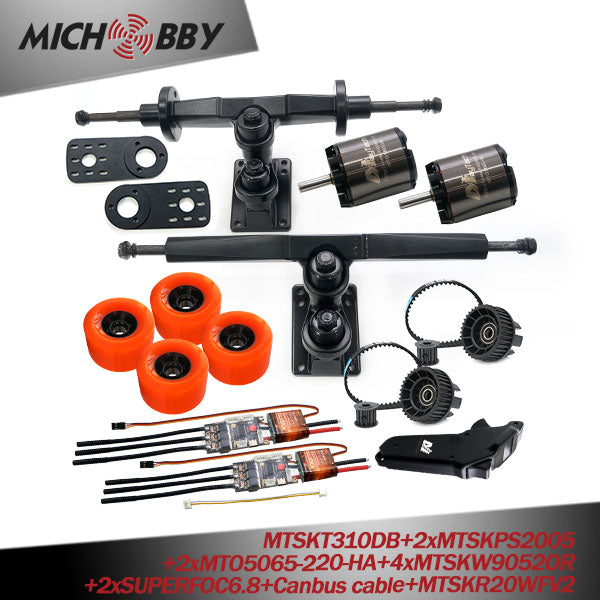

MTSKT310DB+2xMTSKPS2005+2xMTO5065-220-HA +4xMTSKW8352G/MTSKW9052BK/OR
+2xSUPERFOC6.8+Canbus cable+MTSKR20WFV2

Combo 4/5/6:

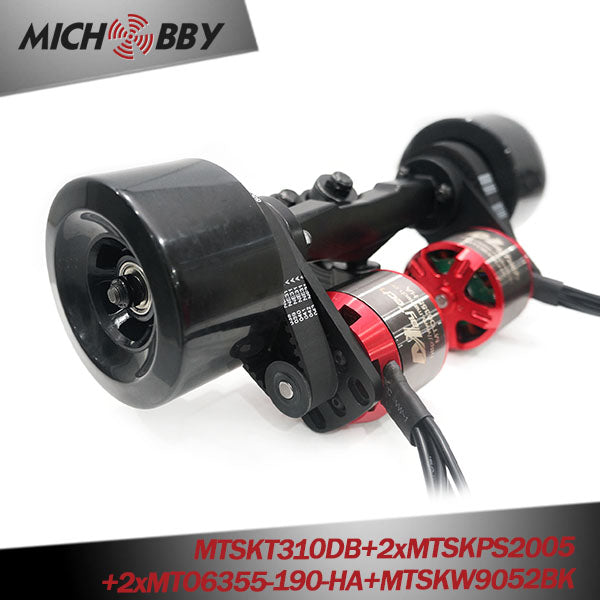

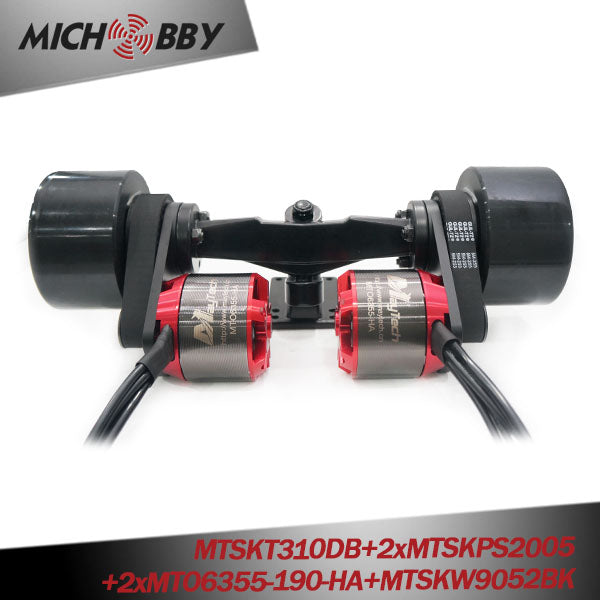

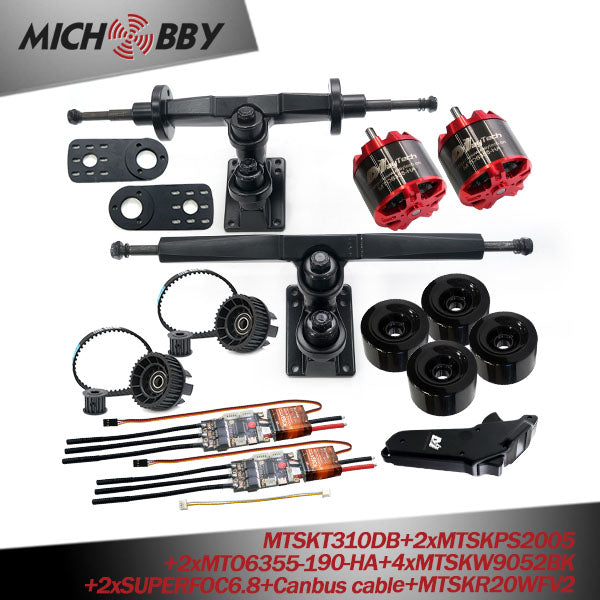

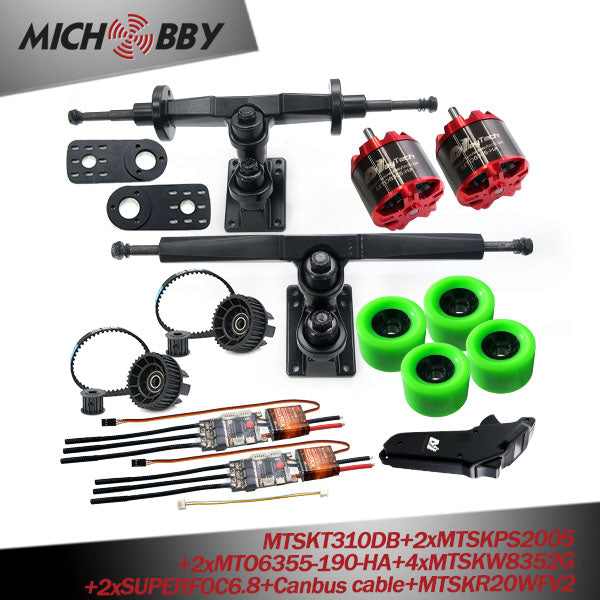

MTSKT310DB+2xMTSKPS2005+2xMTO6355-190-HA +4xMTSKW8352G/MTSKW9052BK/OR
+2xSUPERFOC6.8+Canbus cable+MTSKR20WFV2

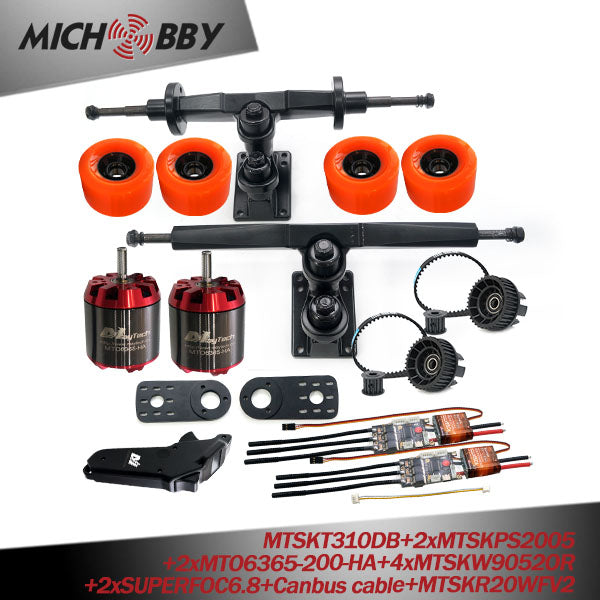

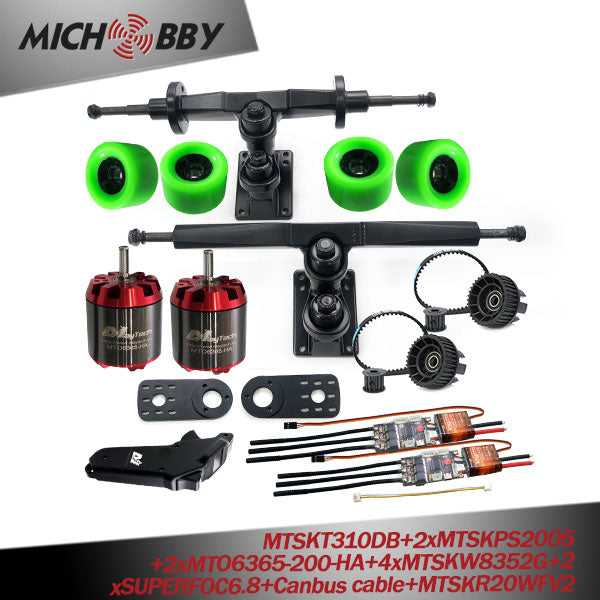

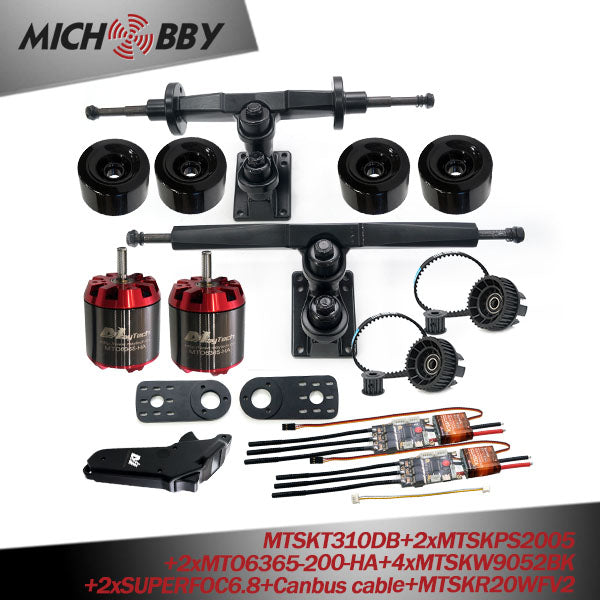

Combo 7/8/9: MTSKT310DB+2xMTSKPS2005+2xMTO6365-200-HA +4xMTSKW8352G/MTSKW9052BK/OR
+2xSUPERFOC6.8+Canbus cable+MTSKR20WFV2

Combo 10/11/12:

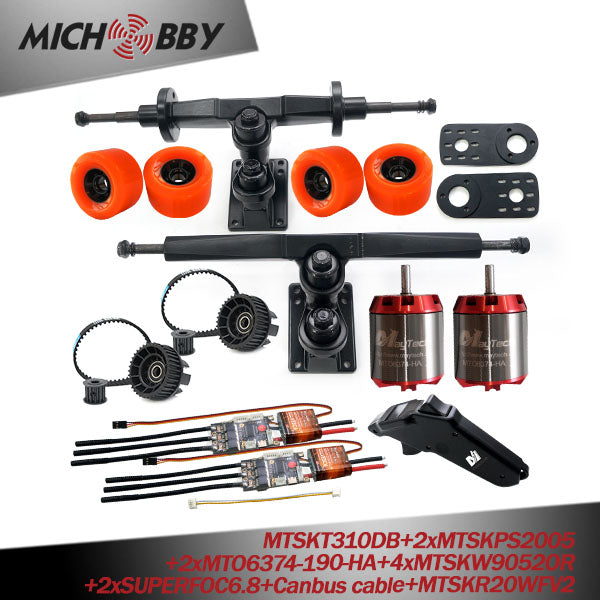

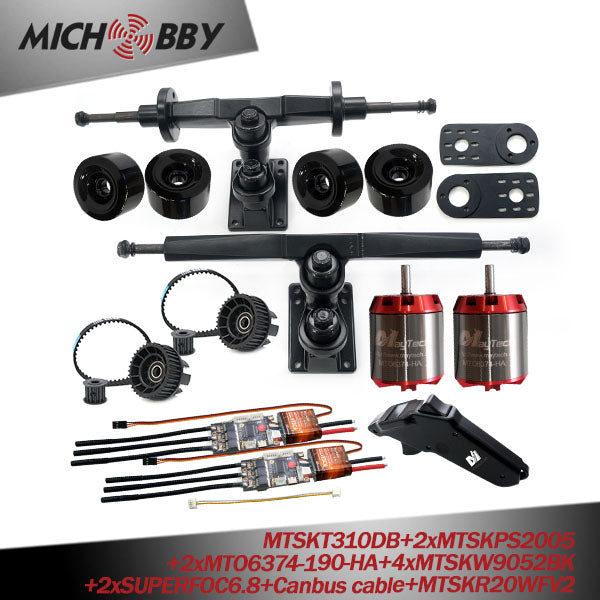

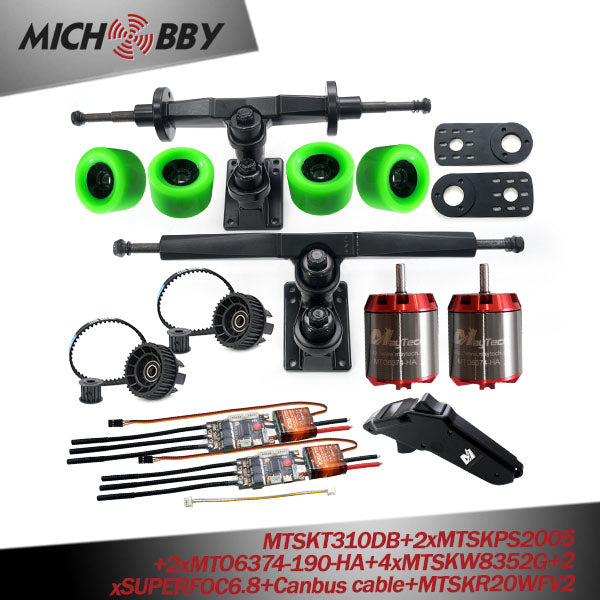

MTSKT310DB+2xMTSKPS2005+2xMTO6374-190-HA +4xMTSKW8352G/MTSKW9052BK/OR
+2xSUPERFOC6.8+Canbus cable+MTSKR20WFV2

Above motor KV is our standard KV, your order will be shipped as the KV we have.

If you have other needs, please contact us first, we accept customize service.

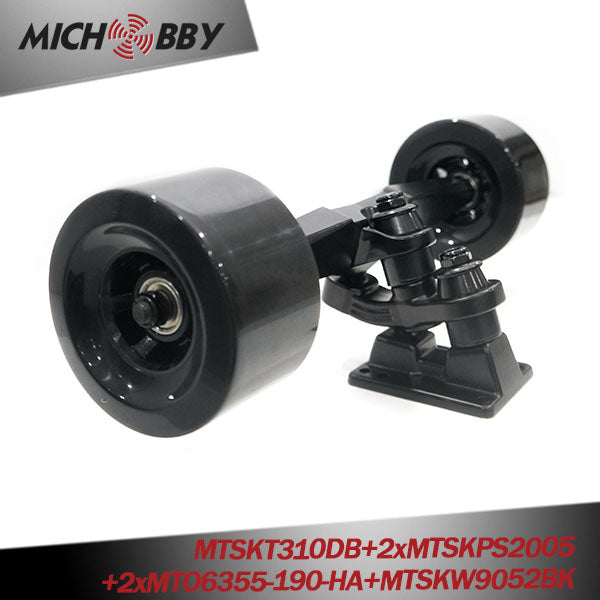

  • 1. MTSKT310DB Dual belt-driven Skateboard Trucks (1set)

Rear and Front trucks with two motor mounts
Truck size: 12inch
Frame materials: 356-T6 alloy aluminum alloy
Weight: 760g/pcs for back truck, 700g/pcs for front truck
Suitable for: 5055/5065/6355/6365/6374 motors

New Gravity Casting Technology:

1). Aluminum liquid flow into truck mould by liquid's weight naturally, this way can delete mould's inside air clearly.
2). do heat treatment after demoulding (truck surface is a little rough because of heat treatment). Prouction time is longer than old die casting technology, and the production cost is twice than before.
3). Hardness reached out HRB65 around, which can stand over 150kg weight for professional skateboarders.

Double kingpin trucks Dual belt driven electric skateboard truck MTSKT310DB for DIY electric longboard

  • 2. Pulleys and Belt Kits (2sets)

MTSKPS2005

Belt HTD5M-255, width 15mm;

Motor pulley 14T, 5mm pitch, width 16mm;

Wheel pulley 36T, 5mm pitch, width 16mm.

Electric Skateboard 5M Pulleys 8mm shaft Motor Pulley HTD255mm-5M Belt Wheel Pulley Set

  • 3. Non-Sealed Brushless Motors with hall sensor (2pcs) 5065 or 6355 or 6365 or 6374
Model No. MTO5065-220-HA MTO6355-190-HA MTO6365-200-HA MTO6374-190-HA
KV 220 190 200 190
Idle Current 1.2A 1.0A 0.8A 0.8A
Max. Current 50A 65A 65A 65A
Input Volt 2-10s Lipo 2-12s Lipo 2-12s Lipo 2-12s Lipo
Max. Output Watt 1815W 3510W 3520W 3550W
Max. Pull 6700g 12000g 9700g 13000g
Rated Current 42.5A 55A 60A 60A
Motor Weight 435g 600g 745g 825g
Shaft 6mm 8mm 8mm 8mm
Output shaft length 26mm 26mm 26mm 26mm
Resistance 0.0361 0.0441 0.0402 0.0402

BLDC Motor, FOC mode, brushless outrunner motor, dc motor, skateboard motor ESK8/Robot Brushless Outrunner Sensored Motors Electric skateboard, esk8, sk8, mountainboard, all terrain offroad skateboard, skate, skateboard, longboard, hoverboard, e-scooter, fighting robots, robotics, photograph robotics, electric vehicles, e-bike, e-scooter, shortboard, street boards, city skateboard,

  • 4. Electric Skateboard Wheels (4pcs) 83mm wheels or 90mm wheels
Model No. MTSKW8352G MTSKW9052BK MTSKW9052OR
Diameter (mm) 83 90 90
Length (mm) 52 52 52
Hardness 85A/78A 85A/78A 85A/78A
Material PP PP PP
Color Green Black Orange
Bearings With With With

Electric Skateboard Wheels (4pcs) 83mm wheels

4. Electric Skateboard Wheels (4pcs) 90mm wheels

  • 5. SUPERFOC6.8 based on VESC6 Speed Controller 50A for Electric Skateboard (2pcs with 1pcs Canbus Cable)
Model No. SUPERFOC6.8 Cont Current 50A
Input Volt 11.1-50V (3-12S Lipo) Burst Current 240A
Hardware Based on V6 Firmware  Updatable
Software VESC_TOOL Compatible FOC Yes, Great FOC Function
Compatible Motor Sensored & Sensorless PCB Size 40mm x 60mm
Capititor 3pcs 680μf63V MOS IRF7530
BEC 5V Driver DRV8302
Net Weight 85g Accessory  With USB Cable

 SUPERFOC6.8 based on VESC6 Speed Controller 50A for Electric Skateboard

  •  6.  MTSKR20WFV2 V2 ESK8 Screen Remote for DIY skateboard Compatible with VESC FOCBOX (1pcs)
Model No. MTSKR20WFV2 Waterproof Rank IP66
Control Mode Esk8 Application Esk8 Only
Speed Display Yes Travel Mileage Yes
Throttle Display ±100% VESC Control Mode Duty Cycle / Current Mode
Speed Mode 3 Speed Modes
Each mode can adjust speed from 1%-100%
Accessories Wireless Charging pad; Receiver; 3pcs Dupont Cable
Charger QC 2.0 Wireless Wireless Frequency 2.4G HZ Wireless with 40 Channels
Display Screen OLED Yellow & Blue Screen Triggers 2x High senstive triggers
Throttle Output 1ms-2ms 100HZ Telemeter Data by Receiver Motor RPM ;
Main battery voltage
Voltage Display Remote & Main battery volt level (Lithium iron; lithium ion battery optional) Telemeter Data by VESC ESC Voltage/ Current/ Temp;
Motor Temp/ RPM
Compatible ESCs  V4/ V6/ Focbox/ Other PWM ESC Receiver Built-in Switch for Esk8 light/ Esurf Water Pump, etc.,  1x 30V 3A mechanical relay switch
1x 20V 2A transistor electronic switch

MTSKR20WFV2 V2 ESK8 Screen Remote for DIY skateboard Compatible with VESC FOCBOX
