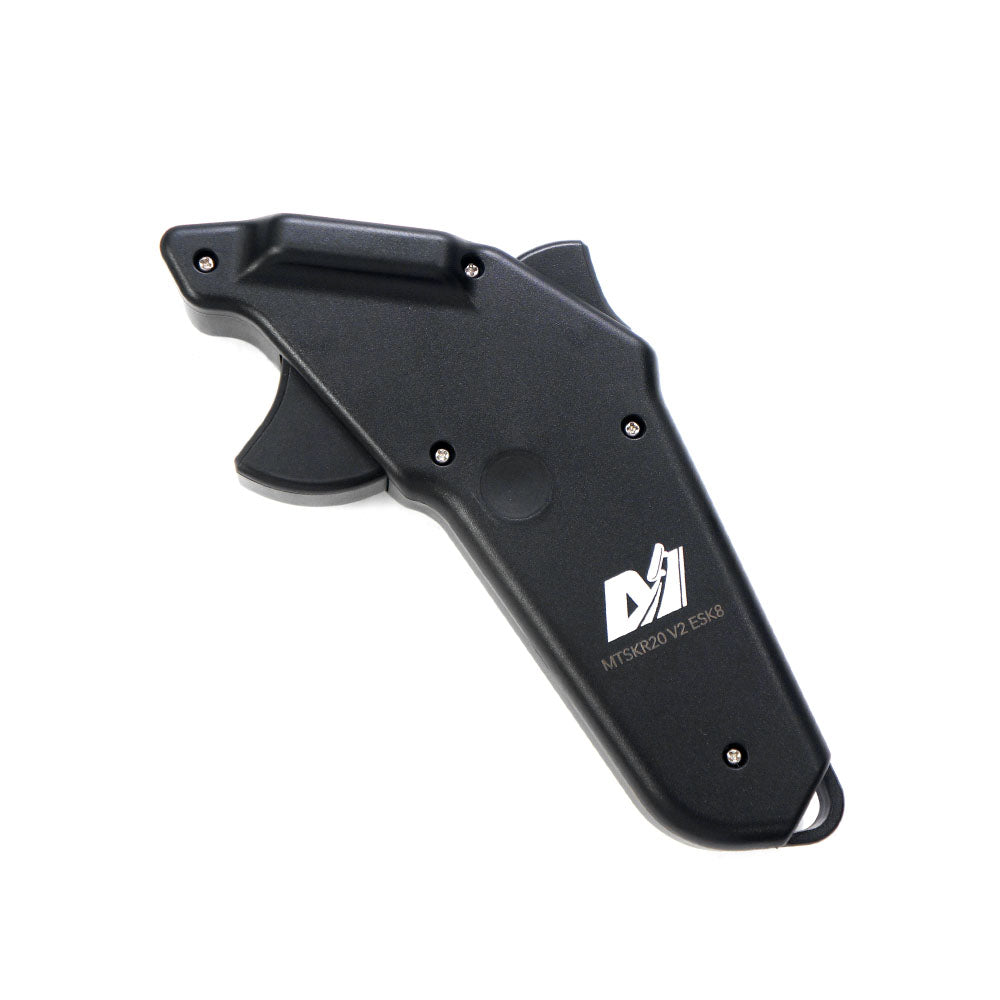

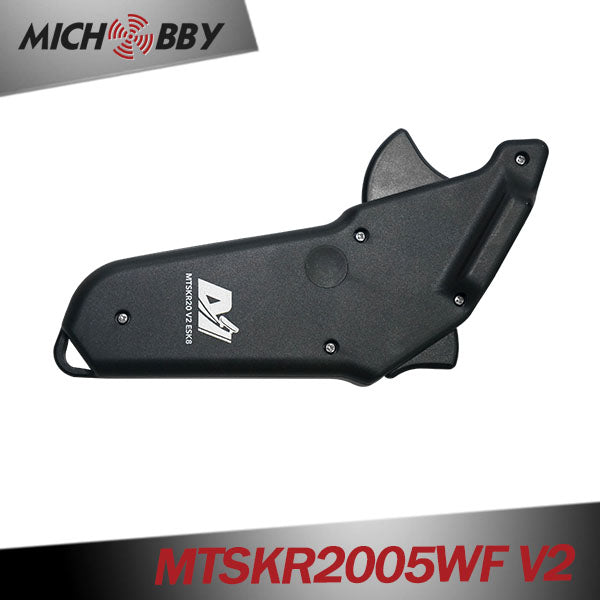

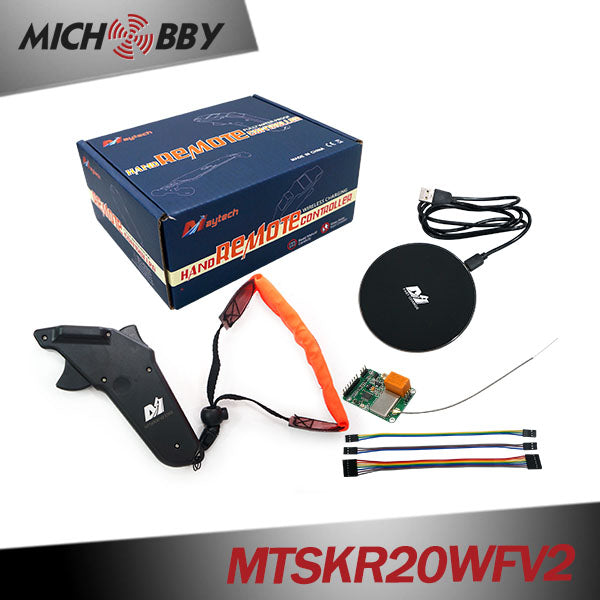

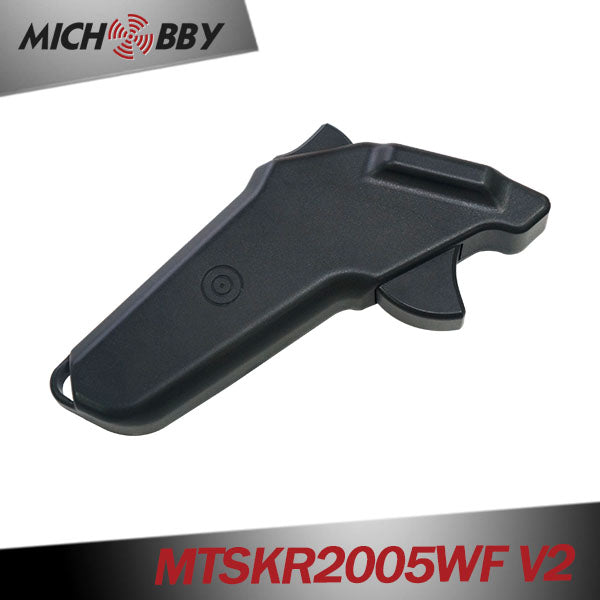

(Ready to Ship) Maytech MTSKR20WFV2 V2 ESK8 Screen Remote for DIY skateboard Compatible with VESC FOCBOX
(Ready to Ship) Maytech MTSKR20WFV2 V2 ESK8 Screen Remote for DIY skateboard Compatible with VESC FOCBOX
SKU:MTSKR20WFV2
Couldn't load pickup availability
Have Doubts? Contact US!!
Have Doubts? Contact US!!

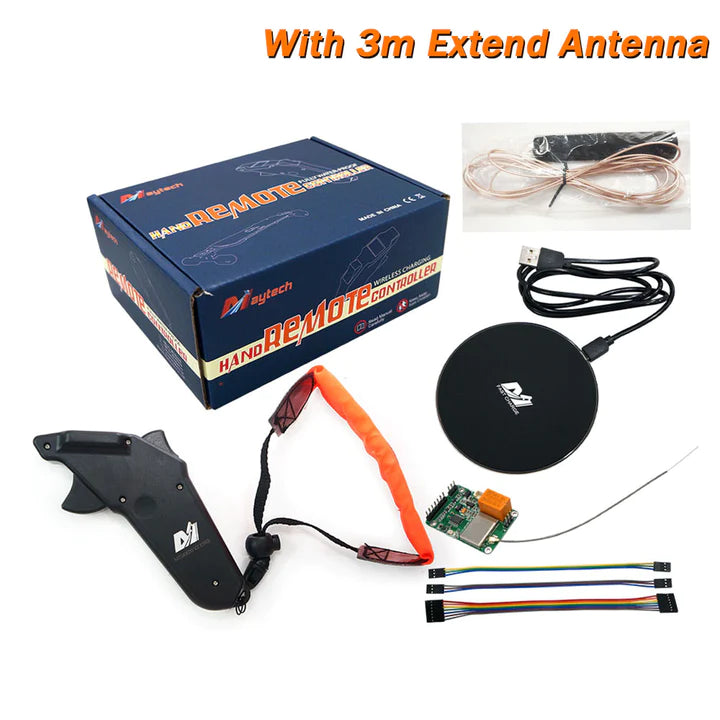

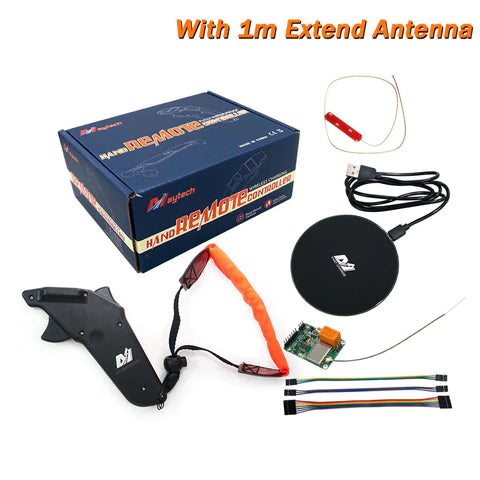

Relevant product: 2.4ghz extension antenna 1meter / 3meter
---------------------------
Maytech MTSKR2005WF V2 ESK8 Screen Remote for DIY skateboard longboard Compatible with VESC FOCBOX PWM ESC
MTSKR20WFV2 PWM signal Range:
Throttle button: 1.5-2ms, max throttle is 2ms;
Brake button: 1.5-1ms, max brake is 1ms.
It's suitable for rc car ESCs, electric skateboard ESCs, etc; not suitable for rc airplane/drone ESCs.
Manual for MTSKR20WFV2 （click and download)
|

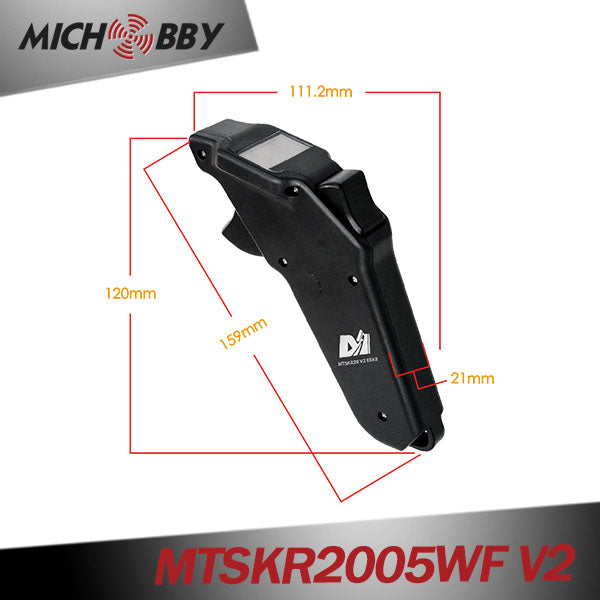

Model Number |
MTSKR2005WF (MTSKR20WFV2) |
||
|

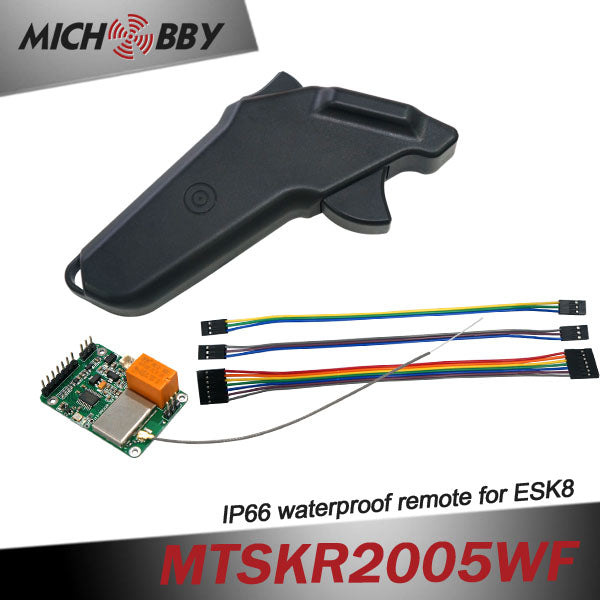

Waterproof Class |
IP66 |
||
|
Control mode |
NEW ESK8 mode |
||
|
Throttle display |
±100% |
||
|
Speed mode |
Three speed modes; each mode with adjustable speed 1-100% |
||
|
Cruise control |
No |
||
|
Speed display |
Yes |
||
|
Travel distance |
Yes |
||
|
Application: |
E-skateboard |
||
|

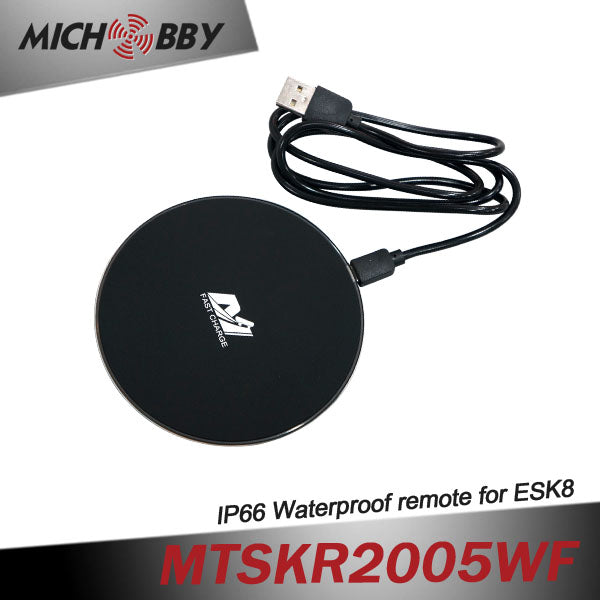

Charger |
QC 2.0 Wireless |
||
|
Wireless frequency |
2.4GHz wireless |
||
|
Display screen |
OLED Yellow and Blue screen |
||
|
Voltage display |
Remote and Main Battery Voltage Level （Lithium iron/lithium ion battery optional） |
||
|
Triggers |
2 x High sensitivity triggers |
||
|
Throttle and Brake |
Throttle button: 1.5-2ms, max throttle is 2ms; Brake button: 1.5-1ms, max brake is 1ms. |
||
|
Telemeter Data by Recevicer |
Motor RPM/Main Battery Voltage |
||
|
Telemeter Data by VESC |
ESC voltage/current/temperature/Motor temperature/RPM |
||
|
Compatible ESCs |
VESC4/VESC6/FOCBOX/Other PWM ESCs |
||
|
VESC control mode |
Duty Cycle / Current Mode |
||
|

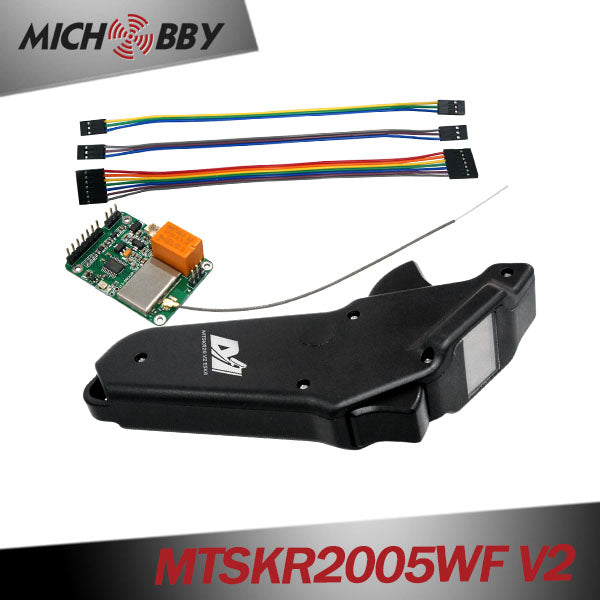

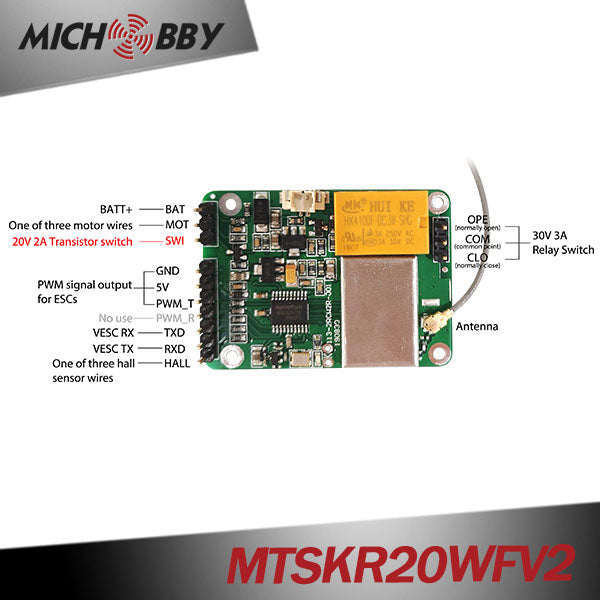

Receiver's built-in switches for esk8 lights, esurf water pump using, etc |
1 x 30V 3A mechanical relay switch |
||
|
1 x 20V 2A transistor electronics switch |
|||
