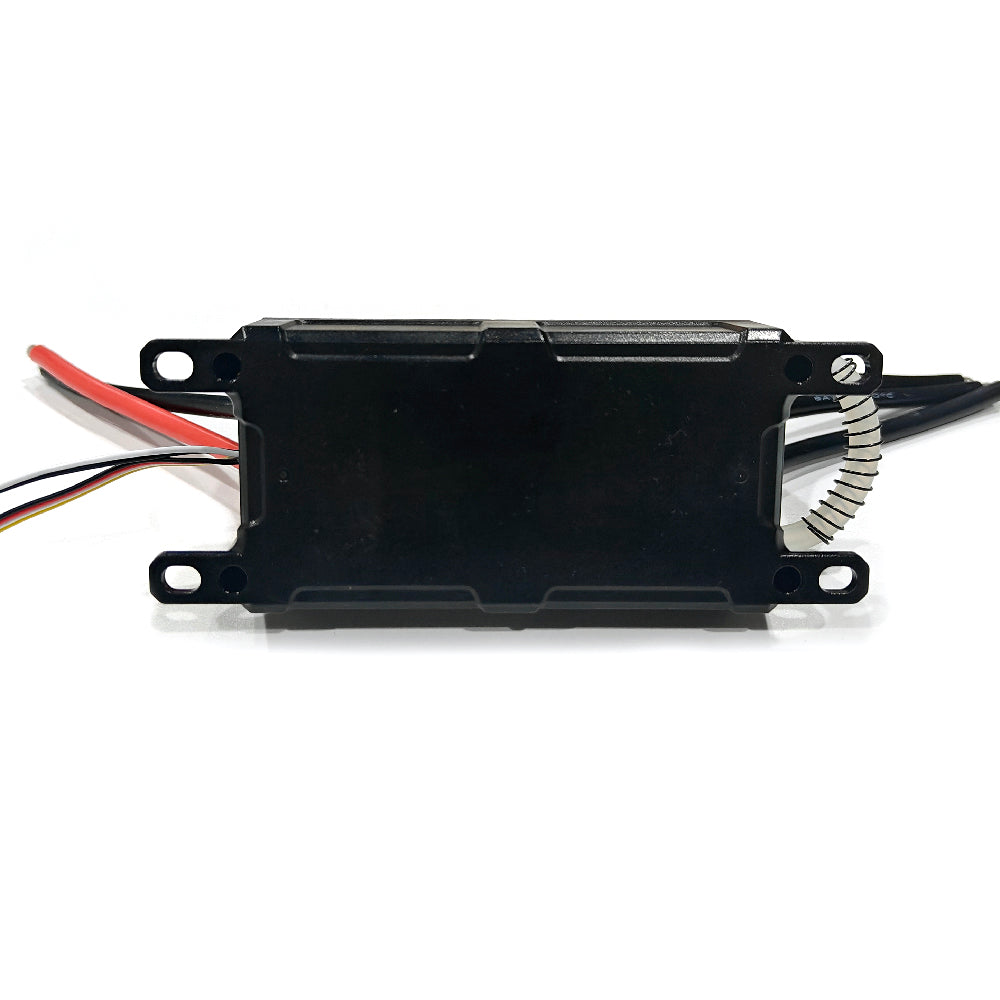

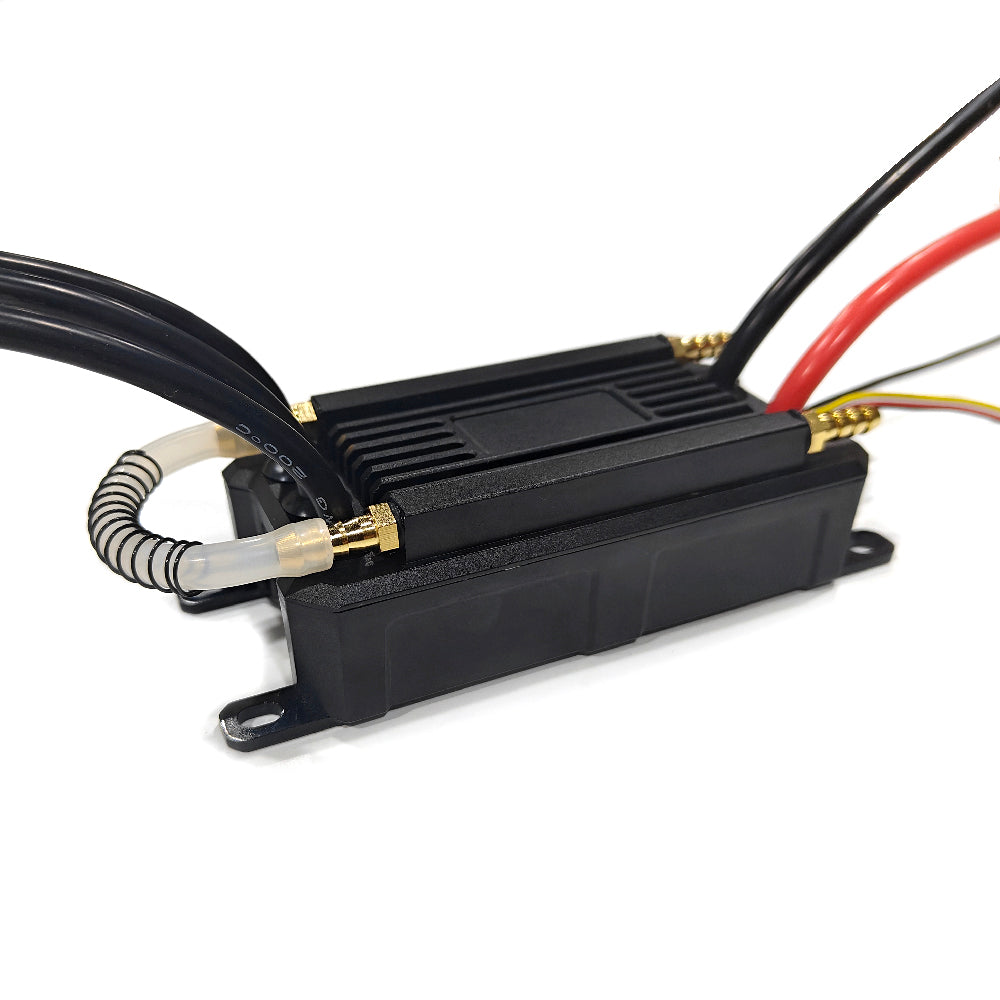

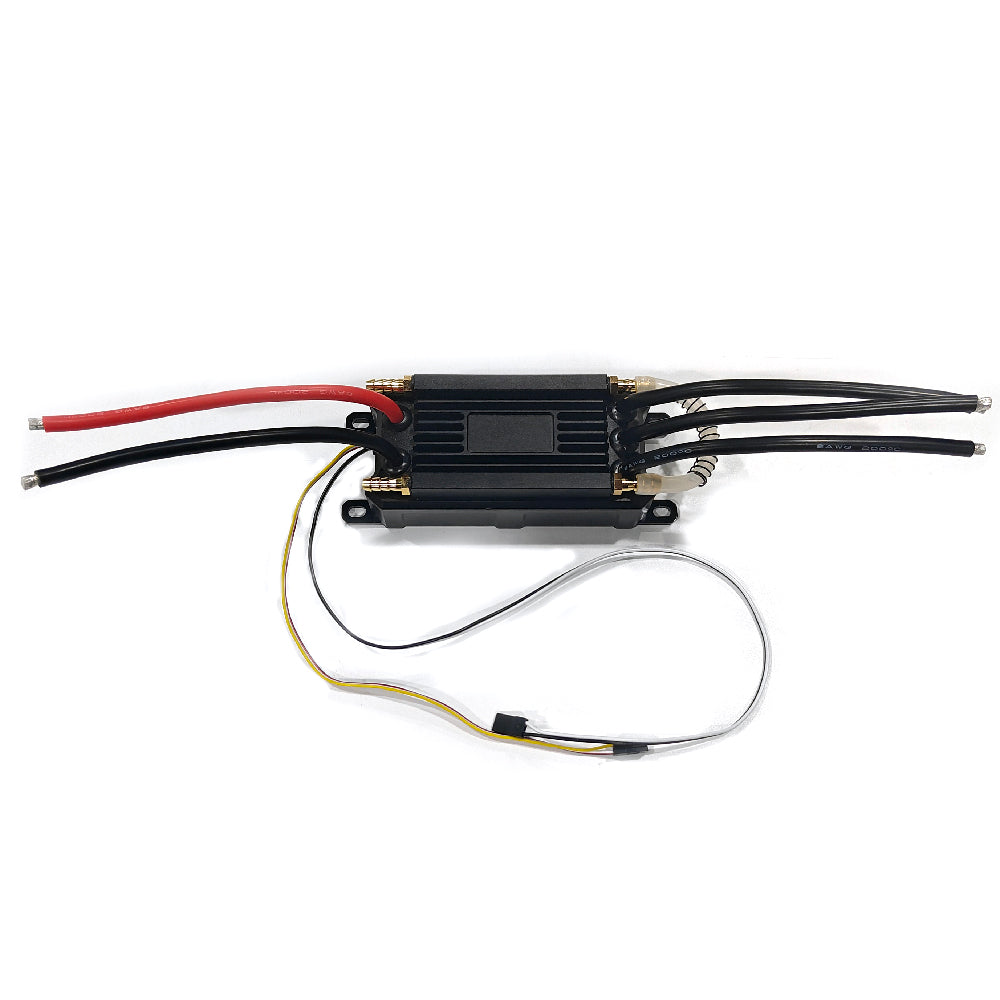

【IP68】Maytech New 32Bit 300A ESC 60V or 75V Waterproof Electric Speed Controller for Eletric Surfboard Efoil Boat

【IP68】Maytech New 32Bit 300A ESC 60V or 75V Waterproof Electric Speed Controller for Eletric Surfboard Efoil Boat

SKU:MTSF300A-WP32

Regular price $309.90
Regular price Sale price $309.90
Sale Sold out
Shipping calculated at checkout.
ESC Voltage
Option

Have Doubts? Contact US!!

【IP68】Maytech New 32Bit 300A ESC Waterproof Electric Speed Controller for Eletric Surfboard Efoil Boat

----------------------------------------------------------------------------------------------

Frequently Asked Question:

Do I have to use a water pump if the ESC is air-cooled?

This ESC is fully waterproof IP68 rating. If use the ESC directly in water for cooling, then it doesn’t need water pump; If use it in air, then it need water pump for cooling. Here is waterpump link: 12V 30W water pump and DC-DC module for electric surfboard efoil electric boat ESCs/Motors

12V 30W water pump and DC-DC module for electric surfboard efoil electric boat ESCs/Motors

---------------------------------------------------------------------------------------------

Version 1:
Model No.: MTSF300A-WP32
Input Voltage: 6-14S Lipo (22.2V-60V)
Version 2:
Model No.: MTSF300A-WP32-HV High Voltage Version
Input Voltage: 6-18S Lipo (22.2V-75V)

Waterproof Rank: IP68
Cont Current: 300A
Peak Current (at 10S): 320A
With 5V BEC
Weight: 585g
Size: 122*62*40mm (150*62*40mm inlcuding mounting holes)
Cable Guage: 8AWG
Max ERPM: 100000
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.

▶ 32BIT Micropprocessor
▶ Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature,
speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
▶ Fully sealed, IP68 water-proof (water-proof version ESC)
▶ 8-layer 3oz PCB plate, 3.4mm, support high current
▶Compact size, high efficiency, low heat.
▶Only use geniune US and Japan imported electric components.
▶Over-heat, over-voltage, over-current, low voltage protection.
▶100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.

Features:
1. Fully new circuit design, excellent algorithm
--With high performance 32bit MCU processor, greatly improved data computing ability;
--Faster respond, smoother startup;
--Throttle linear is optimized, more accurate and smoother, better compatibility;
2. Seperate control board and power board design
--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.
3. Support forward and reverse rotation
--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.
--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,
4. With kinetic energy recovery function
--Save more energy;
--Extend battery working time;
--Reduce heat
5. Built in upgrade high power BEC with on & off
6. Multiple protections
--Startup protection;
--Over-temp protection;
--Low voltage protection;
--Phase loss protection;
--Signal loss protection
【IP68】Maytech New 32Bit 300A ESC Waterproof Electric Speed Controller for Eletric Surfboard Efoil Boat
【IP68】Maytech New 32Bit 300A ESC Waterproof Electric Speed Controller for Eletric Surfboard Efoil Boat
【IP68】Maytech New 32Bit 300A ESC Waterproof Electric Speed Controller for Eletric Surfboard Efoil Boat
