(18-75V Motor ESC Kit) Sensored 5065 70KV Open Cover Motor+ 75V VESC based controller for Robotics Electric Skateboard LongboardMTSVESC7.5R+MTO5065-70-HA
(Motor+ESC) Sensored 5065 70KV Open Cover Motor+ 75V VESC based controller for Robotics Electric Skateboard Longboard

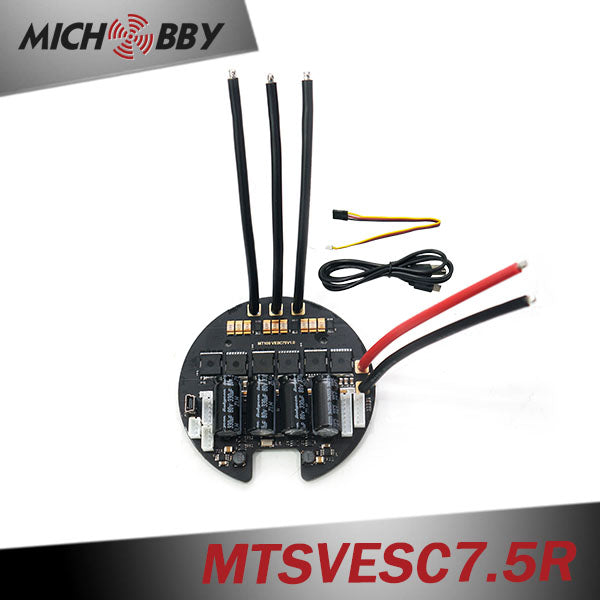

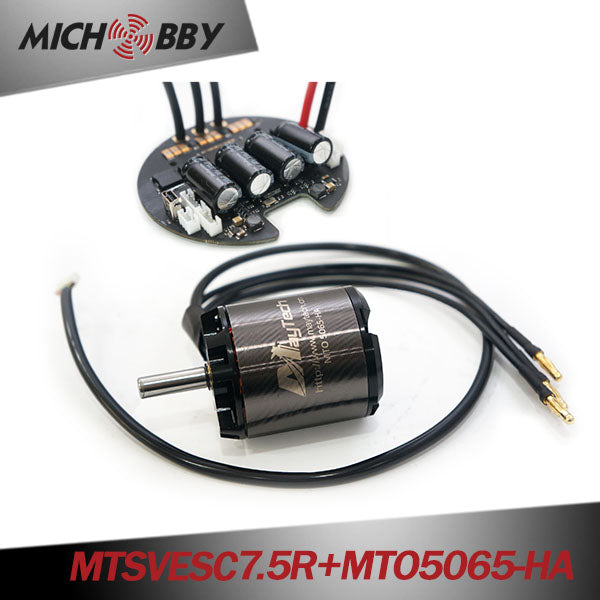

Including 1pcs MTO5065-70-HA motor + 1pcs MTSVESC7.5R ESC
Motor max voltage is 27S lipo, ESC max voltage is 75V. So the kit max voltage is 75V (18S Lipo).

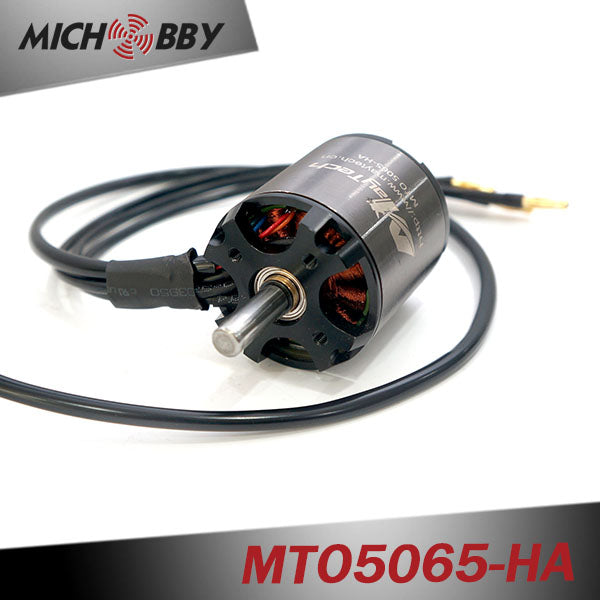

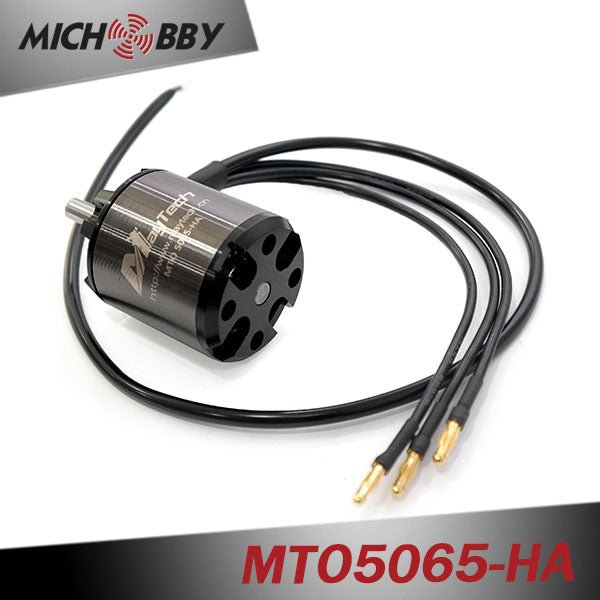

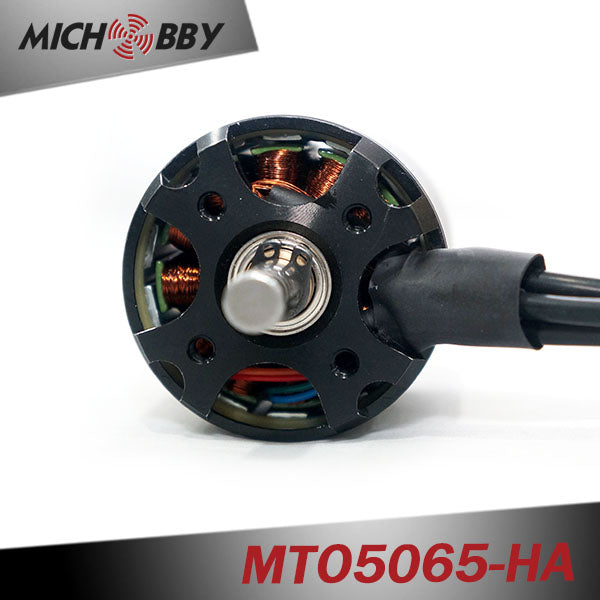

1. Maytech 5065 70KV electric motor for electric vehicle/ diy electric skateboard:
|Input Volt||2-27Lipo cell|
|Max. Output Watt||1815W|
||With hall sensor|
|Application||For electric skateboard/e-bike/marine robots
- The up and bottom caps are made of aluminium alloy.
- The motor case is made of steel.
- The static balance is confirm.
- NMB Japanese bearings
- 45h sintered ndfeb magnets
- Stator is stacked with silicon steel
- Use high temperature and oxygen-free copper wire
- Stainless steel shaft
- High-temperature micro ball-bearing
|Hardware version||based on VESC6 High Voltage|
|Accessory||with USB program cable|
|Capacitors||4pcs 330uf 80V|

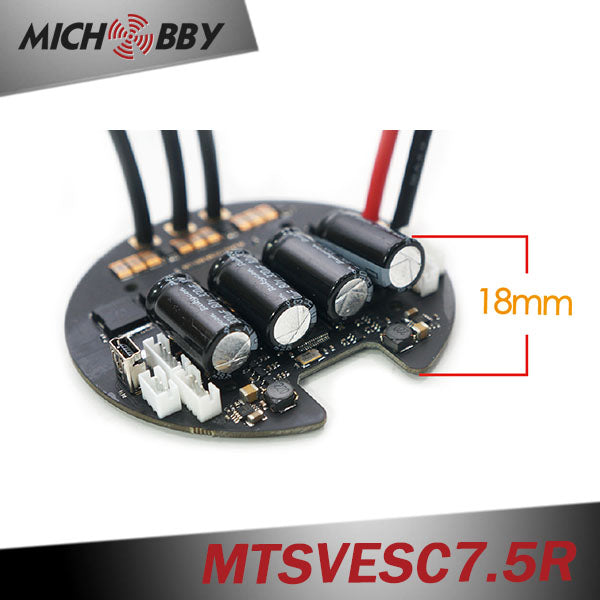

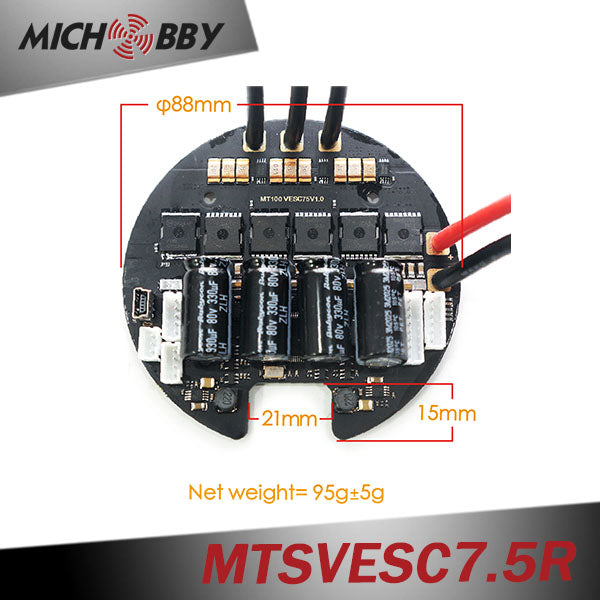

|Dimension of VESC board||88mm(diameter)*18mm(height)|
|Power wire||Silicon wire|
Application: Electric skateboard, Esk8, longboard, mountainboard, offroad skateboard, city skateboard, street skateboard, motorized skateboard, electric longboard, electric surfboard, Esurf, Efoil, electric foil, foilsurf, foilsurfing, surffoil, surfjet, jetski, jetboard, electric hydrofoil, ROV/ROVEEE/remote operated vehicle, underwater robot, Underwater Robotics/underwater remotely operated vehicles, subsea robots, cablecam, broadcast, Ultra drones,security monitoring robots, robots for security and safety monitoring in harsh terrain, agile robots, autonomous agile robots, security robots, autonomously monitor security, combat robots, fighting robots, etc.,
