60V 111KG Thrust Electric Jetpump Kit MTWJ20KW Electric Waterjet 500A ESC Remote for Electric Jet Tender Electric Yachts Boats Catamarans
60V 111KG Thrust Electric Jetpump Kit MTWJ20KW Electric Waterjet 500A ESC Remote for Electric Jet Tender Electric Yachts Boats Catamarans
SKU:MTWJ20KW with Steering Nozzle+MTSF500A-WP+Progcard-HA+MTSKR1905WF
Preço normal
$2,263.00
Preço normal
Preço de saldo
$2,263.00
Preço unitårio
por
Envio calculado na finalização da compra.
NĂŁo foi possĂvel carregar a disponibilidade de recolha
Have Doubts? Contact US!!
Have Doubts? Contact US!!

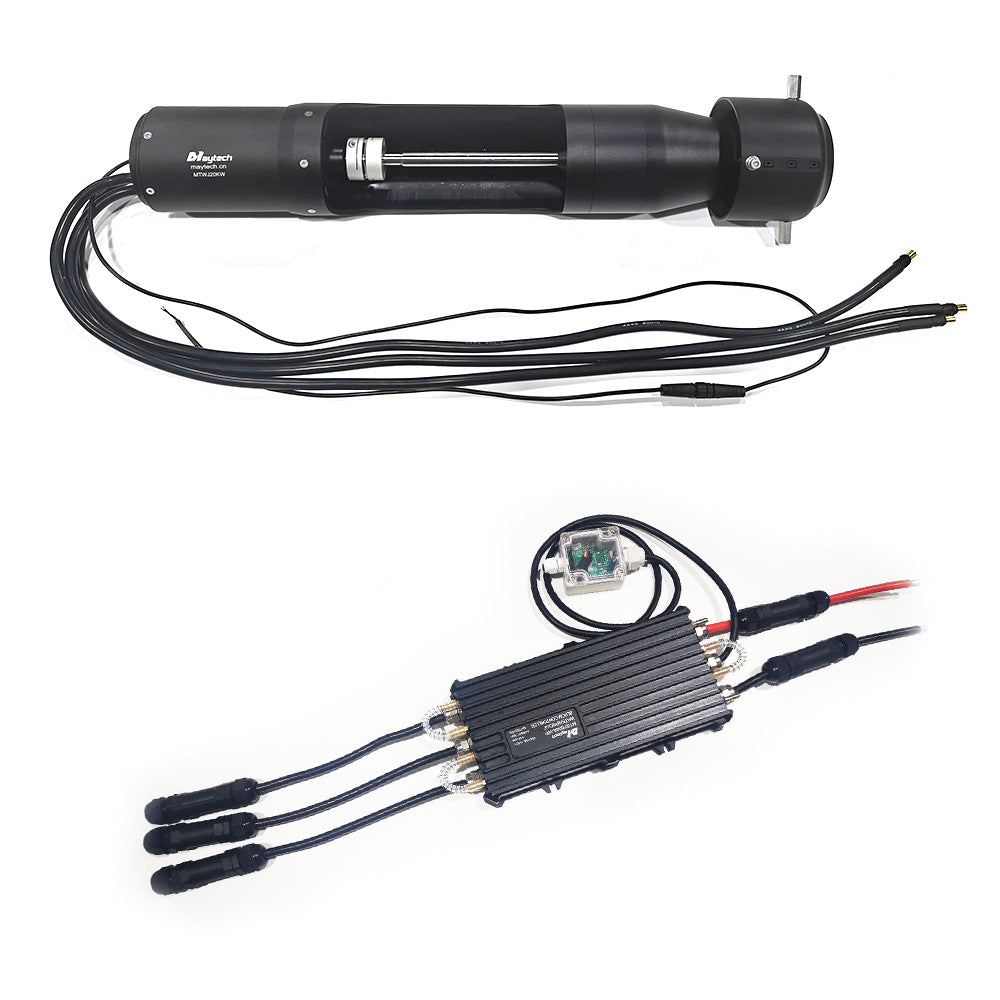

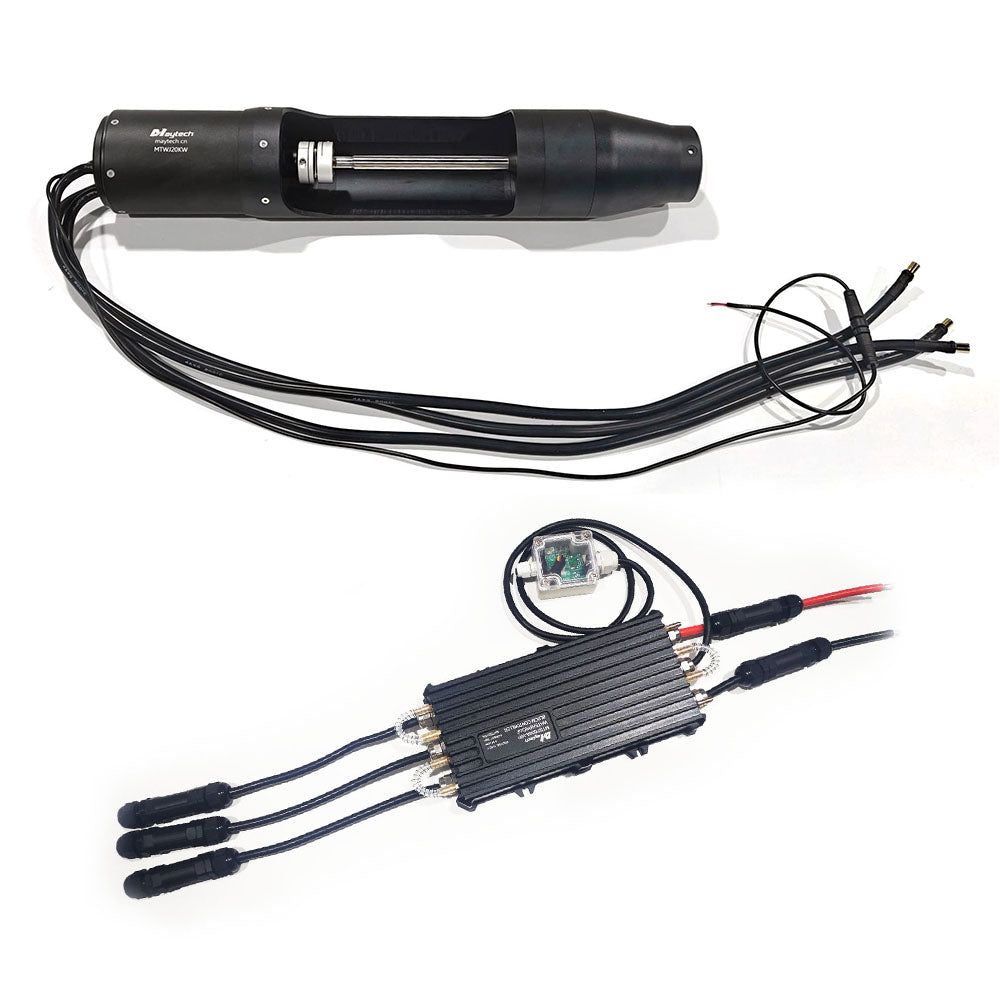

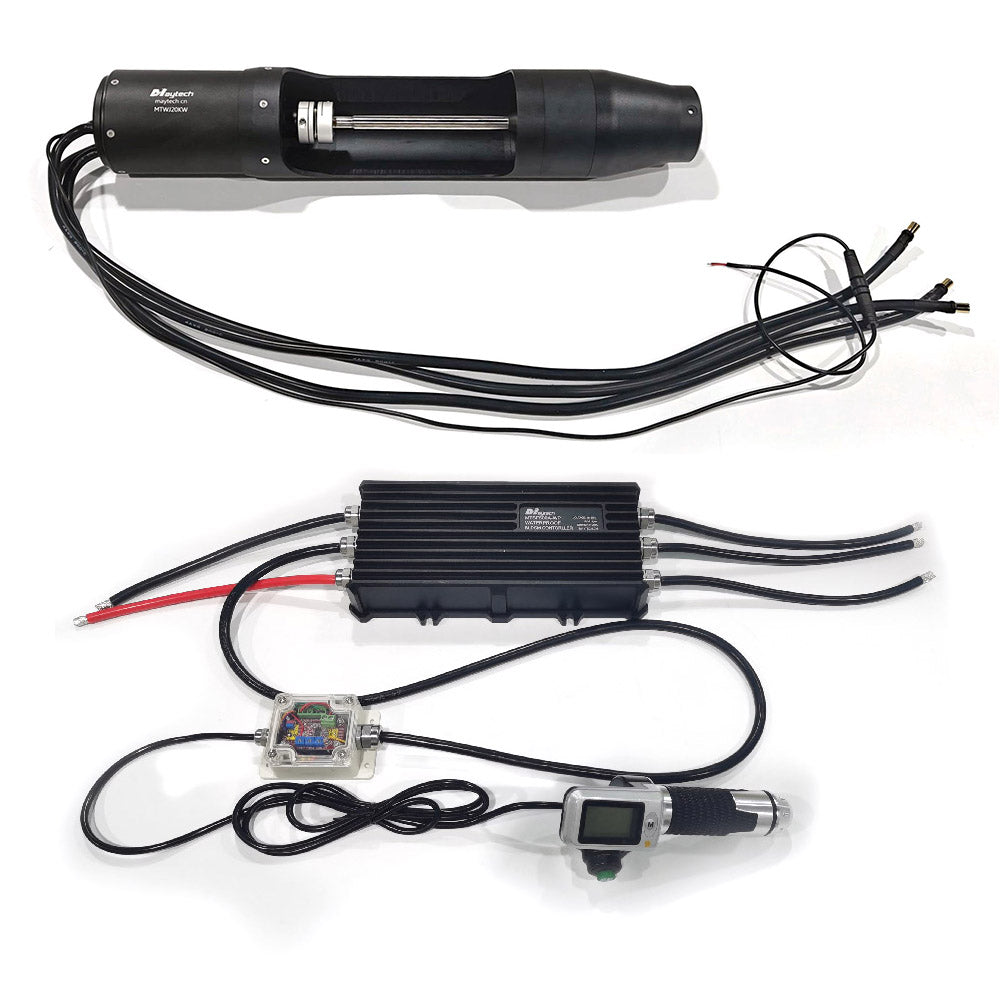

60V 111KG Thrust Electric Jetpump Kit with 500A ESC Remote for Electric Jet Tender Electric Yachts Boats Catamarans
Notice: Because the MTSF500A-WP ESC max voltage is 60V. This whole kit Max Voltage is 60V (14S Lipo).
Specifications:

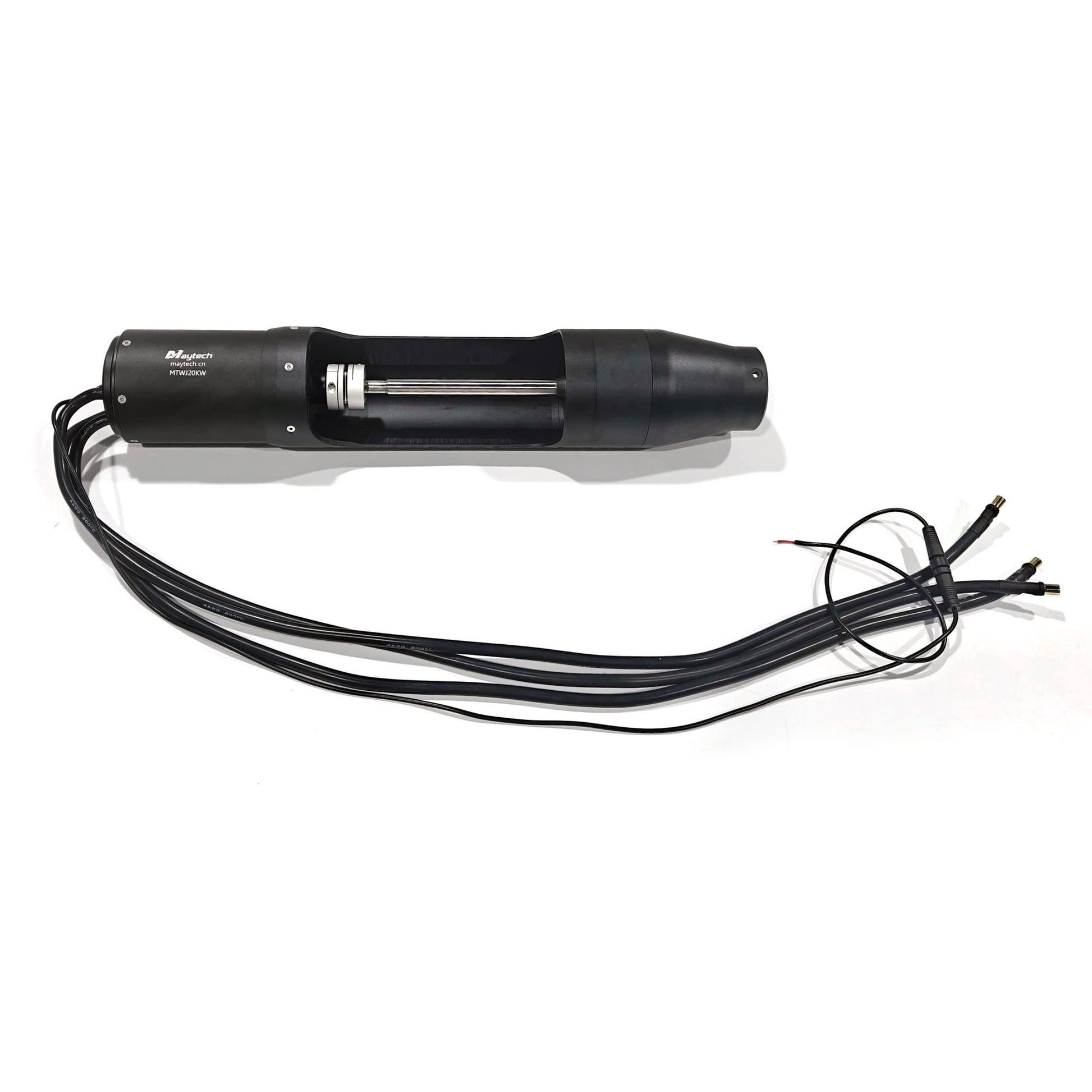

1. MTWJ20KW Electric Waterjet Including Motor + Jet pump
| Model No.: MTWJ20KWÂ (version:Â with Steering nozzle, you can remove the steering nozzle yourself if you don't need it) | |
| Motor Type | Permanent magnet brushless DC motor |
| Poles No. | 10-poles |
| Motor type and Kv | 160KV |
| Max Voltage | 72V |
| Peak Current | 285A at 72V |
| Rated /Max. Power | 16KW / 20KW |
| Rated /Max.RPM | 8200 rpm / 11300 rpm |
| Rated /Max. Torque | 16N*m /20N*m |
| Motor efficiency | 0.9 |
| Phase Resistance | 8.8 mΊ |
| Waterproof | IP68 |
| Working temperature | -20â to 60â |
| Cooling method | Water-cooling |
Download:Â
MTWJ20KW Specifications/Test Datas/Test Curves
Max Thrust at Different Volts at Full Throttle
|
|
Voltage (V)
|
Current (A)
|
Input Power (W)
|
RPM
|
Thrust (kgf)
|
Throttle (%)
|
Thrust/Power
(kgf/kw) |
|
1
|
36
|
153
|
5508
|
4600 |
61.3
|
100
|
11.13
|
|
2
|
48
|
245 |
11760
|
6100 |
101.2
|
100
|
8.61 |
|
3
|
60
|
275
|
16500
|
7150 |
111.2
|
100
|
6.74 |
| 4 |
72
|
285
|
20520
|
8500 |
114.8
|
100
|
5.59 |

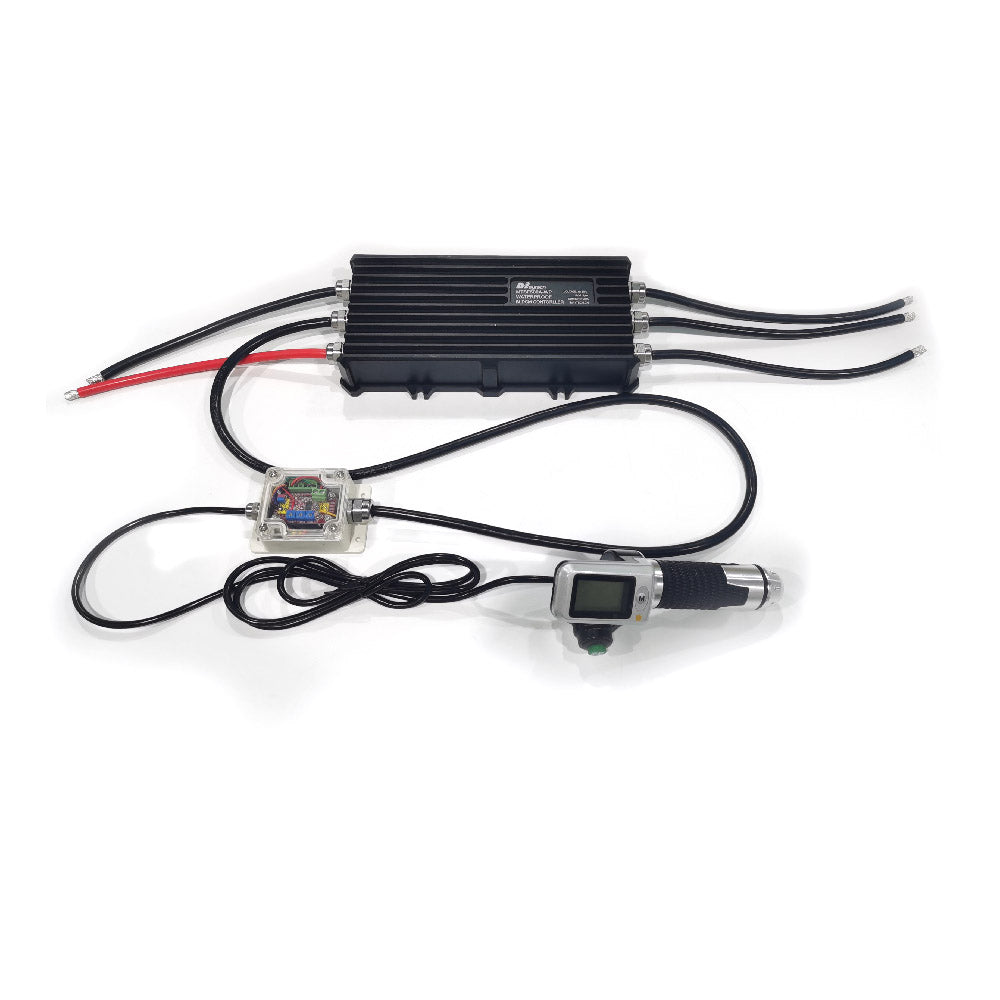

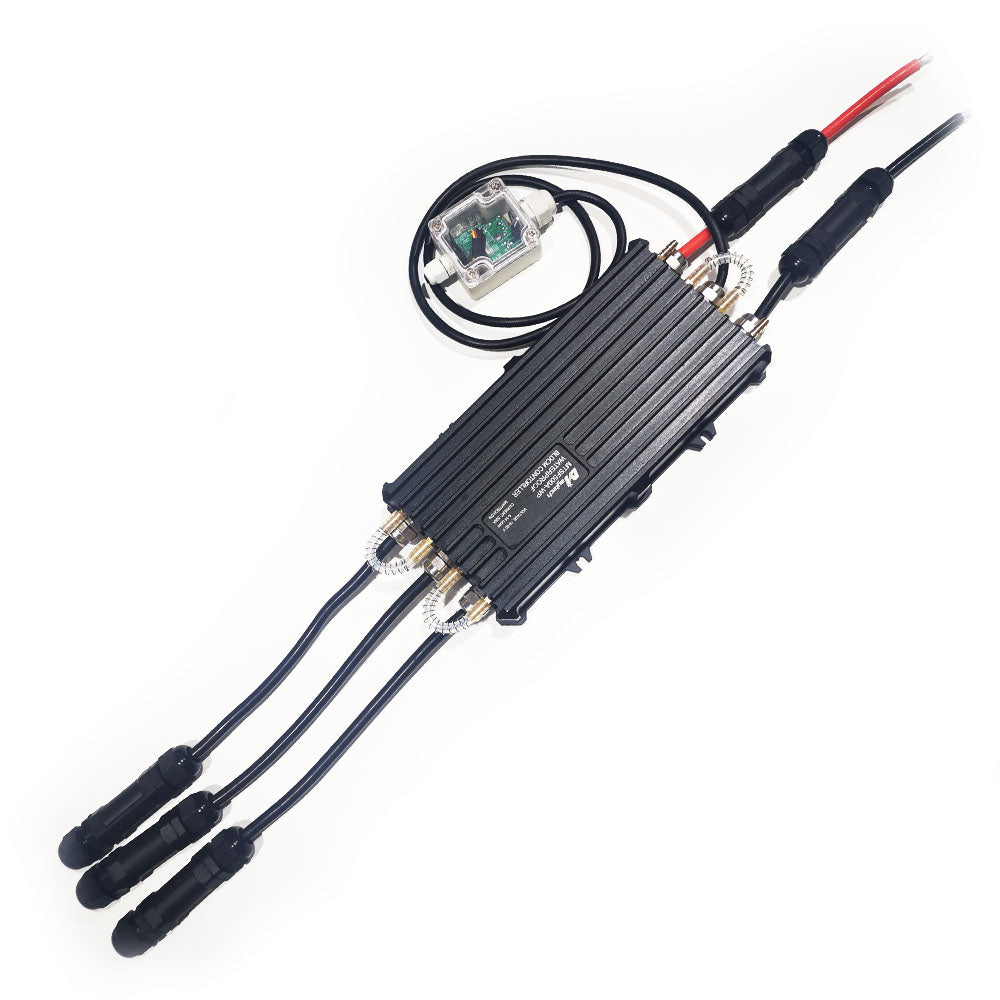

2. Maytech 500A ESC Waterproof Electric Speed Controller with progcard
Model No.: MTSF500A-WP
With fully water-proof and cooling aluminum case
Cont. Current: 500A
Burst Current:1000A

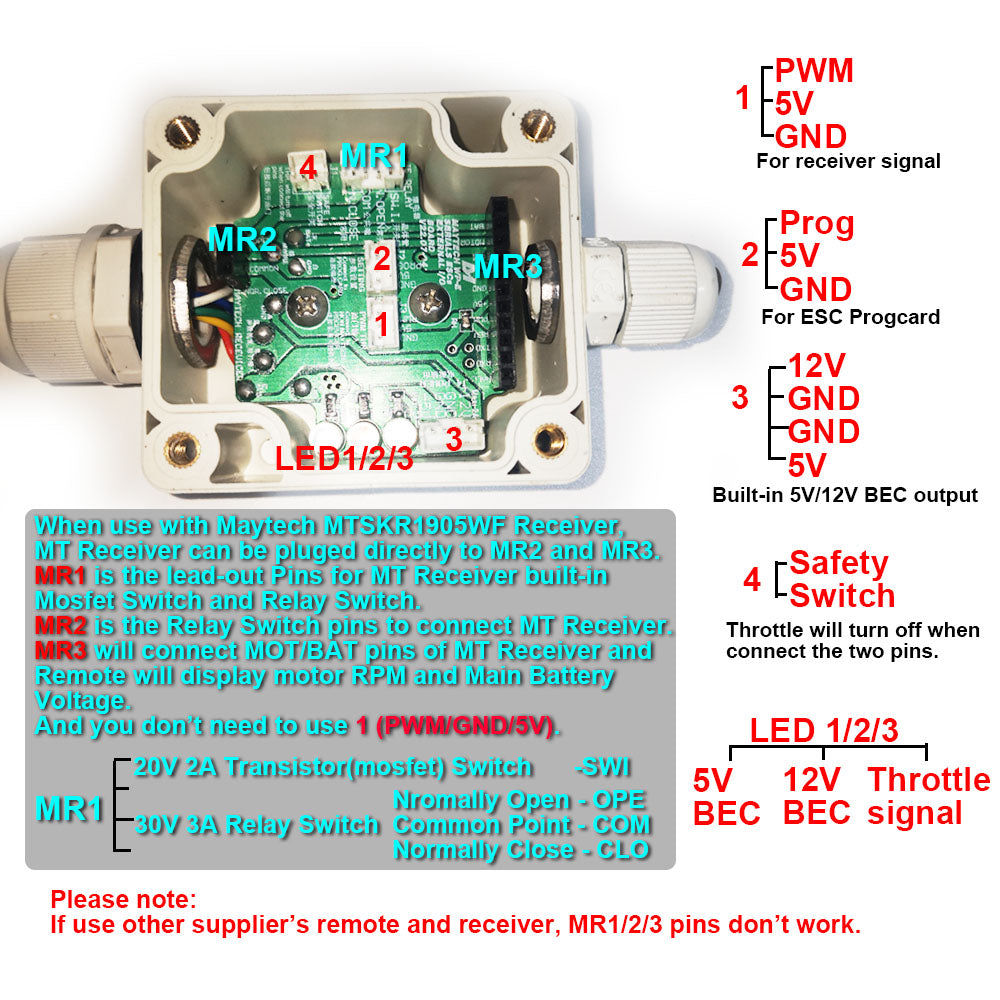

BEC: Built-in 18-75V to 5V/12V UBEC module
Lipo: 6-14SÂ
Weight:Â 3.8kg

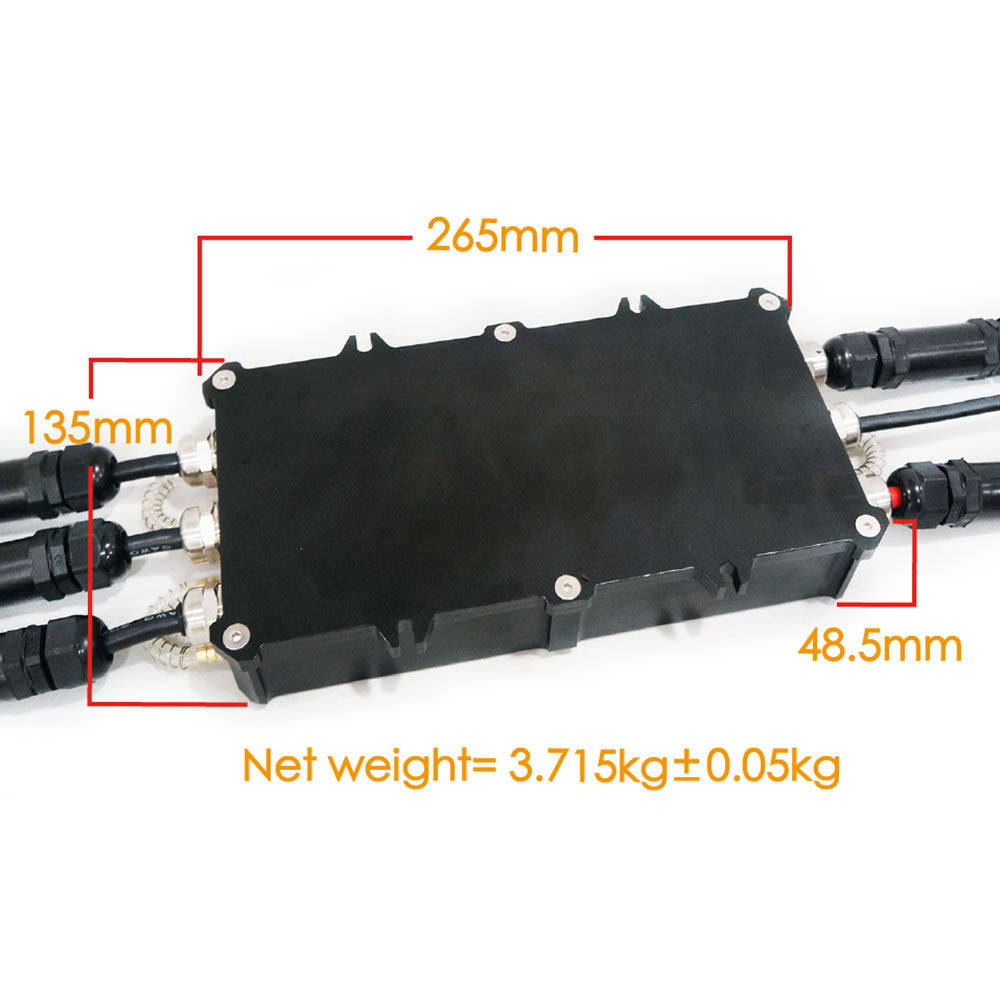

Size: 265*135*48.5mmÂ
Great start-up torque with sensorless motorsÂ
100% Water-proof case
3. Throttle Options:

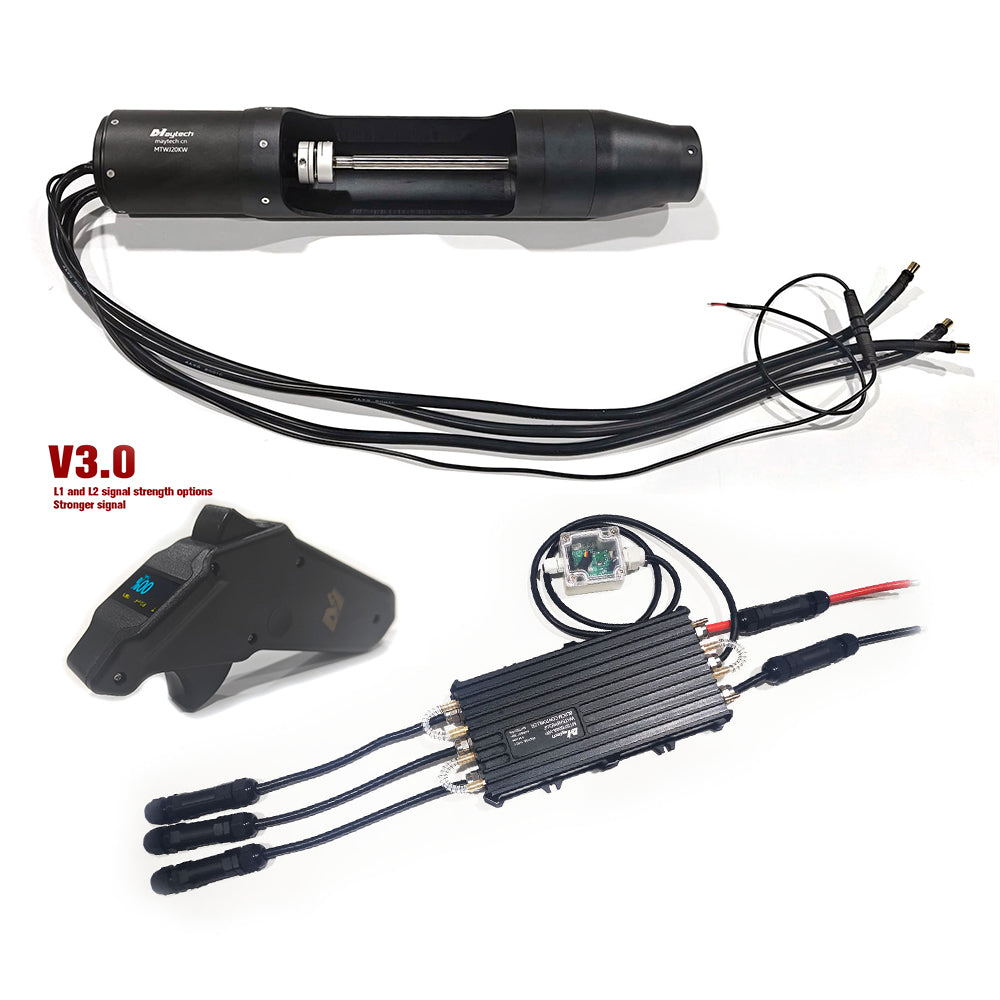

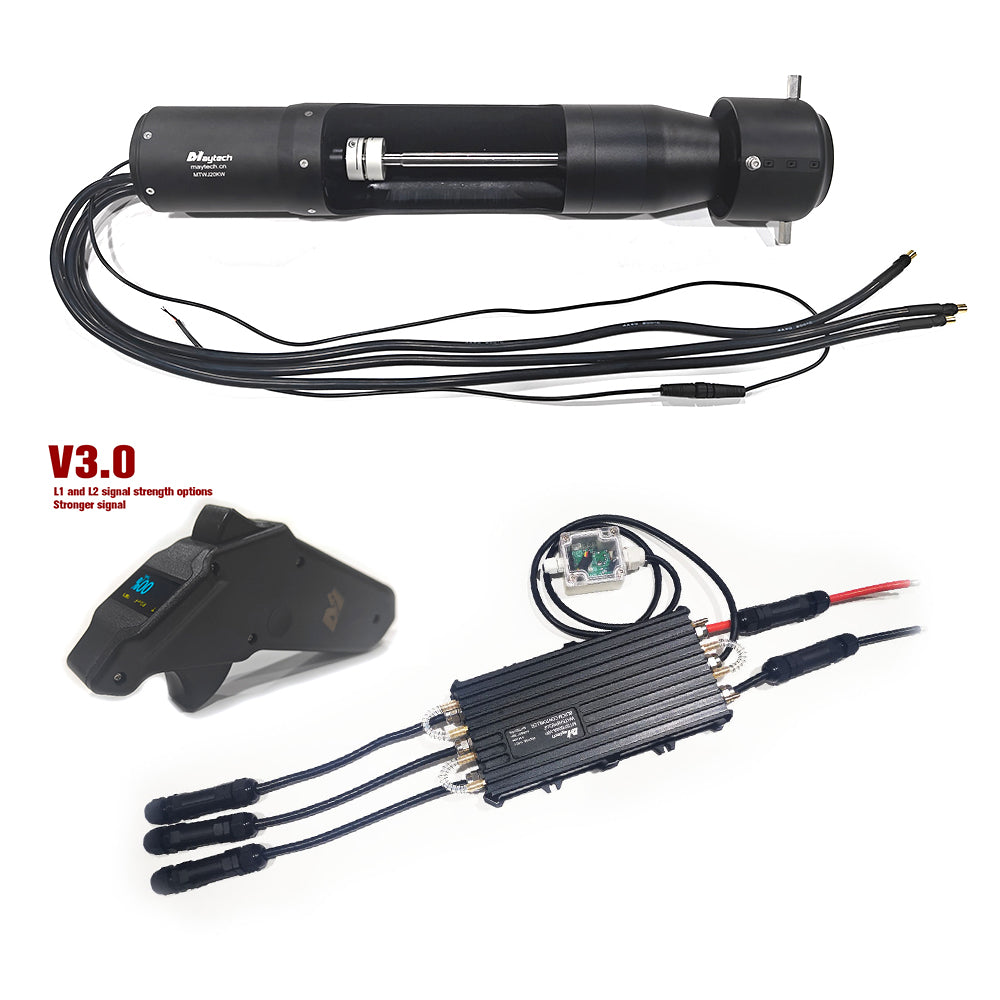

3-1: Maytech MTSKR1905WF Wireless Hand Controller Waterproof remote (Click for more remote details)Display Throttle%, Voltage, RPM, etc. |
|||
| Model no |
MTSKR1905WF latest version | Packing | cartons box |
| Function | wireless charging |
Display screen |
Yes |
| Accessory | receiver and charging pad | Signal type |
PWM |
| FREE Accessory | Strip (color is random) | Esurf mode |
with cruise control |
| Batt voltage display | 3-18S | Esk8 mode | with brake |
Settings in Remote for this kit:
| 1)Thr Mode: | Surfboard |
| --5) and 6) Batt Type and Batt Ser Num | Please set according to your battery. |
| 9) Data Source | None or Motor Wire (display RPM) |
| 10) M.Pole Pairs | 5 |
| 12) Gear Ratio | 1. |

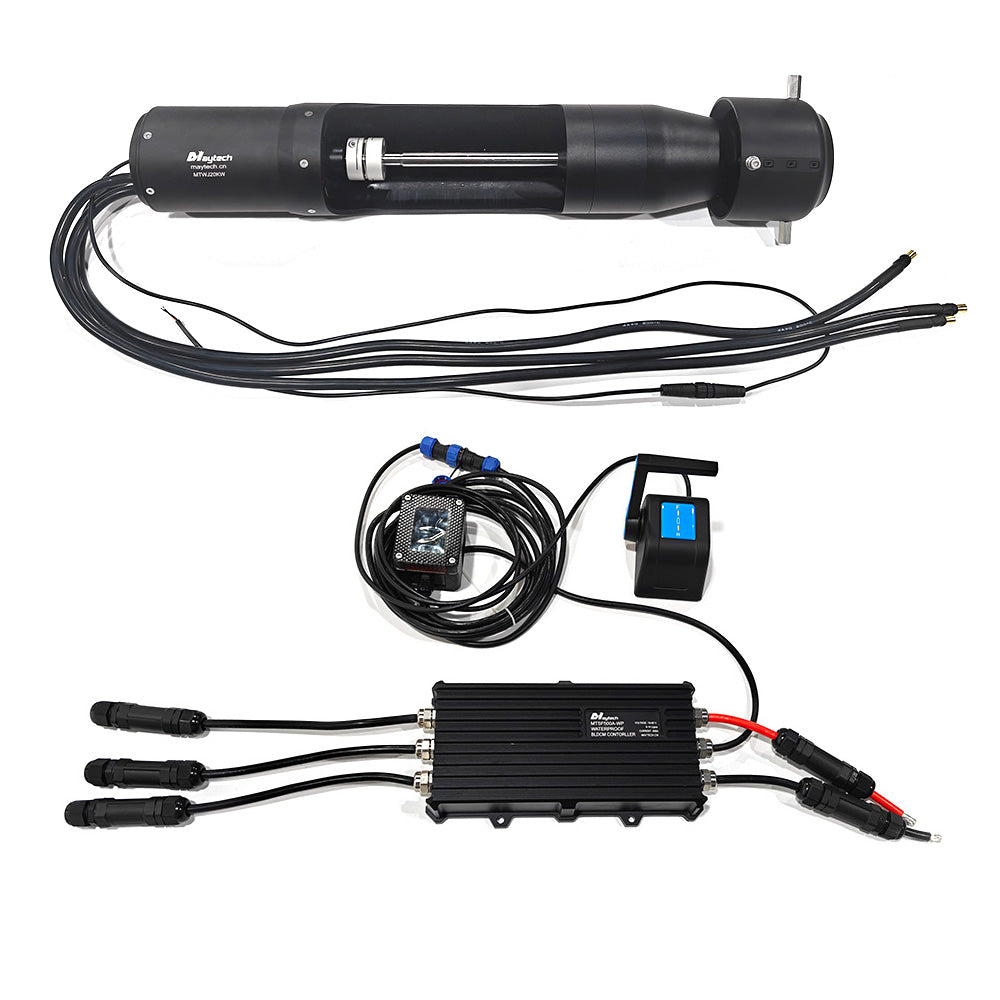

3-2 Maytech Electric Boat Motor Throttle Lever Forward Backward for Sailboats Electric Hydropfoil Boat
|
Model No
|
MTTR26
|
Application
|
Electric Yacht, Electric Boat, Sailboat, etc.
|
|
Output signal range
|
1-2ms PWM (Stop position 1.5ms, 1.5m-1.0ms Backward, 1.5-2ms Forward)
|
Suitable ESCs
|
Maytech MTSF300A-WP,
etc. (Please contact support@michobby.com if have any questions).Â
|
|
Voltage
|
 5V
|
Accessories
|

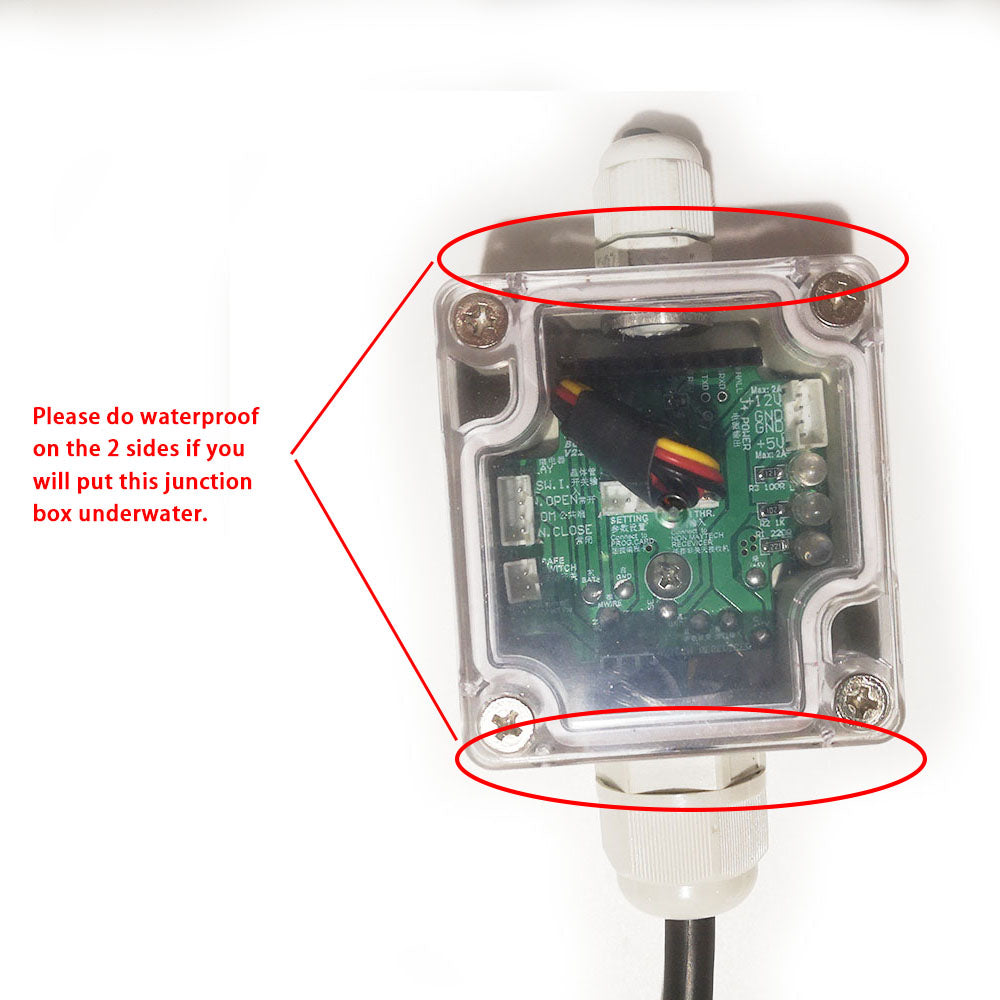

With signal conversion junction box |
3-3 Wired Throttle Twist throttle with ADC signal
Only forward direction, no other functions
Jet Drawing:Â

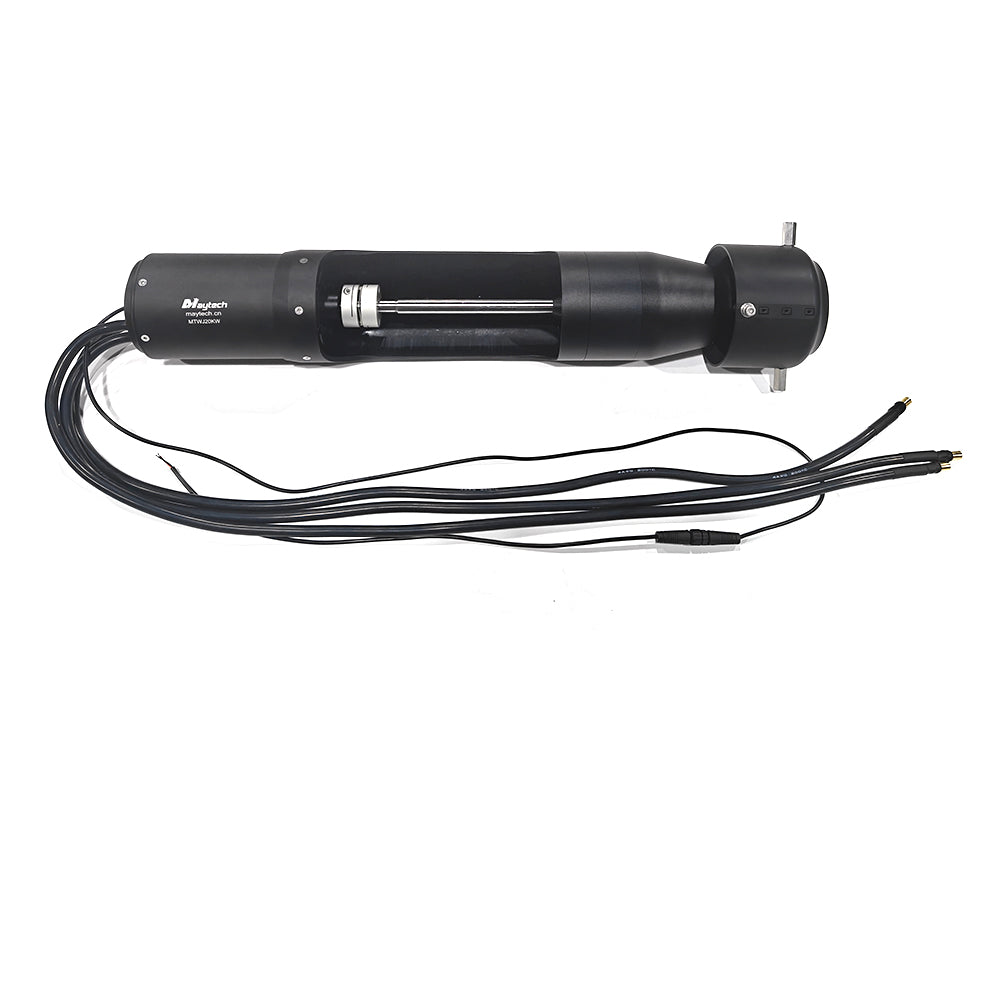

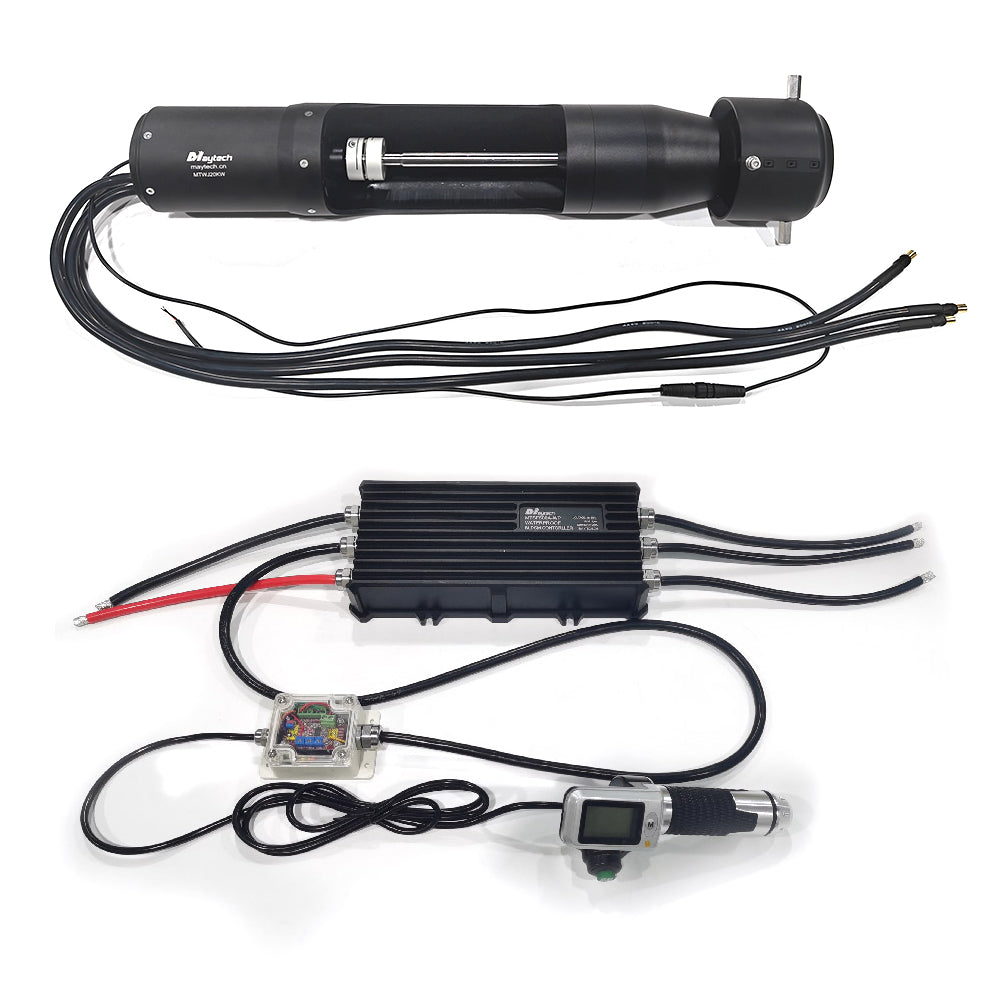

With Steering Nozzle (you can remove the steering nozzle yourself if you don't need it)
Test Curves and Test Datas:Â
2 Types Impeller will be shipped randomly:Â
Test Video:
