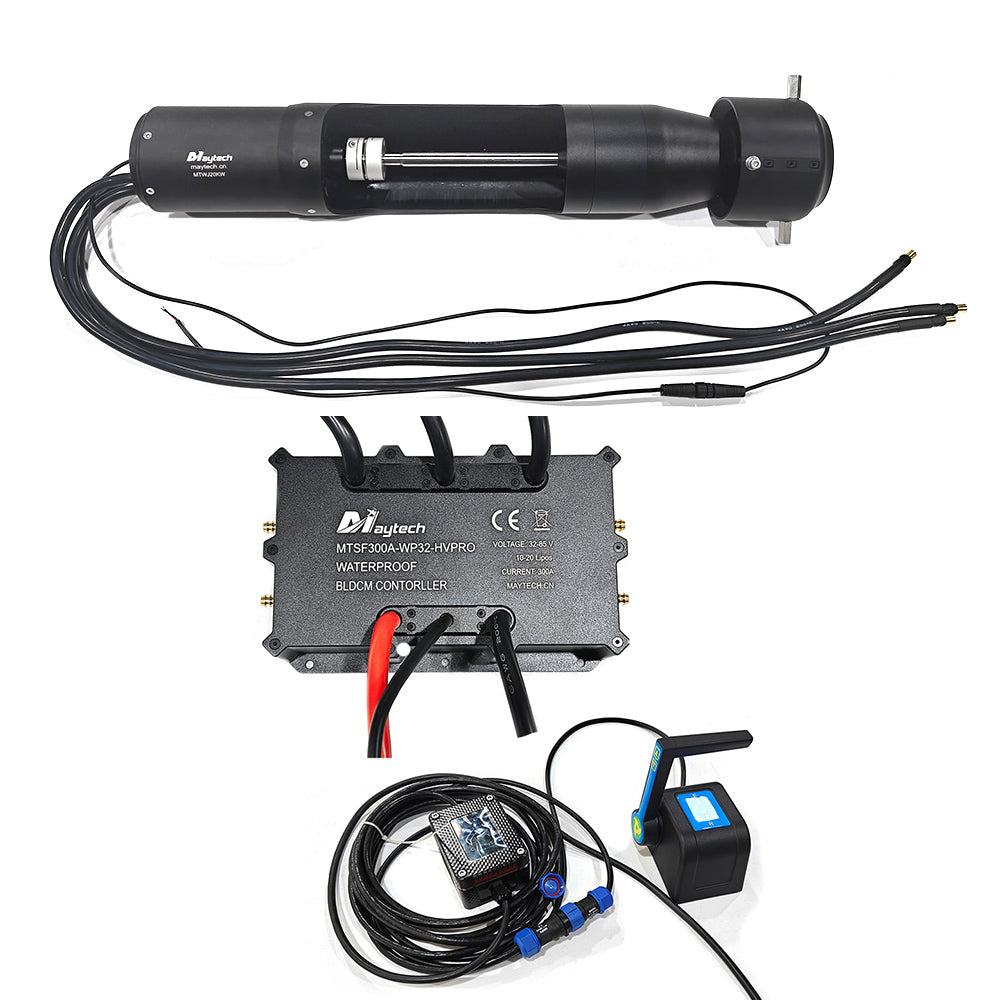

20KW Electric Jetpump Kit MTWJ20KW Electric Waterjet 300A ESC Remote for Electric Jet Tender Electric Yachts Boats Catamarans
Notice: Because the MTWJ20KW Jet max voltage is 72V. This whole kit Max Voltage is 72V (18S Lipo).
Specifications:
1. MTWJ20KW Electric Waterjet Including Motor + Jet pump
| Model No.: MTWJ20KW-SĀ (Version: with Steering nozzle, you can remove the steering nozzle yourself if you don't need it) | |
| Motor TypeĀ | Permanent magnet brushless DC motor |
| Poles No.Ā | 10-poles |
| Motor type and Kv | 160KV |
| Max VoltageĀ | 72V |
| Peak CurrentĀ | 285A at 72V |
| Rated /Max. PowerĀ | 16KW / 20KW |
| Rated /Max.RPM | 8200 rpm / 11300 rpm |
| Rated /Max. TorqueĀ | 16N*m /20N*m |
| Motor efficiencyĀ | 0.9 |
| Phase ResistanceĀ | 8.8 mĪ© |
| WaterproofĀ | IP68 |
| Working temperatureĀ | -20āĀ to 60ā |
| Cooling methodĀ | Water-cooling |
Download:Ā
MTWJ20KW Specifications/Test Datas/Test Curves
Max Thrust at Different Volts at Full Throttle
|
|
Voltage (V)
|
Current (A)
|
Input Power (W)
|
RPM
|
ThrustĀ (kgf)
|
Throttle (%)
|
Thrust/Power
(kgf/kw) |
|
1
|
36
|
153
|
5508
|
4600 |
61.3
|
100
|
11.13
|
|
2
|
48
|
245 |
11760
|
6100 |
101.2
|
100
|
8.61 |
|
3
|
60
|
275
|
16500
|
7150 |
111.2
|
100
|
6.74 |
| 4 |
72
|
285
|
20520
|
8500 |
114.8
|
100
|
5.59 |
2. Maytech 300A ESC Waterproof Electric Speed ControllerĀ
Model No.: MTSF300A-WP32-HVPROĀ with Bluetooth module BLT32PROHV
with bluetooth module for programming
Waterproof Rank: IP68
Cont Current: 300A
Peak Current (at 10S): 320A
Input Voltage: 10-20S Lipo (32V-85V)
Cable Guage: 6AWG
Max ERPM: 100000
32BIT Micropprocessor
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.Ā
3. Throttle Options:
3-1: Maytech MTSKR1905WF Wireless Hand Controller Waterproof remote (Click for more remote details)Display Throttle%, Voltage, RPM, etc.Ā |
|||
| Model no |
MTSKR1905WF latest versionĀ | Packing | cartons box |
| Function | wireless charging |
Display screen |
Yes |
| Accessory | receiver and charging pad | Signal type |
PWM |
| FREE Accessory | Strip (color is random) | Esurf mode |
with cruise control |
| Batt voltage display | 3-18S | Esk8 mode | with brake |
Settings in Remote for this kit:
| 1)Thr Mode: | Surfboard |
| --5) and 6) Batt Type and Batt Ser Num | Please set according to your battery. |
| 9) Data Source | None or Motor Wire (display RPM) |
| 10) M.Pole Pairs | 5 |
| 12) Gear Ratio | 1. |
3-2 Maytech Electric Boat Motor Throttle Lever Forward Backward for Sailboats Electric Hydropfoil Boat
|
Model No
|
MTTR26
|
Application
|
Electric Yacht, Electric Boat, Sailboat, etc.
|
|
Output signal range
|
1-2ms PWM (Stop position 1.5ms, 1.5m-1.0ms Backward, 1.5-2ms Forward)
|
Suitable ESCs
|
MaytechĀ MTSF300A-WP,
etc. (Please contactĀ support@michobby.comĀ if have any questions).Ā
|
|
Voltage
|
Ā 5V
|
Accessories
|
With signal conversion junction box |
3-3 Wired Throttle Twist throttle with ADC signal
Only forward direction, no other functions

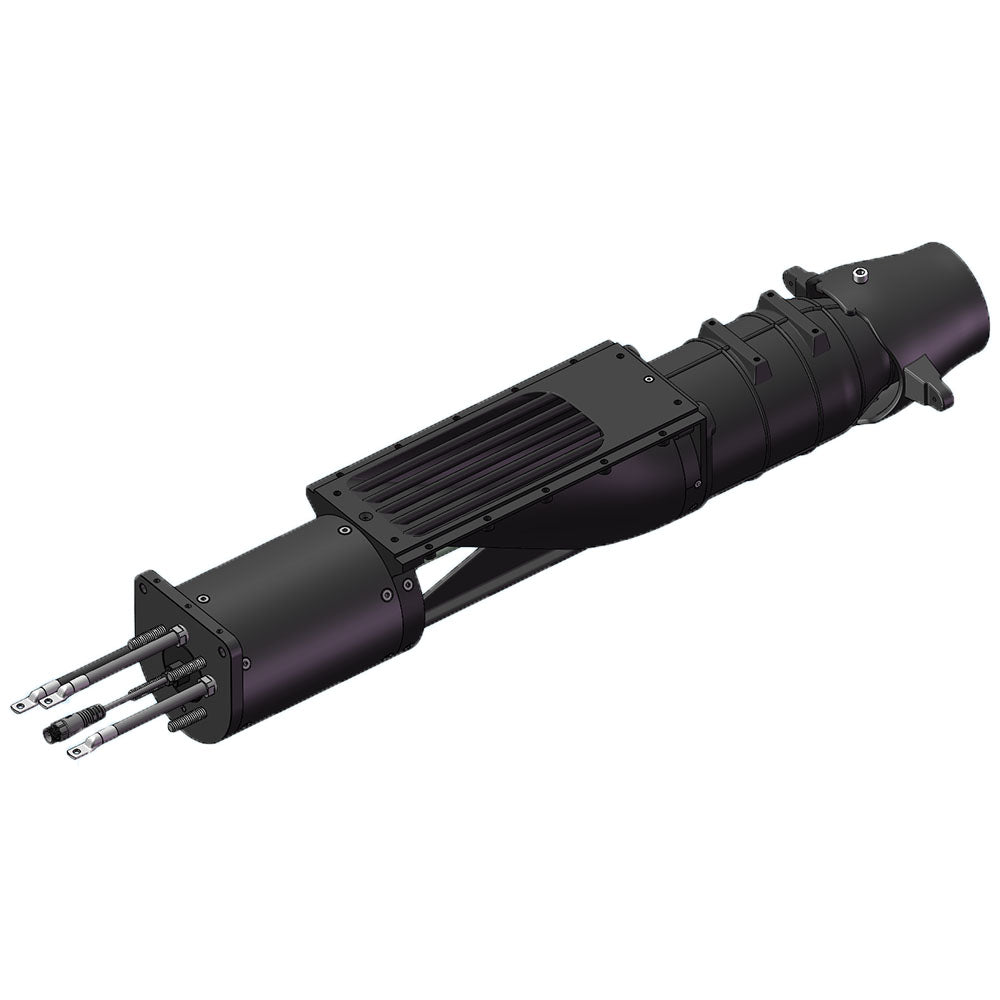

Jet Drawing:Ā
With Steering Nozzle (you can remove the steering nozzle yourself if you don't need it)
Test Curves andĀ Test Datas:Ā
2 Types Impeller will be shipped randomly:Ā
Test Video:
