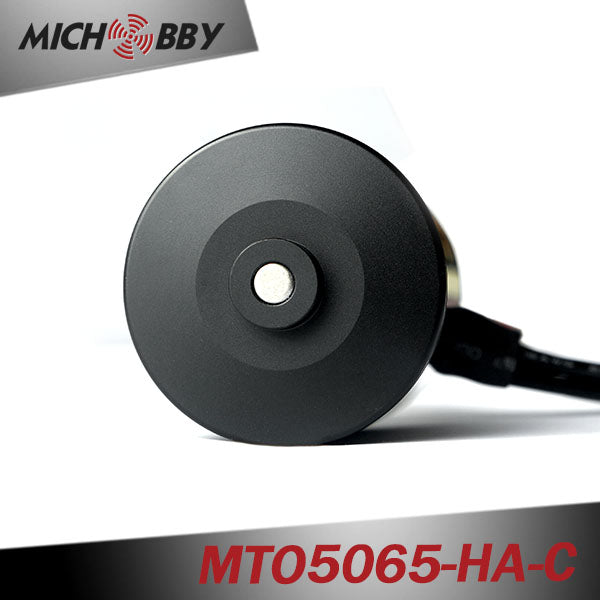

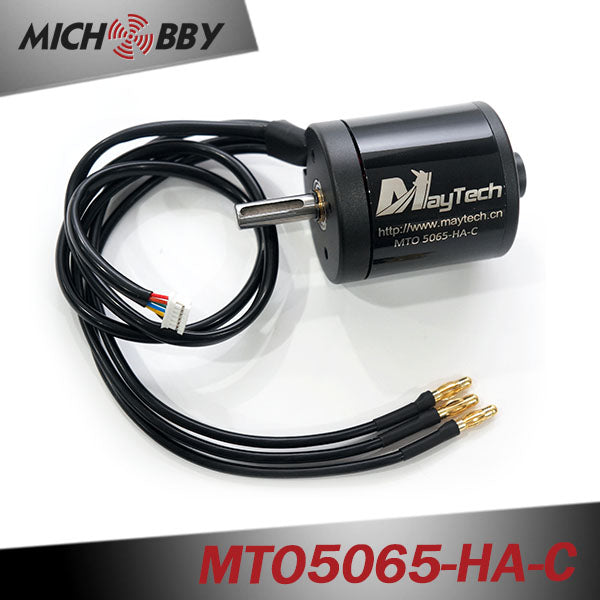

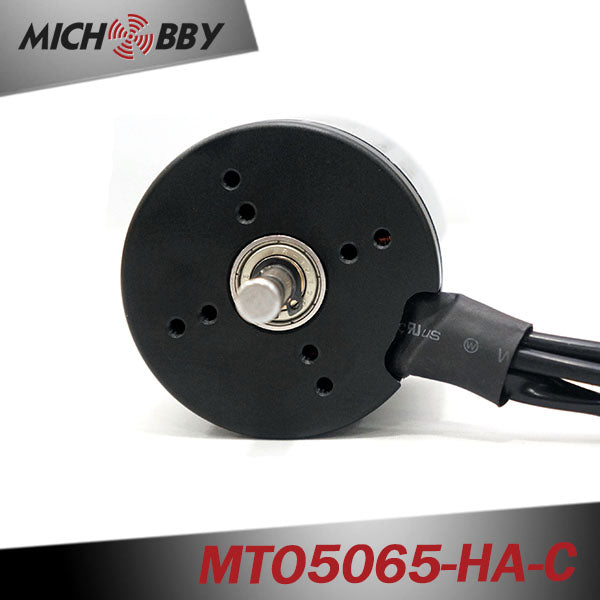

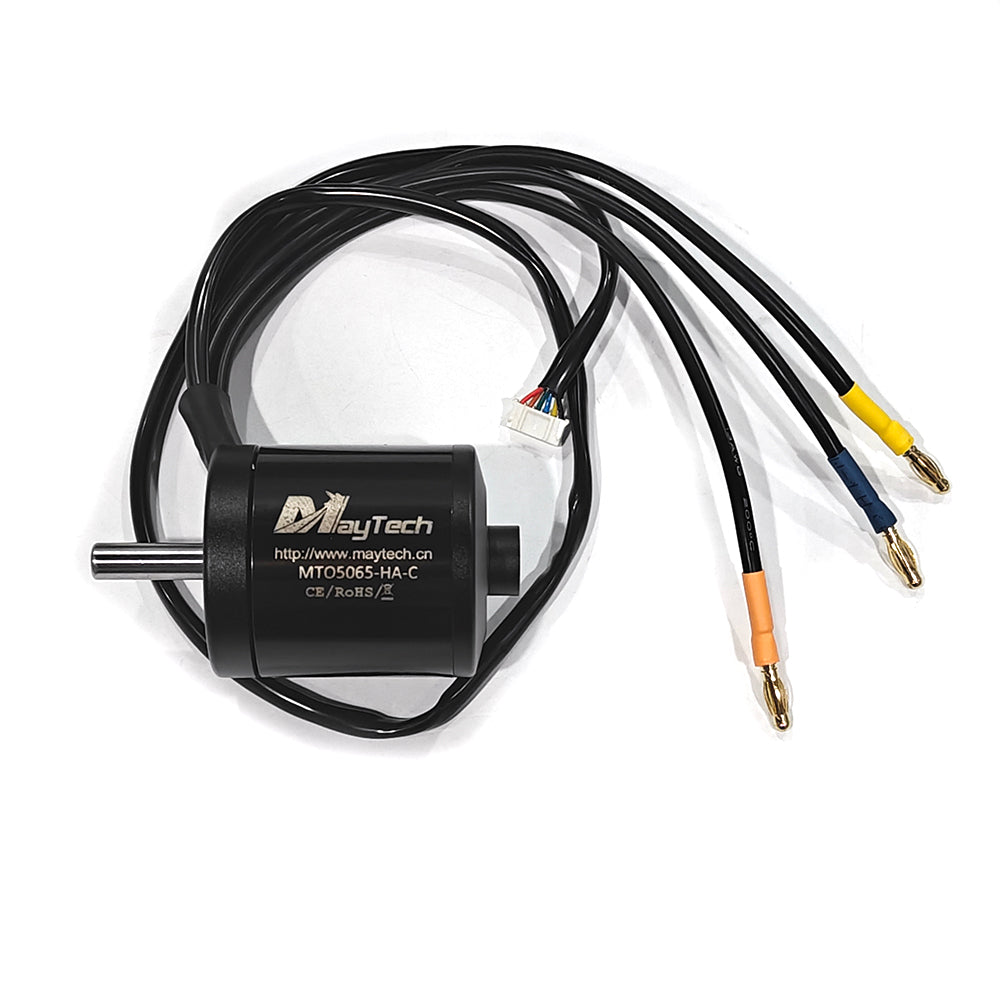

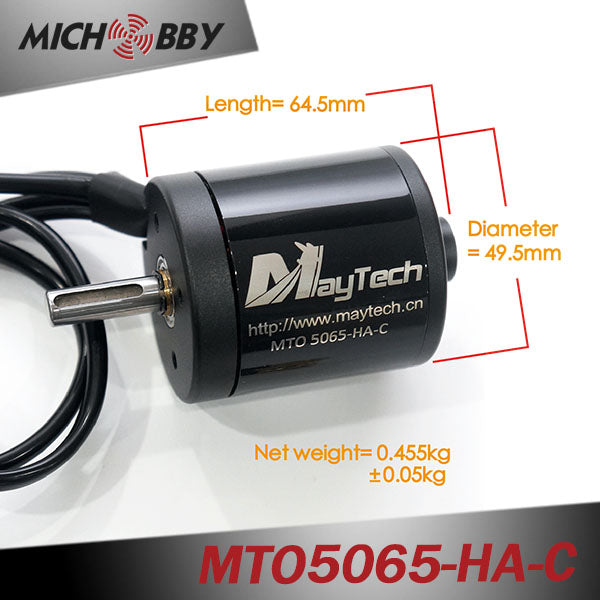

In Stock! MTO5065-170-HA-C Maytech bruhless outrunner motor 5065 with sealed cover (8mm shaft)
In Stock! MTO5065-170-HA-C Maytech bruhless outrunner motor 5065 with sealed cover (8mm shaft)
SKU:MTO5065-170-HA-C
Preço normal
$73.50
Preço normal
Preço de saldo
$73.50
Preço unitário
por
Envio calculado na finalização da compra.
Não foi possível carregar a disponibilidade de recolha
Have Doubts? Contact US!!
Have Doubts? Contact US!!
Specifications of Maytech electric bike motor 5065 with sealed cover for diy electric longboard:
| Model NO | MTO5065-170-HA-C |
| Motor KV | 170(RPM/V) |

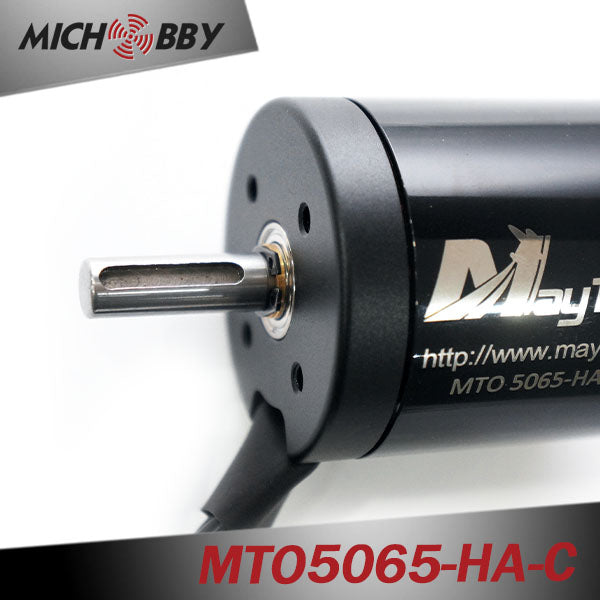

| Shaft | 8mm shaft with 3mm keyway |
| Idle Curren | 1.2A |
| Max. Current | 50A |
| Input Volt | 2-10Lipo cell |
| Max. Output Watt | 1815W |
| Max. Pull | 6700g |
| Net Weight | 455g |
| Rated Current | 42.5A |
| Internal Resistance | 0.0361 |

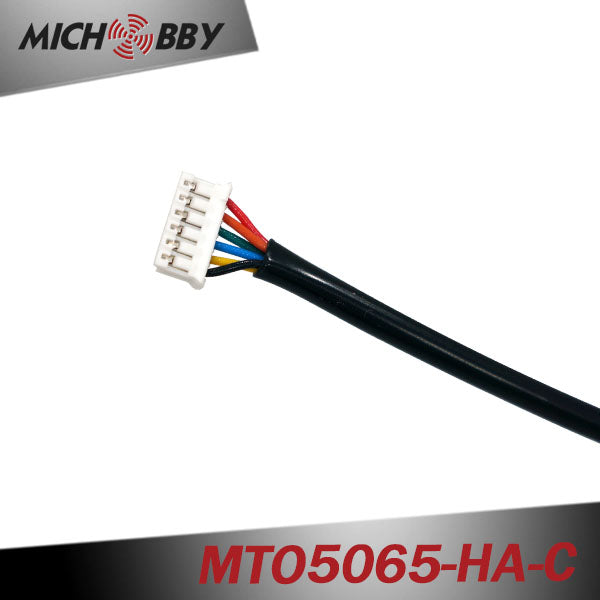

| Hall Sensor |
With hall sensor |
| Application | For electric skateboard/e-bike/fighting robots |
| Feature | Waterproof and dustproof function |
Features:
- The up and bottom caps are made of aluminium alloy.
- The motor case is made of steel.
- The static balance is confirm.
- NSK Japanese bearings
- 45h sintered ndfeb magnets
- Stator is stacked with silicon steel
- Use high temperature and oxygen-free copper wire
- Stainless steel shaft
- High-temperature micro ball-bearing
Drawing of Maytech electric bike motor 5065 with sealed cover for diy electric longboard:
