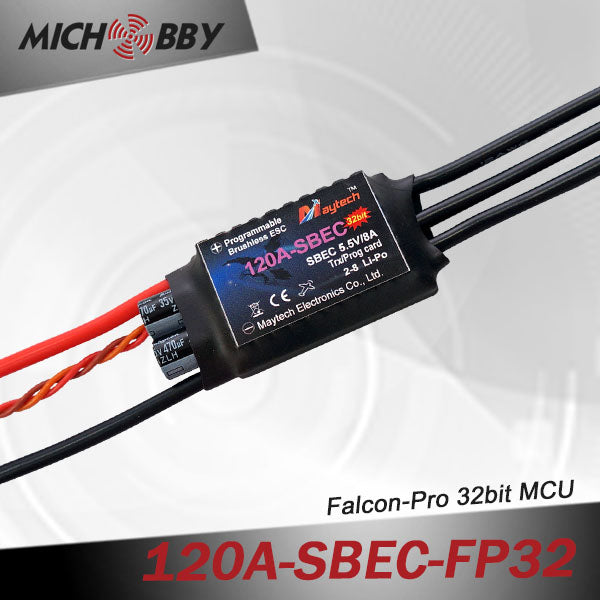

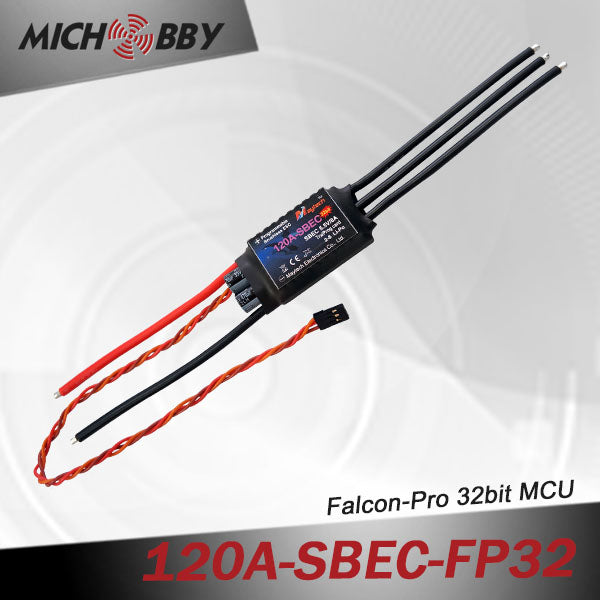

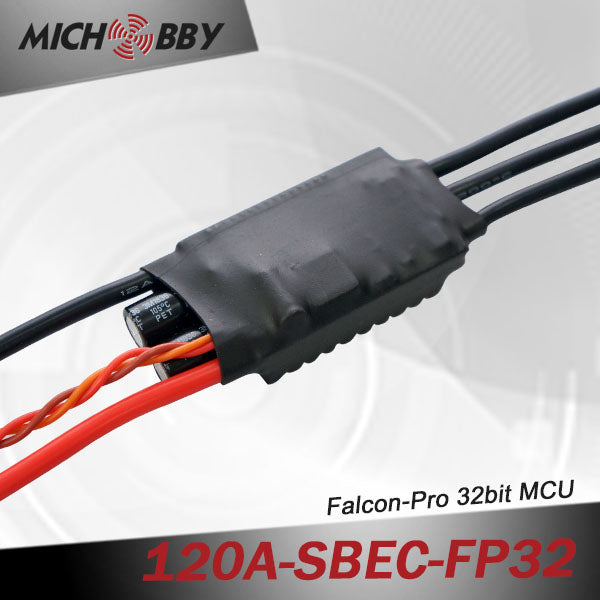

120A 8S FP Brushless ESC 32bit Speed Controller for RC Airplanes MT120A‐SBEC‐FP32
120A 8S FP Brushless ESC 32bit Speed Controller for RC Airplanes MT120A‐SBEC‐FP32
SKU:MT120A‐SBEC‐FP32
Have Doubts? Contact US!!
Have Doubts? Contact US!!
120A 8S FP Brushless ESC 32bit Speed Controller for RC Airplanes MT120A‐SBEC‐FP32
Model NO.: MT120A-SBEC-FP32
Firmware......................................... Maytech FP32bit firmware
Cont.Current ................................... 120A
Burst Current ................................... 140A
BEC.................................................. 5.5V/8A
Lipo................................................... 2-8 cells
Net Weight ........................................ 80g
Size.................................................... 50*31mm
Falcon-Pro 32bit controllers are specially used for RC airplanes. 32bit mcu are used, enable the controllers have faster and more smooth throttle response than standard controllers.
Product Features:
- 32 bit ARM MCU, small size, light weight and rapid running speed.
- High resolution, smooth and responsive throttle linear. Throttle signal loss protect implemented.
- Synchronous rectification, regenerative braking, more energy-efficient compared with the other regular ESCs.
- Automatically detect input signal. Throttle is available for setting to compatible with different controllers.
- Good compatibility to motors, it can work well for most motors in the market.
- Easy to program with prog-card, specially designed for fixed wing, complete independent intellectual property rights with software and can keep on upgrading.
FP32 Series ESCs Specification:
- Support 6A-160A, 2-8S (Please check ESC sticker to verify the specified cells and power,more items to be added)
- PWM output frequency range is 8-24KHz. Different PWM frequency can be set byprogramming card.
- Regular throttle range is: 900us~2400us
- Max RPM: 300,000 rolls (2poles), 100,000 rolls (6poles), 500,000 rolls (12poles).
- Customized settings can be done with prog-card and PC software.
Progcard for programming FP32bit ESCs:
