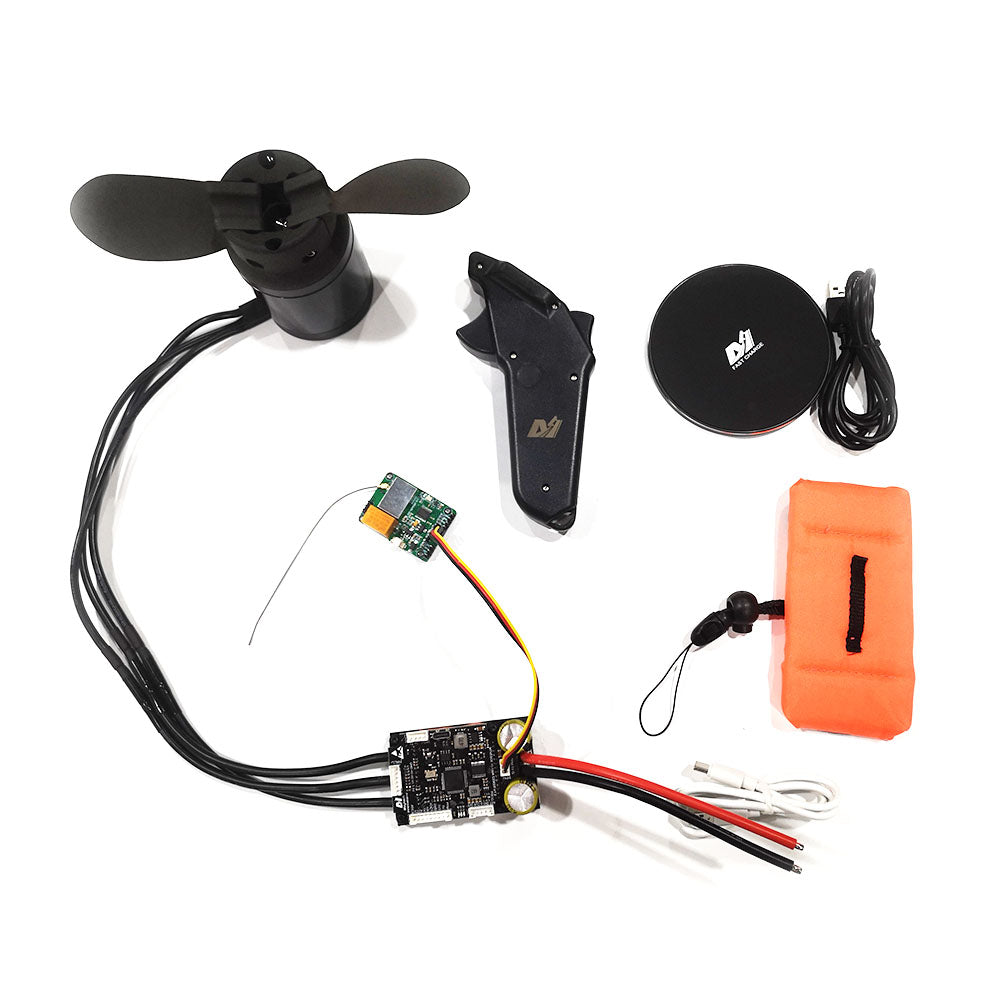

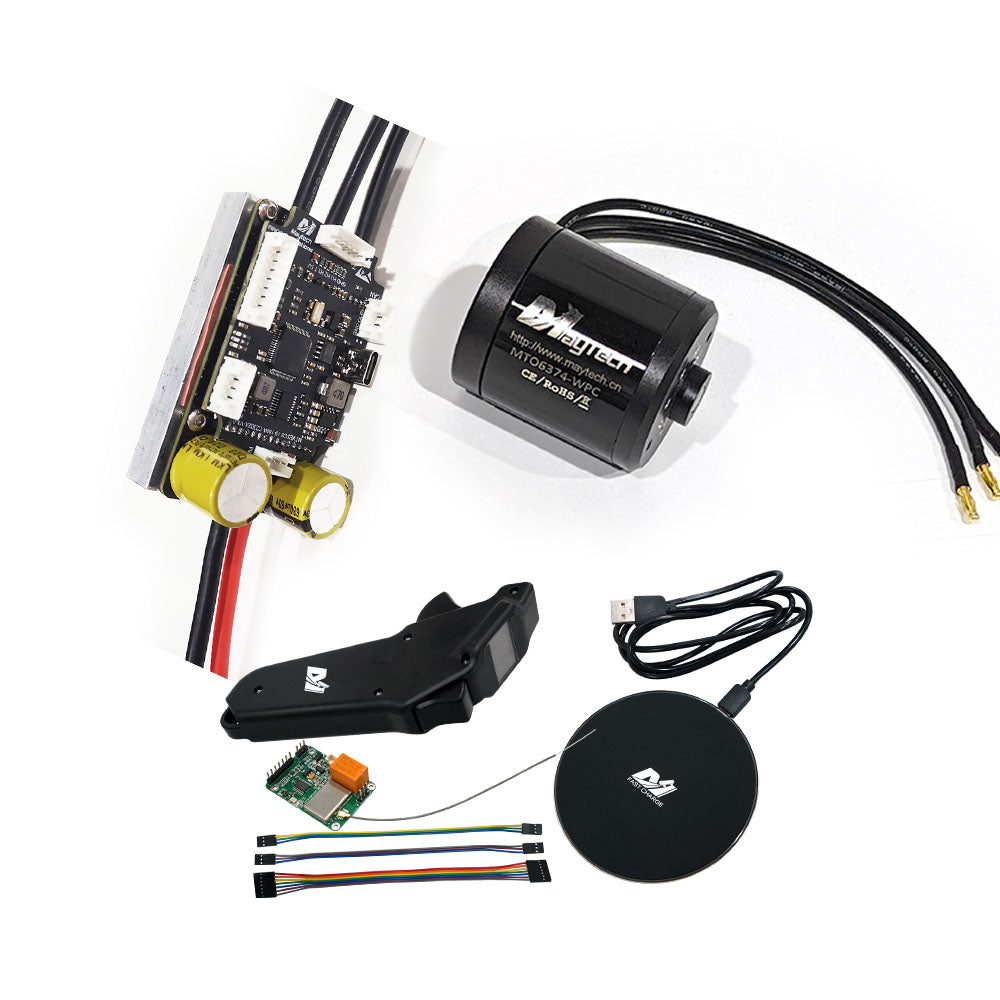

Efoil DIY Foil Assist Kit ( 6374 150KV Waterproof Motor + 100A V6 based ESC + MTSKR1905WF Waterproof Remote )

Efoil DIY Foil Assist Kit ( 6374 150KV Waterproof Motor + 100A V6 based ESC + MTSKR1905WF Waterproof Remote )

SKU:MTO6374-150-WPC+MTSPF60100+MTSKR1905WF+MICP27F Propeller

Regular price $367.74
Regular price $408.60 Sale price $367.74
Sale Sold out
Shipping calculated at checkout.
Motor Bearing Type

Have Doubts? Contact US!!

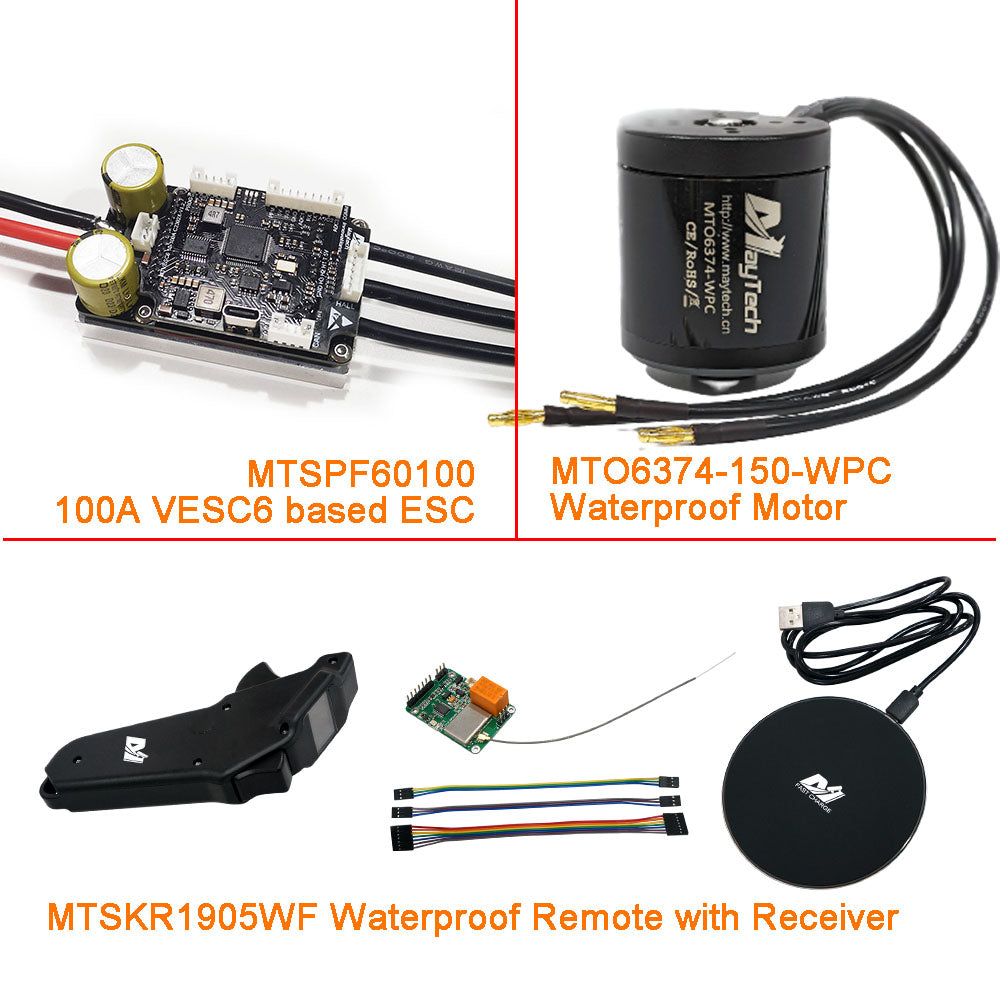

Maytech Efoil DIY Foil Assist Kit 6374 150KV Waterproof Motor + 100A V6 based ESC + MTSKR1905WF Waterproof Remote

Maytech New Motor/ESC/Remote Kit, easily to convert your non-electric foil, wind foil, kite surf, sup board, wing foil, etc to electric.

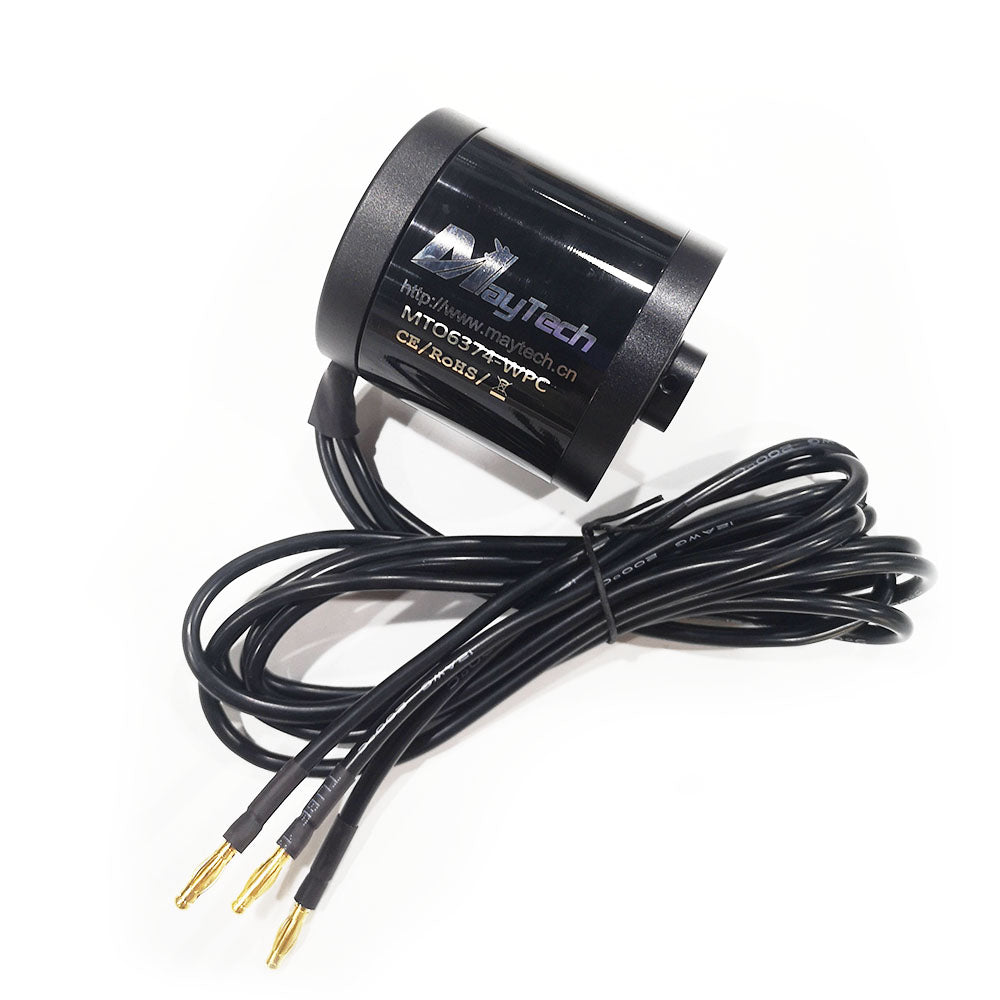

1. Fully Waterproof 6374 Motor with New Waterproof Treatment Technology on Rotor and Stator.

Please note from 21 Setp, 2023, the motor phase wires are updated to 1m long.

Model No. MTO6374-150-WPC Motor KV 150, can be customized, contact us
Input Voltage 3-12S Lipo (12.6V-50V) Idle Current 0.8A
Max Output Watt 3550W Max Current 65A
Shaft φ8mm, No Output Shaft Hall Sensor Without
Mounting Hole Pattern 28mm, 30mm, 44mm Hole distance Mounting Hole Diameter M4
Customize KV, logo, shaft, mounting hole pattern, color, connector, cable, etc., Bearing Ceramic Bearing or Stainless Steel Bearing
Application Wing foil, wind surf foil, sup foil board, non-electric foil board, kite foil board, underwater thruster, underwater robot, ROV, etc.,

Our advanced waterproof technology:

Rotor magnets with anti-oxidation and anti-rust treatment;
Stator with insulation paint;
Coil Copper wires with transparent insulating varnish;
Wataerproof ceramic bearing or stainless steel bearing.

Some other waterproof motors stator and rotor are full filled with black glue. This kind of black glue may expand when motor heats up, it will expand, then distance between the stator and the rotor will be very small. If rotor and stator scraches each other , it will affect the life of the motor.
Moreover, if the rotor and stator are full filled with glue, the motor will heat up more easily and the motor power efficiency is poor.

Our waterproof 6374 motor insulating paint is harder than above normal black glue, and even if there is heat, it will not expand to affect the space between the stator and the rotor. It ensures longer motor life!

Difference between ceramic bearing and stainless steel bearing:

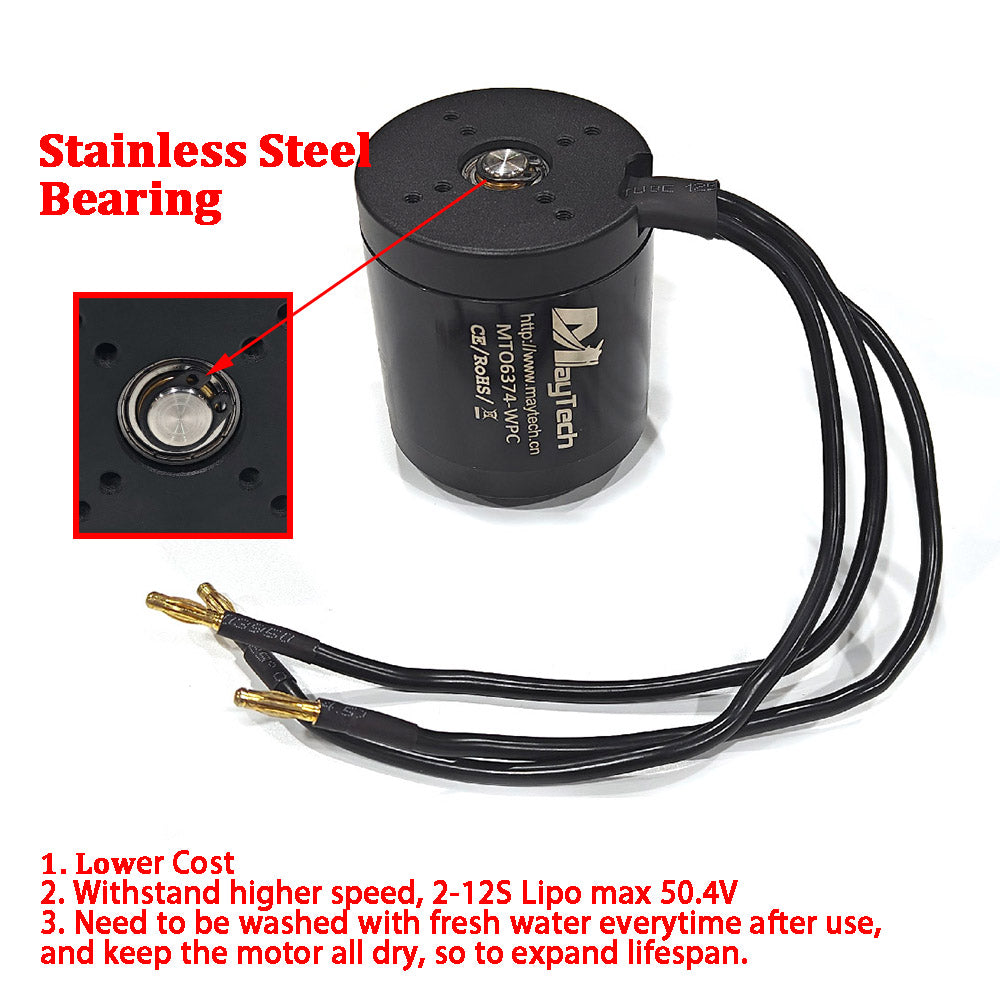

Stainless Steel Bearing:
1. Because seawater is corrosive, after some time use may get rust, need to wash with fresh water everytime after use, and keep the motor all dry, so to expand lifespan.
2. Can withstand higher speed.
3. Cost is less than cermic bearing.

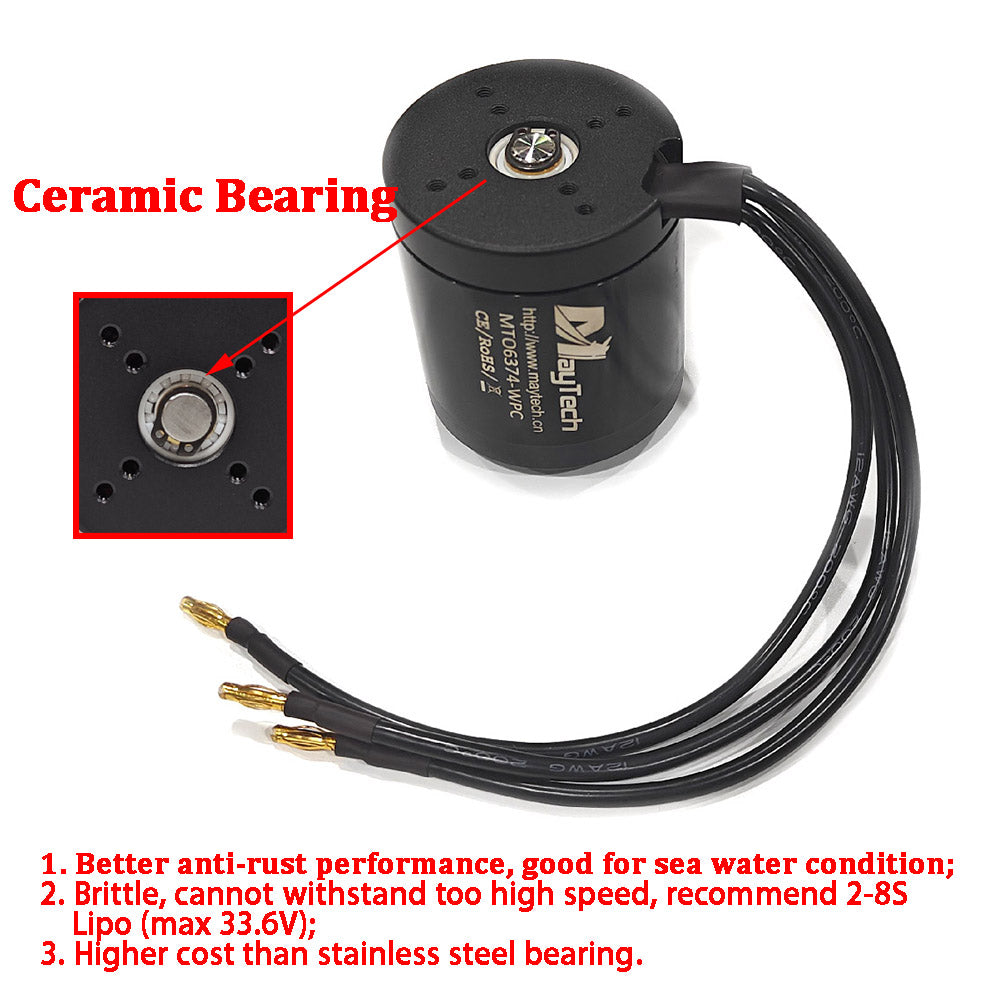

Ceramic Bearing:
1. Better anti-rust performance, good for sea water condition
2. It’s brittle, can’t withstand very high speed, easier damage at high speed
3. cost is higher than stainless steel bearing.

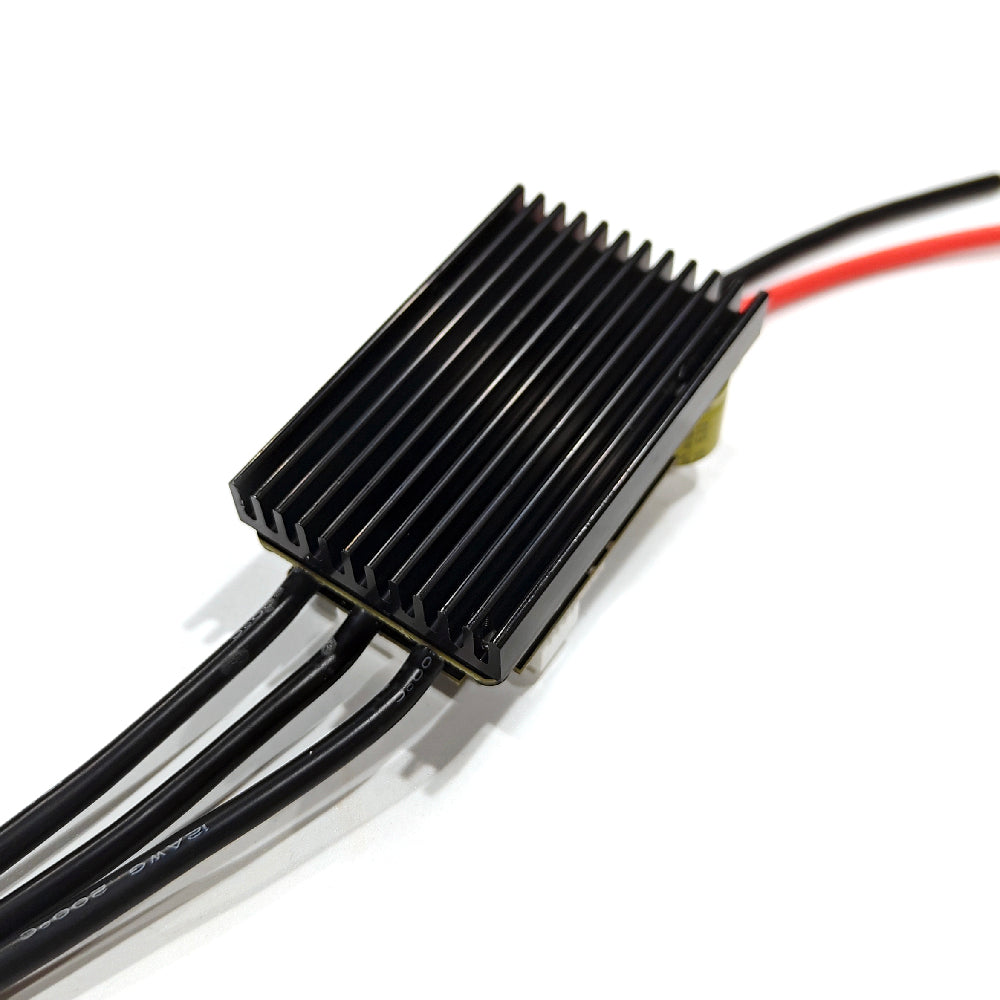

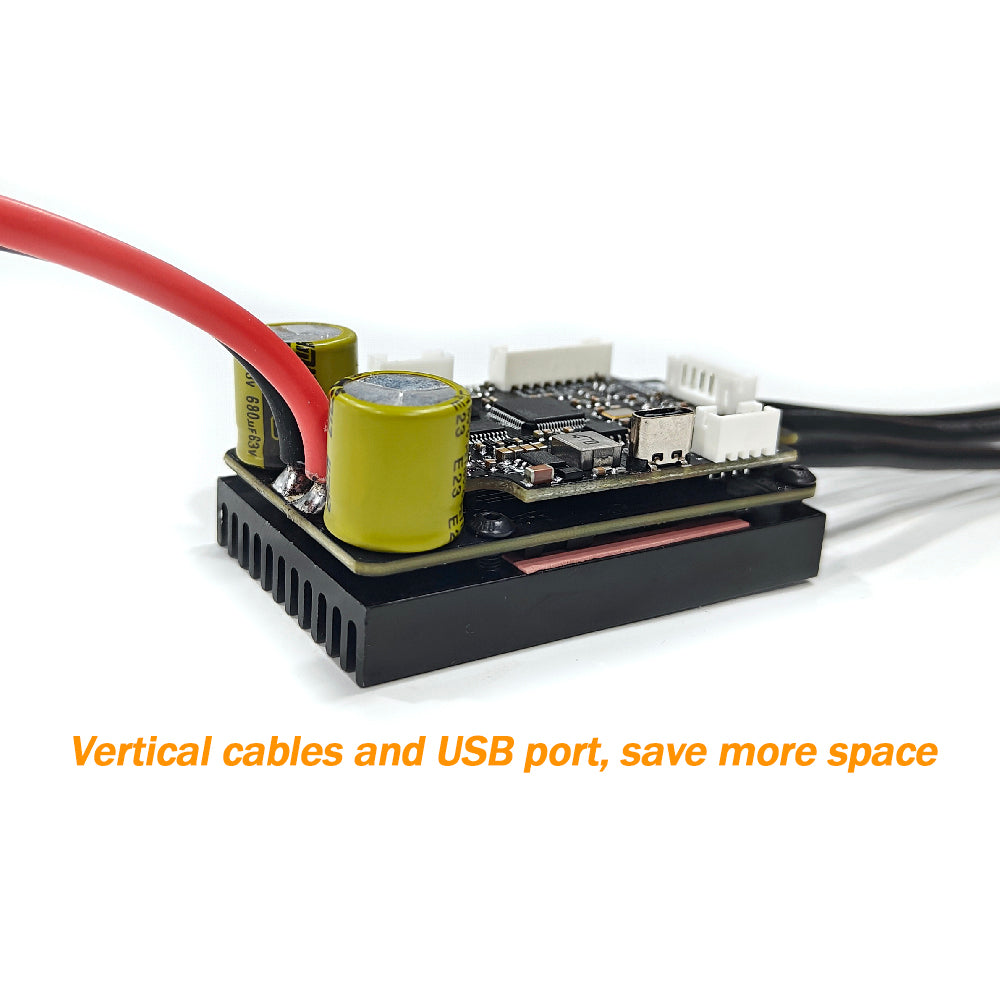

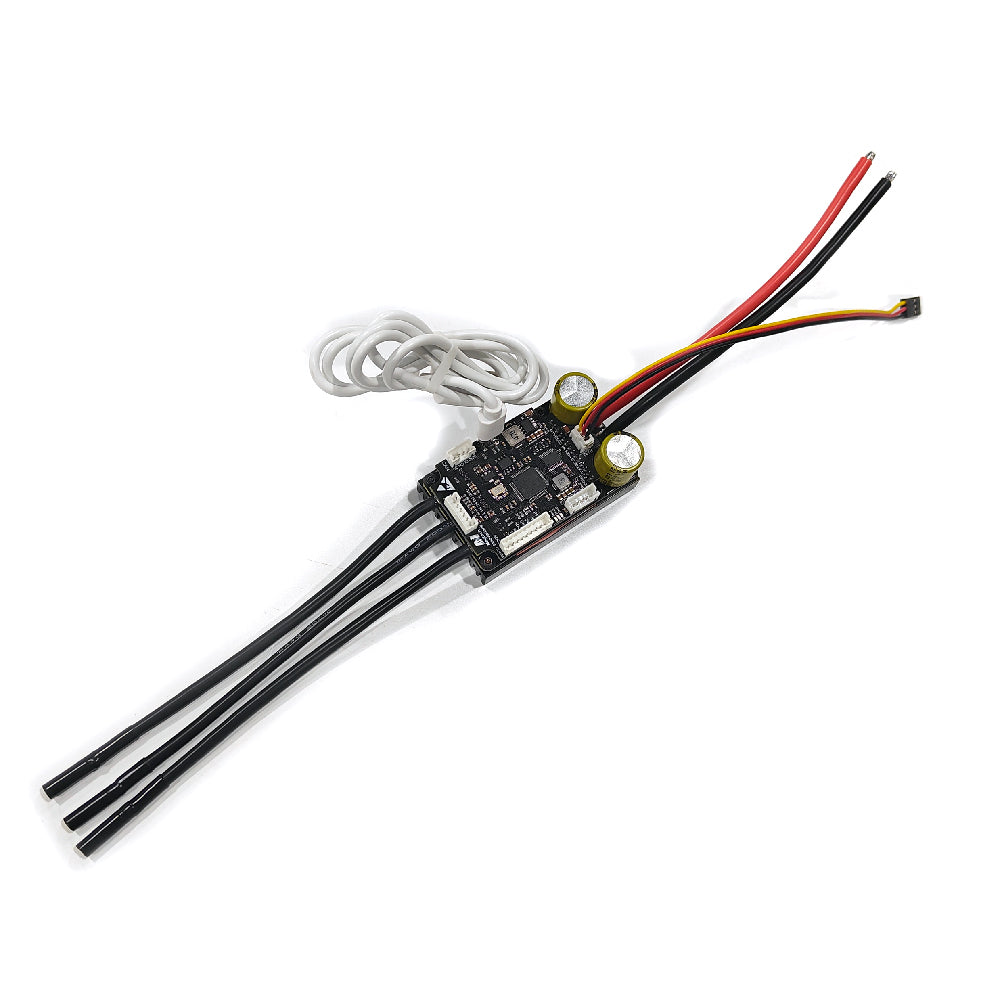

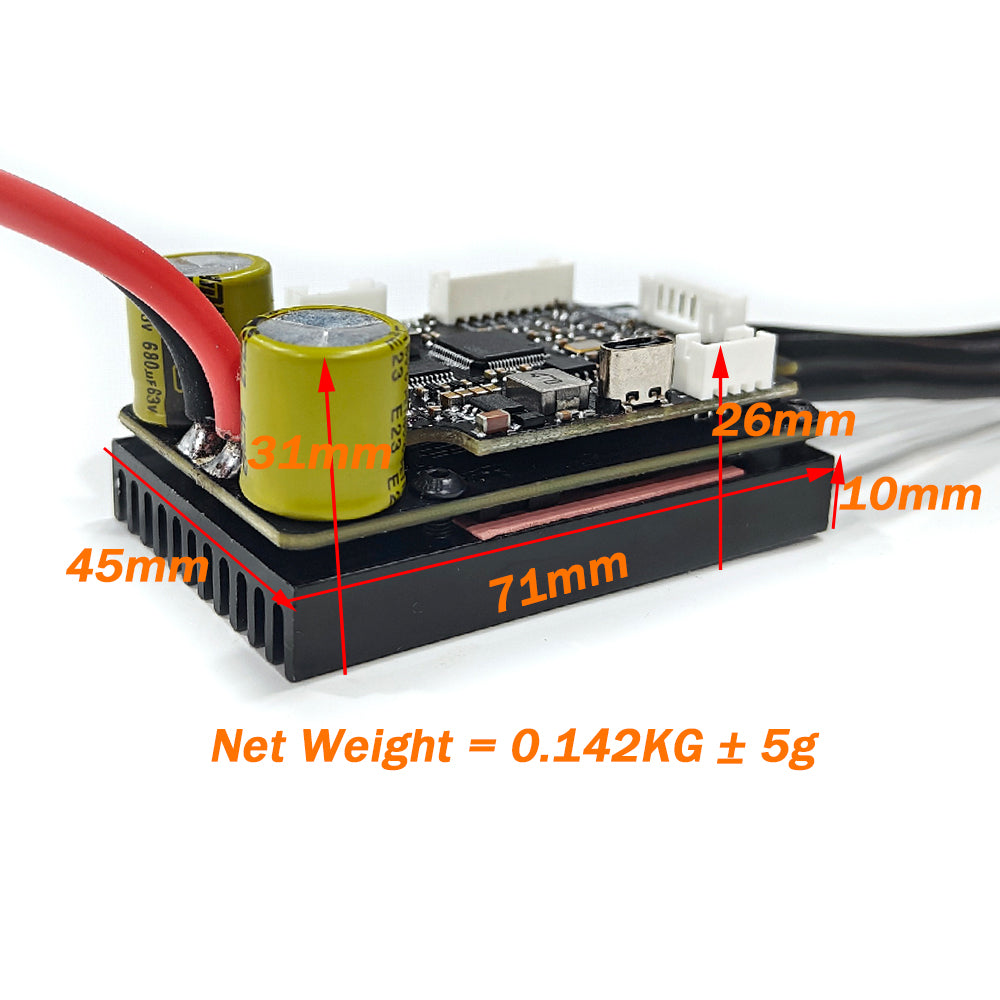

2. 100A VESC6 Based ESC
Model No. MTSPF60100 Current 100A
Input Voltage 3-12S Lipo (12.6V-50V) Feature VESC_TOOLCompatible
Hardware VESC6.0 BEC 5V
Firmware Updatable Cooling fin Final standard ESC will come with cooling fin
Application electric skateboard longboard, fighting robot, e-bike, electric mountainboard, Cable camera, underwater drone, foil assist, surf assist, ROV, etc.

Port definations:
1.USB port for programming;
2.SWD port to get direct access to the Chipset. Diagnostics, debugging, and real time data;
3.Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders);
4.CAN Port for CAN communication with other devices and VESC arrays;
5.COMM port for various kinds of other communication methods like I2C, ADC, Uart,You can use your Arduino or Raspberry Pi to control the VESC! Also it includes an extra pin for PPM;
6. PPM port to connect PPM transceivers.

New 100A VESC6 Based ESC for Efoil DIY Foil Assist ROV Electric SUP Board Esurf Assist Electric Skateboard Robots

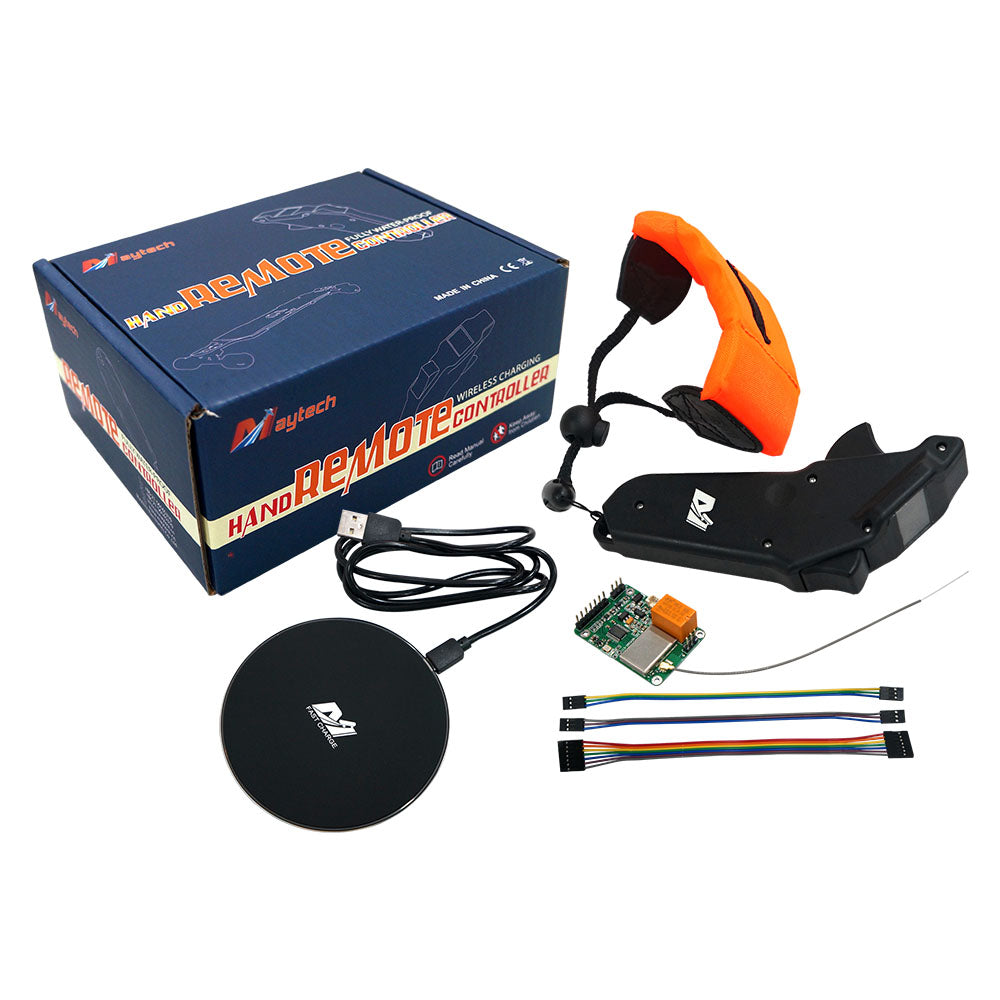

3. Waterproof Remote with receiver

Model No. MTSKR1905WF PCB and Screen Waterproof Rank IP67
Input Voltage Max 75V Signal PWM (PPM)
UART With TX and RX port to connect VESC controllers Double Source Power Supply Accept 5V power by ESC built in BEC or extra 5V power
Control Pump Yes (Relay Switch) on receiver Control Light Yes (Transistor Switch)
Cruise Control Funtion With in Esurf Mode Accessories Charging Pad; Receiver; 3pcs Dupont Cables
Display Screen Remote & Battery Voltage; Throttle Percentage; Signal Strength; RPM.
When work with VESC, also display Current; Temp; Volt; Speed&Distance(only for esk8 mode) or RPM (for esurf mode).

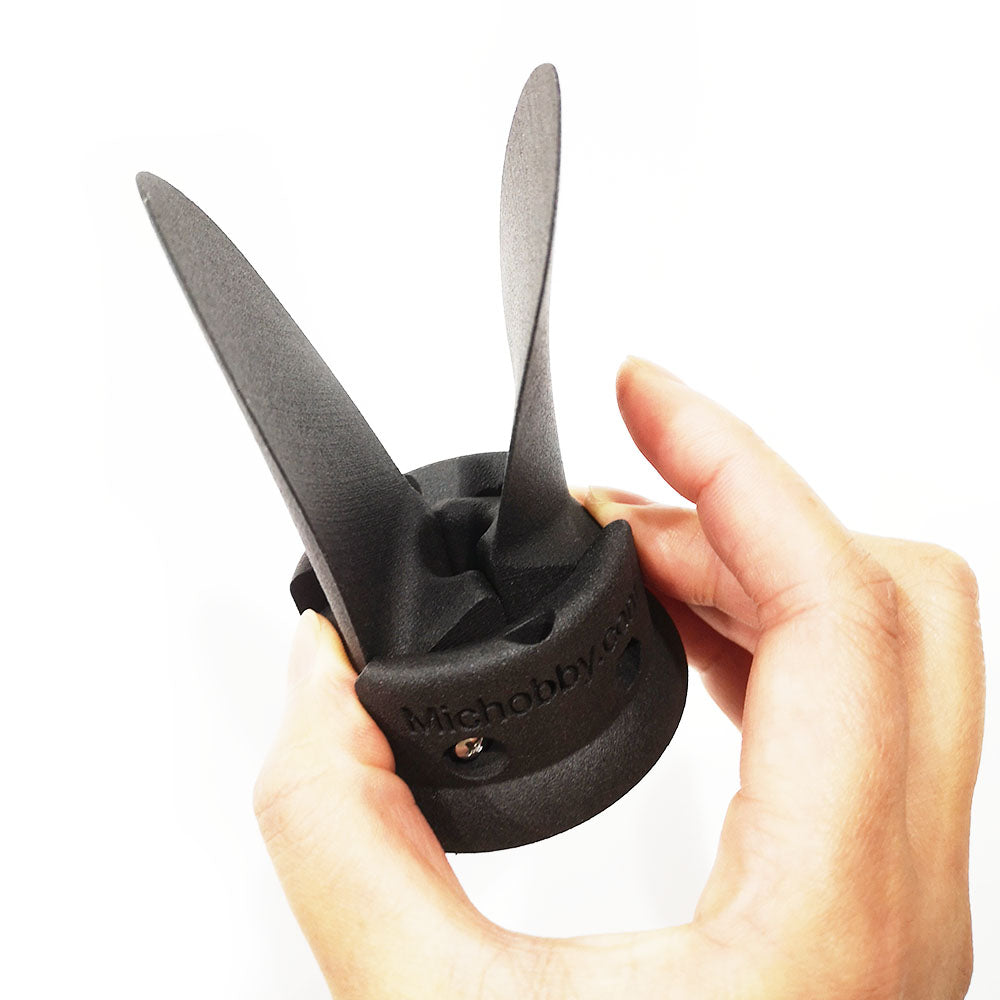

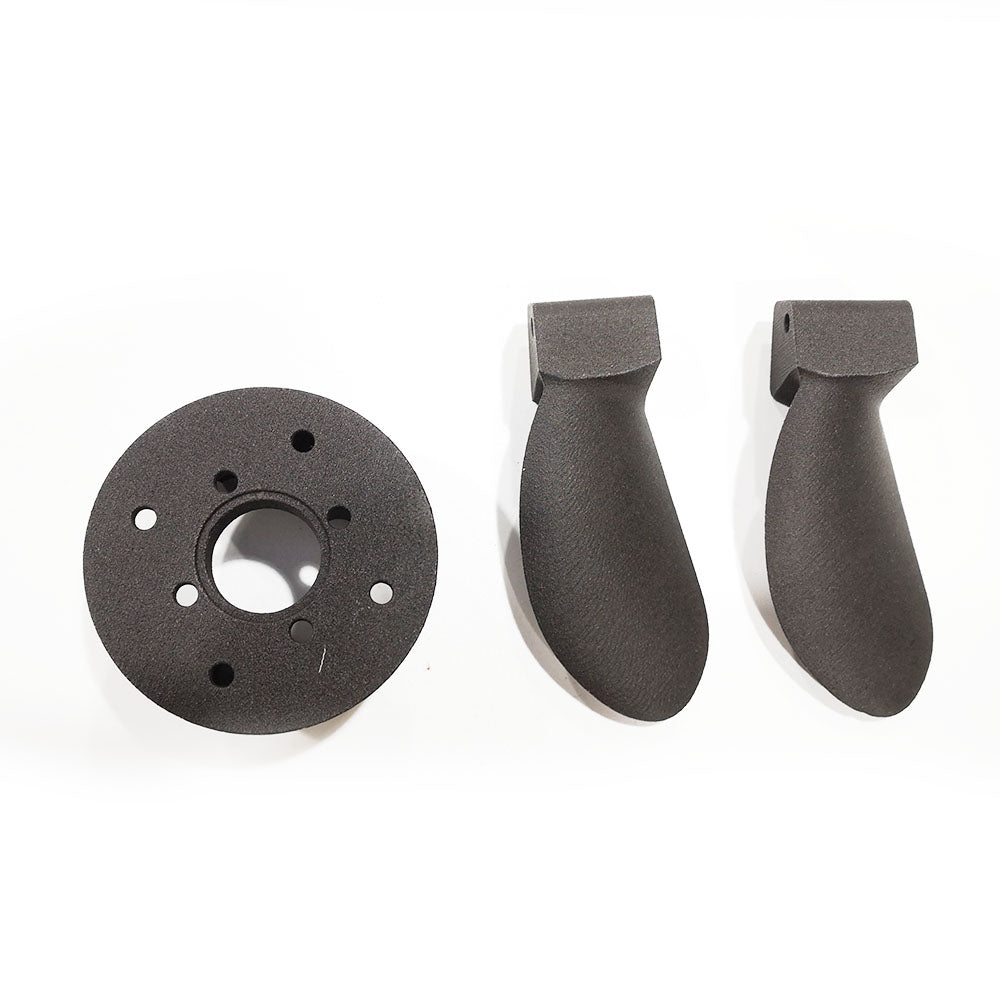

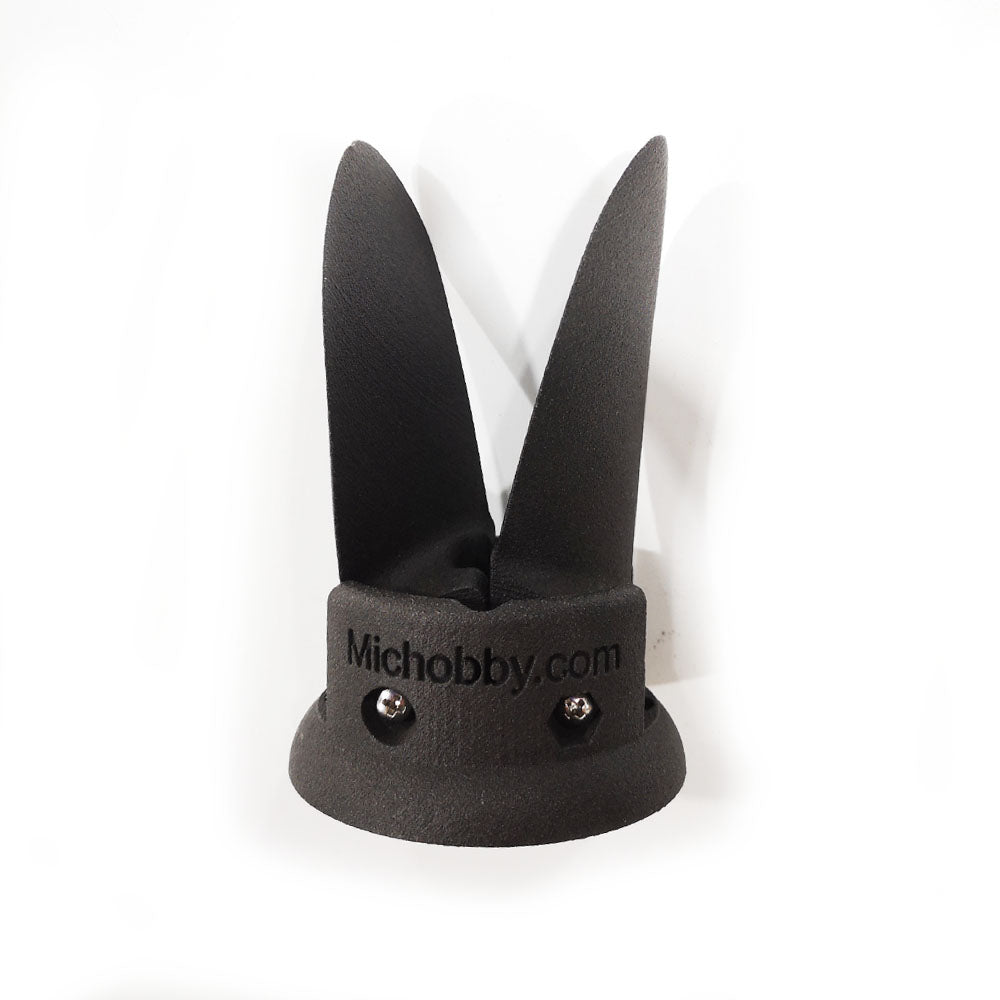

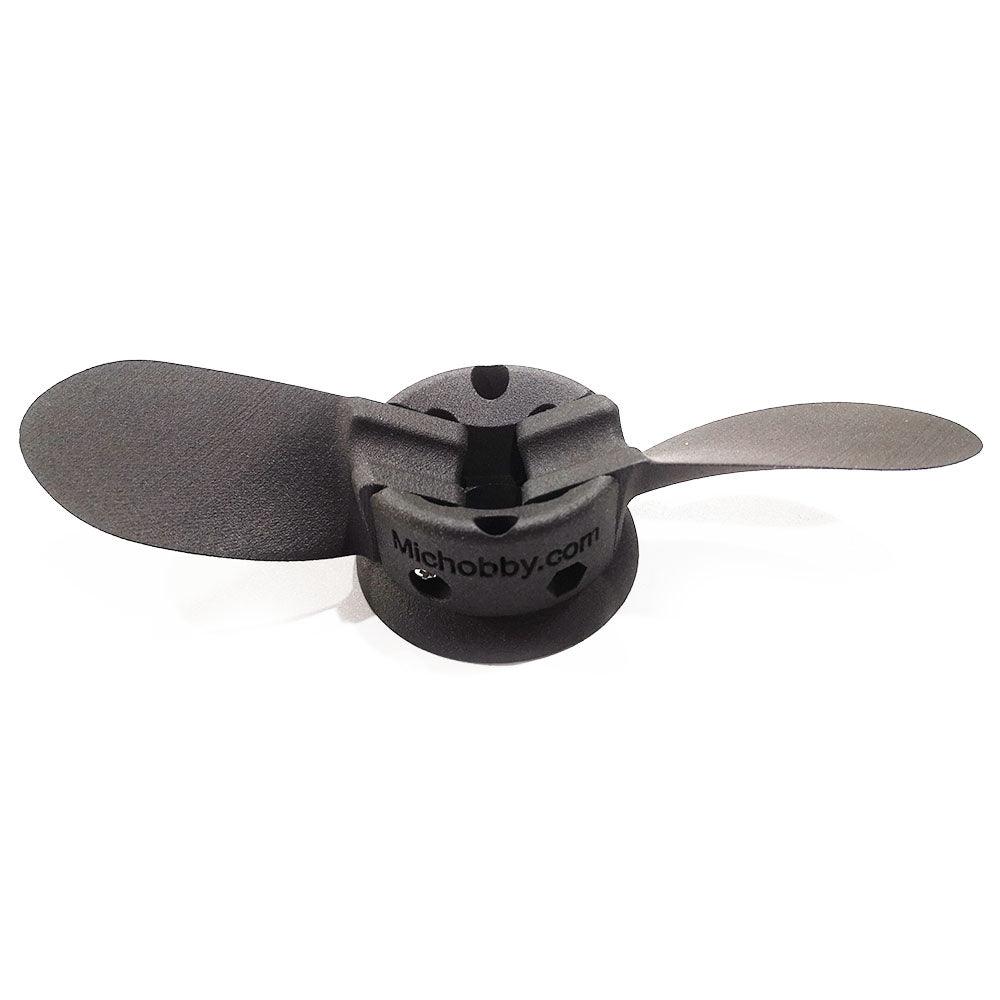

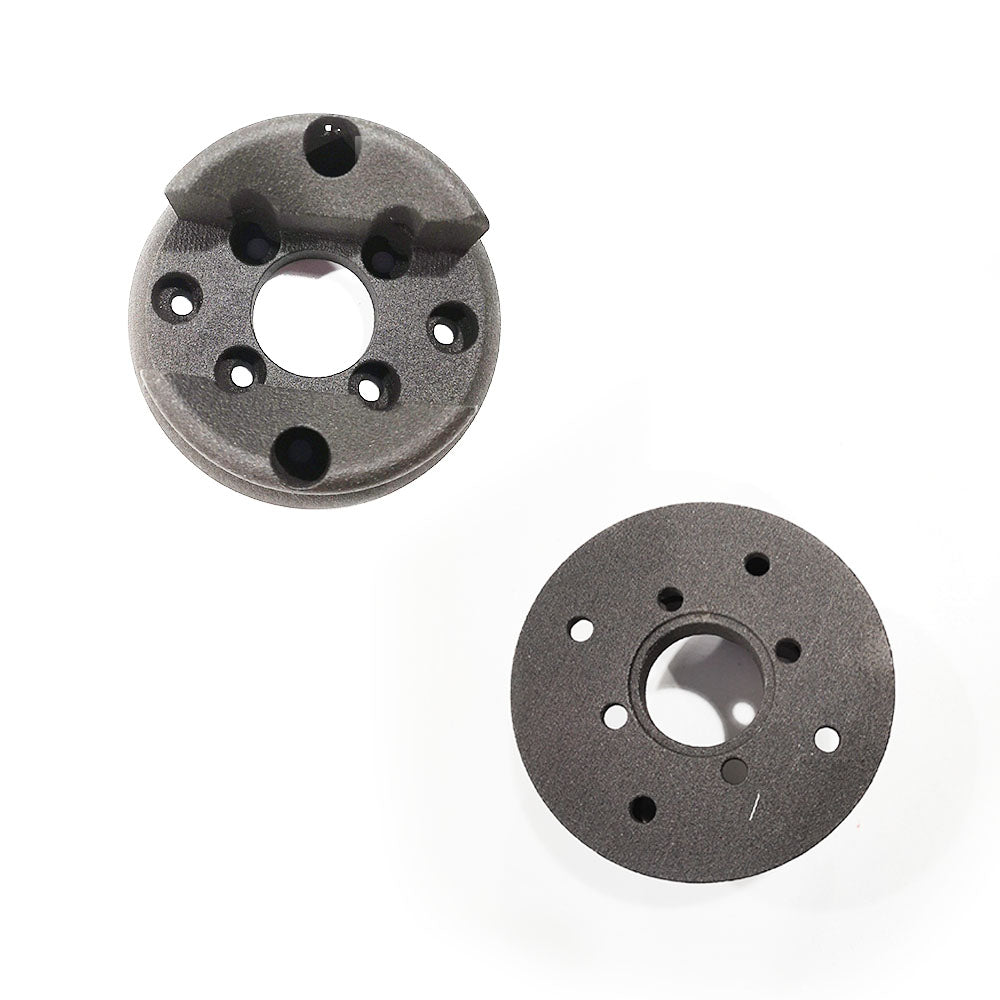

4. MICHOBBY MICP27F 3D Printed folding propeller

Propeller Model: MICP27F
Material: Nylon Powder
Blade: 2 folding Blades
Color: Black

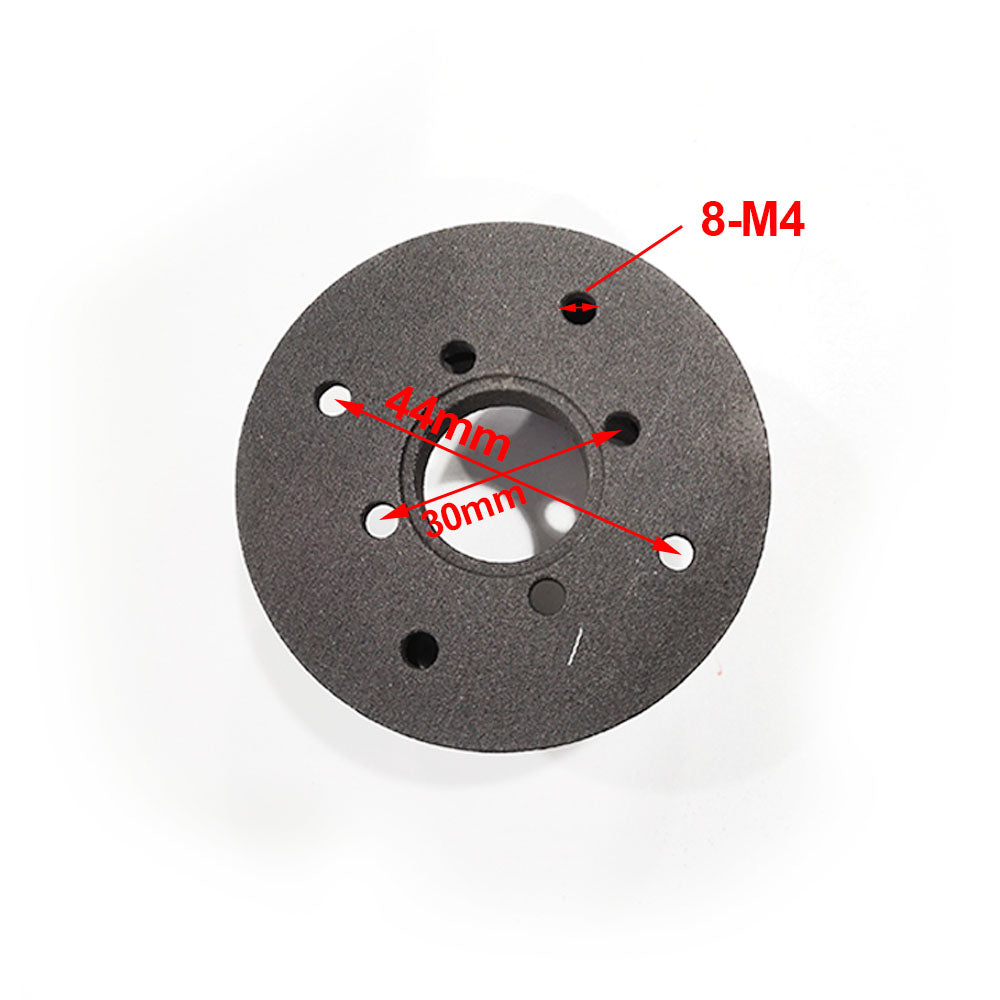

Mounting Holes: 8xM4
Size: 2.7inch from tip to installation

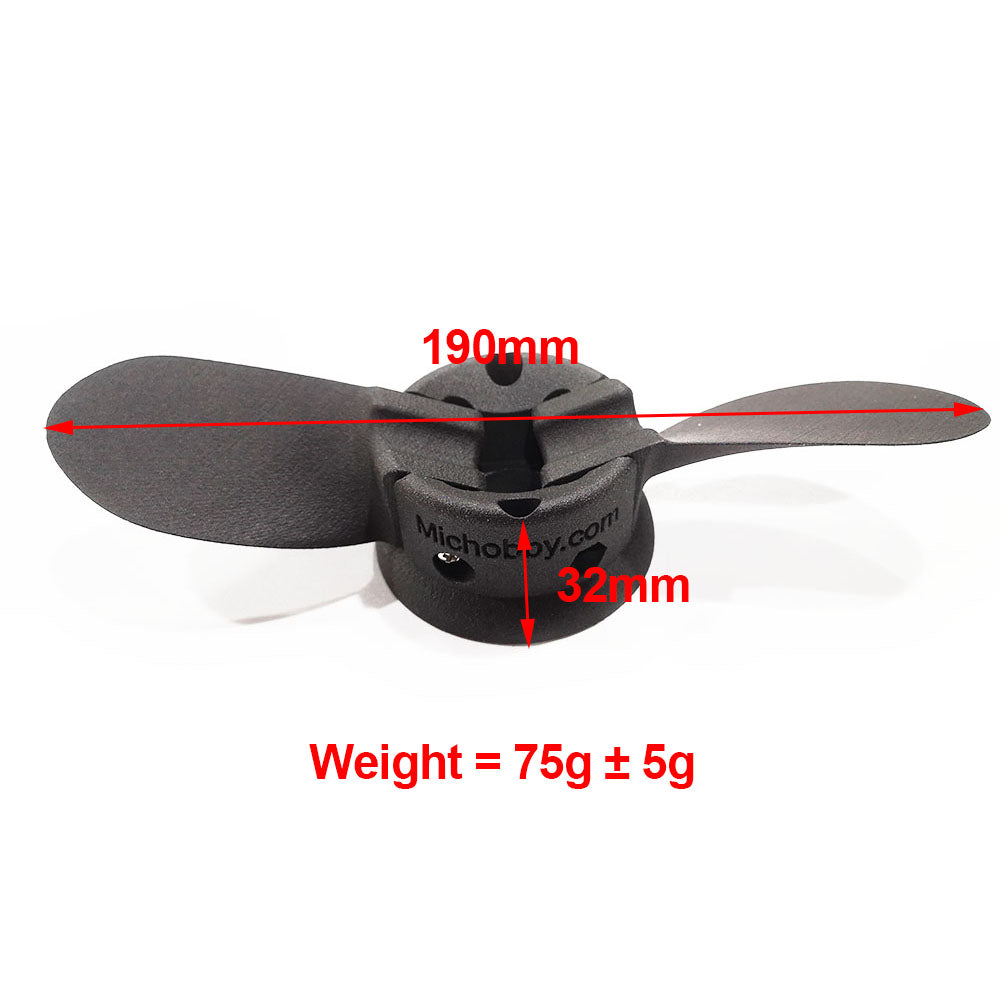

Max Rotation Diameter: 190mm/7.5'' (Approx.)
Height: 32mm/1.25'' (Approx.)
MICHOBBY New 3D-Printed Folding Propeller for DIY Electric Foil/SUP Assist Kit
Efoil DIY Foil Assist Kit ( 6374 150KV Waterproof Motor + 100A V6 based ESC + MTSKR1905WF Waterproof Remote )
Efoil DIY Foil Assist Kit 6374 150KV Waterproof Motor + 100A V6 based ESC + MTSKR1905WF Waterproof Remote

Please refer these two blogs for how to program VESC and remote for the motor:

1. How to Adjust VESC FOC Parameters for Motor ? - Foil Assist Kit

    2. How to Display Volt, Current, RPM, Temp on Maytech Remote with TX and RX with VESCs?
