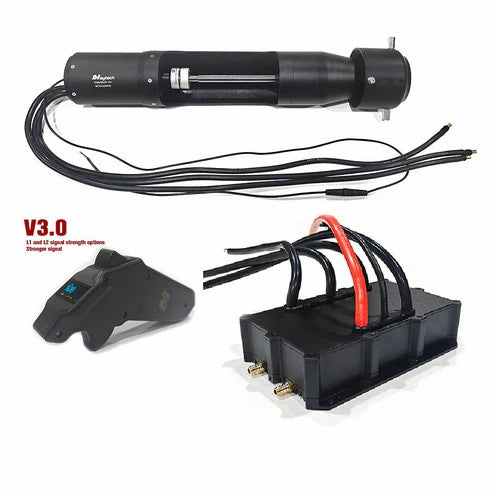

20KW Electric Jetpump Kit MTWJ20KW Electric Waterjet 300A ESC Remote for Electric Jet Tender Electric Yachts Boats Catamarans
Notice: Because the MTWJ20KW Jet max voltage is 72V. This whole kit Max Voltage is 72V (18S Lipo).
Specifications:
1. MTWJ20KW Electric Waterjet Including Motor + Jet pump
| Model No.: MTWJ20KWÂ (two versions: without Steering nozzle / with Steering nozzle, and you need to find sutiable servo yourself for the steering version) | |
| Motor Type | Permanent magnet brushless DC motor |
| Poles No. | 10-poles |
| Motor type and Kv | 160KV |
| Max Voltage | 72V |
| Peak Current | 285A at 72V |
| Rated /Max. Power | 16KW / 20KW |
| Rated /Max.RPM | 8200 rpm / 11300 rpm |
| Rated /Max. Torque | 16N*m /20N*m |
| Motor efficiency | 0.9 |
| Phase Resistance | 8.8 mΊ |
| Waterproof | IP68 |
| Working temperature | -20â to 60â |
| Cooling method | Water-cooling |
Download:Â
MTWJ20KW Specifications/Test Datas/Test Curves
Max Thrust at Different Volts at Full Throttle
|
|
Voltage (V)
|
Current (A)
|
Input Power (W)
|
RPM
|
Thrust (kgf)
|
Throttle (%)
|
Thrust/Power
(kgf/kw) |
|
1
|
36
|
153
|
5508
|
4600 |
61.3
|
100
|
11.13
|
|
2
|
48
|
245 |
11760
|
6100 |
101.2
|
100
|
8.61 |
|
3
|
60
|
275
|
16500
|
7150 |
111.2
|
100
|
6.74 |
| 4 |
72
|
285
|
20520
|
8500 |
114.8
|
100
|
5.59 |
2. Maytech 300A ESC Waterproof Electric Speed ControllerÂ
Model No.: MTSF300A-WP32-HVPROÂ Â
with bluetooth module for programming
Waterproof Rank: IP68
Cont Current: 300A
Peak Current (at 10S): 320A
Input Voltage: 6-20S Lipo (22.2V-85V)
Cable Guage: 6AWG
Max ERPM: 100000
32BIT Micropprocessor
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.Â
3. Throttle Options:
3-1: Maytech MTSKR1905WF Wireless Hand Controller Waterproof remote (Click for more remote details)Display Throttle%, Voltage, RPM, etc. |
|||
| Model no |
MTSKR1905WF latest version | Packing | cartons box |
| Function | wireless charging |
Display screen |
Yes |
| Accessory | receiver and charging pad | Signal type |
PWM |
| FREE Accessory | Strip (color is random) | Esurf mode |
with cruise control |
| Batt voltage display | 3-18S | Esk8 mode | with brake |
Settings in Remote for this kit:
| 1)Thr Mode: | Surfboard |
| --5) and 6) Batt Type and Batt Ser Num | Please set according to your battery. |
| 9) Data Source | None or Motor Wire (display RPM) |
| 10) M.Pole Pairs | 5 |
| 12) Gear Ratio | 1. |

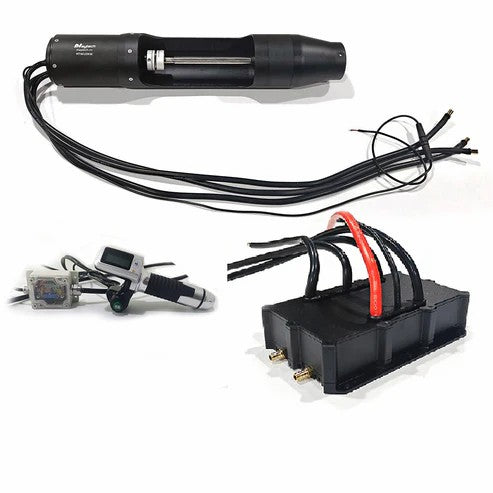

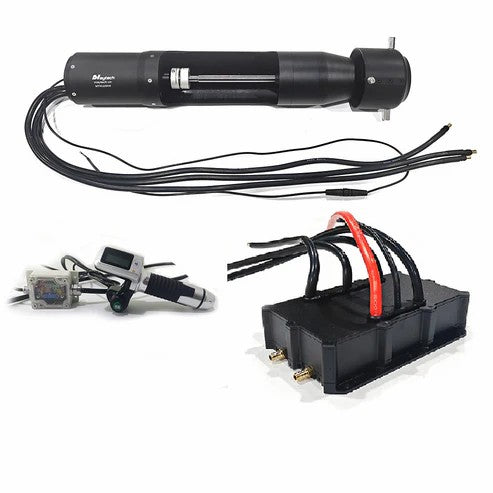

3-2 Wired Throttle Twist throttle with ADC signal
Only forward direction, no other functions
Jet Drawing:Â

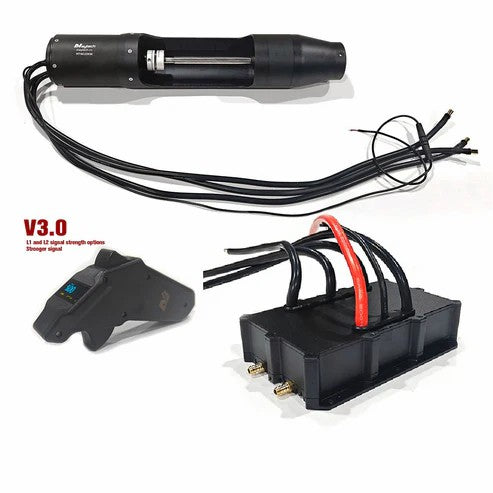

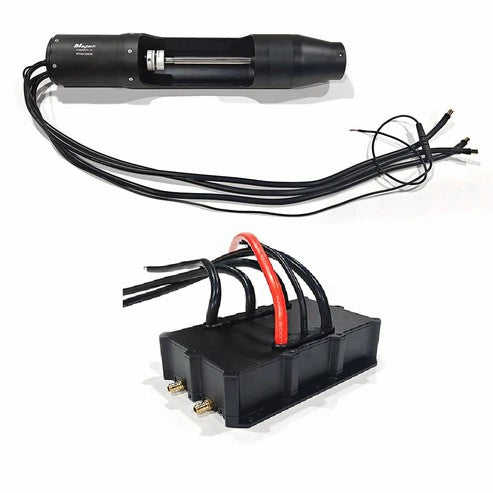

Version1: Without Steering Nozzle

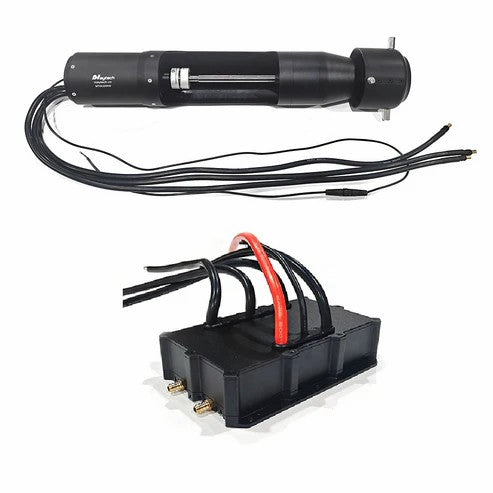

Version2: With Steering Nozzle
Test Curves and Test Datas:Â
2 Types Impeller will be shipped randomly:Â
Test Video:
