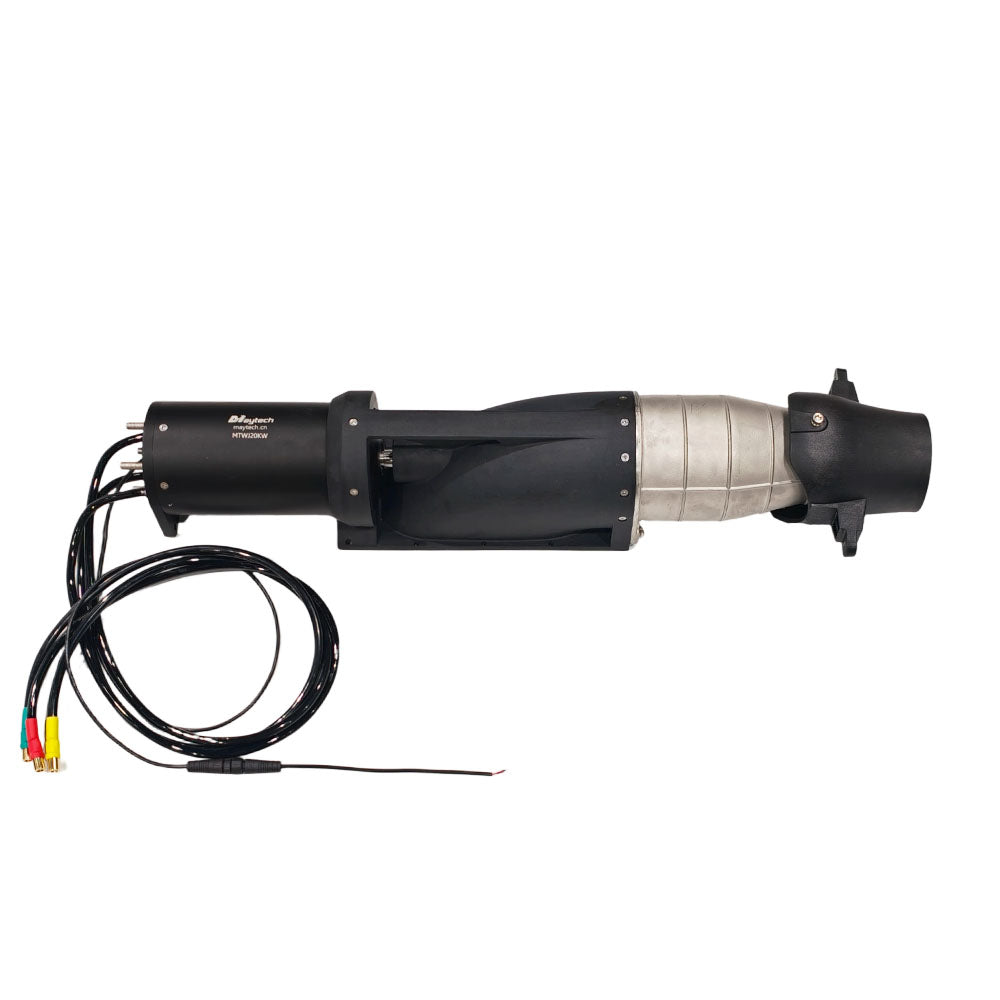

60V 111KG Thrust Electric Jetpump Kit MTWJ20KW Electric Waterjet 500A ESC Remote for Electric Jet Tender Electric Yachts Boats Catamarans
60V 111KG Thrust Electric Jetpump Kit MTWJ20KW Electric Waterjet 500A ESC Remote for Electric Jet Tender Electric Yachts Boats Catamarans
SKU:MTWJ20KW with Steering Nozzle+MTSF500A-WP+Progcard-HA+MTSKR1905WF
Normaler Preis
$2,263.00
Normaler Preis
Verkaufspreis
$2,263.00
Grundpreis
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
Have Doubts? Contact US!!
Have Doubts? Contact US!!
60V 111KG Thrust Electric Jetpump Kit with 500A ESC Remote for Electric Jet Tender Electric Yachts Boats Catamarans
Notice: Because the MTSF500A-WP ESC max voltage is 60V. This whole kit Max Voltage is 60V (14S Lipo).
Max Thrust at Different Volts at Full Throttle
|
|
Voltage (V)
|
Current (A)
|
Input Power (W)
|
RPM
|
Thrust
(kgf)
|
Throttle (%)
|
Thrust/Power
(kgf/kw) |
|
1
|
36
|
71
|
2556
|
3370
|
38.1
|
100
|
14.91
|
|
2
|
42
|
92
|
3864
|
3895
|
50.9
|
100
|
13.17
|
|
3
|
48
|
119
|
5712
|
4379
|
64.3
|
95
|
11.26
|
|
5
|
60
|
174
|
10440
|
5309
|
92.9
|
95
|
8.90
|
|
6
|
72
|
219
|
15768
|
6185
|
118.3
|
95
|
7.50
|
|
7
|
84
|
239
|
20076
|
7229
|
128.4
|
95
|
6.40
|
Specifications:
1. MTWJ20KW Electric Waterjet Including Motor + Jet pump
| Model No. | MTWJ20KW |
| Voltage | 36-84V |
| Motor KV | 100 |
| Max Power | 20.5KW |
| Peak Current | 239A@84V |
| Max Torque | 128.4kg at 84V |
| Pole Number | 10P |
| Working Temperature | -20℃-60℃ |
| Plug | 10mm bullet male connector |
| Temp Sensor | With |
| Customize | Logo, shaft, cable, connector, etc., contact Email: support@michobby.com |
| Appliacation | Jetski, jetboat, jetboard, underwater thruster, electric jetsurf, electric boat, electric surfboard, sup board, jet drive outboard, jet drive kayak, boat thruster etc. |
Download:
MTWJ20KW Specifications/Test Datas/Test Curves
Max Thrust at Different Volts at Full Throttle
|
|
Voltage (V)
|
Current (A)
|
Input Power (W)
|
RPM
|
Thrust (kgf)
|
Throttle (%)
|
Thrust/Power
(kgf/kw) |
|
1
|
36
|
71
|
2556
|
3370
|
38.1
|
100
|
14.91
|
|
2
|
42
|
92
|
3864
|
3895
|
50.9
|
100
|
13.17
|
|
3
|
48
|
119
|
5712
|
4379
|
64.3
|
95
|
11.26
|
|
5
|
60
|
174
|
10440
|
5309
|
92.9
|
95
|
8.90
|
|
6
|
72
|
219
|
15768
|
6185
|
118.3
|
95
|
7.50
|
|
7
|
84
|
239
|
20076
|
7229
|
128.4
|
95
|
6.40
|

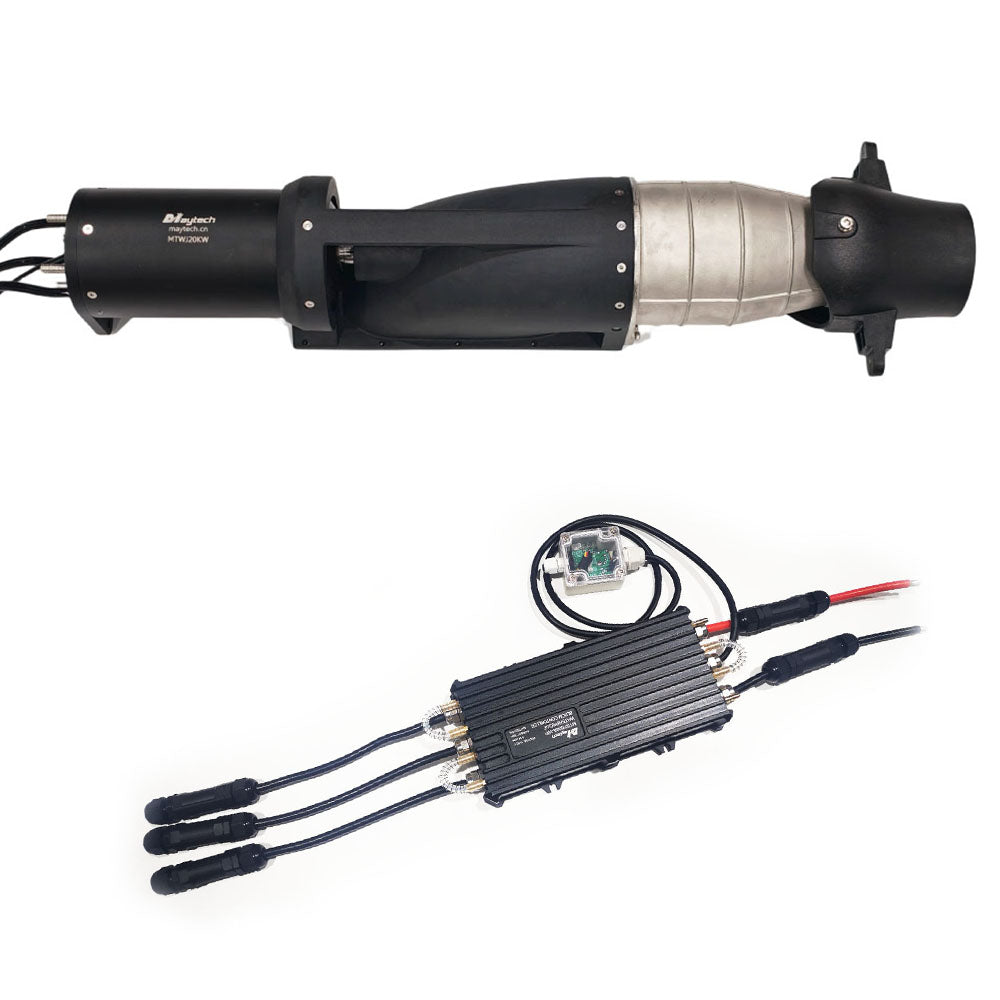

2. Maytech 500A ESC Waterproof Electric Speed Controller with progcard
Model No.: MTSF500A-WP
With fully water-proof and cooling aluminum case
Cont. Current: 500A
Burst Current:1000A
BEC: Built-in 18-75V to 5V/12V UBEC module
Lipo: 6-14S
Weight: 3.8kg
Size: 265*135*48.5mm
Great start-up torque with sensorless motors
100% Water-proof case
3. Throttle Options:

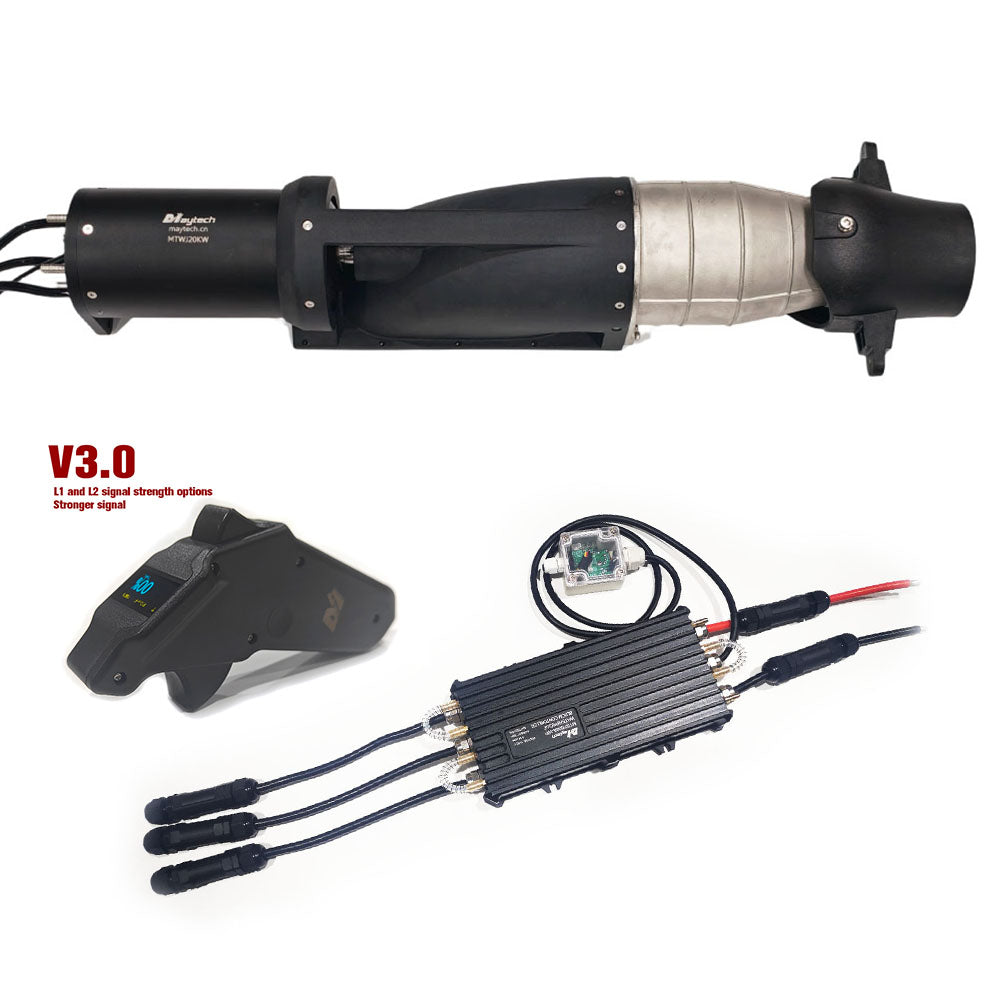

3-1: Maytech MTSKR1905WF Wireless Hand Controller Waterproof remote (Click for more remote details)Display Throttle%, Voltage, RPM, etc. |
|||
| Model no |
MTSKR1905WF latest version | Packing | cartons box |
| Function | wireless charging |
Display screen |
Yes |
| Accessory | receiver and charging pad | Signal type |
PWM |
| FREE Accessory | Strip (color is random) | Esurf mode |
with cruise control |
| Batt voltage display | 3-18S | Esk8 mode | with brake |
Settings in Remote for this kit:
| 1)Thr Mode: | Surfboard |
| --5) and 6) Batt Type and Batt Ser Num | Please set according to your battery. |
| 9) Data Source | None or Motor Wire (display RPM) |
| 10) M.Pole Pairs | 5 |
| 12) Gear Ratio | 1. |

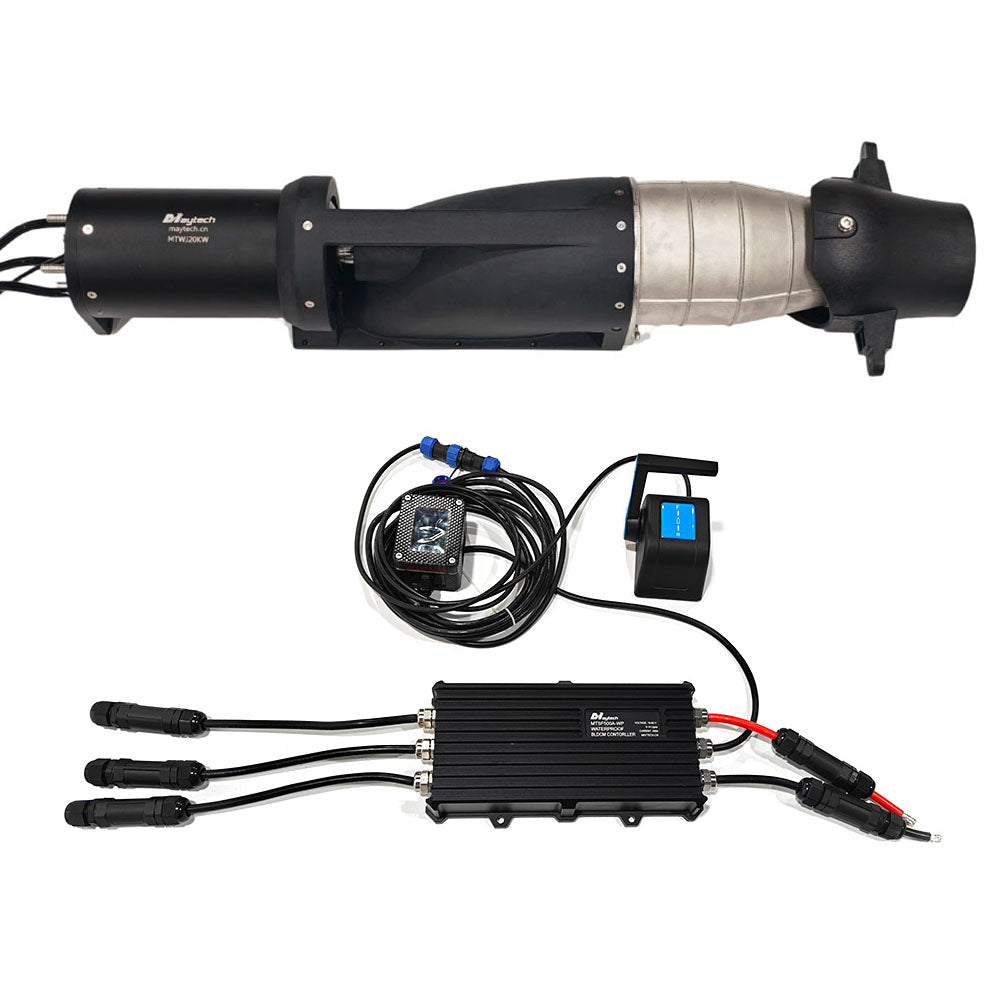

3-2 Maytech Electric Boat Motor Throttle Lever Forward Backward for Sailboats Electric Hydropfoil Boat
|
Model No
|
MTTR26
|
Application
|
Electric Yacht, Electric Boat, Sailboat, etc.
|
|
Output signal range
|
1-2ms PWM (Stop position 1.5ms, 1.5m-1.0ms Backward, 1.5-2ms Forward)
|
Suitable ESCs
|
Maytech MTSF300A-WP,
etc. (Please contact support@michobby.com if have any questions).
|
|
Voltage
|
5V
|
Accessories
|
With signal conversion junction box |

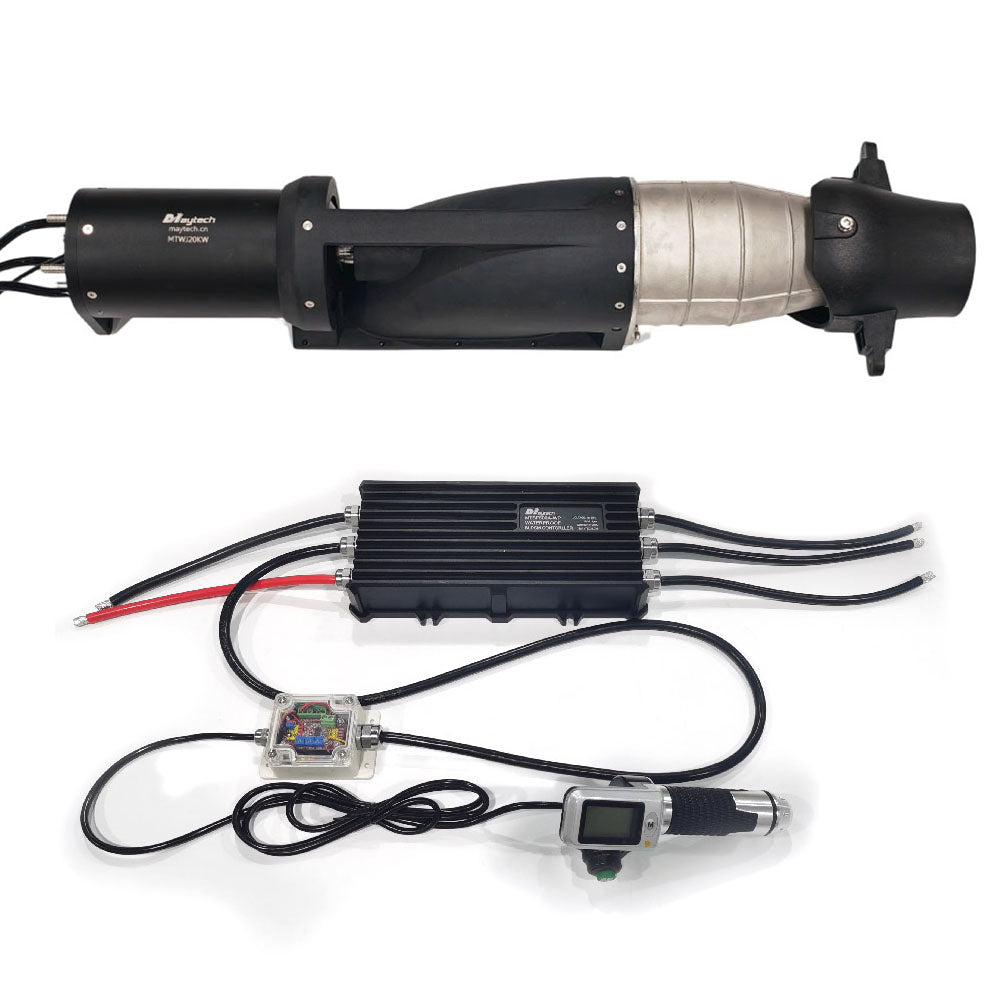

3-3 Wired Throttle Twist throttle with ADC signal
Only forward direction, no other functions
Jet Drawing:
With Steering Nozzle (you can remove the steering nozzle yourself if you don't need it)
Test Curves and Test Datas:
2 Types Impeller will be shipped randomly:
Test Video:
