In Stock! Maytech E-Skateboard Belt Drive Truck 4 Wheel Longboard 5065/6355/6365/6374 Motors Pulleys Trucks Wheels kit

MTSKT310DB+2xMTSKPS2005+2xMTO5065-220-HA+4xMTSKW8352G
  • $380.24
  • Save $95.06


Maytech DIY Electric Skateboard Longboard Double Kingpin Trucks and Motor Kits (Dual Drive) 5065 63mm Motors Kit

Price includes 1sets trucks with motor mounts, 2sets pulleys and belts kits, 2pcs motors, 4pcs 83mm Green wheels OR 90mm Black/Orange Wheels.

12 Combs Available (Unassembled):

Combo1/2/3:

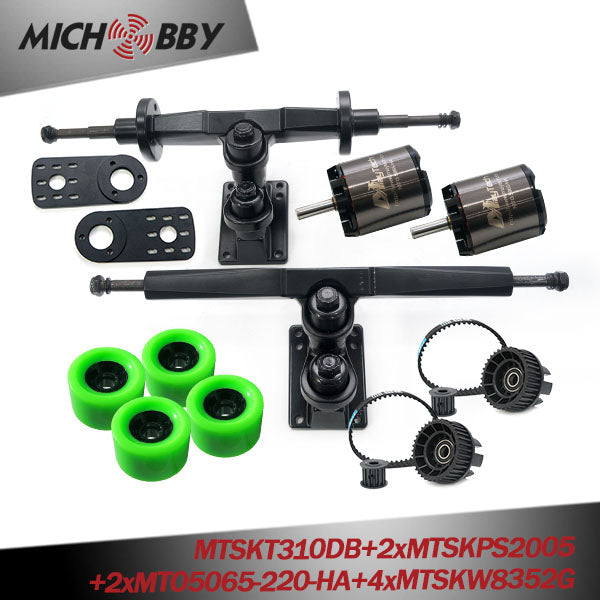

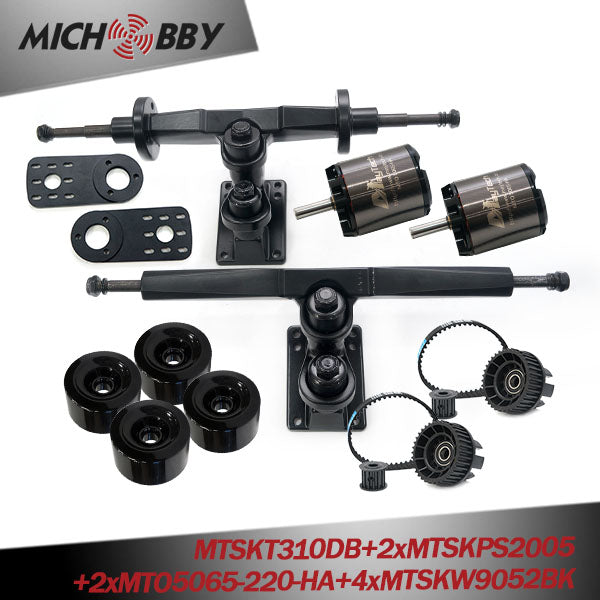

MTSKT310DB+2xMTSKPS2005+2xMTO5065-220-HA +4xMTSKW8352G/MTSKW9052BK/OR

Combo 4/5/6:

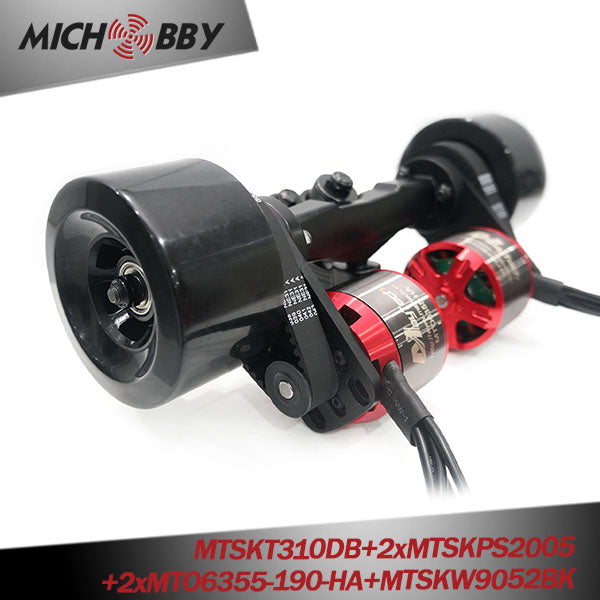

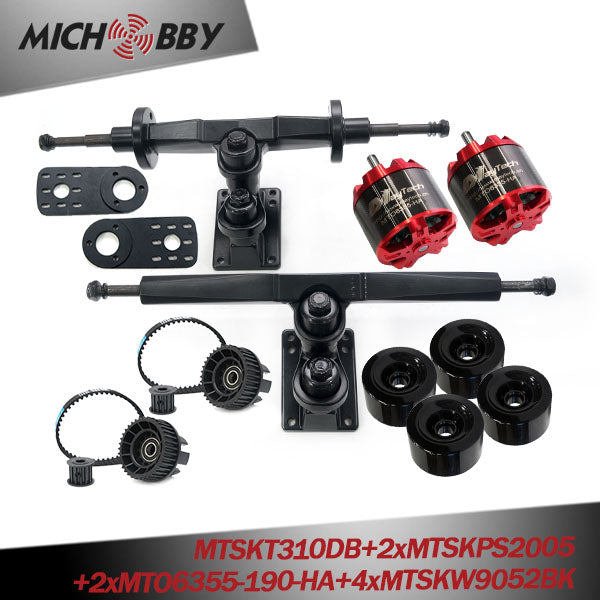

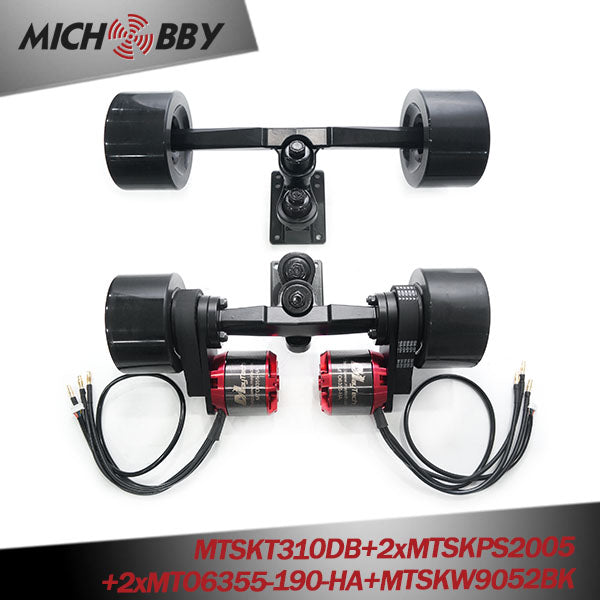

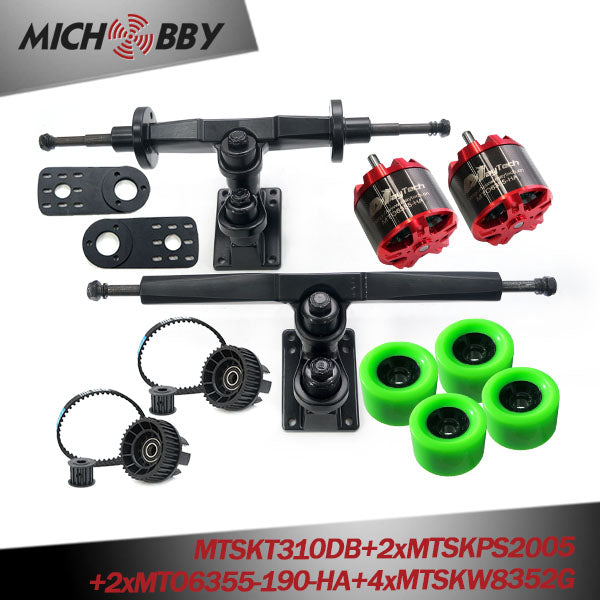

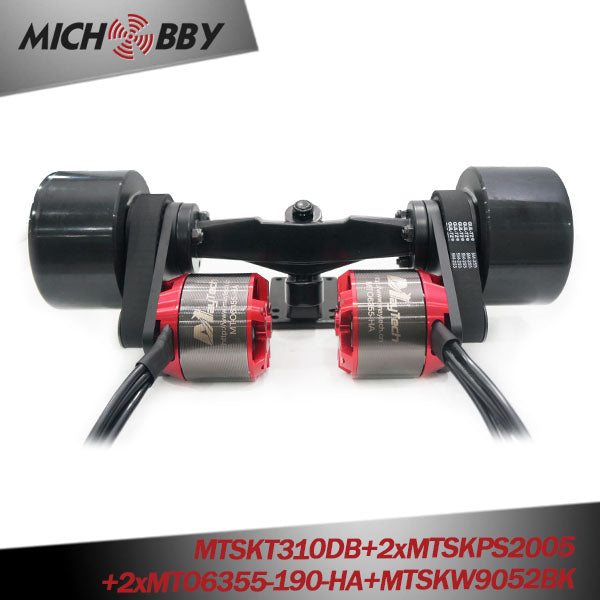

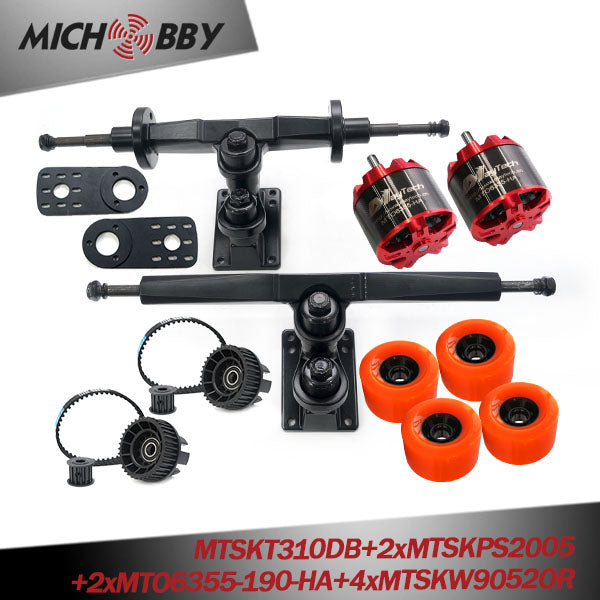

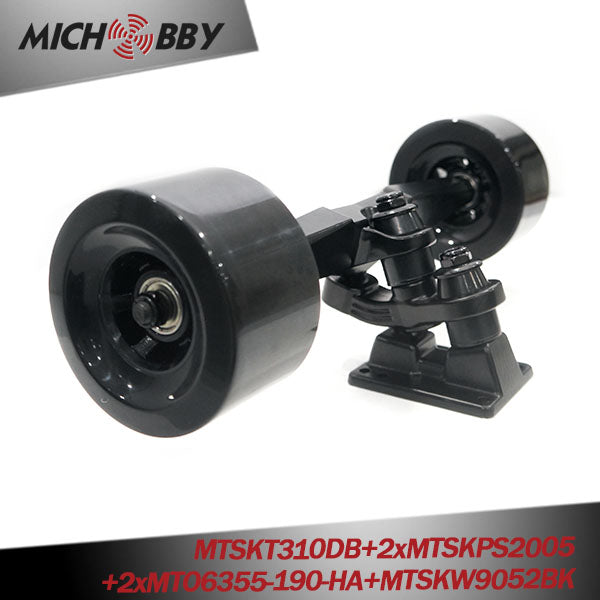

MTSKT310DB+2xMTSKPS2005+2xMTO6355-190-HA +4xMTSKW8352G/MTSKW9052BK/OR

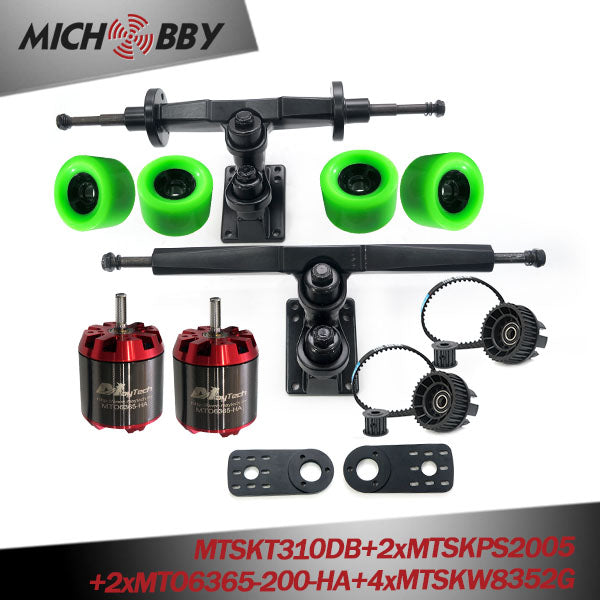

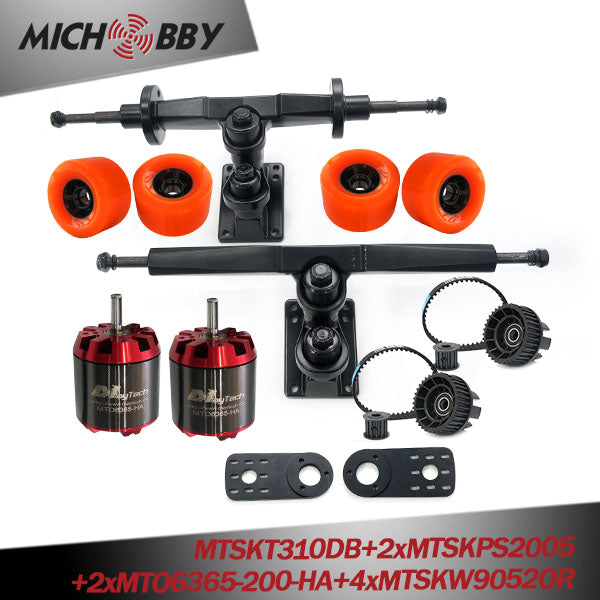

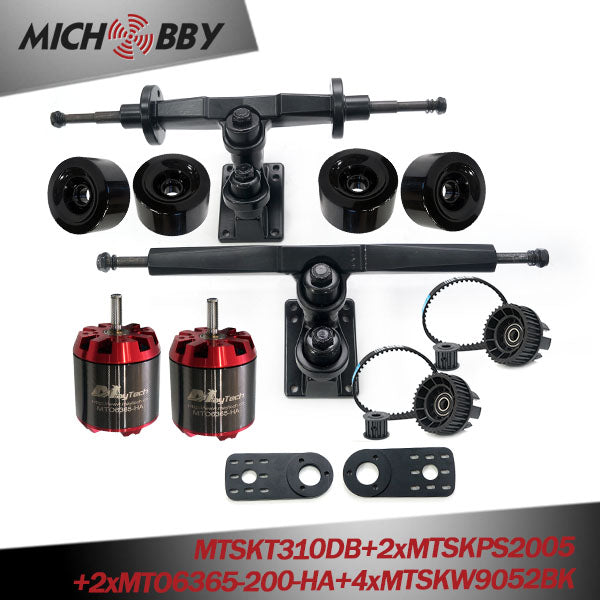

Combo 7/8/9: MTSKT310DB+2xMTSKPS2005+2xMTO6365-200-HA +4xMTSKW8352G/MTSKW9052BK/OR

Combo 10/11/12:

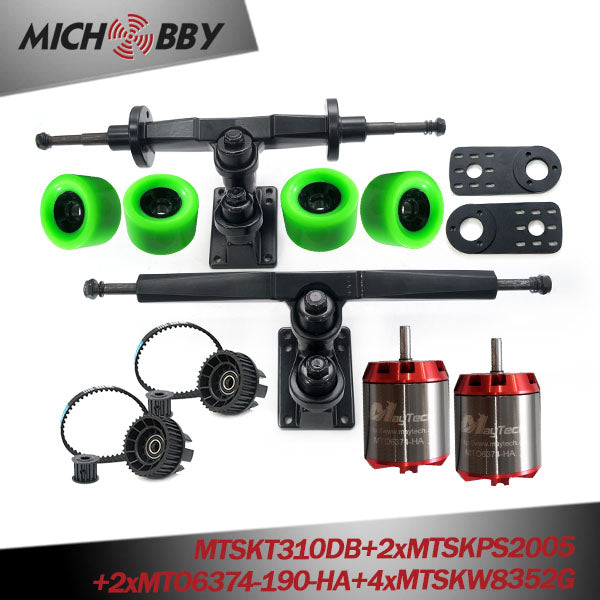

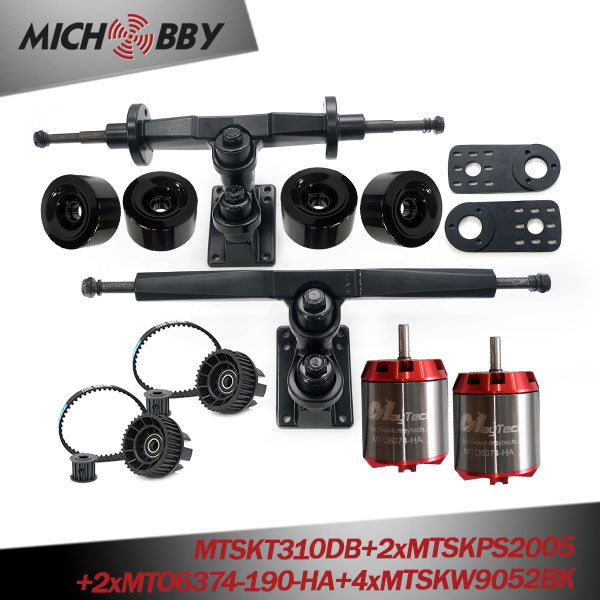

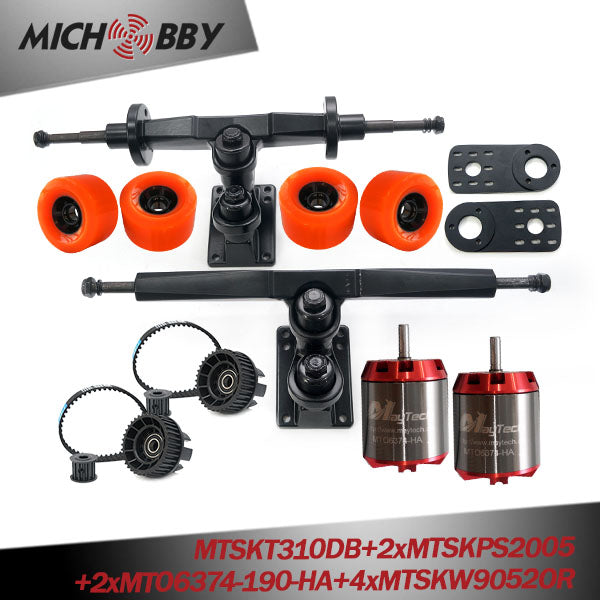

MTSKT310DB+2xMTSKPS2005+2xMTO6374-190-HA +4xMTSKW8352G/MTSKW9052BK/OR

Above motor KV is our standard KV, your order will be shipped as the KV we have.

If you have other needs, please contact us first, we accept customize service.

  • 1. MTSKT310DB Dual belt-driven Skateboard Trucks (1set)

Rear and Front trucks with two motor mounts
Truck size: 12inch
Frame materials: 356-T6 alloy aluminum alloy
Weight: 760g/pcs for back truck, 700g/pcs for front truck
Suitable for: 5055/5065/6355/6365/6374 motors

New Gravity Casting Technology:

1). Aluminum liquid flow into truck mould by liquid's weight naturally, this way can delete mould's inside air clearly.
2). do heat treatment after demoulding (truck surface is a little rough because of heat treatment). Prouction time is longer than old die casting technology, and the production cost is twice than before.
3). Hardness reached out HRB65 around, which can stand over 150kg weight for professional skateboarders.

Double kingpin trucks Dual belt driven electric skateboard truck MTSKT310DB for DIY electric longboard

  • 2. Pulleys and Belt Kits (2sets)

MTSKPS2005

Belt HTD5M-255, width 15mm;

Motor pulley 14T, 5mm pitch, width 16mm;

Wheel pulley 36T, 5mm pitch, width 16mm.

Electric Skateboard 5M Pulleys 8mm shaft Motor Pulley HTD255mm-5M Belt Wheel Pulley Set

  • 3. Non-Sealed Brushless Motors with hall sensor (2pcs) 5065 or 6355 or 6365 or 6374
Model No. MTO5065-220-HA MTO6355-190-HA MTO6365-200-HA MTO6374-190-HA
KV 220 190 200 190
Idle Current 1.2A 1.0A 0.8A 0.8A
Max. Current 50A 65A 65A 65A
Input Volt 2-10s Lipo 2-12s Lipo 2-12s Lipo 2-12s Lipo
Max. Output Watt 1815W 3510W 3520W 3550W
Max. Pull 6700g 12000g 9700g 13000g
Rated Current 42.5A 55A 60A 60A
Motor Weight 435g 600g 745g 825g
Shaft 6mm 8mm 8mm 8mm
Output shaft length 26mm 26mm 26mm 26mm
Resistance 0.0361 0.0441 0.0402 0.0402

BLDC Motor, FOC mode, brushless outrunner motor, dc motor, skateboard motor ESK8/Robot Brushless Outrunner Sensored Motors Electric skateboard, esk8, sk8, mountainboard, all terrain offroad skateboard, skate, skateboard, longboard, hoverboard, e-scooter, fighting robots, robotics, photograph robotics, electric vehicles, e-bike, e-scooter, shortboard, street boards, city skateboard,

  • 4. Electric Skateboard Wheels (4pcs) 83mm wheels or 90mm wheels
Model No. MTSKW8352G MTSKW9052BK MTSKW9052OR
Diameter (mm) 83 90 90
Length (mm) 52 52 52
Hardness 85A/78A 85A/78A 85A/78A
Material PP PP PP
Color Green Black Orange
Bearings With With With

Electric Skateboard Wheels (4pcs) 83mm wheels

4. Electric Skateboard Wheels (4pcs) 90mm wheels
