In Stock! Maytech DIY Electric Skateboard Longboard Double Kingpin Trucks and Motor Kits (Dual Drive) 5065 63mm Motors KitMTSKT310DB+2xMTSKPS2005+2xMTO5065-220-HA

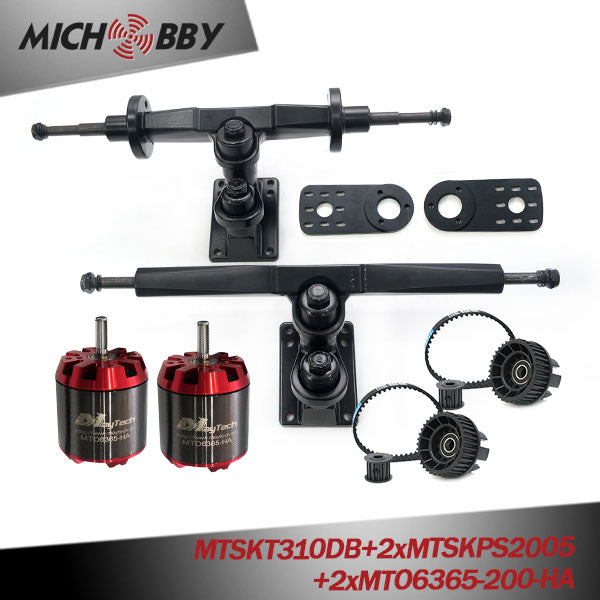

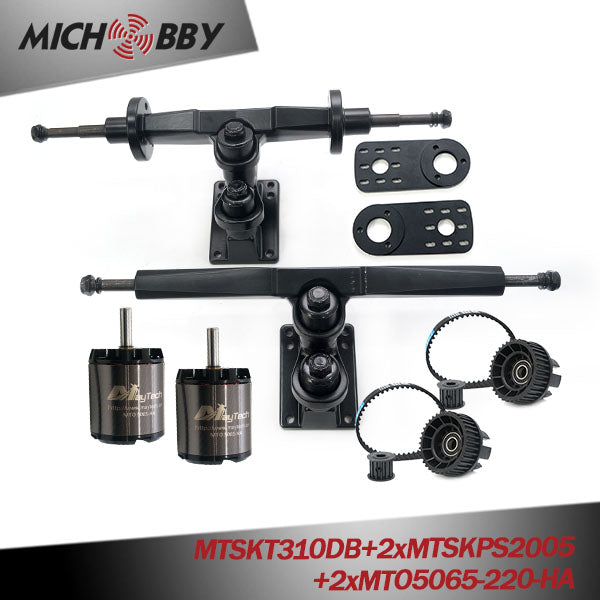

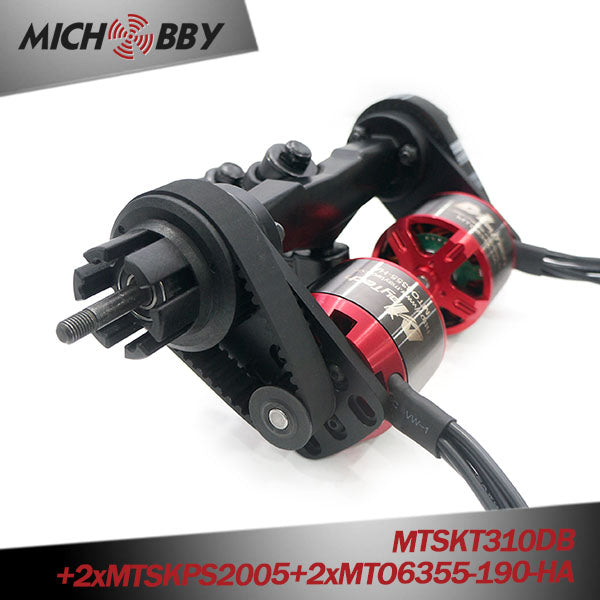

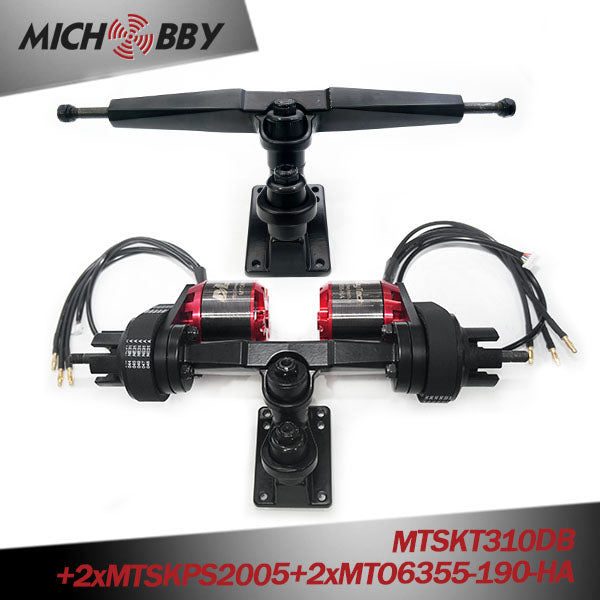

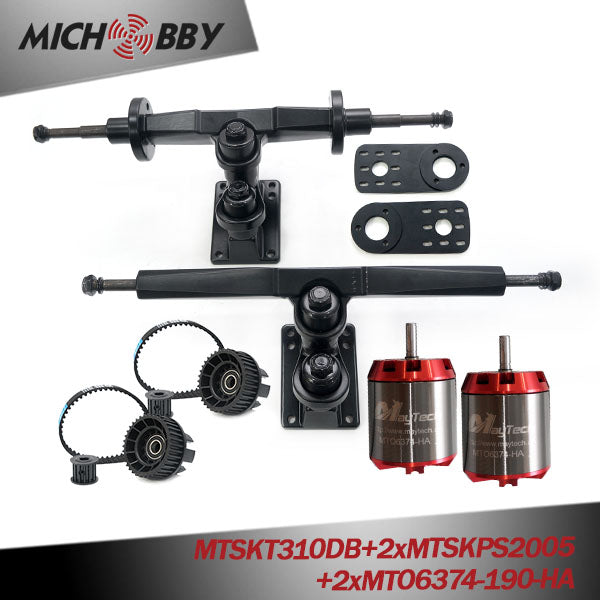

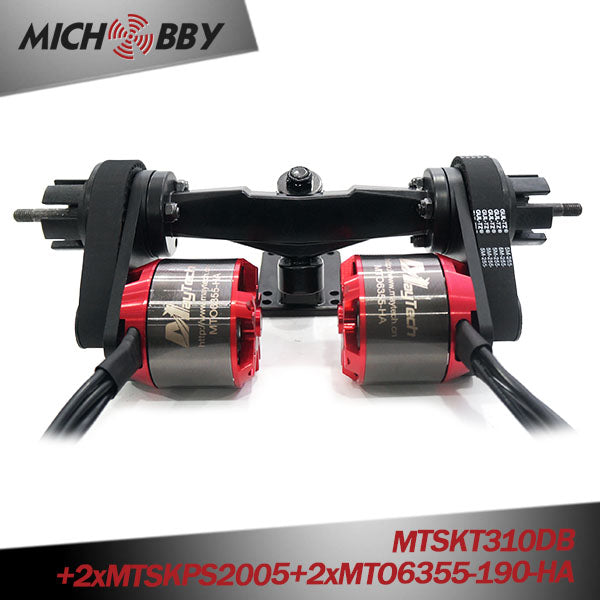

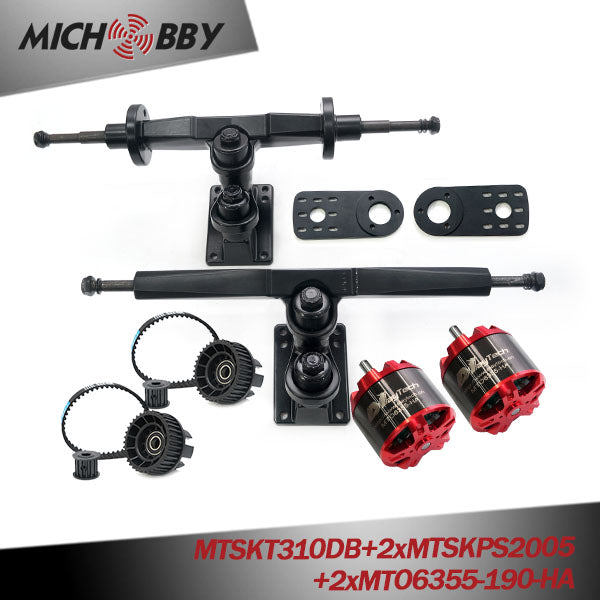

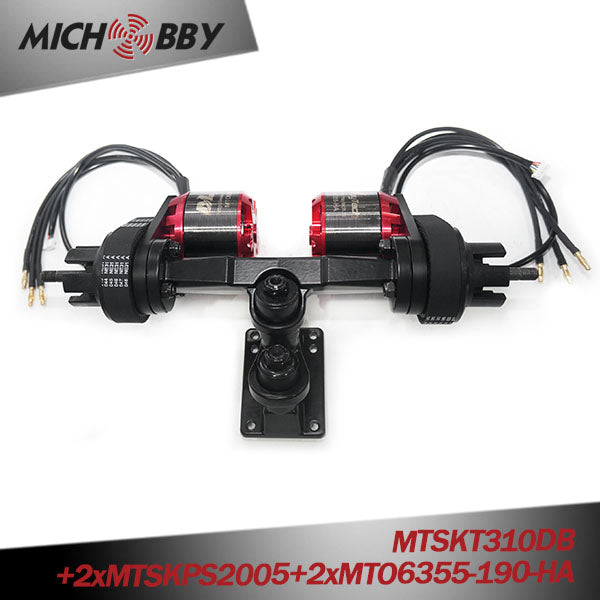

Maytech DIY Electric Skateboard Longboard Double Kingpin Trucks and Motor Kits (Dual Drive) 5065 63mm Motors Kit
Price includes 1sets trucks with motor mounts, 2sets pulleys and belts kits, 2pcs motors.
4 Combs Available (Unassembled):
Above motor KV is our standard KV, your order will be shipped as the KV we have.
If you have other needs, please contact us first, we accept customize service.
- 1. MTSKT310DB Dual belt-driven Skateboard Trucks (1set)
Rear and Front trucks with two motor mounts
Truck size: 12inch
Frame materials: 356-T6 alloy aluminum alloy
Weight: 760g/pcs for back truck, 700g/pcs for front truck
Suitable for: 5055/5065/6355/6365/6374 motors
New Gravity Casting Technology:
1). Aluminum liquid flow into truck mould by liquid's weight naturally, this way can delete mould's inside air clearly.
2). do heat treatment after demoulding (truck surface is a little rough because of heat treatment). Prouction time is longer than old die casting technology, and the production cost is twice than before.
3). Hardness reached out HRB65 around, which can stand over 150kg weight for professional skateboarders.
- 2. Pulleys and Belt Kits (2sets)
Belt HTD5M-255, width 15mm;
Motor pulley 14T, 5mm pitch, width 16mm;
Wheel pulley 36T, 5mm pitch, width 16mm.
- 3. Non-Sealed Brushless Motors with hall sensor (2pcs) 5065 or 6355 or 6365 or 6374
|Input Volt||2-10s Lipo||2-12s Lipo||2-12s Lipo||2-12s Lipo|
|Max. Output Watt||1815W||3510W||3520W||3550W|
|Output shaft length||26mm||26mm||26mm||26mm|
