Efoil DIY Foil Assist Kit ( 6384 140KV Waterproof Motor +160A Fully Waterproof ESC + MTSKR1905WF Waterproof Remote )

Efoil DIY Foil Assist Kit ( 6384 140KV Waterproof Motor +160A Fully Waterproof ESC + MTSKR1905WF Waterproof Remote )

SKU:MTO6384-140-WPC+MTSF160A-WP32+Progcard32+MTSKR1905WF+MICP27F

Regular price $566.90
Regular price Sale price $566.90
Sale Sold out
Shipping calculated at checkout.
Motor Bearing Type
OPTION

Have Doubts? Contact US!!

Efoil DIY Foil Assist Kit ( 6384 140KV Waterproof Motor +160A Fully Waterproof ESC + MTSKR1905WF Waterproof Remote )

Maytech New Motor/ESC/Remote Kit, easily to convert your non-electric foil, wind foil, kite surf, sup board, wing foil, etc to electric.

1. Fully Waterproof 6384 Motor with New Waterproof Treatment Technology on Rotor and Stator.

MTO6384-140-WPC 6384 Outrunner Motor
Fully Waterproof (can be immersed in water)
Max Torque 8.8N.M;
Motor KV: 140 (RPM/V) KV can be customized.
Shaft: No output shaft
Max. Current: 100A
Input Volt: 3-12Lipo cell
Max. Output Watt: 5000W
Motor size: 62.6*84mm
Motor next weight: about 1.2kg; including wires about 1.32kg
Wire length: about 1meter
Without Hall Sensor
Application: For Wing foil, wind surf foil, sup foil board, electric foil board, kite foil board, underwater thruster, underwater robot, ROV, Electric Kayaks, etc.

Our advanced waterproof technology:

Rotor magnets with anti-oxidation and anti-rust treatment;
Stator with insulation paint;
Coil Copper wires with transparent insulating varnish;
Stainless Steel bearing.

Stainless Steel Bearing:
Because seawater is corrosive, after some time use may get rust, need to wash with fresh water everytime after use, and keep
the motor all dry, so to expand lifespan.

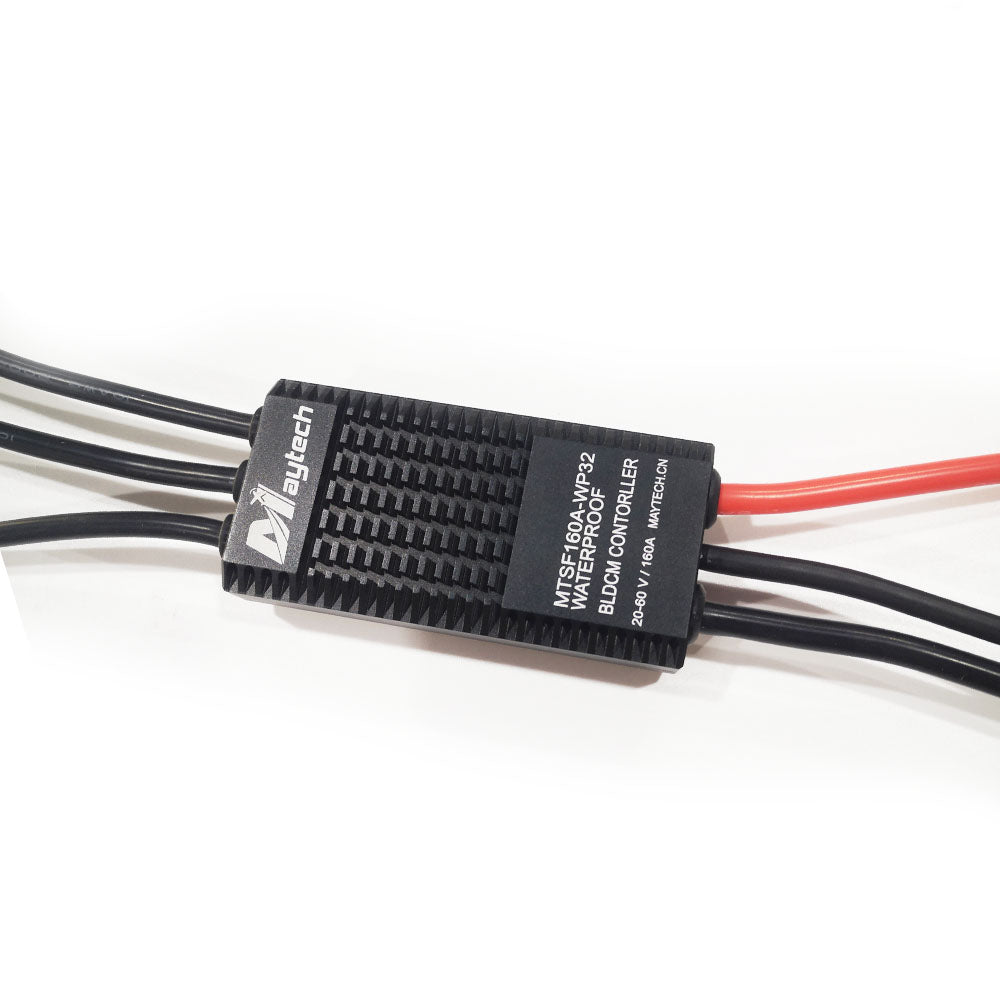

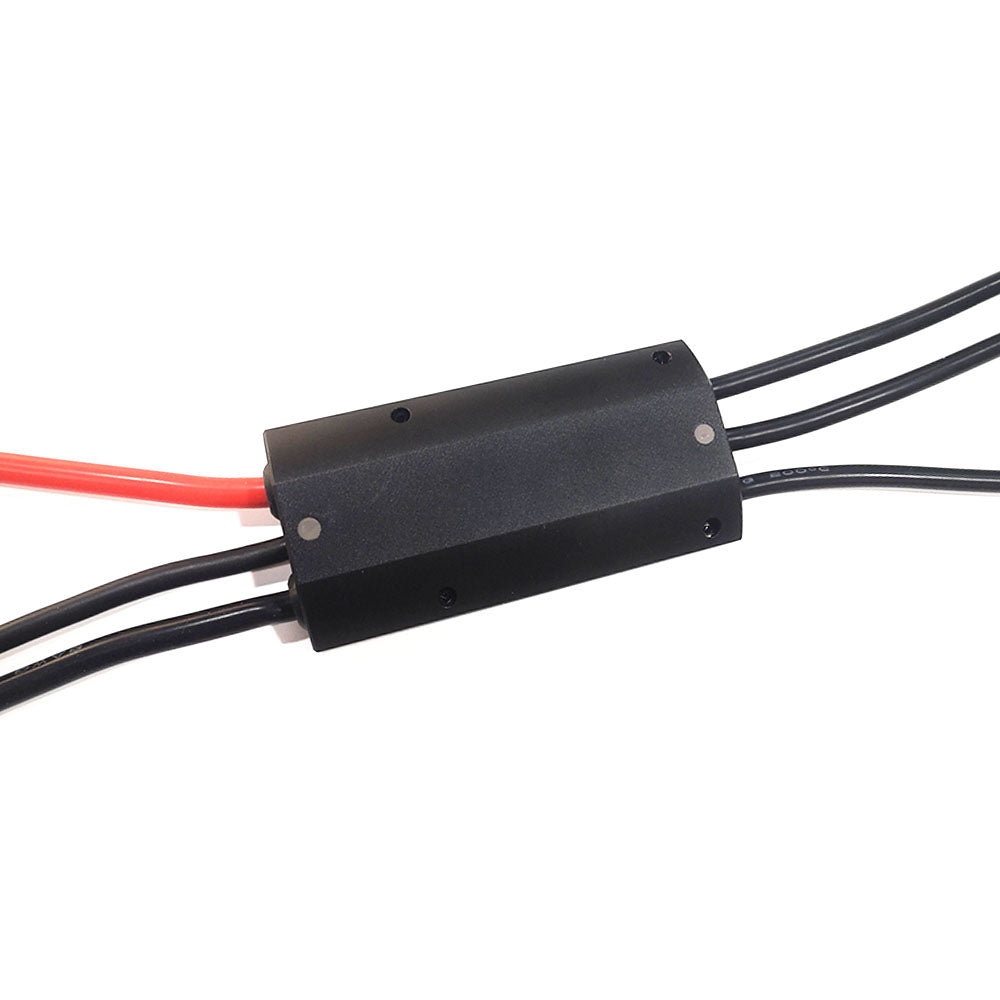

2. Maytech New 32Bit 160A ESC Waterproof Speed Controller (Non-VESC) With UBEC and Progcard
Higher power and more easier to be programmed.

Model No.: MTSF160A-WP32
Waterproof Rank: IP68
Cont Current: 160A
Peak Current (at 10S): 180A
Input Voltage: 6-14S Lipo (22.2V-58.8V)
With 5V/0.5A built-in BEC
Size: 92*46*23mm
Weight: 180g
With Progcard32 for programming the ESC
Features:
(1). Fully new circuit design, excellent algorithm
--With high performance 32bit MCU processor, greatly improved data computing ability;
--Faster respond, smoother startup;
--Throttle linear is optimized, more accurate and smoother, better compatibility;
(2). Seperate control board and power board design
--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.
(3). Support forward and reverse rotation
--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.
--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,
(4). With kinetic energy recovery function
--Save more energy;
--Extend battery working time;
--Reduce heat
(5). Multiple protections
--Startup protection;
--Over-temp protection;
--Low voltage protection;
--Phase loss protection;
--Signal loss protection
Maytech New 32Bit 160A ESC Waterproof Speed Controller for Light Weight Efoil
Progcard for Maytech New 32Bit 160A ESC Waterproof Speed Controller for Light Weight Efoil

3. Waterproof Remote with receiver

Model No. MTSKR1905WF PCB and Screen Waterproof Rank IP67
Input Voltage Max 75V Signal PWM (PPM)
UART With TX and RX port to connect VESC controllers Double Source Power Supply Accept 5V power by ESC built in BEC or extra 5V power
Control Pump Yes (Relay Switch) on receiver Control Light Yes (Transistor Switch)
Cruise Control Funtion With in Esurf Mode Accessories Charging Pad; Receiver; 3pcs Dupont Cables
Display Screen Remote & Battery Voltage; Throttle Percentage; Signal Strength; RPM.
When work with VESC, also display Current; Temp; Volt; Speed&Distance(only for esk8 mode) or RPM (for esurf mode).

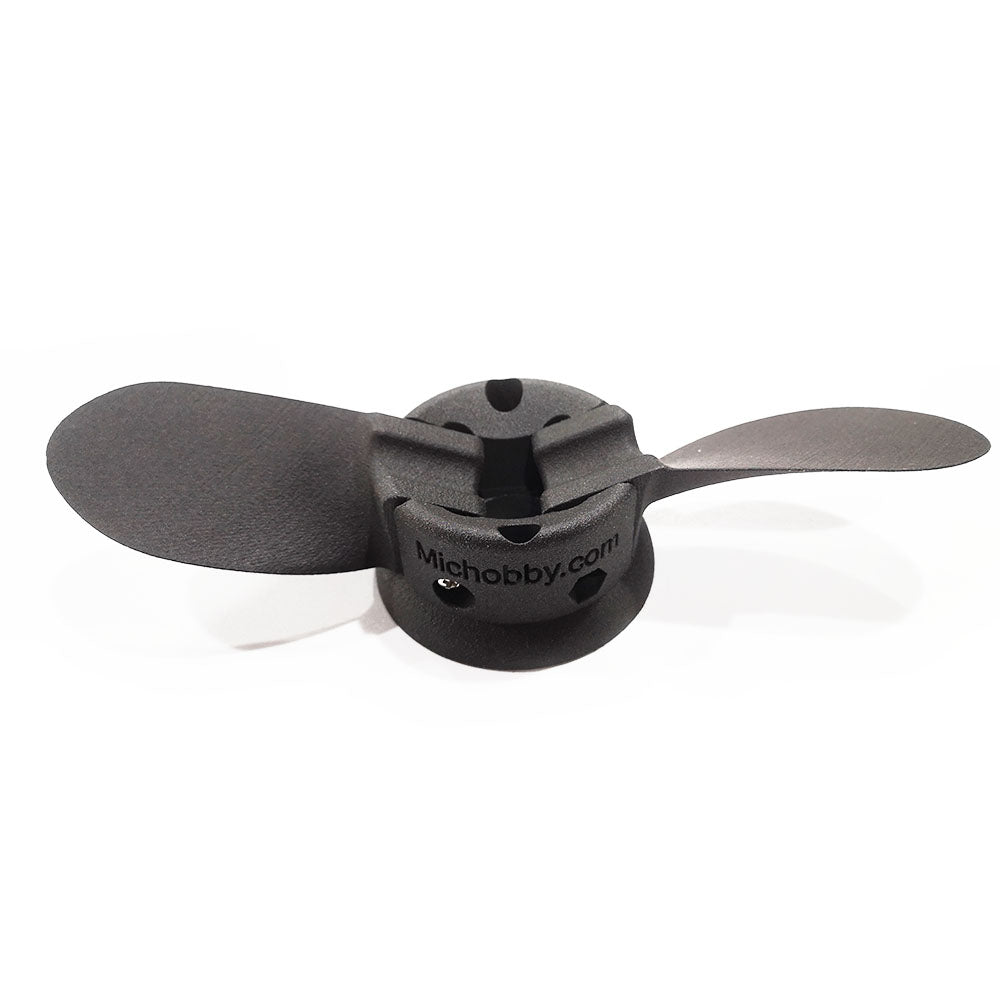

4. MICHOBBY MICP27F 3D Printed folding propeller

Propeller Model: MICP27F
Material: Nylon Powder
Blade: 2 folding Blades
Color: Black
Mounting Holes: 8xM4
Size: 2.7inch from tip to installation
Max Rotation Diameter: 190mm/7.5'' (Approx.)
Height: 32mm/1.25'' (Approx.)
MICHOBBY New 3D-Printed Folding Propeller for DIY Electric Foil/SUP Assist Kit
Efoil DIY Foil Assist Kit ( 6384 140KV Waterproof Motor +160A Fully Waterproof ESC + MTSKR1905WF Waterproof Remote )
