Efoil DIY Foil Assist Kit ( 6374 150KV Waterproof Motor +160A Fully Waterproof ESC + MTSKR1905WF Waterproof Remote )

Efoil DIY Foil Assist Kit ( 6374 150KV Waterproof Motor +160A Fully Waterproof ESC + MTSKR1905WF Waterproof Remote )

1. Fully Waterproof 6374 Motor with New Waterproof Treatment Technology on Rotor and Stator.

Please note from 21 Setp, 2023, the motor phase wires are updated to 1m long.

Our advanced waterproof technology:

Rotor magnets with anti-oxidation and anti-rust treatment;
Stator with insulation paint;
Coil Copper wires with transparent insulating varnish;
Wataerproof ceramic bearing or stainless steel bearing.

Some other waterproof motors stator and rotor are full filled with black glue. This kind of black glue may expand when motor heats up, it will expand, then distance between the stator and the rotor will be very small. If rotor and stator scraches each other , it will affect the life of the motor.
Moreover, if the rotor and stator are full filled with glue, the motor will heat up more easily and the motor power efficiency is poor.

Our waterproof 6374 motor insulating paint is harder than above normal black glue, and even if there is heat, it will not expand to affect the space between the stator and the rotor. It ensures longer motor life!

Difference between ceramic bearing and stainless steel bearing:

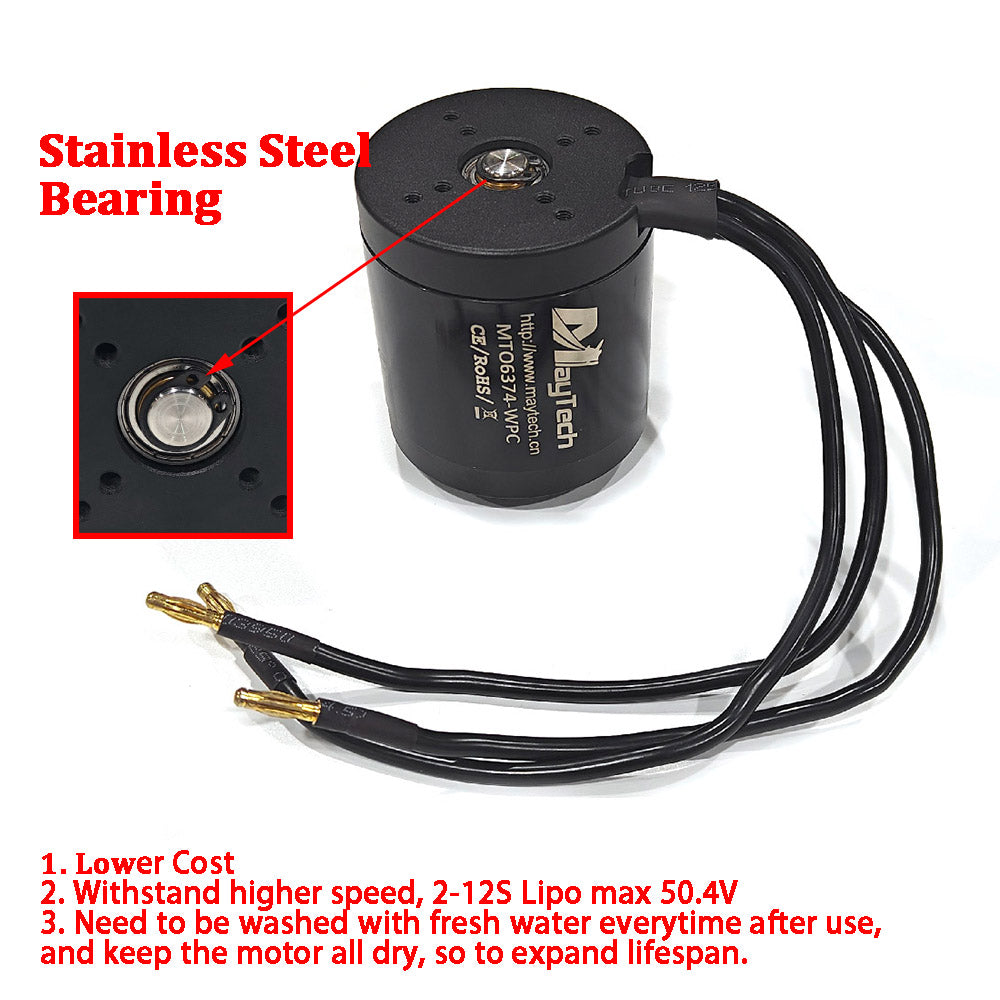

Stainless Steel Bearing:
1. Because seawater is corrosive, after some time use may get rust, need to wash with fresh water everytime after use, and keep the motor all dry, so to expand lifespan.
2. Can withstand higher speed.
3. Cost is less than cermic bearing.

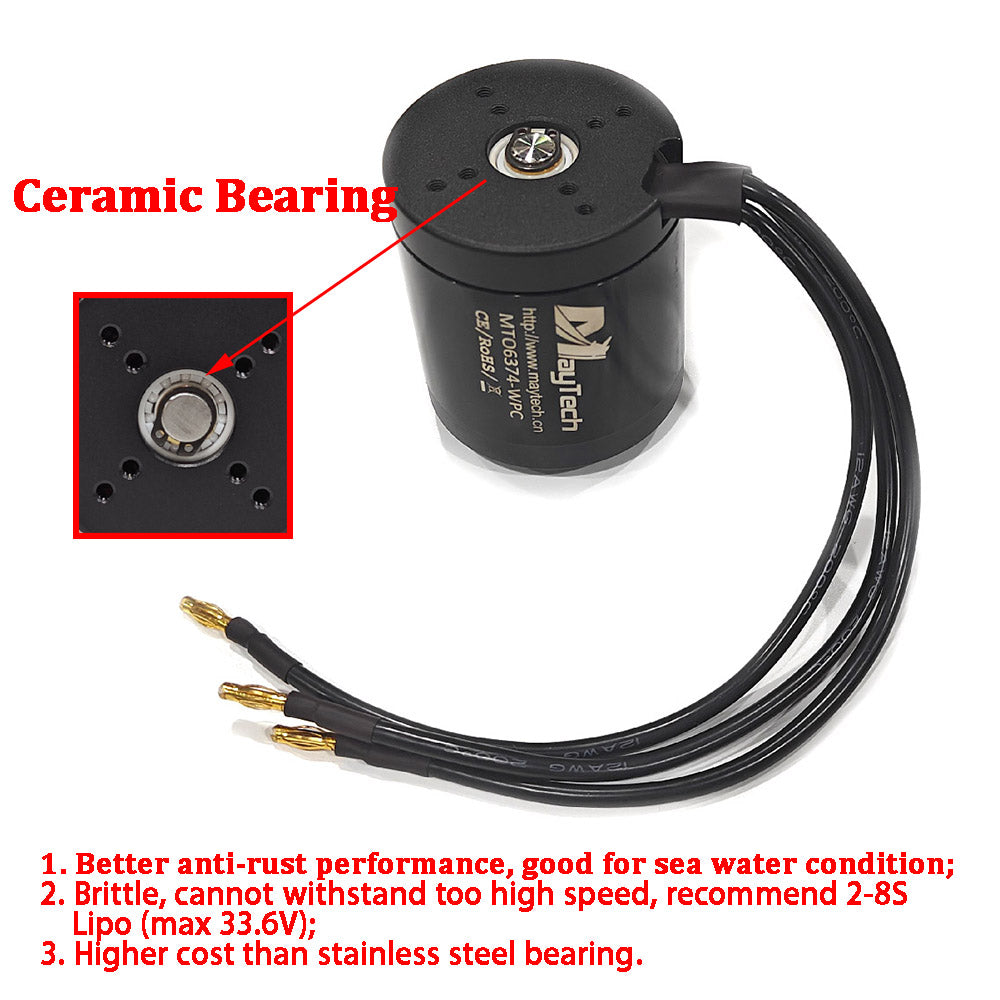

Ceramic Bearing:
1. Better anti-rust performance, good for sea water condition
2. It’s brittle, can’t withstand very high speed, easier damage at high speed
3. cost is higher than stainless steel bearing.

2. Maytech New 32Bit 160A ESC Waterproof Speed Controller (Non-VESC) With UBEC and Progcard
Higher power and more easier to be programmed.

Features:

(1). Fully new circuit design, excellent algorithm

--With high performance 32bit MCU processor, greatly improved data computing ability;

--Faster respond, smoother startup;

--Throttle linear is optimized, more accurate and smoother, better compatibility;

(2). Seperate control board and power board design

--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.

(3). Support forward and reverse rotation

--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.

--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,

(4). With kinetic energy recovery function

--Save more energy;

--Extend battery working time;

--Reduce heat

(5). Multiple protections

--Startup protection;

--Over-temp protection;

--Low voltage protection;

--Phase loss protection;

--Signal loss protection

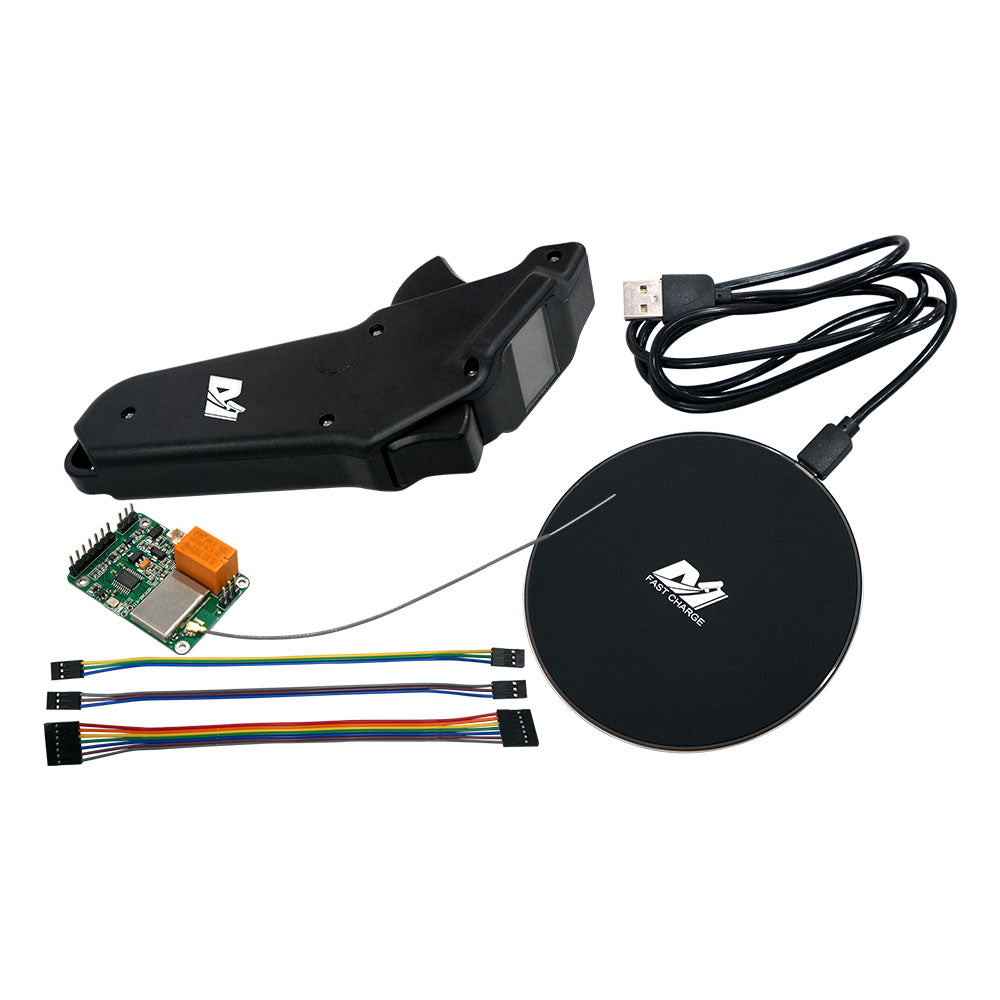

3. Waterproof Remote with receiver

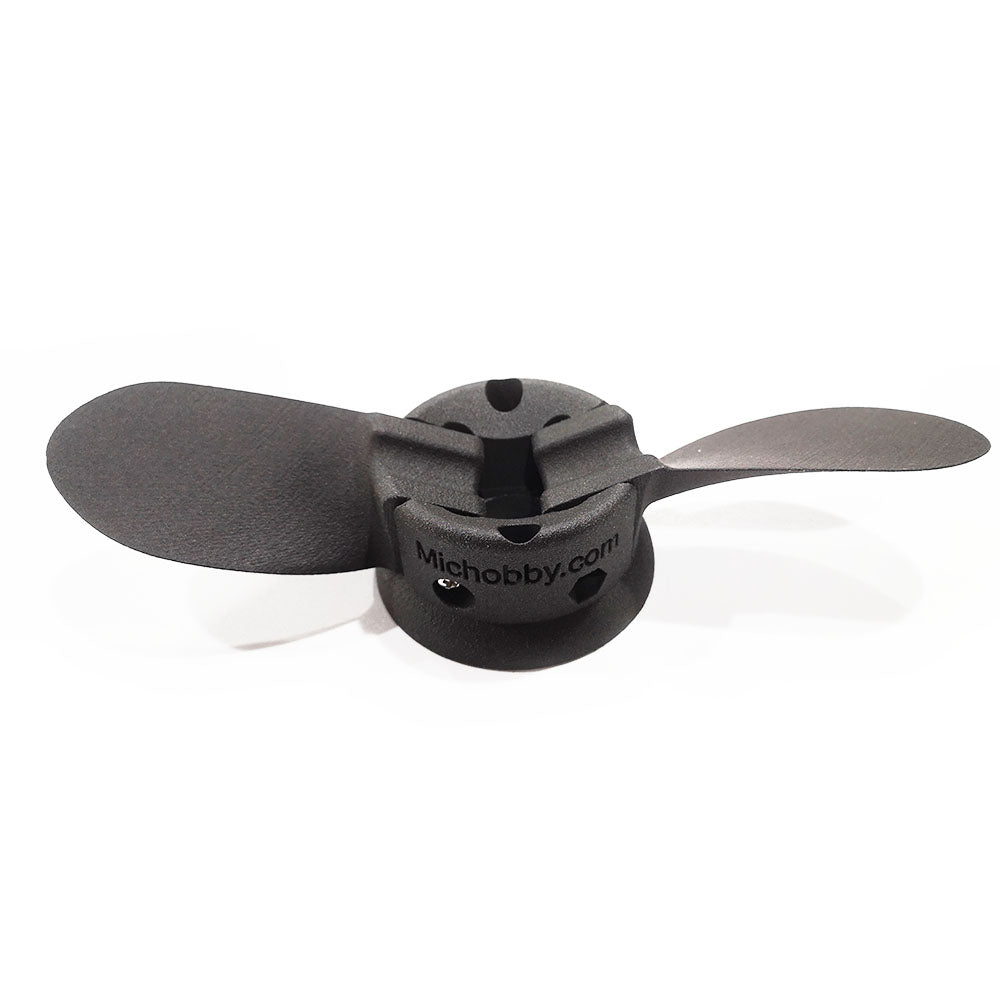

4. MICHOBBY MICP27F 3D Printed folding propeller
