Out of Stock! 90mm Electric hub motor kit dual hub motors electric skateboard kit VESC50A based on VESC4.12 controllers
Out of Stock! 90mm Electric hub motor kit dual hub motors electric skateboard kit VESC50A based on VESC4.12 controllers
SKU:9055OR100+VESC50A
Regular price
$437.20
Regular price
$546.50
Sale price
$437.20
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Have Doubts? Contact US!!
Have Doubts? Contact US!!
Hub motor is out of stock now. MOQ for arranging new production 200-500pcs/iem.

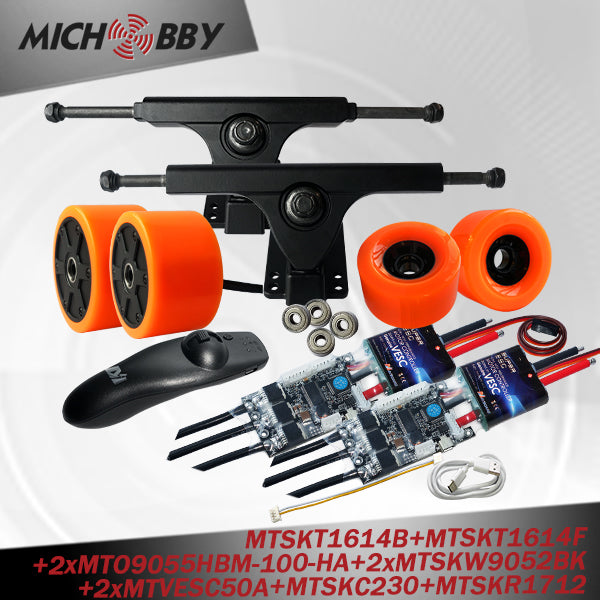

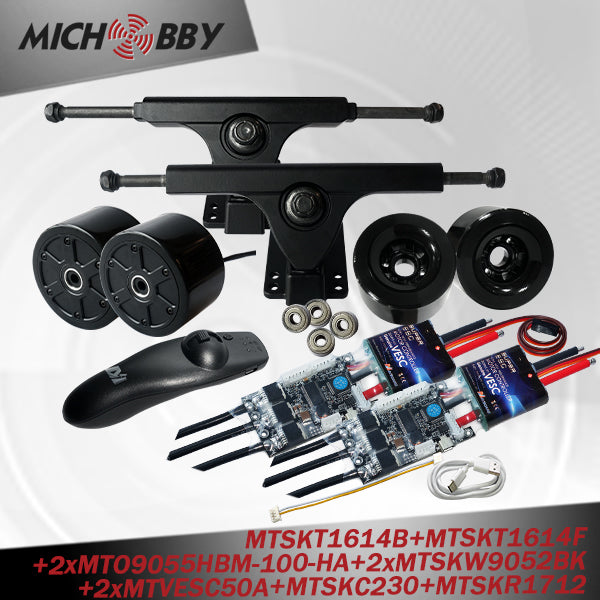

Maytech(10pcs) 9055 electric skateboard hub motor kit for one skateboard.
The kit includes:
- MTVESC50A VESC4.12 based controller x2pcs with MTSKC120 canbus cablex 1pcs for VESC based controllers
- MTO9055HBM-100-HA hub motor orange x2pcs
- MTSKR1712 remote with receiver x1pcs
- MTSKPT9052OR normal wheels x2pcs
- MTSKT1614B rear truck x1pcs
- MTSKT1614F front truck x1pcs

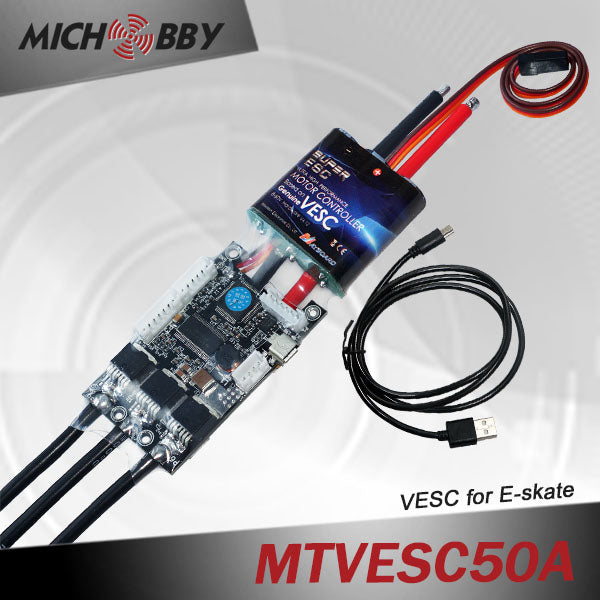

1. Maytech electric dual hub motor kit electric speed controller VESC50A ESC based on VESC4.12 (2pcs with 1pcs canbus cable)
Compatible with latest VESC_TOOL.
|
Model no
|
MTVESC50A
|
Cont. Current
|
50A
|
|
Power wire
|
Silicon wire
|
Burst Current
|
240A
|
|
Lipo
|
3-12S
|
Hardware version
|
based on VESC4.12
|
|
Firmware version
|
3.54
|
Capacitors
|
3pcs 680uf 63V
|
|
BEC
|
5V/1.5A
|
PCB size
|
40mm x 60mm
|
|
Application
|
electric skateboard, electric longboard, fighting robot, e-bike,etc
|
||
2 . Maytech electric skateboard part 90mm brushless hub motor (2pcs)
| Model NO | MTO9055HBM-100-HA | Brand | Maytech |
| KV | 100 | Idle Current | 0.4A |
| Max. Current | 22A | Input Volt | 24V‐36V |
| Max. Output Watt | 800W | RPM | 2100 |
| Motor Weight | 1070g | Hole Size | M8 |
| Motor w/wheel dimension | Φ90x55mm | Internal Resistance | 0.557‐0.577 |
| Hall Sensor | Yes | PU color | Orange/Black |
3 Maytech electric skateboard kit remote control with receiver (1pcs)
| Model NO | MTSKR1712 | Brand | Maytech |
| Power | Battery | Battery | 3.7V 420mAH |
| Feature | small & light | Working current | 26mA |
| Certificate | CE ROHS | Materials | Plastic Plastic case |
4 Maytech electric skateboard kit skateboard wheel (2pcs)
| Model NO | MTSKW9052 | Brand | Maytech |
| Dimension | 90x52mm | Hardness | 78A |
| Color | orange/Black | ball bearing | 2pcs |
| Wheel Materials | 85% rebound PU wheels ensure | Cental Part | PP materials |

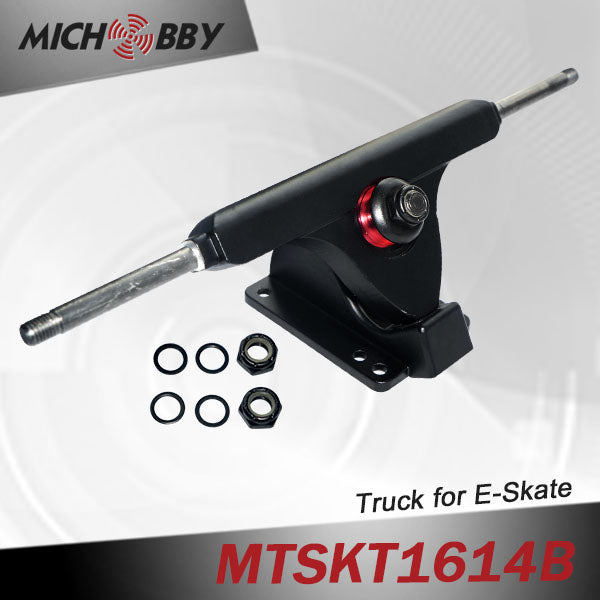

5 Maytech electric skateboard kit hub motor back truck (1pcs)
| Model NO | MTSKT1614B | Brand | Maytech |
| Type | Hub motor Truck | Color | Black |
| Certification | CE | Frame materials | 356‐T6 alloy aluminum alloy |
| Suit | Myatech 70mm and 90mm size hub motor | Suitable truck | Maytech front truck MTKT1614F |

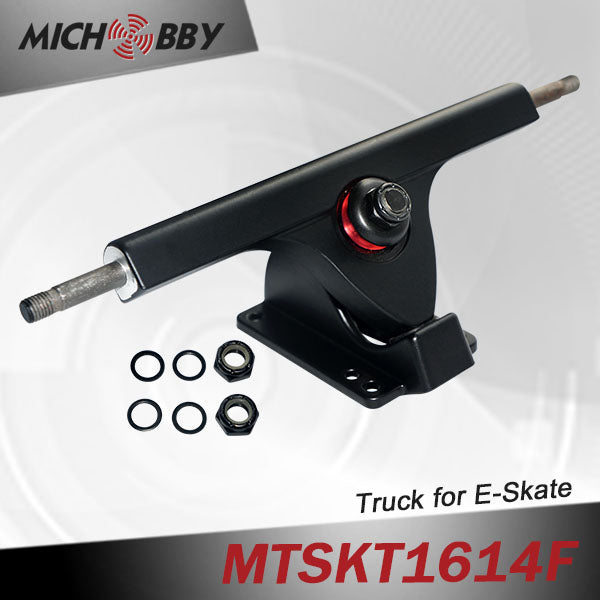

6 Maytech electric skateboard kit front truck for Maytech 70/90mm wheels (1pcs)
| Model NO | MTSKT1614F | Brand | Maytech |
| Type | Hub motor Truck | Color | Black |
| Certification | CE | Frame materials |
356‐T6 alloy aluminum alloy |
| Suit | Myatech 70mm and 90mm size hub motor | Suitable truck | Maytech back truck MTKT1614B |
