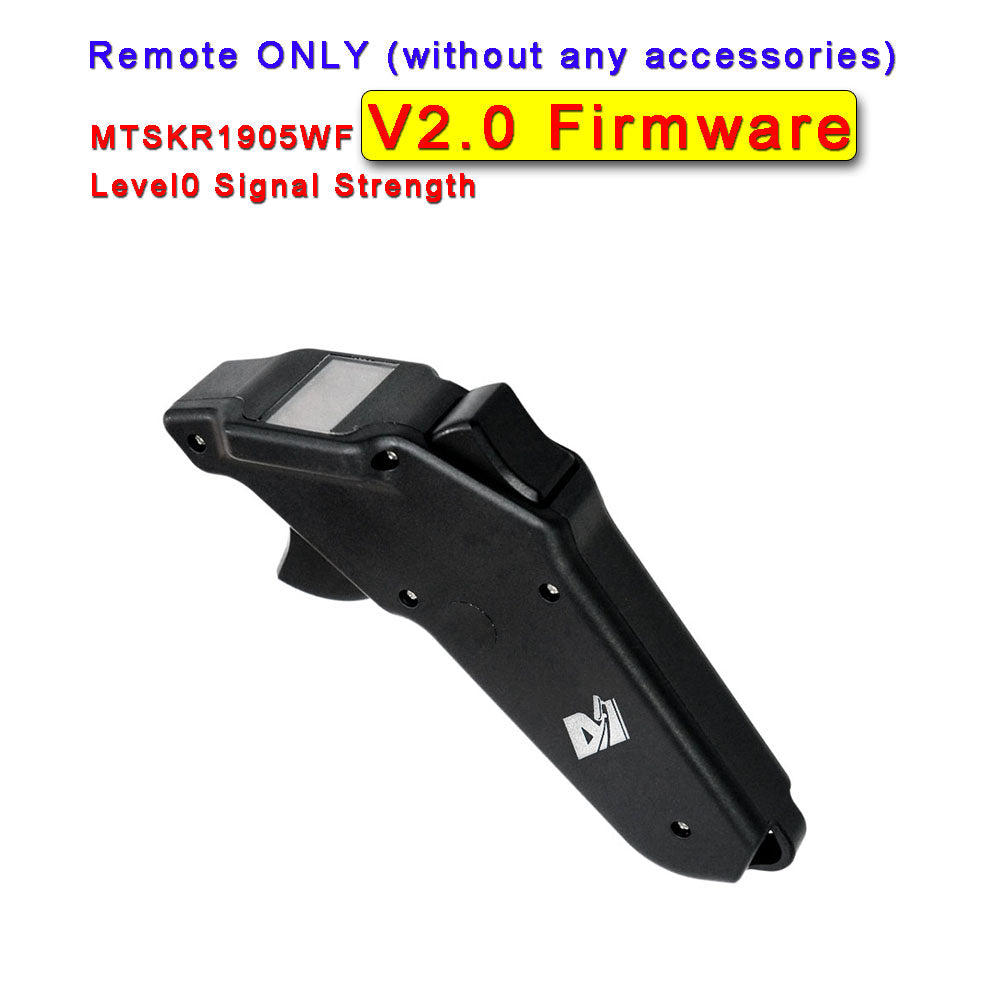

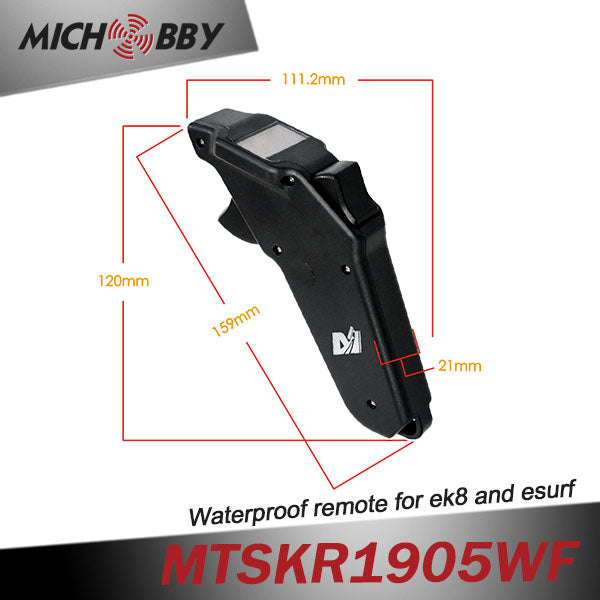

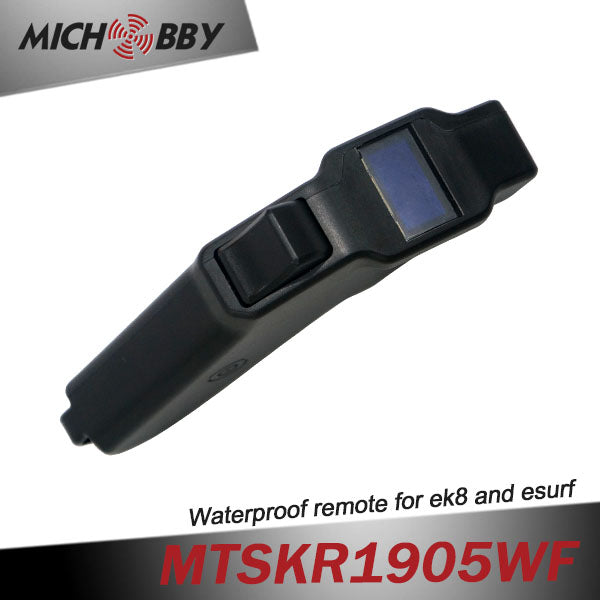

Maytech MTSKR1905WF V2.0 Firmware Waterproof Remote Control Wirless Hand Controller for Esk8/Esurf with Display and Wireless Charging Functions
Difference of V2.0 and V3.0 firmware Remote versions:
V2.0 remote only has one RF Mode Option -- One siangla level: Level0, Lowest Signal Strength, Most energy-saving.
(Our another V3.0 remote RF Mode has two Levels: Level1 and Level2. Signal Strength: Level0 < Level1< Level2.)
MTSKR1905WF PWM signal Range:
1. Esurf mode:
Zero position: 1ms;
Throttle button: 1-2ms, max throttle is 2ms; Brake button has no PWM signal output.
2. Esk8 mode:
ZERO position: 1.5ms;
Throttle button: 1.5-2ms, max throttle is 2ms;
Brake button: 1.5-1ms, max brake is 1ms.
For extra accessories:

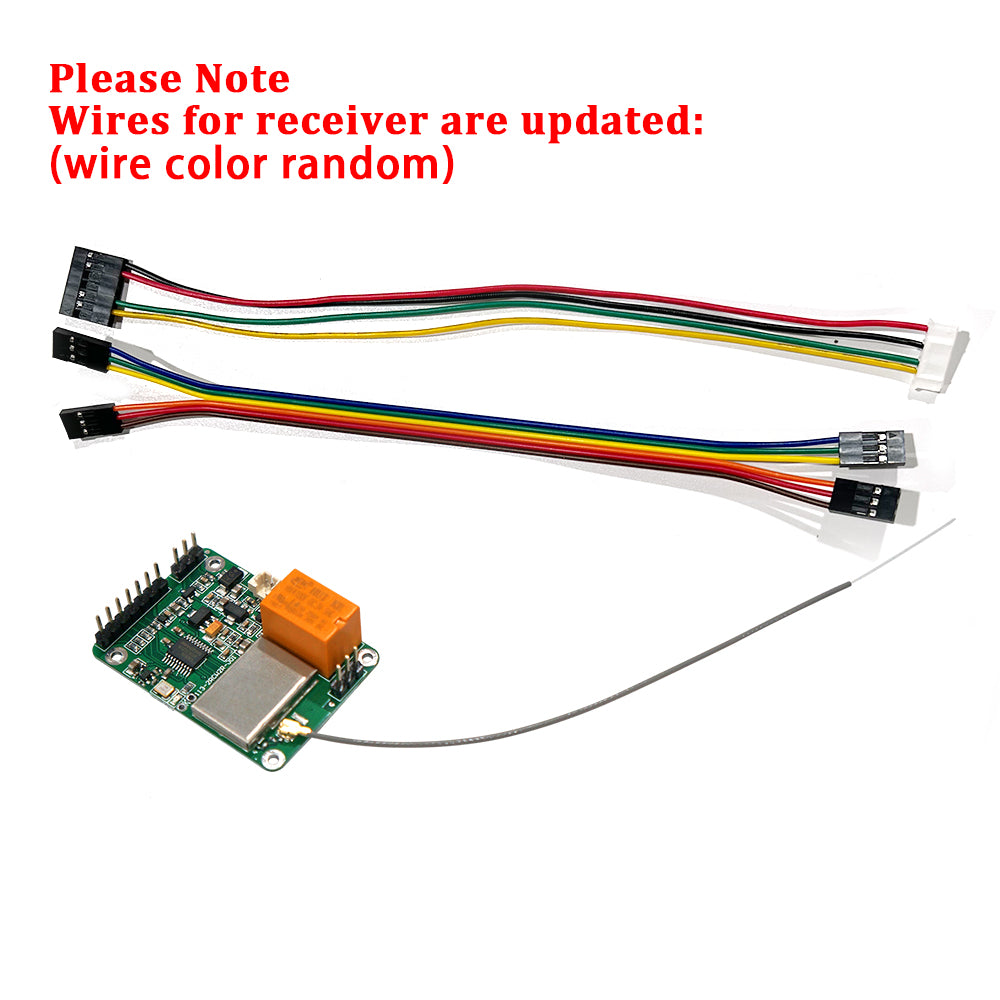

Extra receivers
Longer antenna
| Model No | MTSKR1905WF (V2.0) |
| Waterproof Rank | IP67 with 2 layers nanometer coating |
| Control Mode | SF(Surfboard) / SK (ESK8) |
| Speed Settings | 3 Adjustable Speed Modes |
| RF Mode | Lowest Signal Strength-Level 0, Most energy-saving. |
| Throttle Lock function | With New throttle lock function for safety |
| Signal Format | Support Standard PWM (PPM) and UART |
| PWM Signal Output Range | 1ms-2ms for throttle no brake in SF mode (Surfboard); 1.5ms-2ms for throttle, 1.5ms-1ms for brake in SK mode (ESK8). |
| Power Supply | Recevier Accepts 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display | Remote and battery voltage, signal strength, throttle and brake percentage, RPM, speed, mileage; Current, temp, Main Battery voltage percentage, etc. (different data source is with different display datas). Different Data source has different tolerance. All data obtained by different data source is for your reference only. |
| Control Pump | Yes (Relay Switch) |
| Control Light | Yes (Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in SF Mode |
| Brake | With in SK Mode |

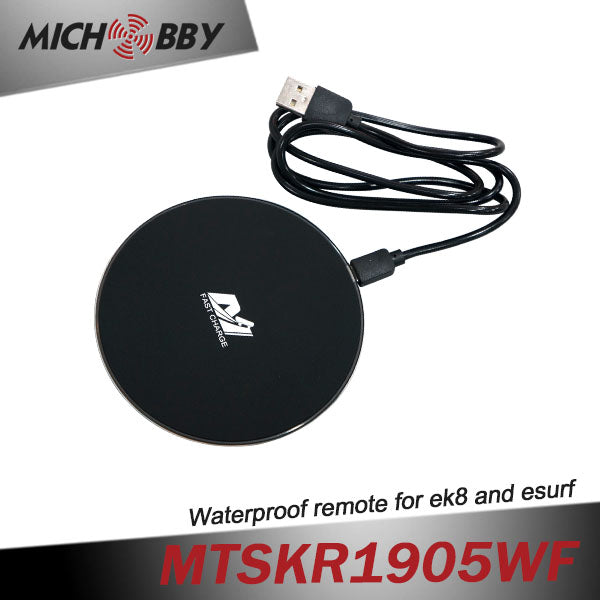

| Wireless Charging | Yes |

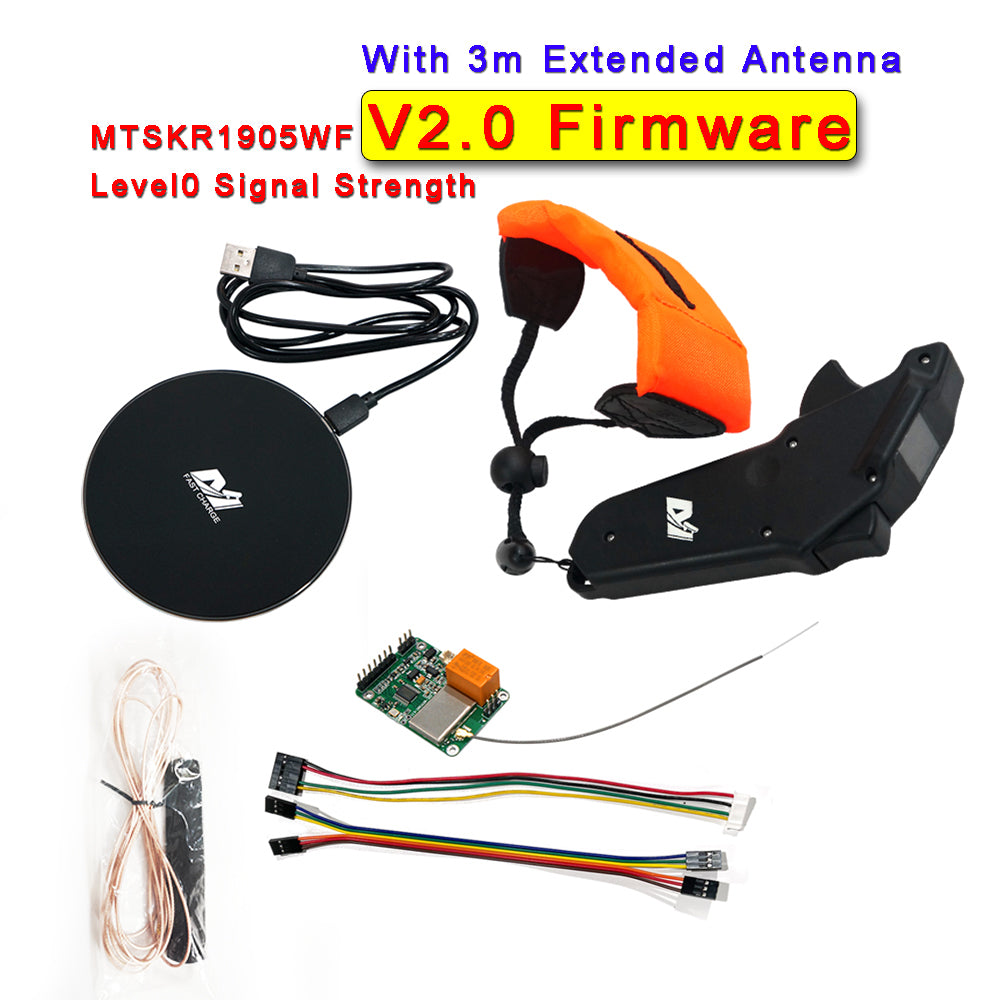

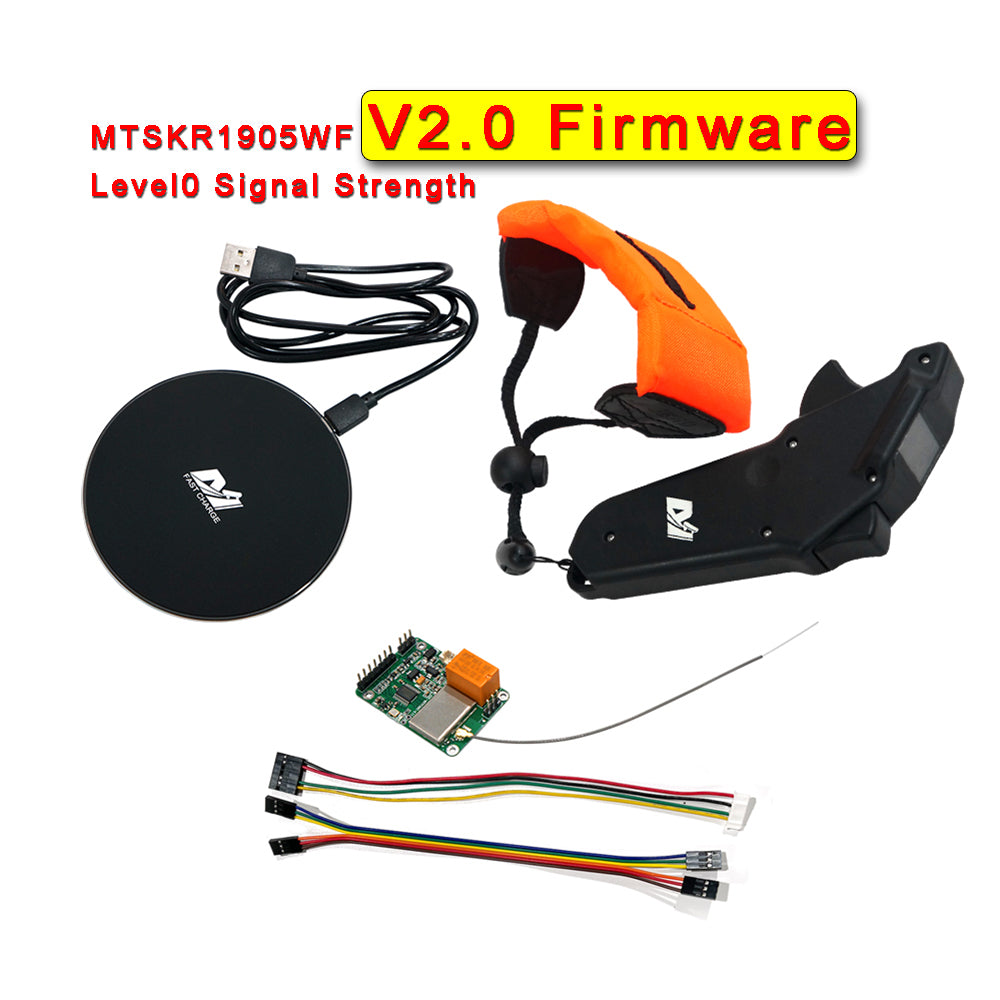

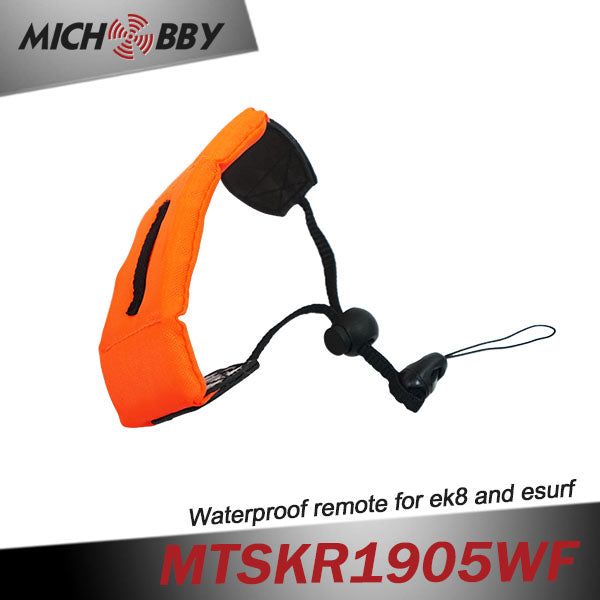

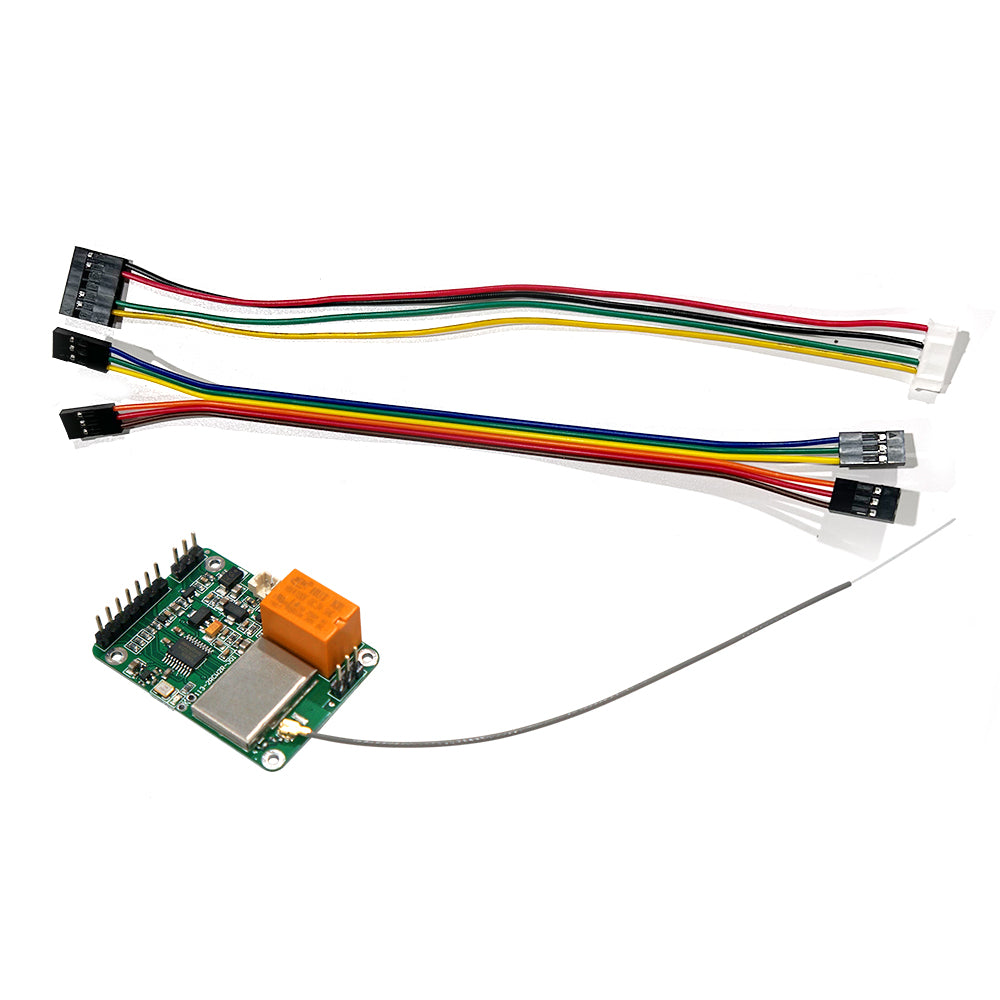

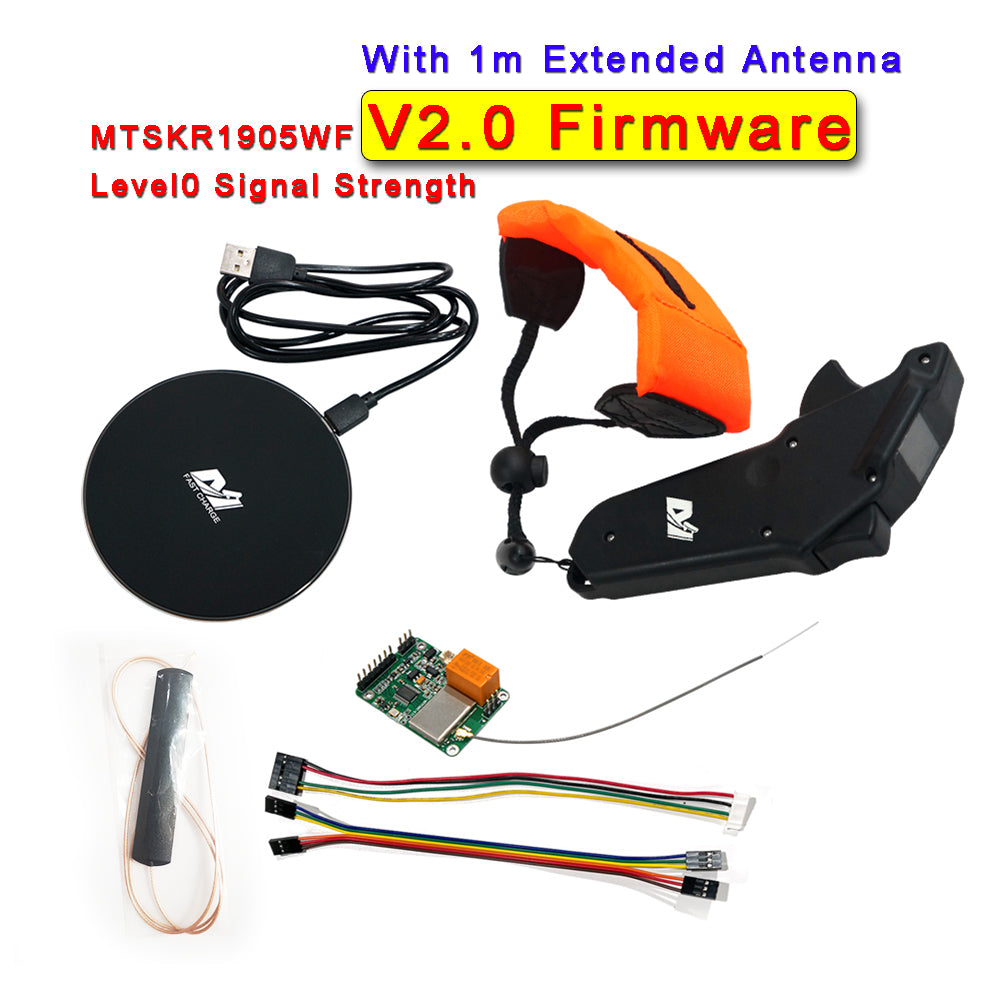

| Package Includes | Remote, Receiver, Wireless Charger, Floating wristband |
| Compatible Controllers | MTSF300A-WP32 ESC/VESC/ Focbox/ Other PWM ESCs that have same signal output range with the remote. |
| Application | Efoil Boost system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard, elongboard, mountainboard, electric paraglider, etc. |
Download Manual:
Maytech MTSKR1905WF Waterproof Remote Control User Manual V2.0

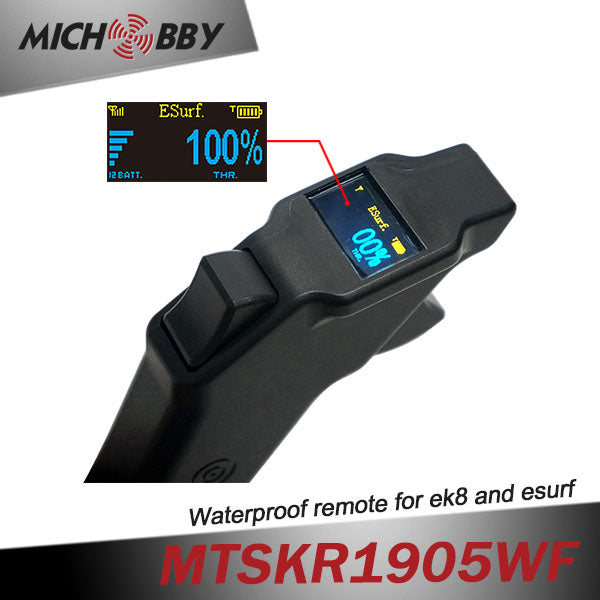

Screen Display for different Data Source and Throttle Mode:

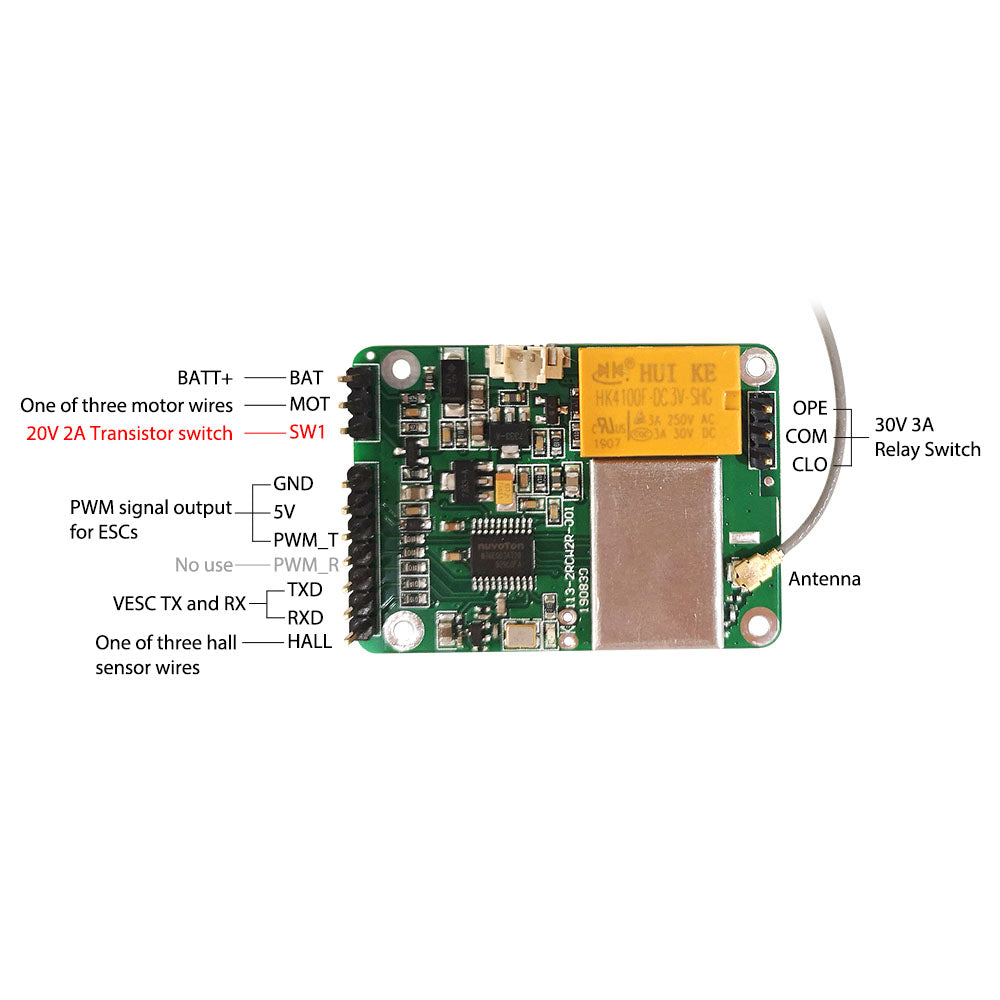

Wiring Digram for different Data Source Option:
Using Notice:
1. Wash the remote in freshwater after using in salt water.
2. The remote PCB is sealed by waterproof nano-coating and double protected by glue. The remote screen is sealed by waterproof nano-coating, not glue. When use it in water, water will get in between the outside and inside screens. It won't influence using. When you don't use it, please put it in dry place and it will dry slowly.
3. When charge the remote, please keep remote dry.
4. Receiver is not waterproof. Please put receiver in dry place.
5. Because each customer using situation is different, some customers may need replace the antenna with longer one . If you mount the reciever deep in your board, recommend to change to a long 2.4ghz antenna and lead the antena near to your top cover of your board for better signal.
6. When soldering, please pay attention that the two pins do not touch each other, otherwise it is easy to burn the receiver.
7. The extended antenna 1m and 3m PCBs are not waterproof.
