In Stock! Double kingpin truck Dual 6374 sensored motors VESC6.0 200A VESC6 based ESC V2 Screen Remote electric skateboard longboard kit

In Stock! Double kingpin truck Dual 6374 sensored motors VESC6.0 200A VESC6 based ESC V2 Screen Remote electric skateboard longboard kit

SKU:MTSKT310DB+2xMTSKPS2005+2xMTSVESC6.0+Canbus cable +2xMTO6374-170-HA-C+MTSKR20WFV2

Normale prijs $1,130.29
Normale prijs $1,412.86 Aanbiedingsprijs $1,130.29
Aanbieding Uitverkocht
Verzendkosten worden berekend bij de checkout.

Have Doubts? Contact US!!

Limit-time Discount: 779.9 USD/set

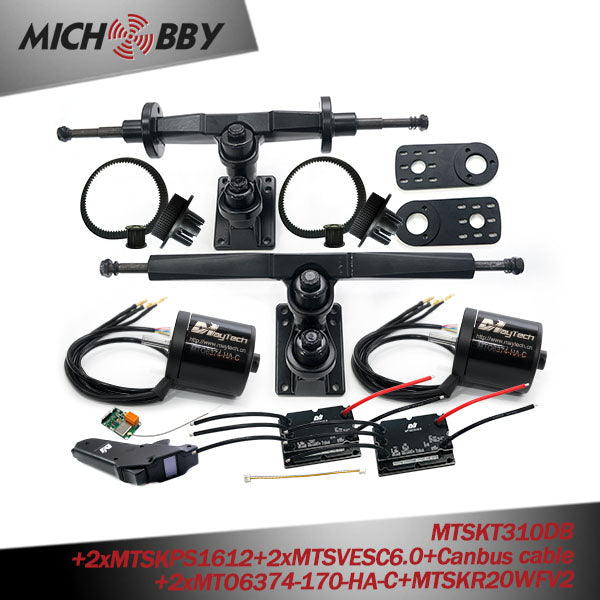

Double kingpin truck Dual 6374 sensored motors VESC6.0 200A VESC6 based ESC V2 Screen Remote electric skateboard longboard kit

Including: MTSKT310DB+2xMTSKPS1612+2xMTSVESC6.0+Canbus cable +2xMTO6374-170-HA-C+MTSKR20WFV2

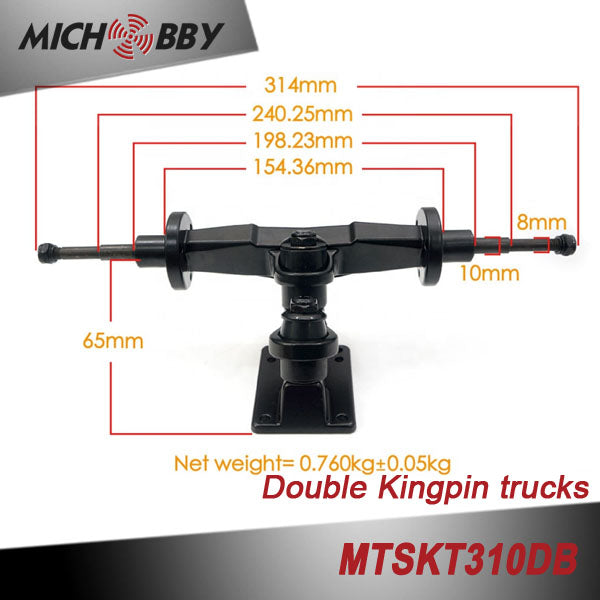

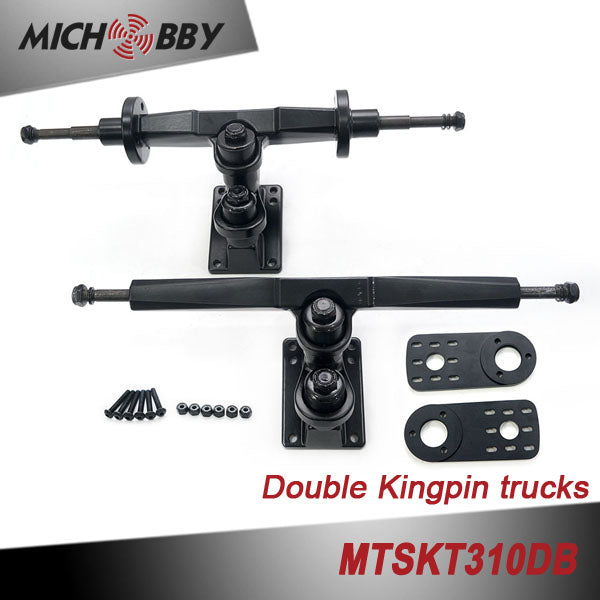

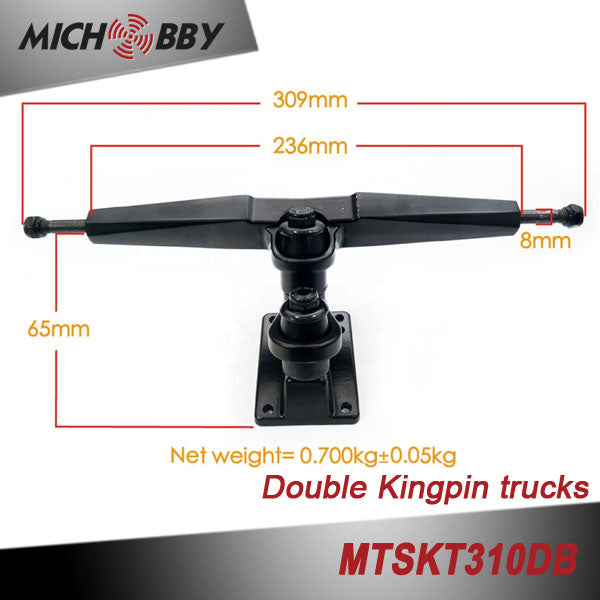

1. Specifications of dual belt driven electric skateboard truck MTSKT310DB for electric longboard (1Set):

MTSKT310DB
Dual‐belt‐driven Skateboard double kingpin Truck

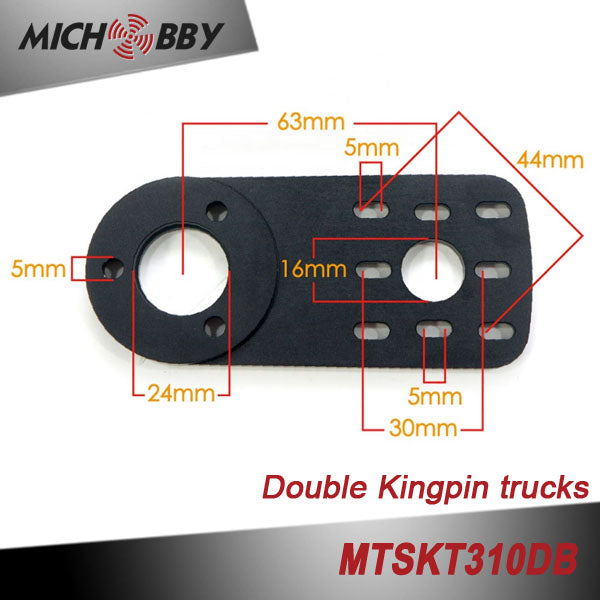

Rear and Front trucks with two motor mounts
Truck size: 12inch

Frame materials: 356‐T6 alloy aluminum alloy
weight: 760g/pcs for back truck, 700g/pcs for front truck
Suitable for 5055/5065/6355/6365/6374 motors

New Gravity Casting Technology:
1. Aluminum liquid flow into truck mould by liquid's weight naturally, this way can delete mould's inside air clearly.
2. do heat treatment after demoulding (truck surface is a little rough because of heat treatment). Prouction time is longer than old die casting technology, and the production cost is twice than before.
3.  Hardness reached out HRB65 around, which can stand over 150kg weight for professional skateboarders.

2. Specifications of MTSKPS1612 Pulley and belt combos (2Sets)

2x17mm wide nylon wheel pulley
2x16mm wide steel wheel pulley
2x15mm wide belt

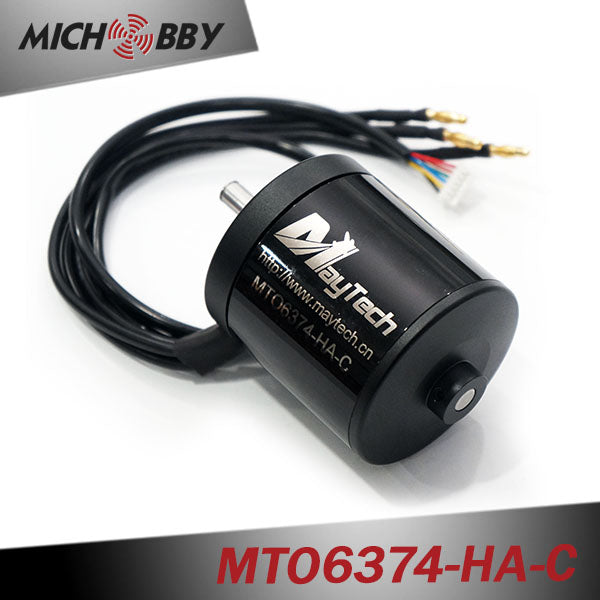

3. Specifications of MTO6374-170-HA-C 6374 170KV sealed cover motor (2pcs)

Model NO MTO6374-170-HA-C
Motor KV 170(RPM/V)
Shaft 8mm
Idle Current 0.8A
Max. Current 65A
Input Volt 2-12Lipo cell
Max. Output Watt 3550W
Max. Pull 13000g
Net Weight 830g
Motor Diameter 63mm
Internal Resistance 0.0402
Features sensored
Application For electric skateboard/e-bike
Features Waterproof and dustproof

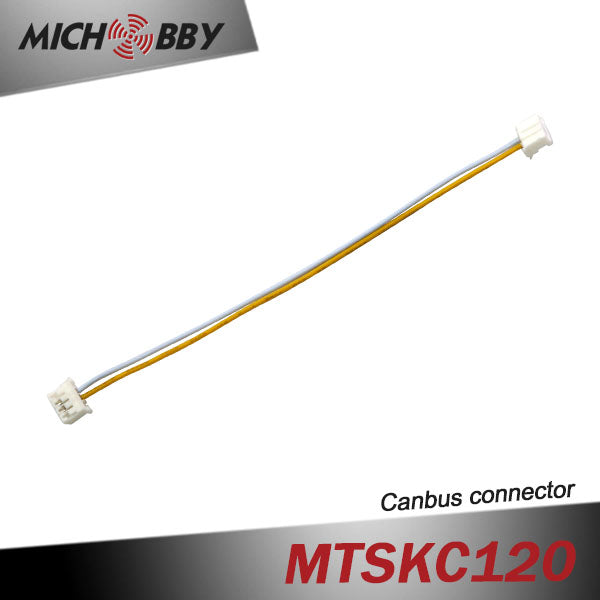

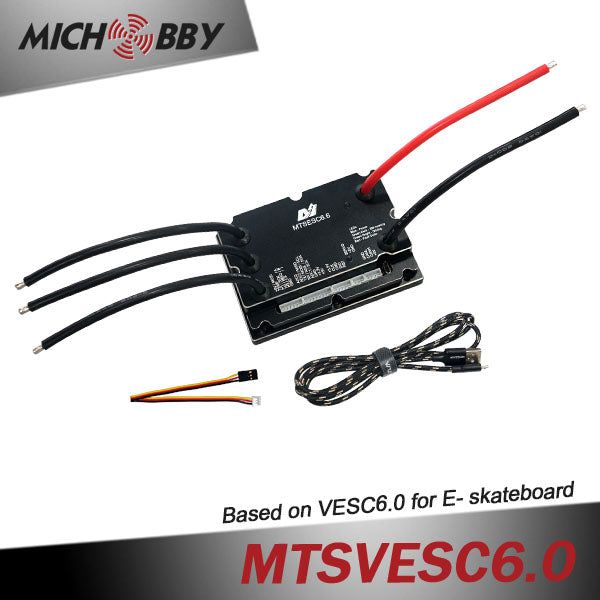

4. Specifications of MTSVESC6.0 (2pcs)(with 1pcs canbus cable)

Application electric skateboard longboard/fighting robots combat robots/elctric surfboard
BEC 5V/1.5A
Lipo 3-12Cells
Voltage 8V-60V
Hardware version based on VESC6.0
Firmware version updatable
Cont. Current 200A
Burst Current 280A
Capacitors With high quality aluminum case, better heat dissipation
Case Size 108mm(L)x75mm(W)x27mm(H)
Power wire Silicon wire

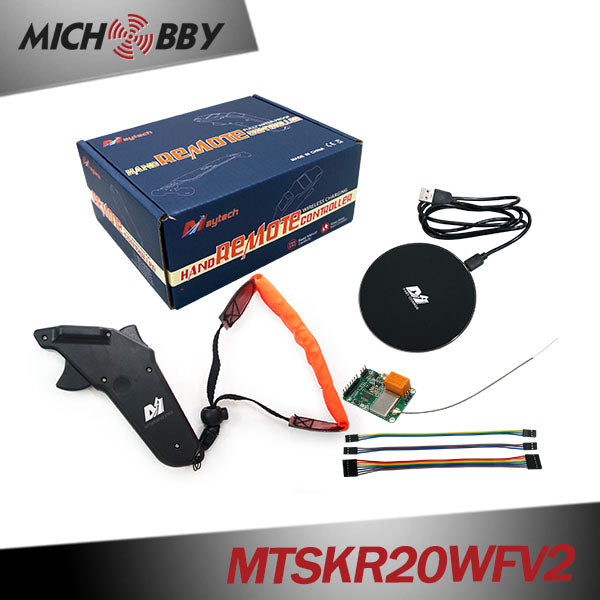

5. Specification of new MTSKR20WFV2 Remote controller with receiver (1pcs)

Manual for MTSKR20WFV2 (click and download)

MTSKR1905WF Esurf/Esk8 VS MTSKR20WFV2 ESK8 :

MTSKR1905 V2 MTSKR20WFV2
Waterproof Class IP67 double waterproof IP66
Control mode Esurf mode Esk8 mode NEW ESK8 mode
Throttle display 0-100% ±100% ±100%
Speed mode No No Three speed modes;
each mode with adjustable speed 1-100%
Cruise control  Yes No No
Speed display No Yes Yes
Travel distance No Yes Yes
Application:  Electric-surfboard/Efoil;
Underwater control;
 E-skateboard  E-skateboard
Charger QC 2.0 Wireless
Wireless frequency 2.4GHz wireless with 40 Channel
Display screen OLED Yellow and Blue screen
Voltage display Remote and Main Battery Voltage Level(Lithium iron/lithium ion battery optional)
Triggers 2 x High sensitivity triggers
Throttle output PWM 1ms-2ms 100Hz
Telemeter  Data by Recevicer Motor RPM/Main Battery Voltage
Telemeter  Data by VESC ESC voltage/current/temperature/Motor temperature/RPM
Compatible ESCs VESC4/VESC6/FOCBOX/Other PWM ESCs
VESC control mode Duty Cycle / Current Mode
Receiver's built-in switches
for esk8 lights, esurf water pump using, etc
1 x 30V 3A mechanical relay switch
1 x 20V 2A transistor electronics switch
