80A HL Series ESC for RC Airplane Helicopter Fixed Wing 2-6S Lipo 5-8V/10A SBEC Output

80A HL Series ESC for RC Airplane Helicopter Fixed Wing 2-6S Lipo 5-8V/10A SBEC Output

Main features:

1. High-Performance Compact Design: Equipped with an advanced processor for rapid operation, featuring a lightweight and space-saving architecture.
2. Precision Throttle Control: Delivers exceptional throttle signal acquisition accuracy with optimized linear response.
3. Advanced Driver Technology: Outperforms other ESCs with 15% higher efficiency and 20% reduced thermal generation through premium-grade MOSFETS.
4. Universal Compatibility: Auto-recognition of standard transmitter signals; Programmable throttle end points for muti-protocol RC systems

5. Dual Operation Modes: Fixed Wing Mode: Instant torque boost for 3D aerobatics; Helicopter Mode: Precision governor function (±0.5% RPM stability). Motor rotation reversal via AUX channel (fixed-wing only)
6. Programmable SBEC: 5-8V adjustable (optional modes)
7. Supports 90%+ mainstream brushless motors


Specifications:

Model NO.:  MT80A-SBEC-HL

Cont.Current ...................................  80A

Burst Current ................................... 100A

SBEC..................................................  With

Lipo...................................................  2-6 cells

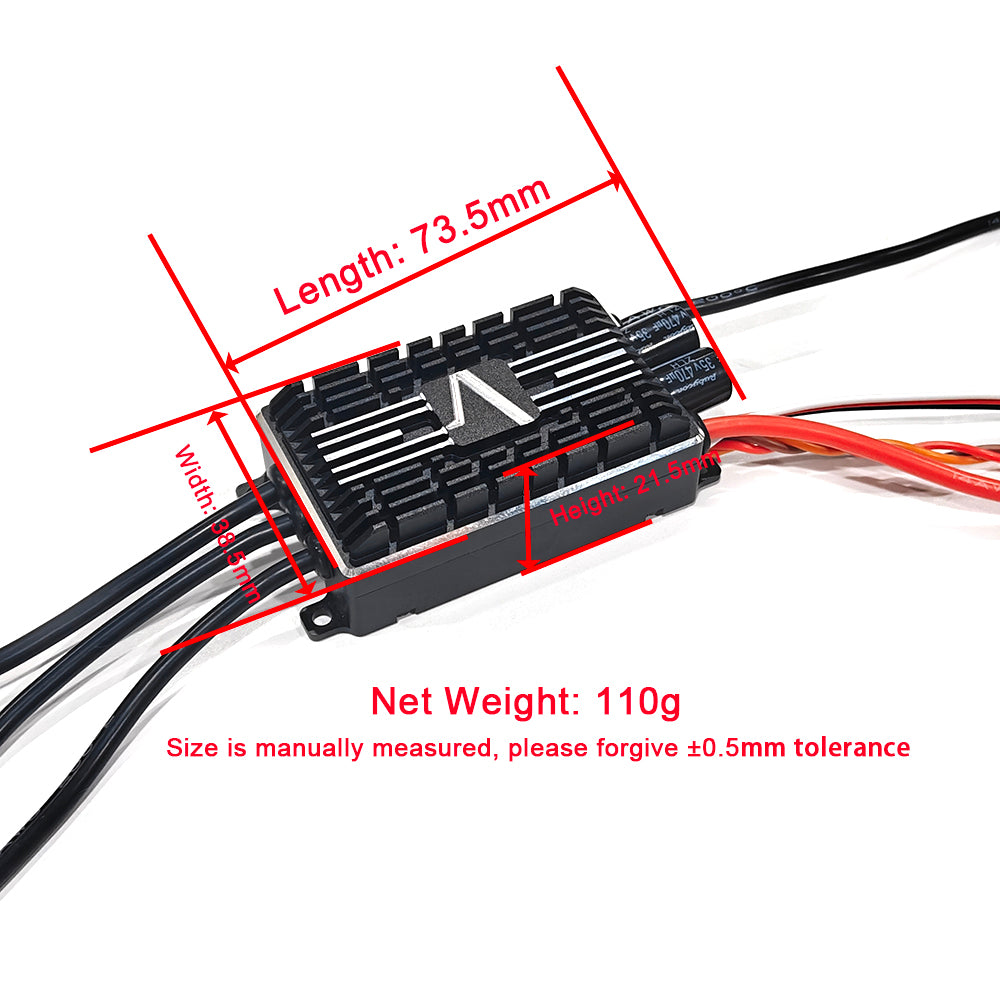

Net Weight ........................................ 110g/pcs

PCB Size.................................................... 52*32mm

Technical Specifications:

Max RPM:

300,000 rpm (2-pole)

100,000 rpm (6-pole)

50,000 rpm (12-pole)
