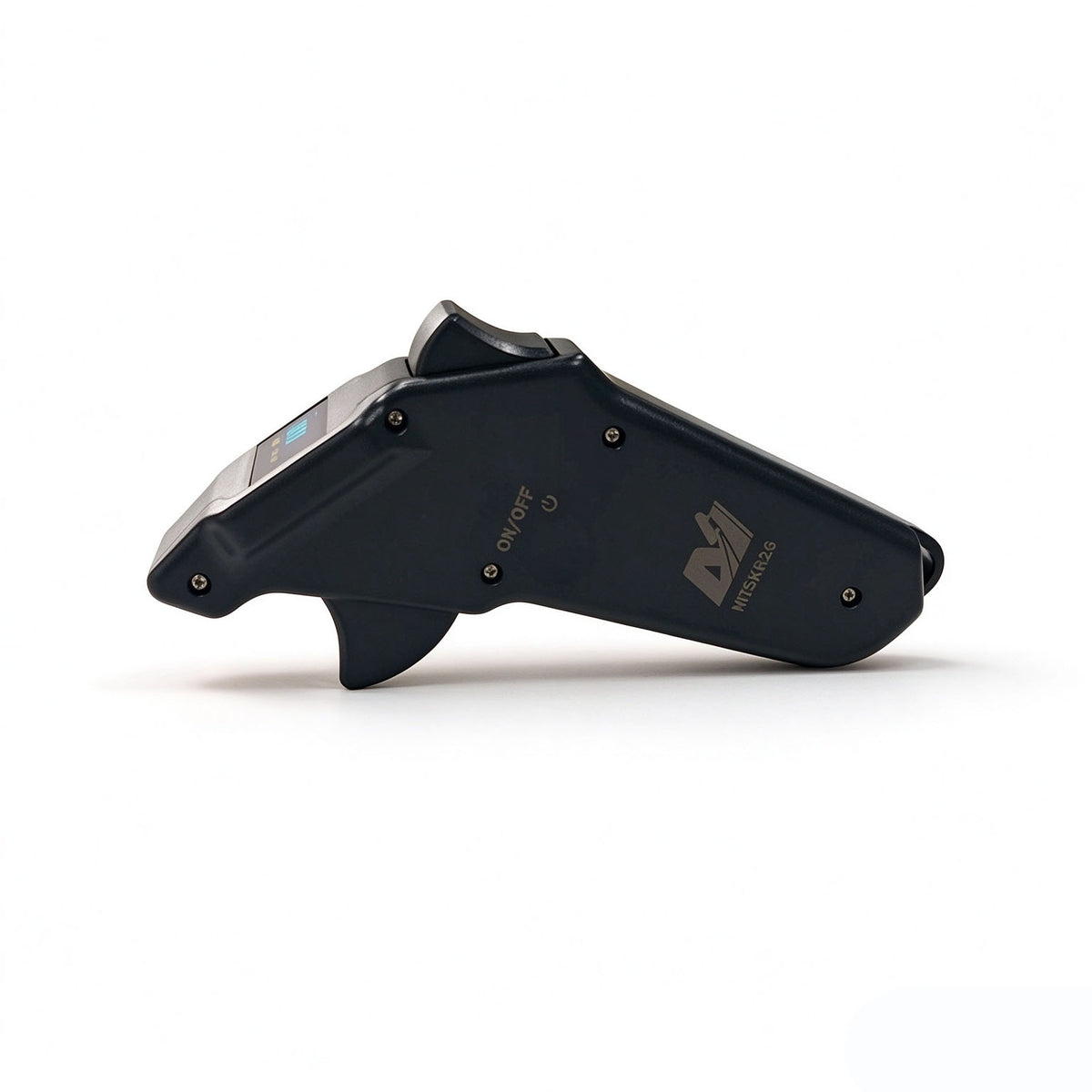

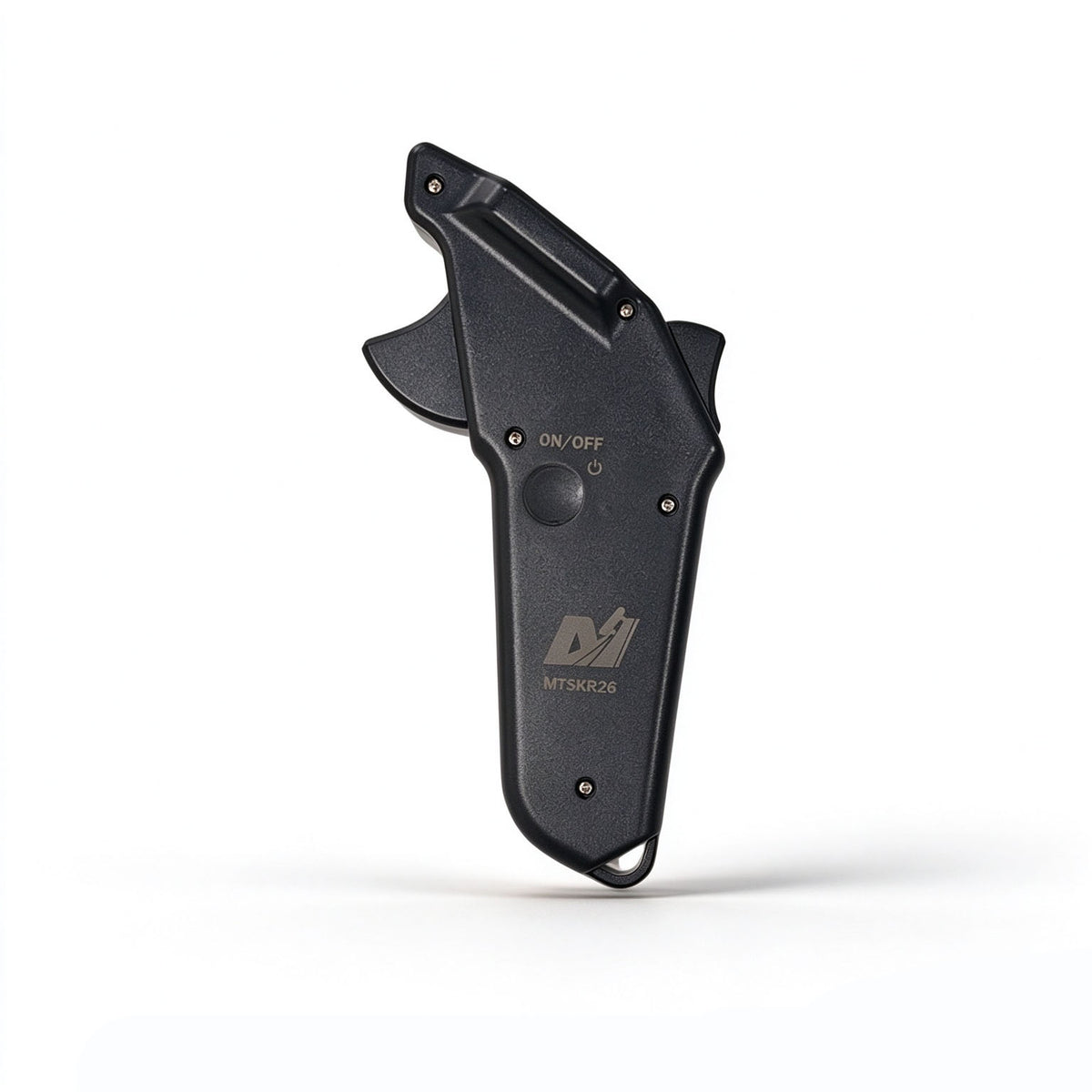

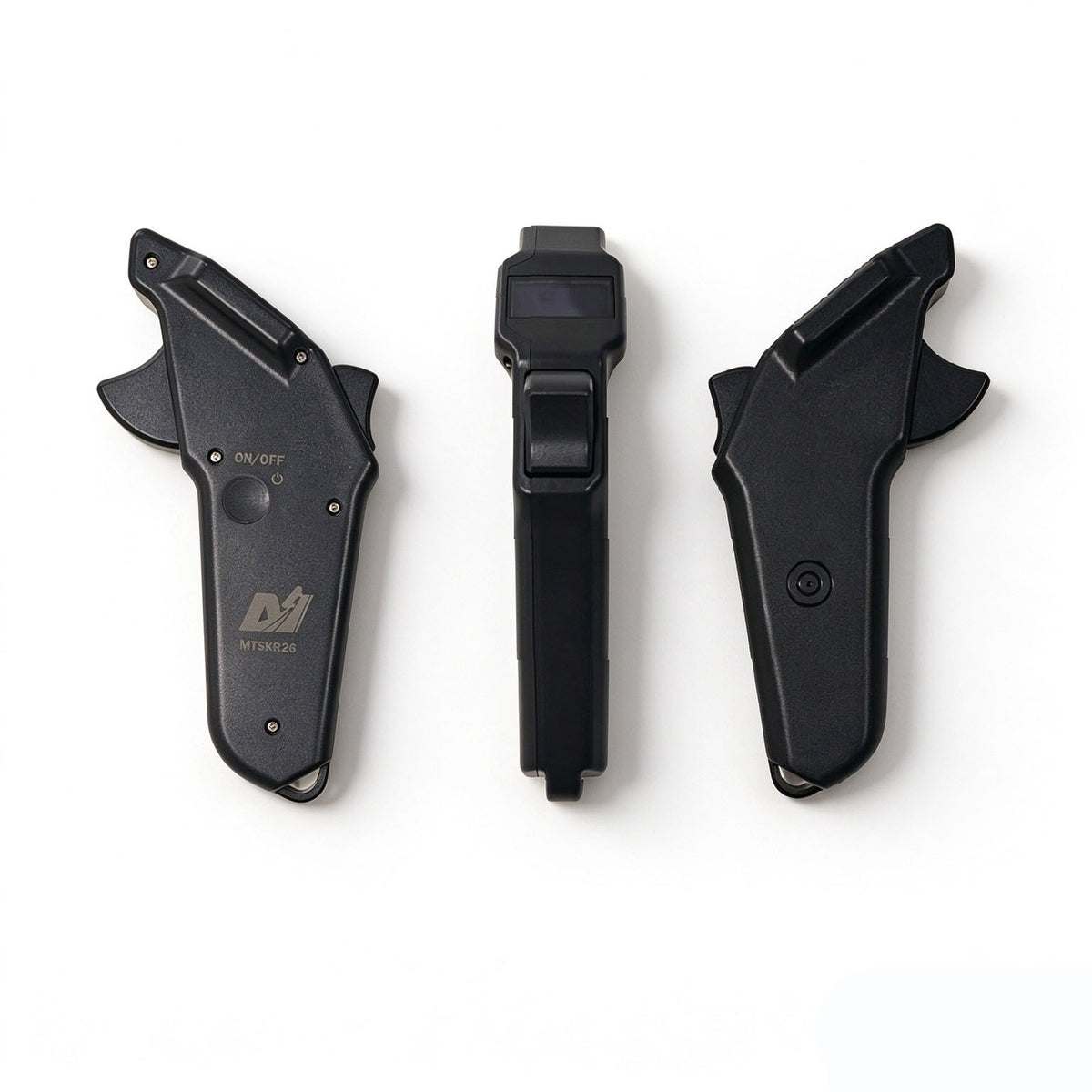

Maytech GPS Remote Controller MTSKR26WF V5.0 – IP68 Waterproof Wirless Hand Controller with GPS Tracking & Tilt Protection for Efoil ESurf ESK8 (Updated version of V3)

Model No	MTSKR26WF V5.0
Upgraded Function	Equipped with GPS (GPS Speed, Distance, Max Speed, Average Speed)
Upgraded Function	Equipped with Tilted protection (IMU tilt sensor), protection angle can be adjusted to 30°/45°/60° tilt degree of your board in case of flipping over, separation of the rider from the board, or an accidental fall. IMU degree can be calibrated according to the receiver position to be placed on your board. Tilt protection can be turned off for experienced users.
Waterproof Rank	IP68 Waterproof with 2 Layers Nanometers Coating, both on PCB board and screen
Thr Mode	Esurfboard (SF) , with cruise control and ESK8 (SK), can control forward and reverse when use on marine applications
3 Speed Modes	With, adjust throttle % from 20-100%, friendly for beginners
Power Modes	2 levels, Eco (Level 1) & Pro (Level 2) optional Signal strength: Pro ＞ ECO Power Consumption: PRO ＞ ECO
Throttle Lock	Yes, 10-120s optional
Signal Format	Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%.
PWM Signal Output Range	In Esk8 (SK) mode: 1.5ms is stop position, 1.5-1ms for brake or reverse (upper trigger), 1.5-2ms for throttle (bottom trigger) In Esurf (SF) mode: 1-2ms for throttle (bottom trigger), no brake or reverse
Double Source Power Supply	Accept 5V power by ESC built-in BEC or extra 5V power
Output Signal	Max 3.3V
Display Parameters	GPS Speed / Distance / Max Speed / Average Speed Tilt sensor angle RPM+Current+Voltage+Temp(When work with VESC and MTSF-WP32 series ESCs)
Display Parameters	Signal strength, remote and battery power bars, battery voltage%, RPM, speed (km/miles), with VESC, Maytech WP32 ESC and other ESCs
Receiver built-in switch	20V 2A Mosfet Switch (transistor switch); No Relay Switch for this version
Cruise Control	With in SF Mode (Esuf)
Brake or Reverse	With in SK Mode (Esk8)
Accessories	Wirelss charging pad / Receiver / USB cable / Wristband / 1pcs 3 pins cable / 1pcs UART cable
Compatible Controllers	VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote.
Application	foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc.,

NEW V5.0 GPS Remote Maytech V5.0 IP68 Waterproof Remote MTSKR26WF Controller With GPS and Tilted Protection Function for Esk8/ Esurf/ Efoil

NEW V5.0 GPS Remote Maytech V5.0 IP68 Waterproof Remote MTSKR26WF Controller With GPS and Tilted Protection Function for Esk8/ Esurf/ Efoil

>Get Maytech MTSKR26WF V5.0 User Manual

>Check Video Using Instrucions

Functions:

● Equipped with GPS (GPS Speed / Distance / Max Speed / Average Speed)
● Equipped with Tilted protection (IMU tilt sensor), protection angle can be adjusted to 30°/45°/60° tilt degree of your board in case of flipping over, separation of the rider from the board, or an accidental fall.
IMU degree can be calibrated according to the receiver position to be placed on your board.
And Tilt protection can be turned off for experienced users.
● with 3 adjustable speed modes;
● with throttle lock function for safety;
● with Eco and Pro modes for different signal strength;
● compatible to Maytech new 32bit MTSF160A-WP32 / MTSF300A-WP32 / MTSF300A-WP32-HV / MTSF300A-WP32-HVPRO ESCs to read current/votlage/rpm/temperature datas, etc;
● add a page to display main battery voltage percentage;
● This version contains functions of old firmware versions MTSKSR1905WF V3.0 (excluding the built-in relay switch)
● Waterproof function: Two layers of nanometer-coating are added to remote PCB and Screen, and they're also double protected by waterproof glue.

Screen Display for different Data Source and Throttle Mode:

Maytech GPS Remote Controller MTSKR26WF V5.0 – IP68 Waterproof Wirless Hand Controller with GPS Tracking & Tilt Protection for Efoil ESurf ESK8

Wiring Digram for different Data Source Option:

If you use MTSF160A-WP32/ MTSF300A-WP32 60V / MTSF300A-WP32-HV 75V / MTSF300A-WP32-HVPRO 85V ESC, please refer to below wiring diagram:

If you use VESC controllers based on V4.12 / V6 / V75_300, please refer to below wiring diagram:

For Other ESCs:

Using Notice:

1. Wash the remote in freshwater after using in salt water.

2. The remote PCB and screen are sealed by waterproof nano-coating and double protected by glue. The remote case is not sealed, when use it in water, water will get in remmote case. It won't influence using. When you don't use it, please put it in dry place and it will dry slowly.

3. When charge the remote, please keep remote dry.

4. Receiver is not waterproof. Please put receiver in dry place.

5. Because each customer using situation is different, some customers may need replace the antenna with longer one . If you mount the reciever deep in your board, recommend to change to a long 2.4ghz antenna and lead the antena near to your top cover of your board for better signal.

6. When soldering, please pay attention that the two pins do not touch each other, otherwise it is easy to burn the receiver.

7. The extended antenna 1m and 3m PCBs are not waterproof.
