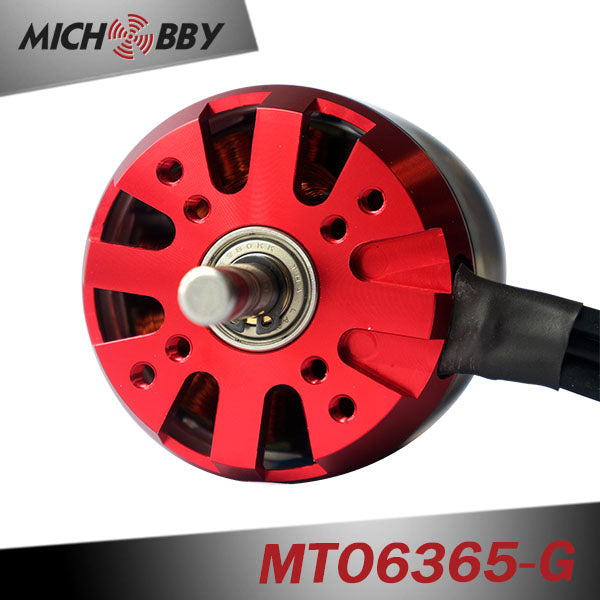

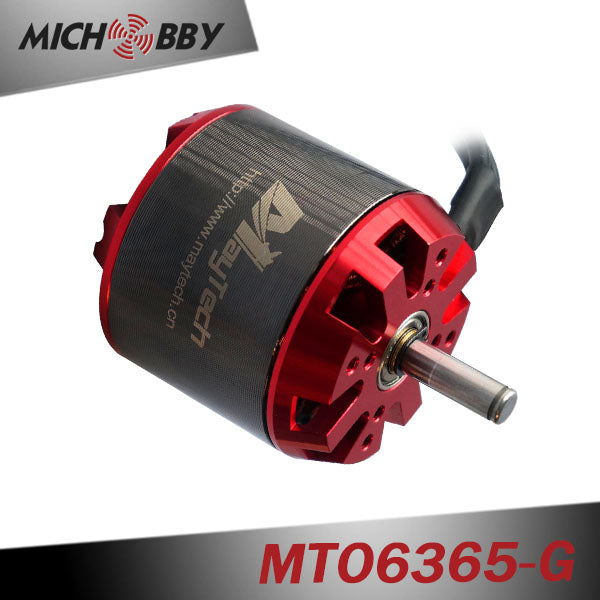

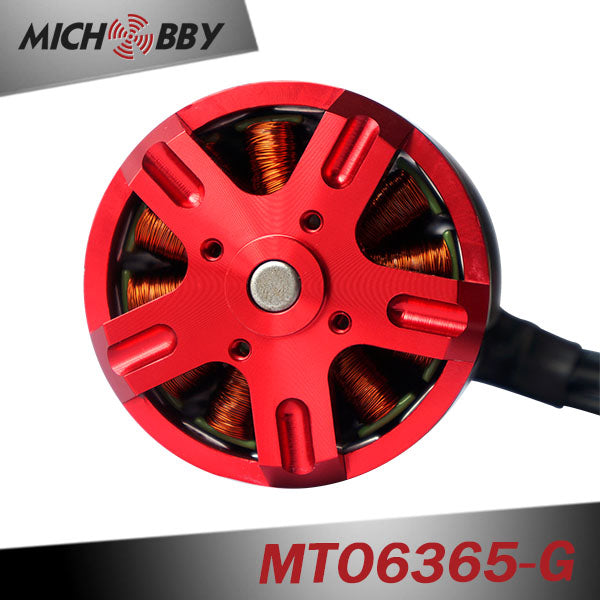

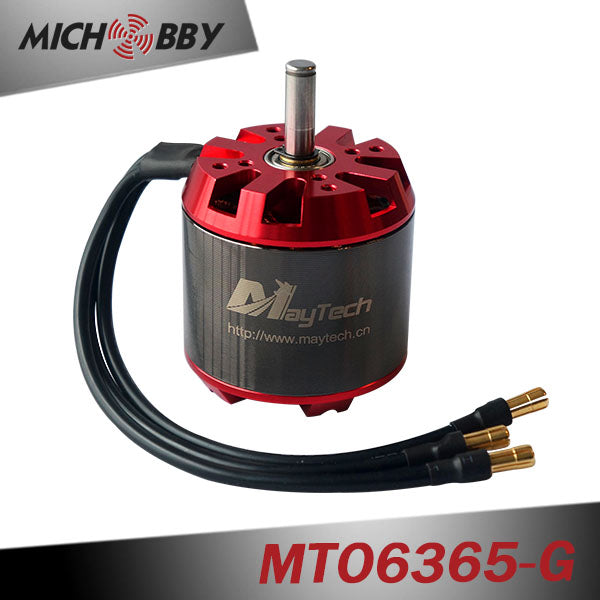

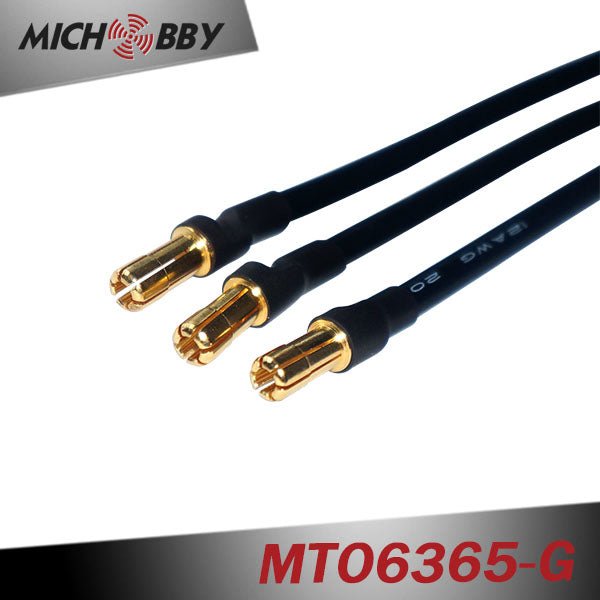

Maytech sensorless 6365 200KV brushless outrunner motor for electric skateboards/e-bike
Maytech sensorless 6365 200KV brushless outrunner motor for electric skateboards/e-bike
SKU:MTO6365-200-G
Prezzo di listino
$147.20
Prezzo di listino
Prezzo scontato
$147.20
Prezzo unitario
per
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro
Have Doubts? Contact US!!
Have Doubts? Contact US!!
Specifications of brushless outrunner motor MTO6365:
| Model NO | MTO6365-200-G |
| Motor KV | 200(RPM/V) |
| Shaft | 8mm |
| Idle Curren | 0.8A |
| Max. Current | 65A |
| Input Volt | 2-12Lipo cell |
| Max. Output Watt | 3520W |
| Max. Pull | 9700g |
| Net Weight | 668g |
| Motor Diameter | 63mm |
| Internal Resistance | 0.0402 |
| Features | sensorless |
| Application | For electric skateboard/ e-bike |
Features:
- The up and bottom caps are made of aluminium alloy.
- The motor case is made of steel.
- The static balance is confirm.
- NSK Japanese bearings
- 45h sintered ndfeb magnets
- Stator is stacked with silicon steel
- Use high temperature and oxygen-free copper wire
- Stainless steel shaft
- High-temperature micro ball-bearing
Application: RC Helicopter, RC Plane, aeromodelling, Model Aircraft, RC Model, Radio Controlled Planes Jet, Remote Control Helicopter, helicopter for gopro, Remote Control Airplane, rc plane rtf, FPV Plane, aeromodelling electric, rc helicopter spare parts, rc helicopter, radio control helicopter, UAV Helicopter, UAV, robots, robotics, ROV, electric skateboard, etc.
Drawing:
( Two types are shipped randomly. Difference is motor length and shaft. Second drawing motor is 2mm longer and shaft is with keyway）
OR:
