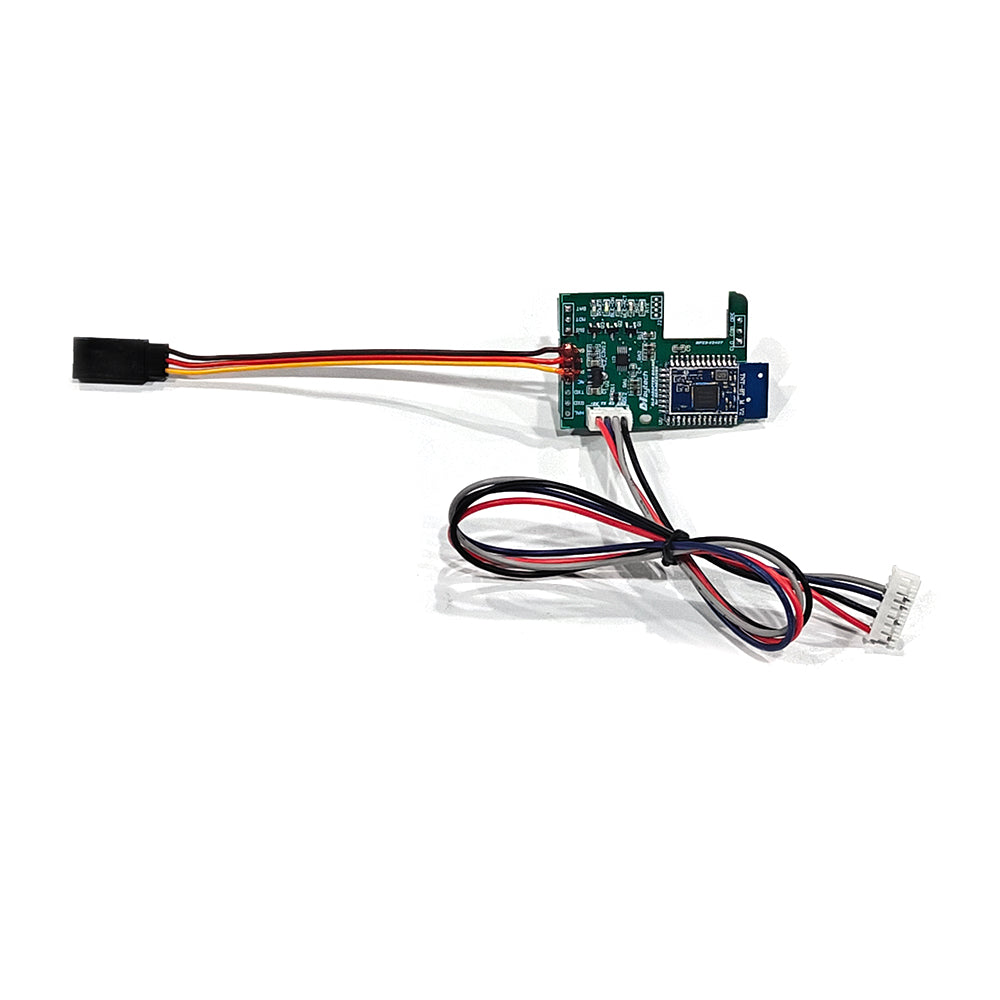

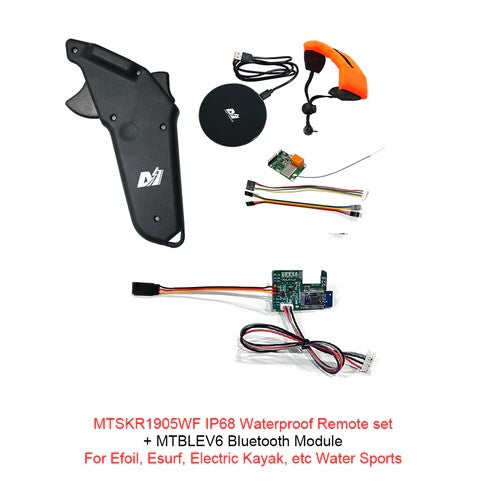

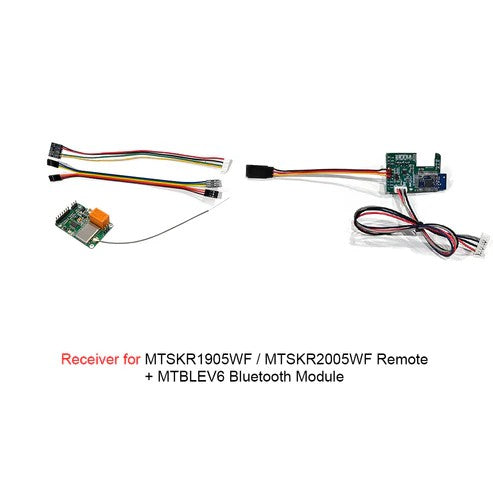

Maytech V6 Bluetooth Module MTBLEV6 for communication with 1905WF Receiver And VESC VESC6 VESC75 VESC4
The bluetooth module PCB outlook and size may vary for different production batch. Please refer to the actual product you receive.
Application: Electric skateboard, electric longboard, motorized mountainboard, Efoil, electric surfboard, etc.
Diaplay: Voltage, current, temperature , etc.
Specifications:
Model numbe: MTBLEV6

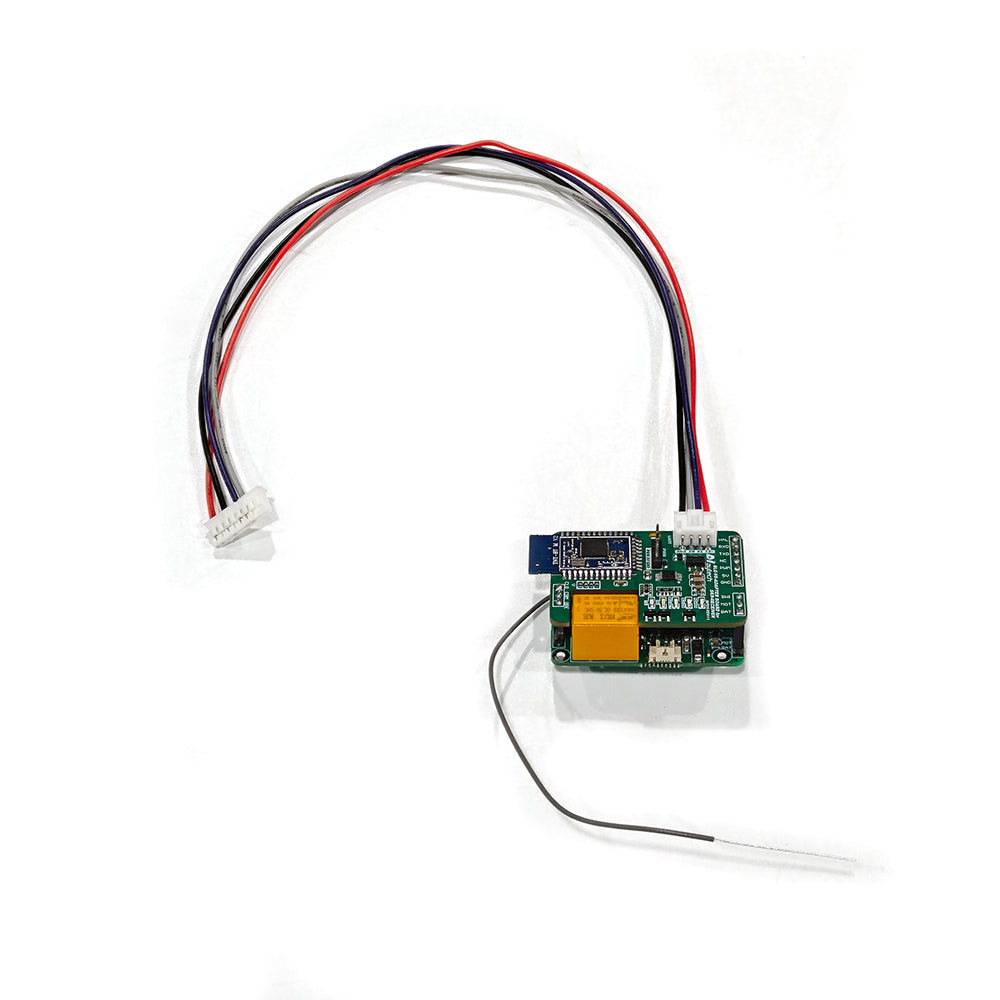

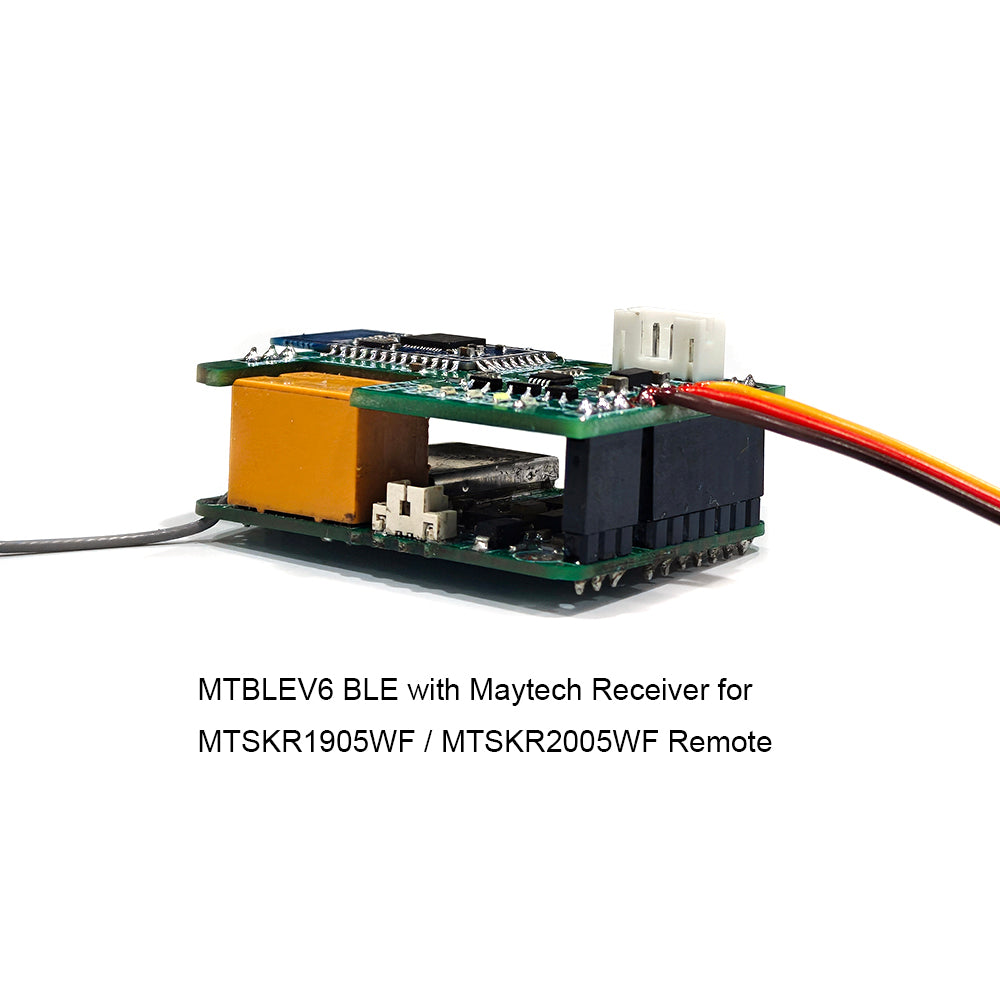

Automatically switch the communication between receiver and the Bluetooth module. When programming VESC parameters, there is no need to unplug the receiver.

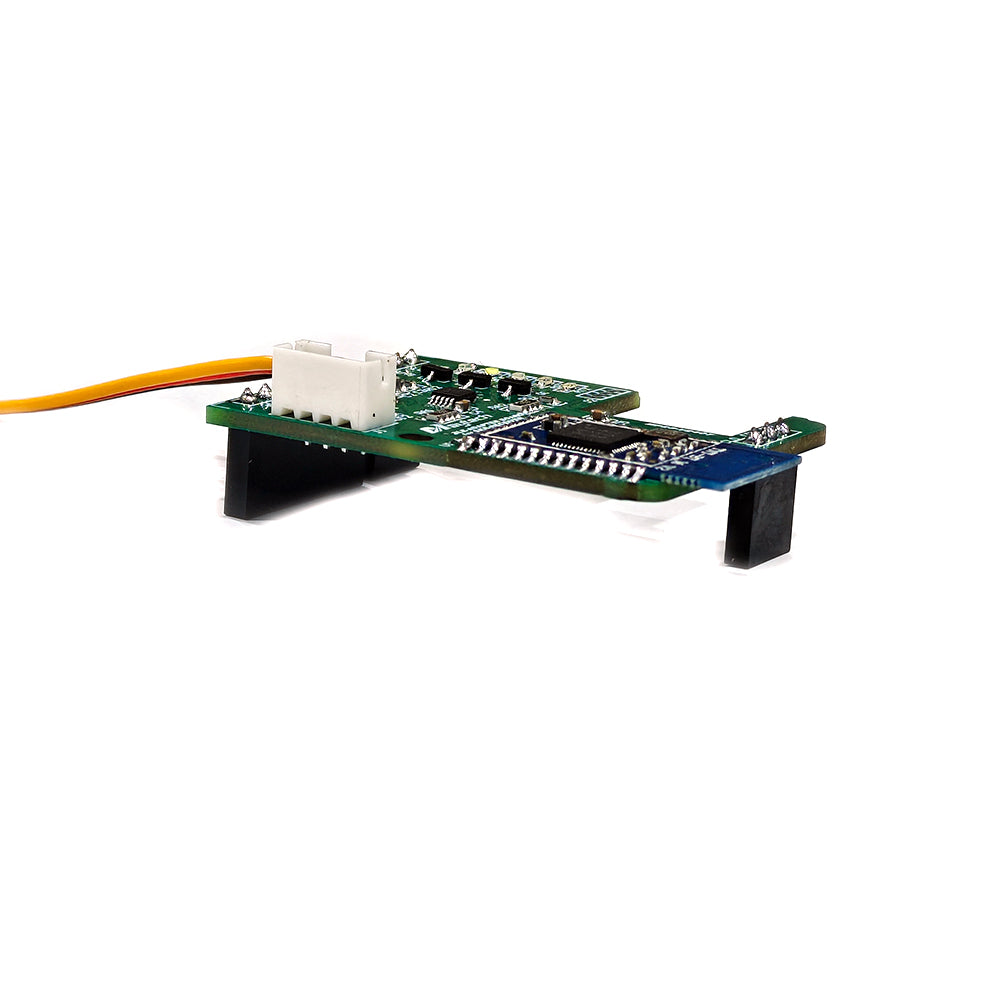

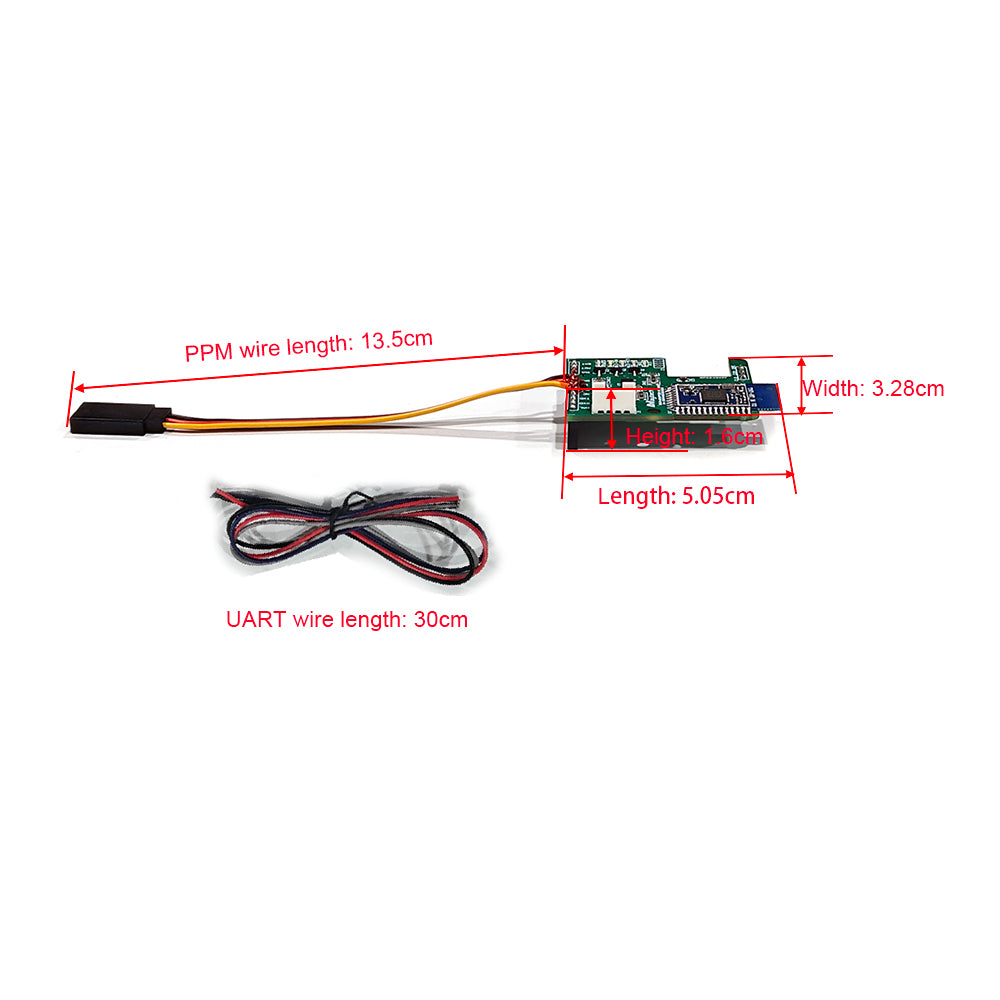

PCB 50.5x32.8mm (size varies for different production batch)
Input volt.: 3.3-24V
Distance: 15meters
Frequency: 2.4Ghz
Compatible: V4&V6&V75
Compatible:VESCTOOL App
Weight: 8.0g

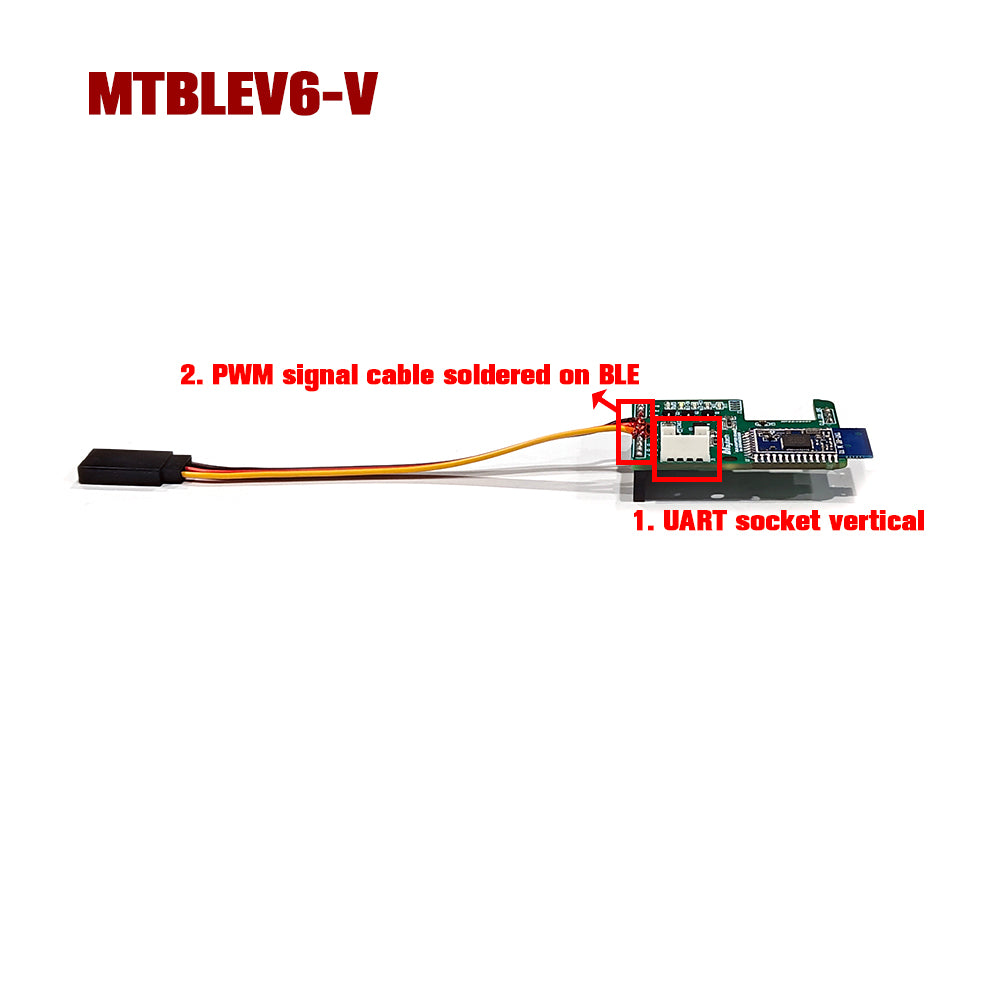

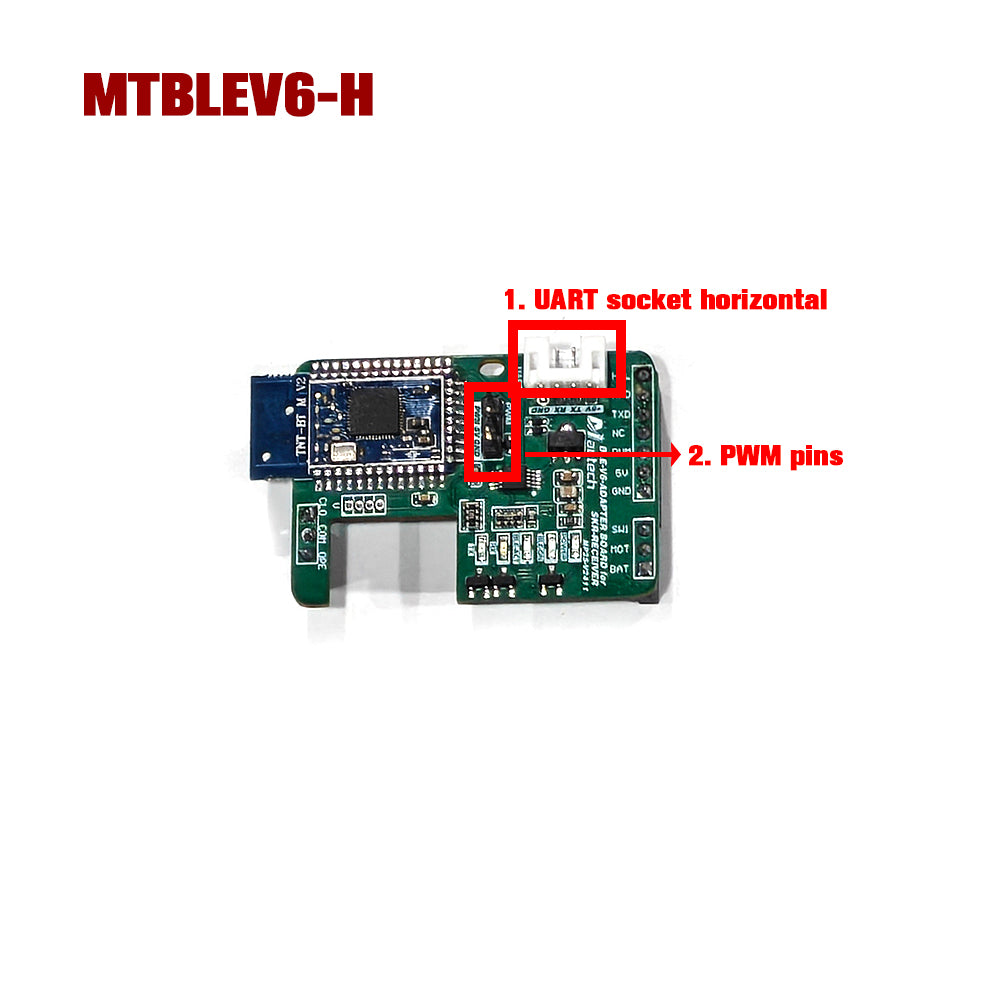

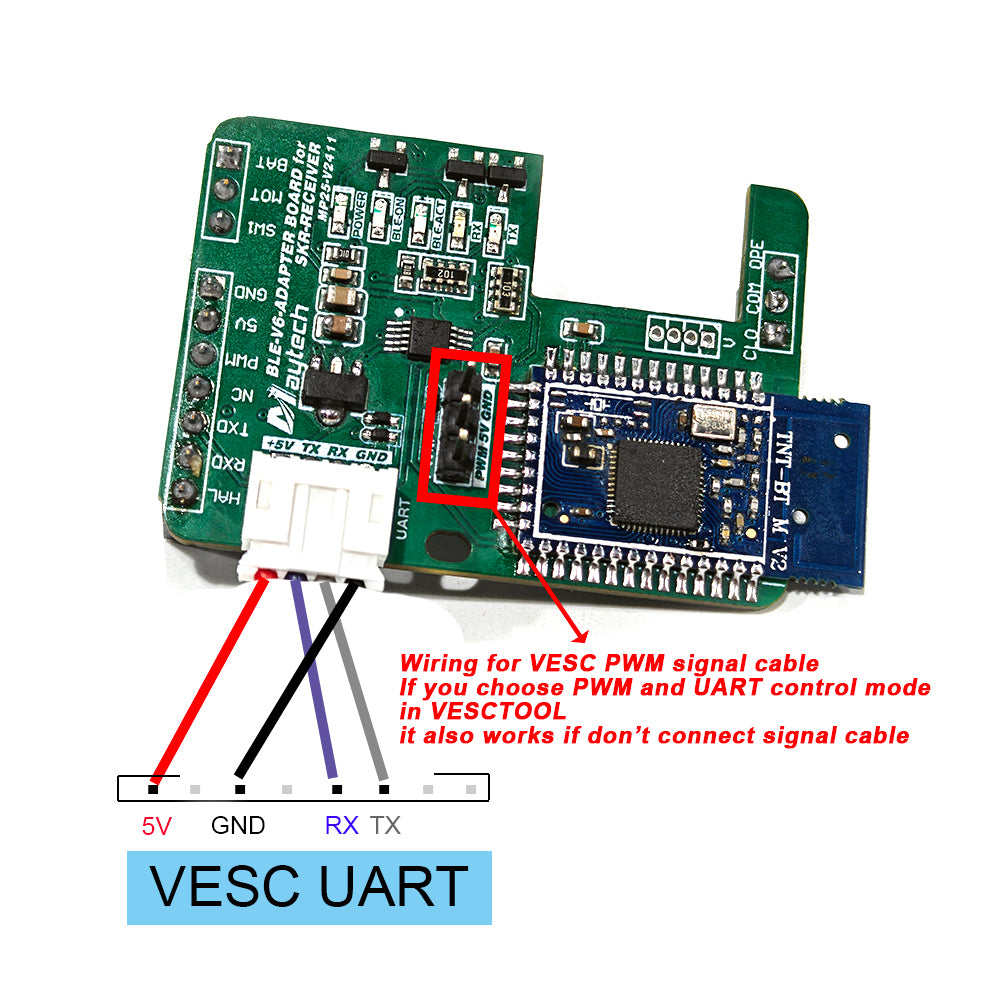

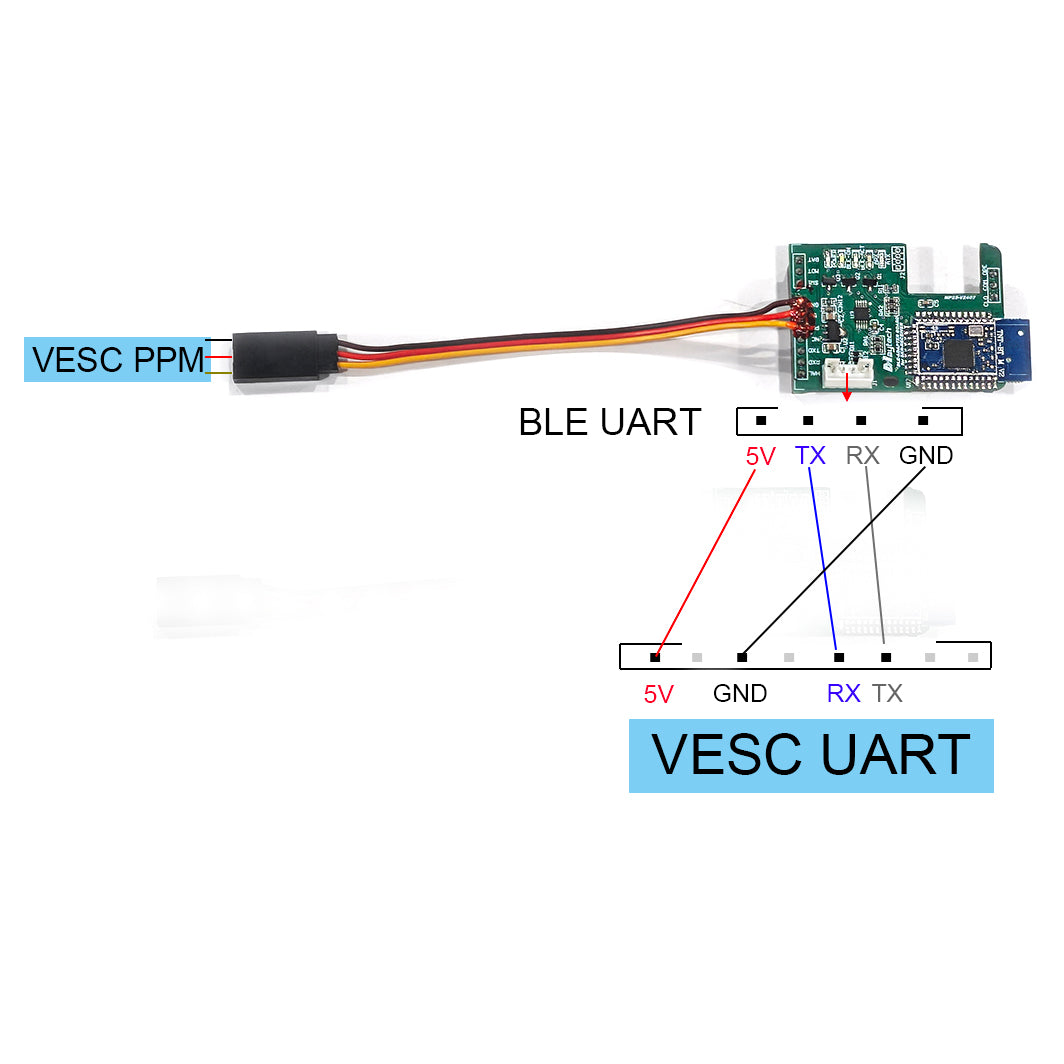

With 7Pin and 8pin 2.0mm JST Connector Sockets
Please noted:
Actual product you receive might be a little different from the picture, please subject to the actual product you receive.
Discription:
1. The bluetooth is developed for communication between Maytech SuperESC and VESC_TOOL via BLE, to display parameters on mobile phone, so you can monitor real time parameters on app easily.
2. Motor current, duty cycle, ERPM, motor power, motor temperature, battery voltage, battery current, MOS temperature, charging current, charging power, etc., are able to display through the bluetooth module.
3. You can adjust parameters for motor settings, Including General, BLDC, FOC, PID controllers, etc informations.
4. It supports V4 V6 V75 Based SuperESCs hardware, please choose the correct hardware version of your VESC, we will match compatible cable for you.
