In Stock! Esk8 Comb 8085 160KV Brushless Motor + 200A VESC6.0 based Electric Speed Controller Kit for Eleectric Skateboard/Longboard
In Stock! Esk8 Comb 8085 160KV Brushless Motor + 200A VESC6.0 based Electric Speed Controller Kit for Eleectric Skateboard/Longboard
SKU:1x MTO8085-160-HA-C+ 1x MTSVESC6.0
Prezzo di listino
$389.80
Prezzo di listino
$487.30
Prezzo scontato
$389.80
Prezzo unitario
/
per
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro
Have Doubts? Contact US!!
Have Doubts? Contact US!!
74Esk8 Comb 8085 160KV Brushless Motor + 200A VESC6.0 based Electric Speed Controller Kit for Eleectric Skateboard/Longboard

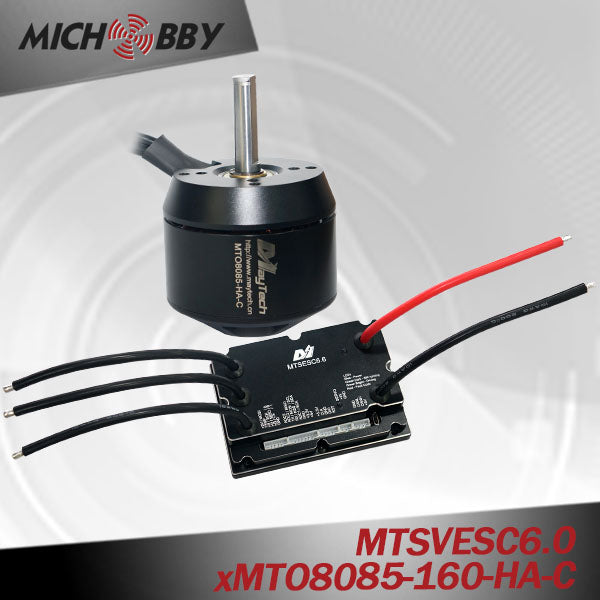

The Comb Includes:

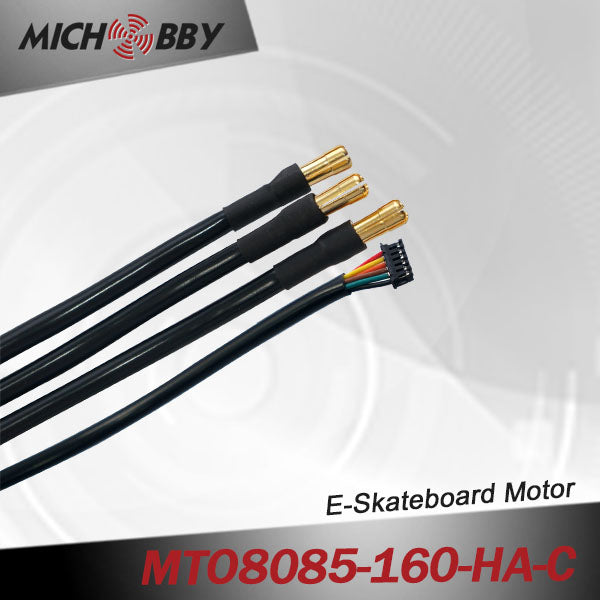

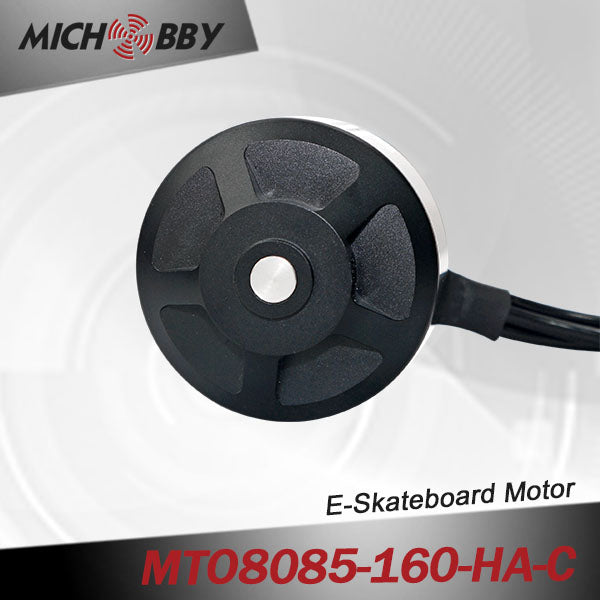

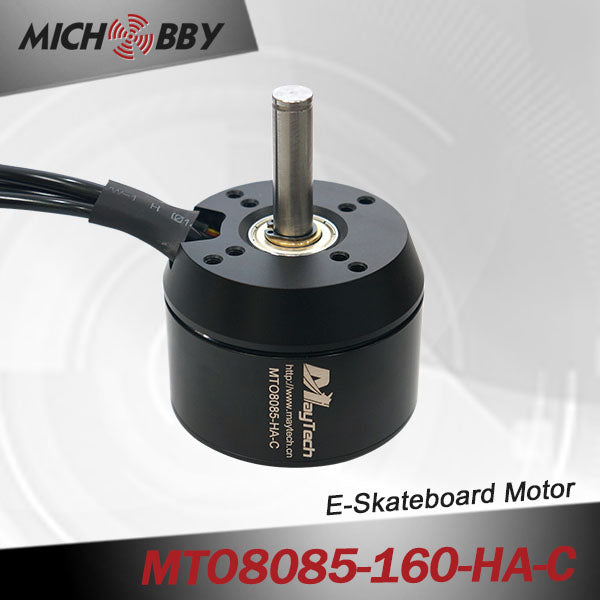

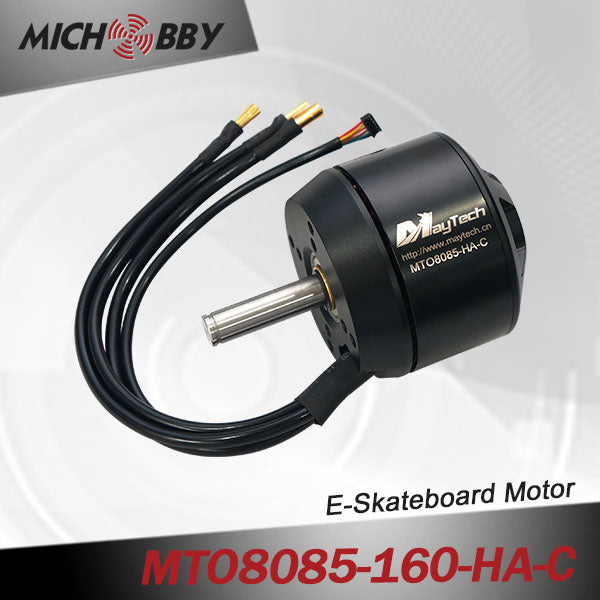

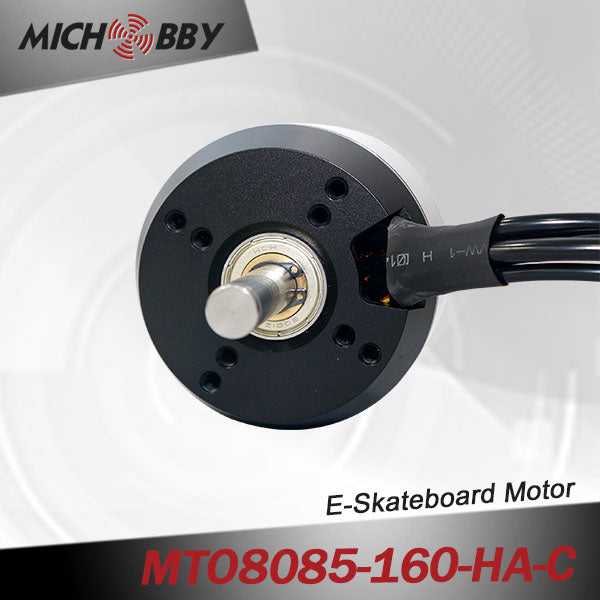

1x MTO8085-160-HA-C 12mm Shaft Brushless Outrunner Sensored Motor Closed Cover Splash Waterproof + 1x MTSVESC6.0 based Speed Controller 200A
1. Motor specificationModel NO | MTO8085-160-HA-C |
Motor KV | 160(RPM/V) |

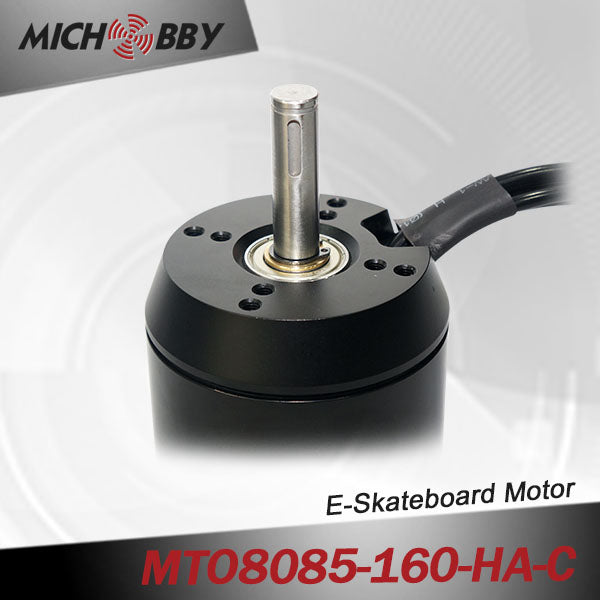

Shaft | 12mm shaft,Output shaft length 44mm |
Idle Current | 1.5A |
Max. Current | 90A |
Input Volt | 6-14S Lipo cell |
Max. Output Watt | 5330W |
Max. Pull | 15500g |
Net Weight | 1115g |
Motor Diameter | 80mm |
Internal Resistance | 0.028 |
Features | sensored |
Application | For electric mountainboard/ fighting robots |
Features | Waterproof and dustproof |

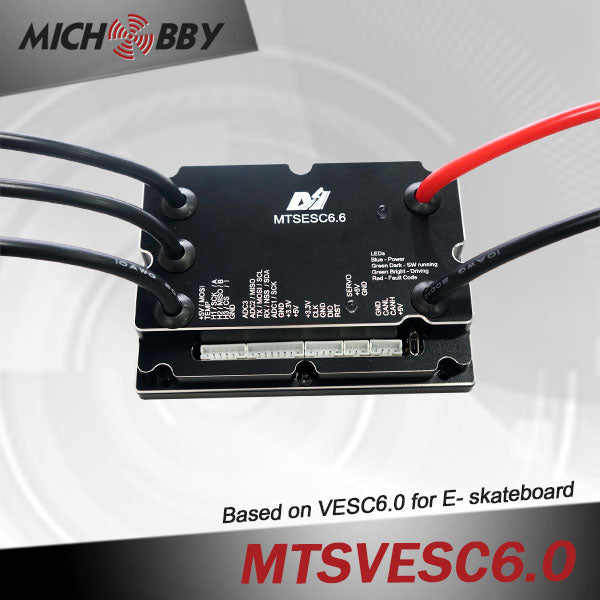

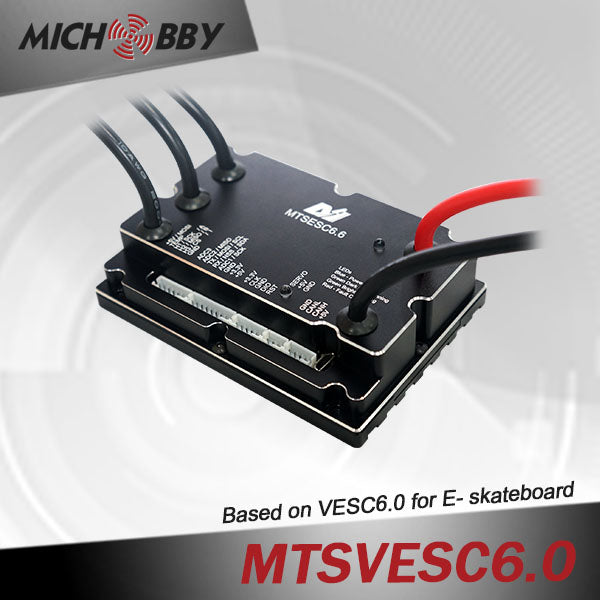

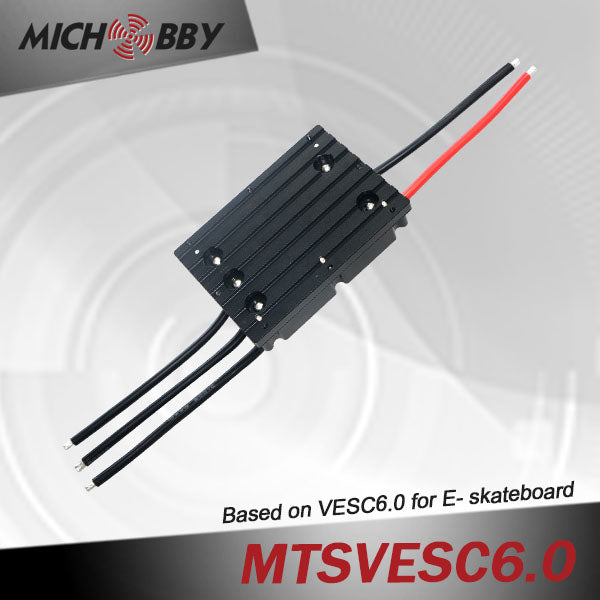

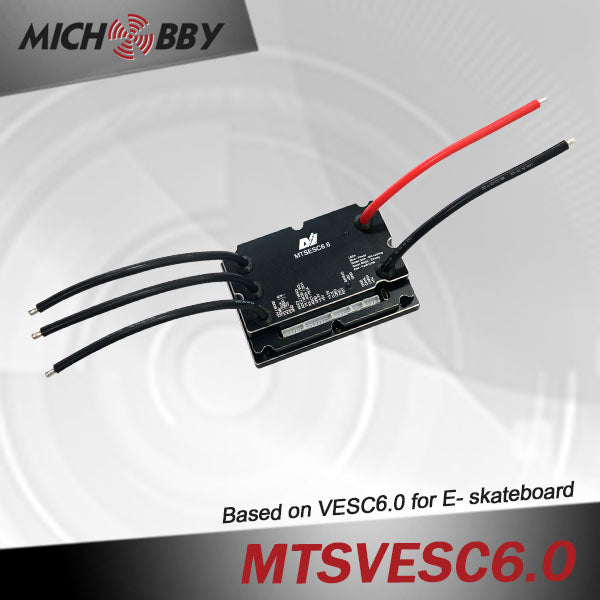

2. VESC specification
Application | electric skateboard longboard/fighting robots combat robots/elctric surfboard |
BEC | 5V/1.5A |
Lipo | 3-12Cells |
Voltage | 8V-60V |
Hardware version | based on VESC6.0 |
Firmware version | updatable |
Cont. Current | 200A |
Burst Current | 280A |
Capacitors | With high quality aluminum case, better heat dissipation |

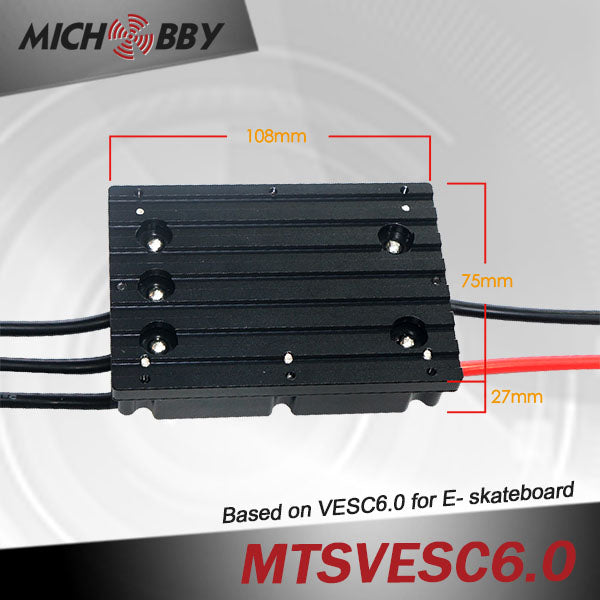

Case Size | 108mm(L)x75mm(W)x27mm(H) |

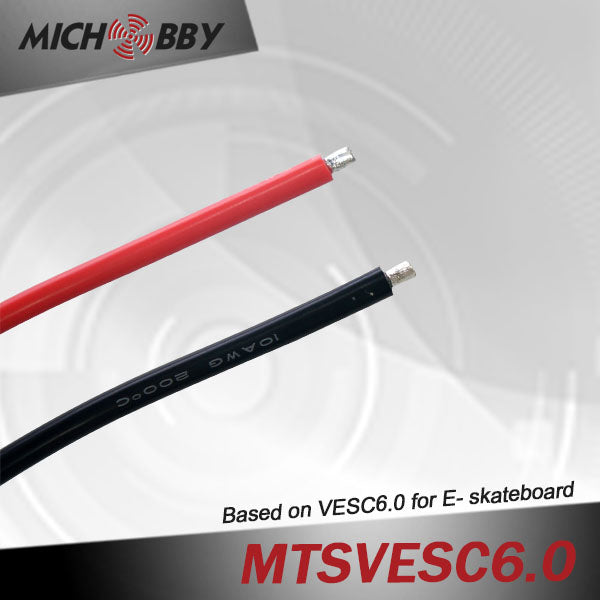

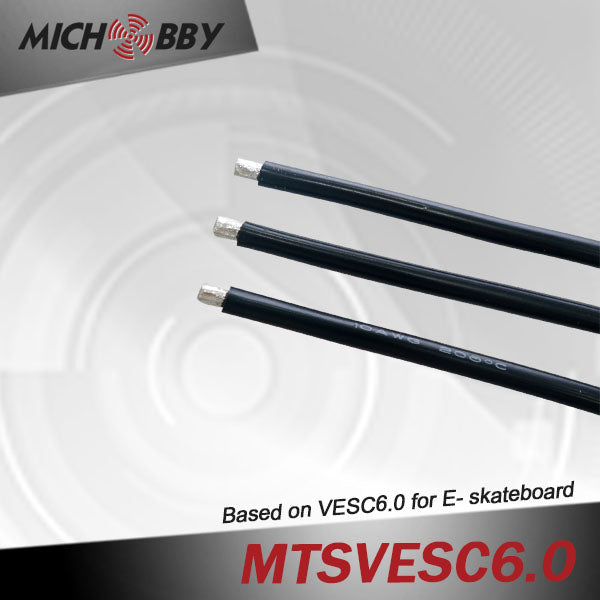

Power wire | Silicon wire |
Features:
With high quality aluminum case, better heat dissipationDust-proof and splash-proof
Soft-switching to reduce the losses in power electronic switches.
Compatible with sensor or sensorless motor
