In Stock! MTO5065-220/70-HA 5065 220KV / 70KV Brushless Outrunner Sensored Motor
In Stock! MTO5065-220/70-HA 5065 220KV / 70KV Brushless Outrunner Sensored Motor
SKU:MTO5065-220-HA
Have Doubts? Contact US!!
Have Doubts? Contact US!!

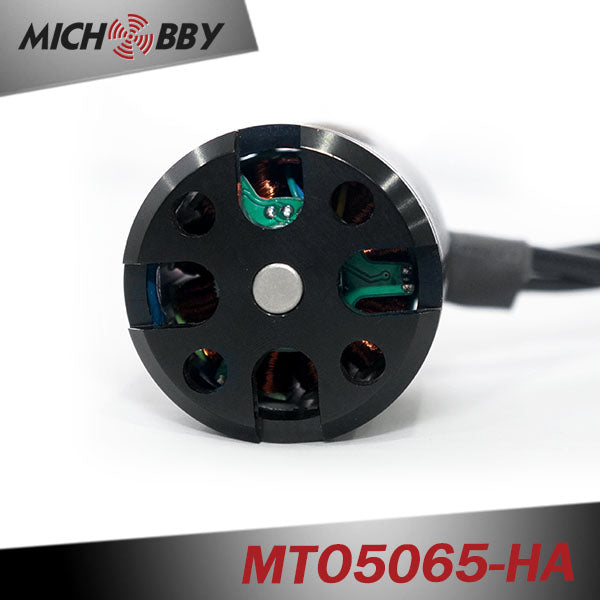

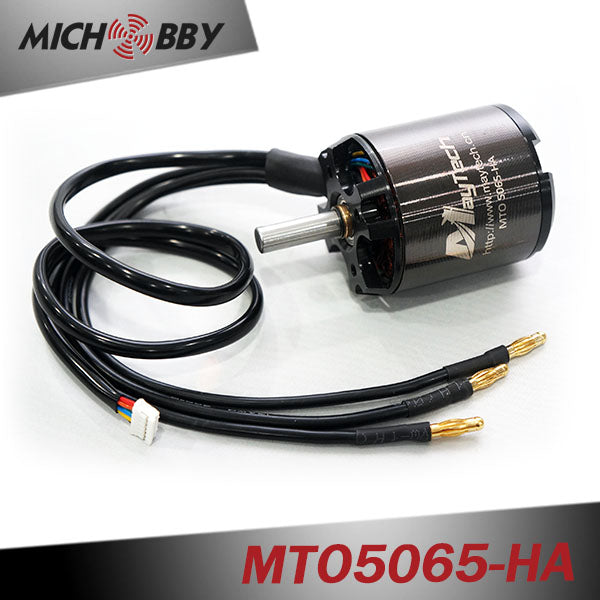

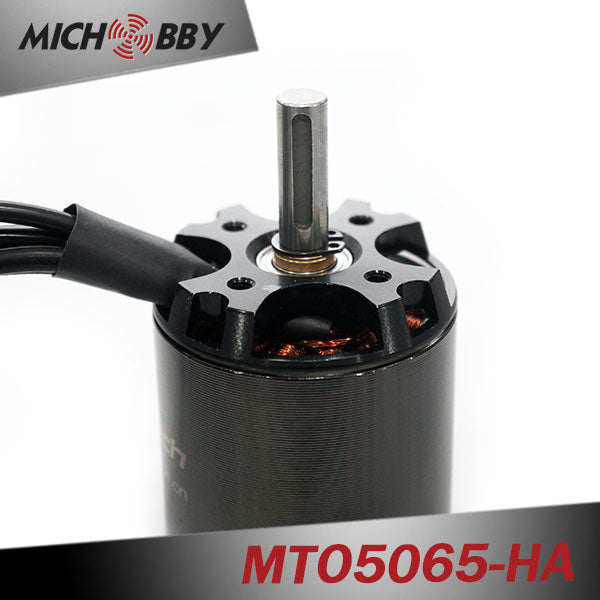

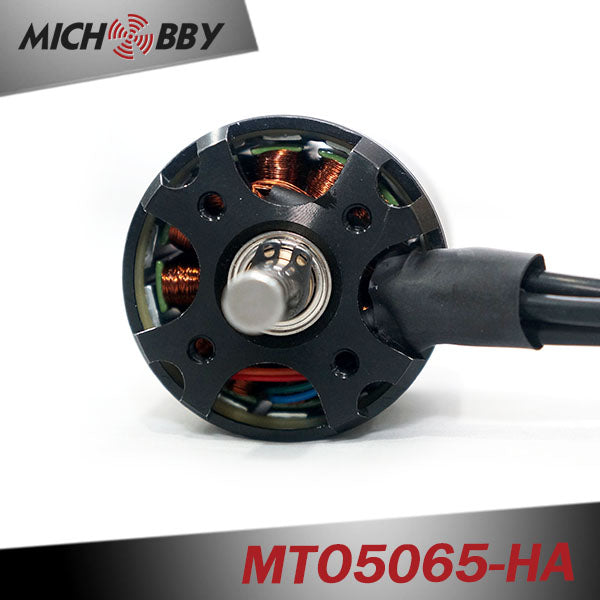

5065 220KV / 70KV Brushless Outrunner Sensored Motor for Electric Skateboard Longboard Robotics
Model NO | MTO5065-220-HA/MTO5065-70-HA |
Motor KV | 220(RPM/V)/70(RPM) |
Shaft | 8mm |
Idle Curren | 1.2A |
Max. Current | 50A |
Input Volt | 2-10Lipo cell |
Max. Output Watt | 1815W |
Max. Pull | 6700g |
Net Weight | 435g |
Rated Current | 42.5A |
Internal Resistance | 0.0361 |

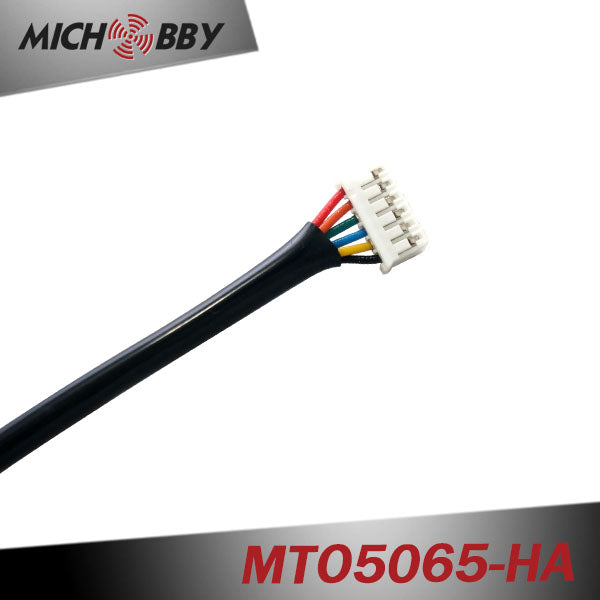

Hall Sensor |
With hall sensor |
Application | For electric skateboard/e-bike/marine robots |
Application: Electric skateboard, Esk8, longboard, mountainboard, offroad skateboard, city skateboard, street skateboard, motorized skateboard, electric longboard, electric surfboard, Esurf, Efoil, electric foil, foilsurf, foilsurfing, surffoil, surfjet, jetski, jetboard, electric hydrofoil, etc.,,
ROV/ROVEEE/remote
operated vehicle, underwater robot, Underwater Robotics/underwater remotely operated vehicles, subsea robots,cablecam, broadcast, IBC2019, Ultra drones,security monitoring robots,robots for security and safety monitoring in harsh terrain, agile robots, autonomous agile robots, security robots, autonomously monitor security, combat robots, fighting robots, etc.,
Features:
- The up and bottom caps are made of aluminium alloy.
- The motor case is made of steel.
- The static balance is confirm.
- NSK Japanese bearings
- 45h sintered ndfeb magnets
- Stator is stacked with silicon steel
- Use high temperature and oxygen-free copper wire
- Stainless steel shaft
- High-temperature micro ball-bearing
Drawing of Maytech 5065 electric longboard motor with hall sensor for marine robots:
