50pcs 3536 750KV/910KV/1100KV/1250KV/1400KV Brushless Outrunner Sensorless Motor Open Cover for Rc Airplane/Helicopter/Robotics
50pcs 3536 750KV/910KV/1100KV/1250KV/1400KV Brushless Outrunner Sensorless Motor Open Cover for Rc Airplane/Helicopter/Robotics

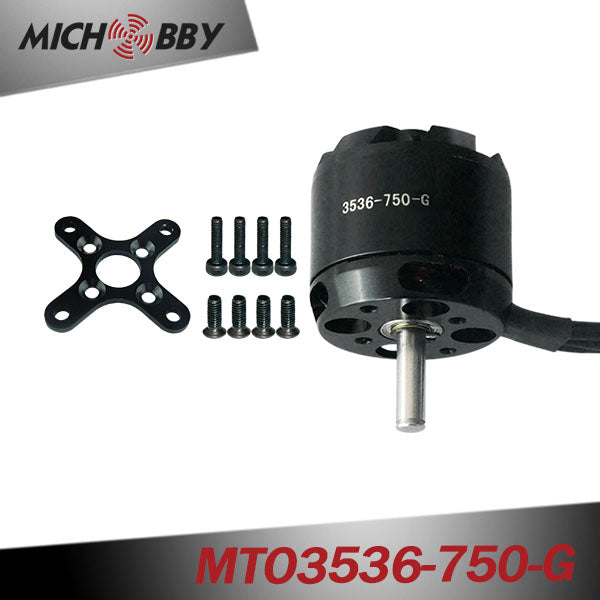

SKU:MTO3536-G with accessories
Prezzo di listino
$1,093.40
Prezzo di listino
$1,366.76
Prezzo scontato
$1,093.40
Prezzo unitario
per
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro
Have Doubts? Contact US!!
Have Doubts? Contact US!!
50pcs 3536 750KV/910KV/1100KV/1250KV/1400KV Brushless Outrunner Sensorless Motor Open Cover for Rc Airplane/Helicopter/Robotics
| Model No | KV | Shaft (mm) | Max. Current | Input Volt. | Net Weight (g) |
Stator Size | Motor Size | Thurst (g) | WATT. |
| MTO3536-750-G | 750 | Ф5.0 | 24.5A | 2-4S Li-Po | 100 |
Ф28.0X 14.0 |
Ф35.0x 36.5 |
1000 | 350W |
| MTO3536-910-G | 910 | Ф5.0 | 25.5A | 2-4S Li-Po | 100 |
Ф28.0X 14.0 |
Ф35.0x 36.5 |
1050 | 370W |
| MTO3536-1100-G | 1100 | Ф5.0 | 29.8A | 2-4S Li-Po | 102 |
Ф28.0X 14.0 |
Ф35.0x 36.5 |
1160 | 432W |
| MTO3536-1250-G | 1250 | Ф5.0 | 34.2A | 2-4S Li-Po | 99 |
Ф28.0X 14.0 |
Ф35.0x 36.5 |
1270 | 496W |
| MTO3536-1400-G | 1400 | Ф5.0 | 45.2A | 2-4S Li-Po | 102 |
Ф28.0X 14.0 |
Ф35.0x 36.5 |
1380 | 655W |
MOQ is 50pcs/order for this motor. Motor logo can be customized. You can order different KVs (For example, order of 25pcs 1100KV + 25pcs 1250KV is ok).
For more details or customized motors, please contact support@michobby.com .
Test Datasheet:
Features:
- The up and bottom caps are made of aluminium alloy.
- The motor case is made of steel.
- The static balance is confirm.
- NSK Japanese bearings
- 45h sintered ndfeb magnets
- Stator is stacked with silicon steel
- Use high temperature and oxygen-free copper wire
- Stainless steel shaft
- High-temperature micro ball-bearing
Drawing:
