(Plug and Play) Maytech Fully Waterproof Efoil Kits with MTI65162 Motor + 300A ESC + 1905WF Remote + Progcard
(Plug and Play) Maytech Fully Waterproof Efoil Kits with MTI65162 Motor + 300A ESC + 1905WF Remote + Progcard
SKU:MTI65162-120-SF+MTSF300A-WP+MTSKR1905WF+150mm Propeller
Have Doubts? Contact US!!
Have Doubts? Contact US!!
Maytech Fully Waterproof Efoil Kits with MTI65162 Motor + 300A ESC + 1905WF Remote + Progcard
--------------------------------------------------------------------------------------
Frequently Asked Questions:
1. What KV do you recommend for efoil direct drive?
Recommend 120KV.
2. Is the controller V2 version?
Yes, it’s the latest V2 version with many updated functions. For more details, pls refer to: FAQ (frequently asked questions) about Maytech V2 remote contoller MTSKR1905WF
3. Will the system work "out of the box" once connected up properly?will the controller display board battery voltage and controller battery voltage ?
Yes, if select the ESC (Internal Receiver) with built-in receiver and UBEC. And battery voltage detection is connected inside.
4. Will I have to update firmware and set timing etc ? I have read horror stories of burn motors that have been set up wrongly.
ESC will be set for our motor and remote before shipping. When you receive it, you just need to pair remote to the receiver.
5. What battery do you recommend please for this kit for efoil?
Recommend 12s12p or 14s12p 18650 battery pack.
6. Do I have to use a water pump if the ESC is air-cooled?
If use the ESC directly in water for cooling, then it doesn’t need water pump; If use it in air, then it need water pump for cooling. Here is waterpump link: 12V 30W water pump and DC-DC module for electric surfboard efoil electric boat ESCs/Motors
--------------------------------------------------------------------------------------
Self Test Video: 65162 100KV Motor + 300A ESC + 1905WF + Propeller

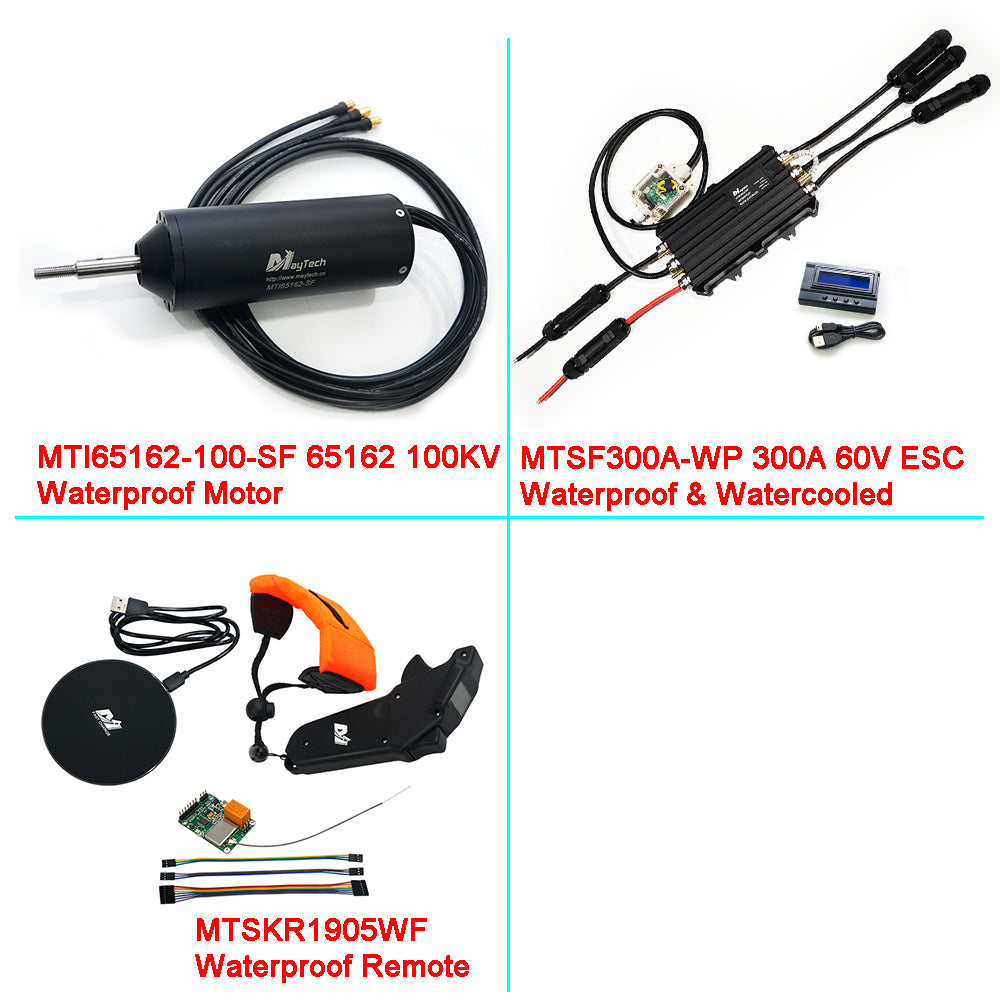

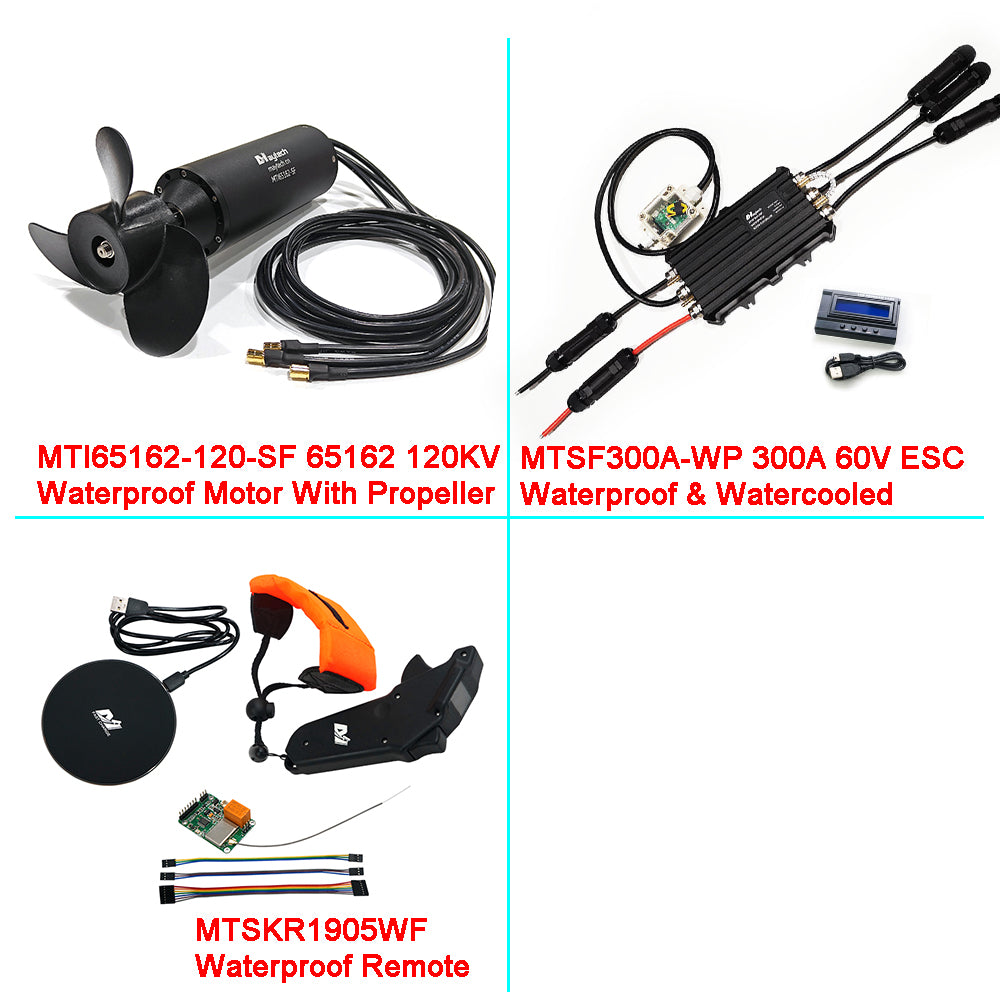

The kit includes:
1x MTI65162 motor + 300A ESC + MTSKR1905WF Remote + Progcard with or whitout propeller

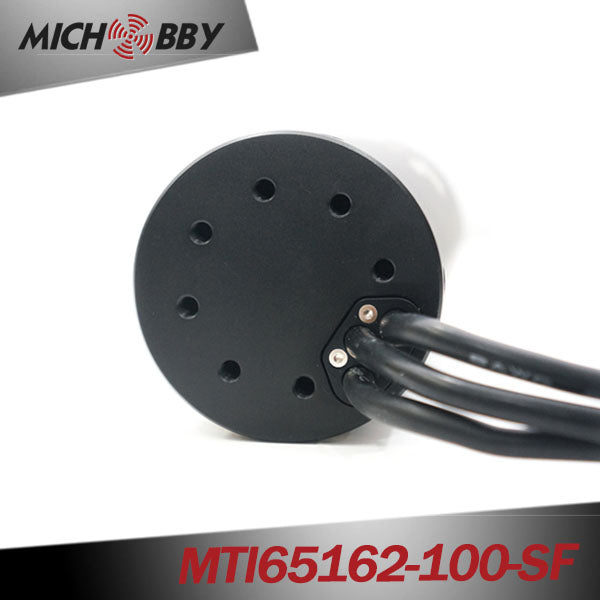

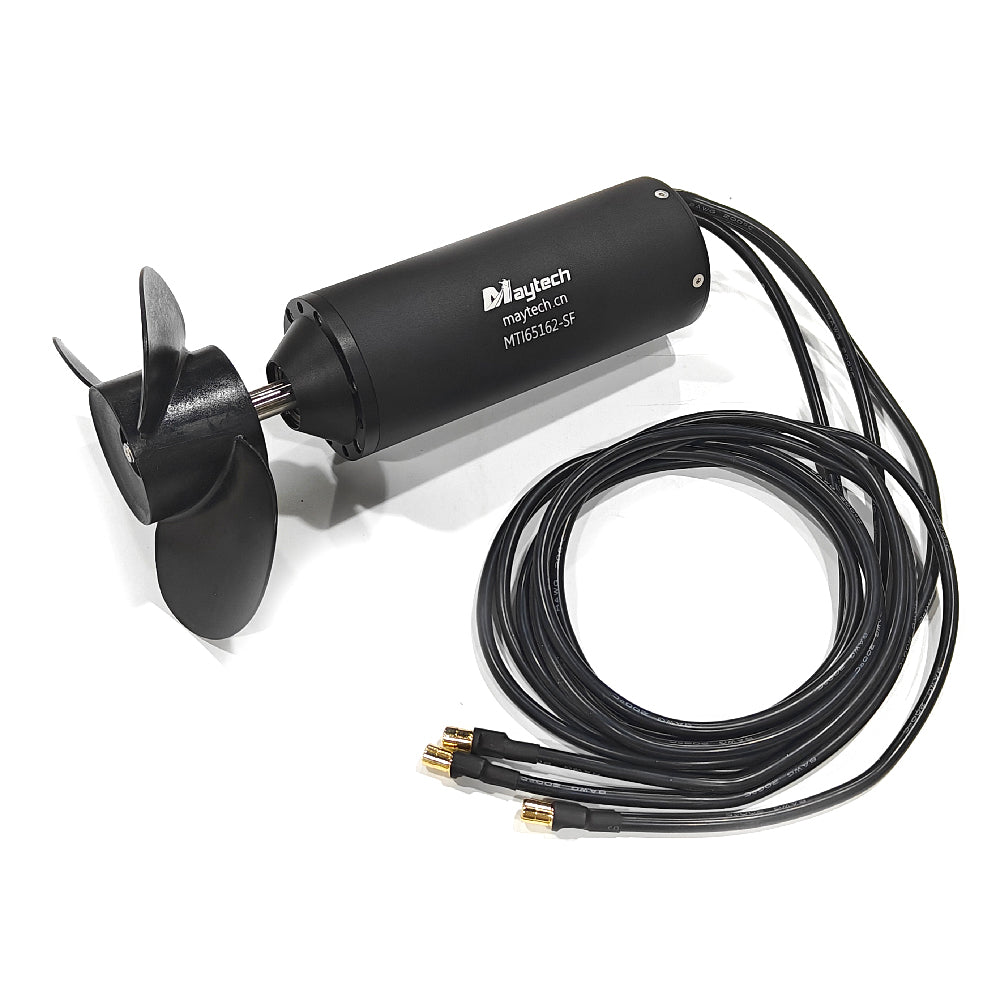

Item 1: 1PCS Maytech Fully waterproof motor 65162 for efoil electric surfboard SUP with Free propeller
|
|||
Model number
|
MTI65162-100/120/195-SF
|
Avaiblable KV
|
100KV / 120KV / 195KV
|
Shaft
|
12mm Customized for the propeller
|
Size
|
Φ65x 161.5mm
|
Motor type
|
Inrunner motor without hall sensor
|
Max Lipo Cell
|
6-20S
|
Motor Weight
|
2.5kg
|
Max Current
|
310A
|
Max Power
|
9100W
|
Rated power
|
8100W
|
Max torque
|
9 N.m
|
Motor cable/connectors
|
1.2meter cable with 8mm connectors
|
Propeller
|

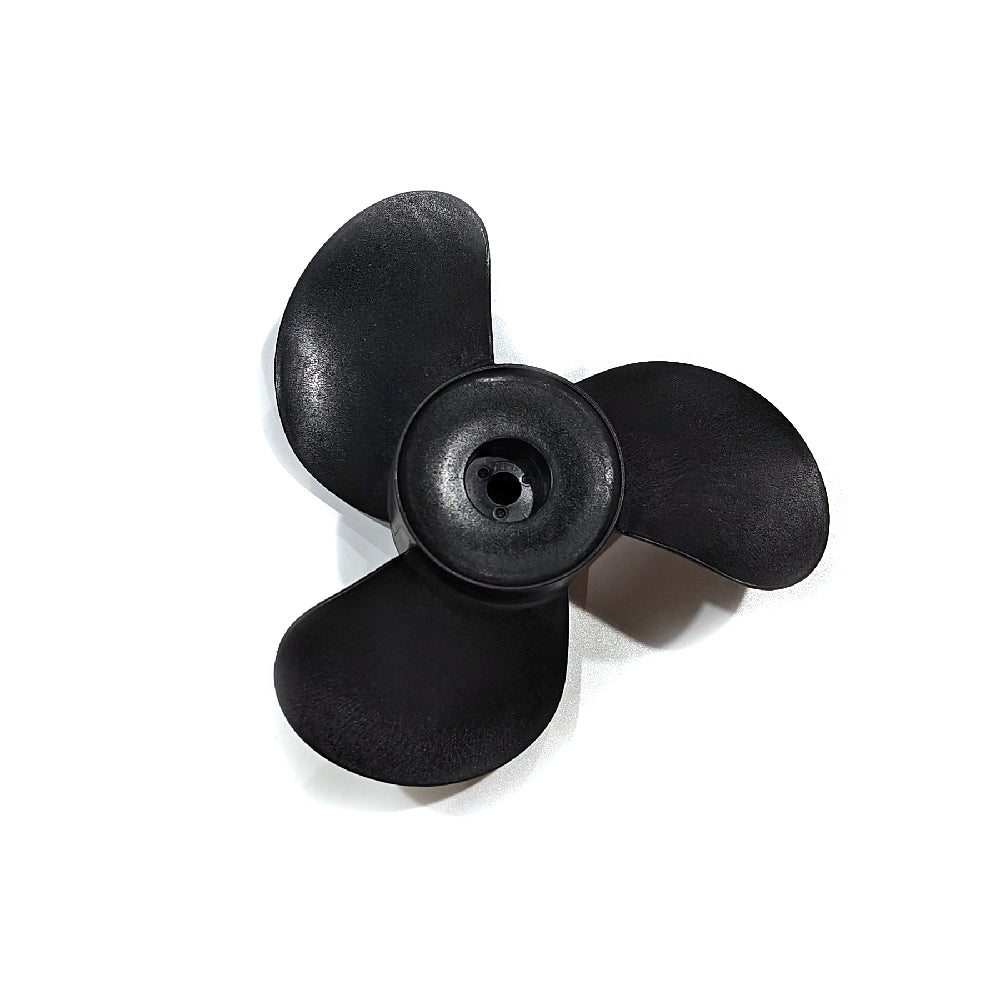

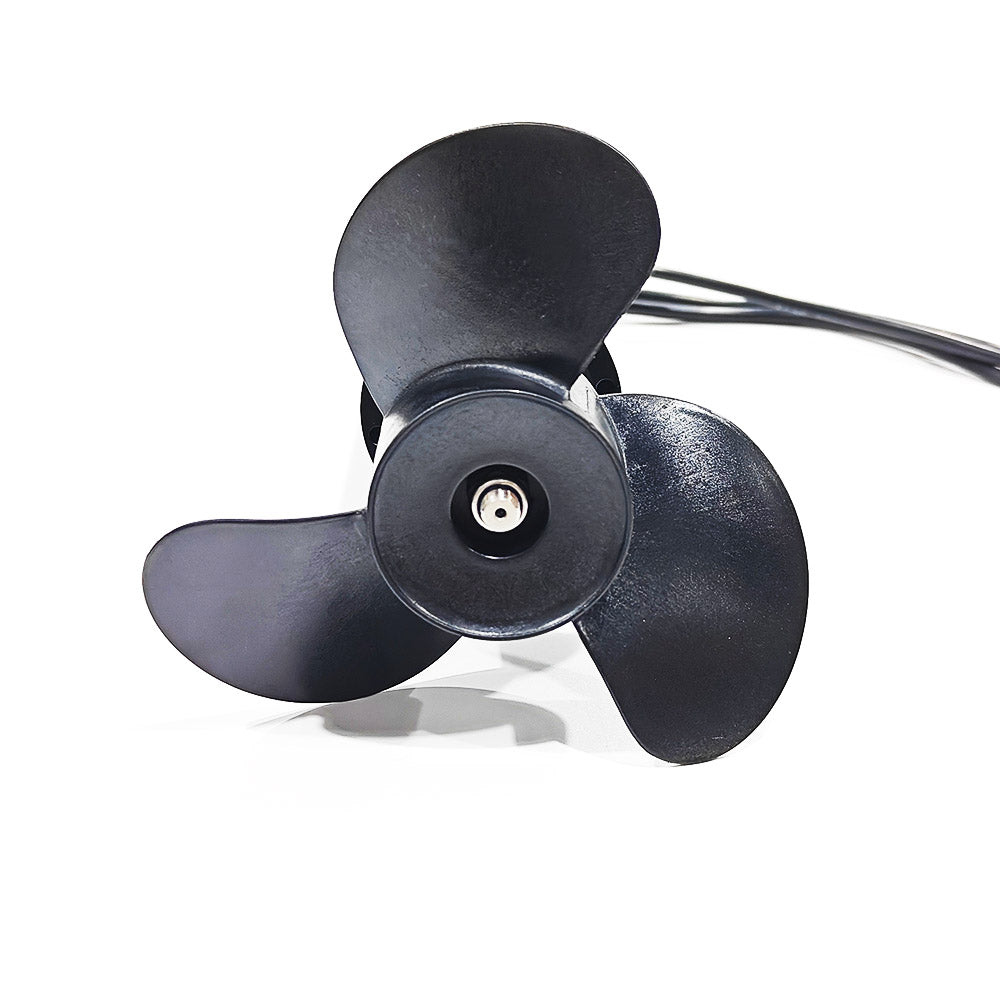

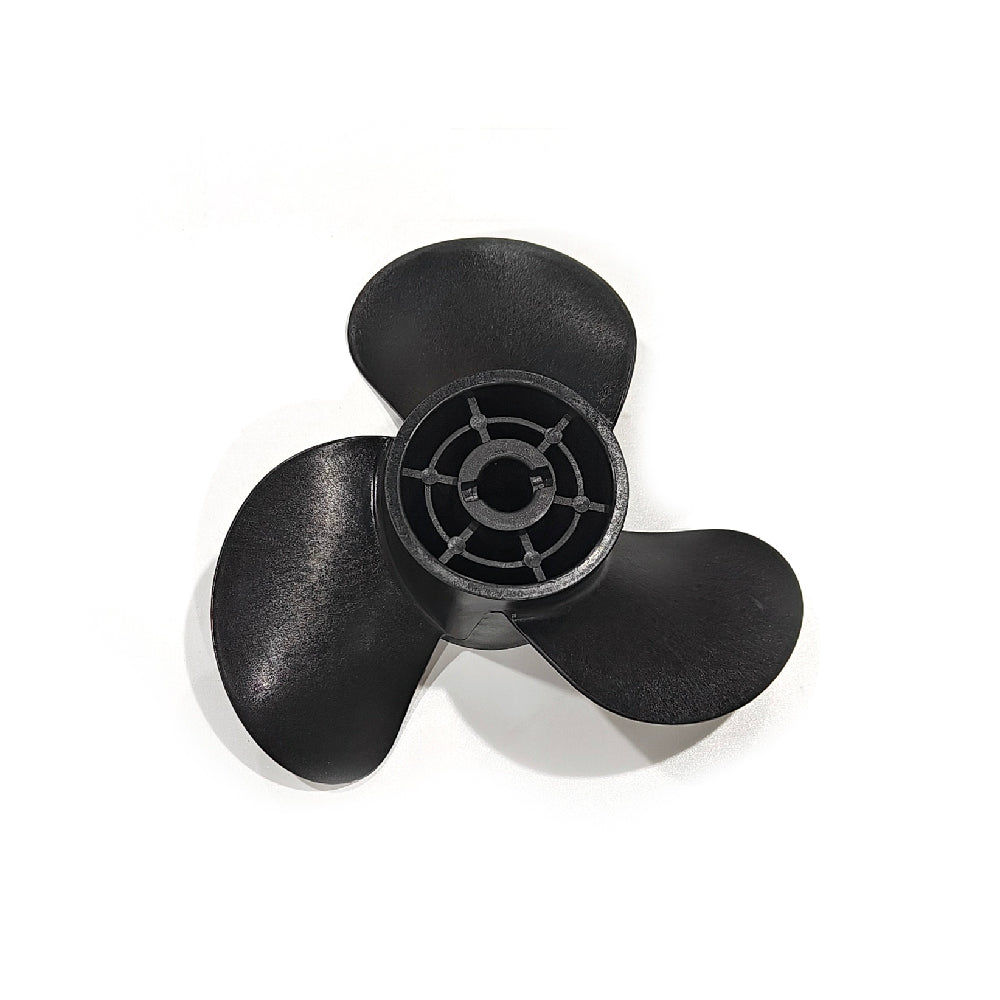

150mm plastic Propeller (suitable for 100KV and 120KV motors)
|

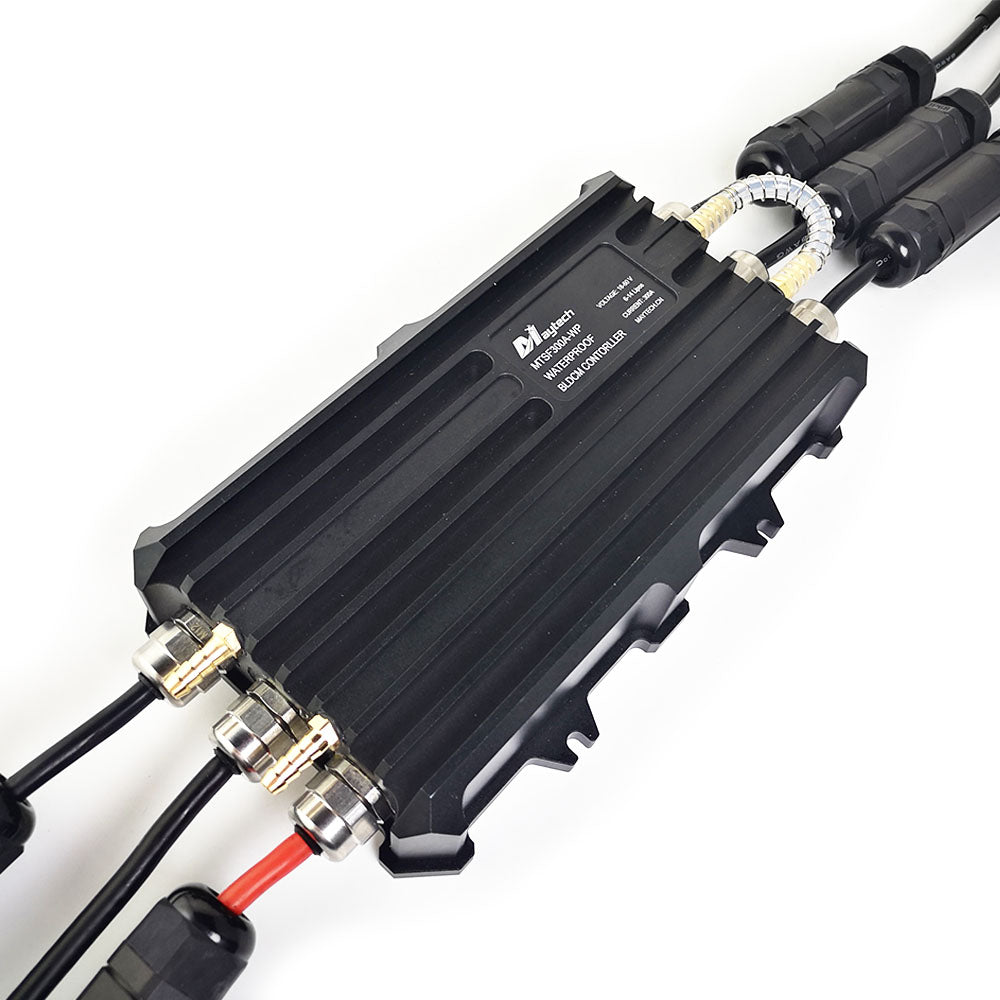

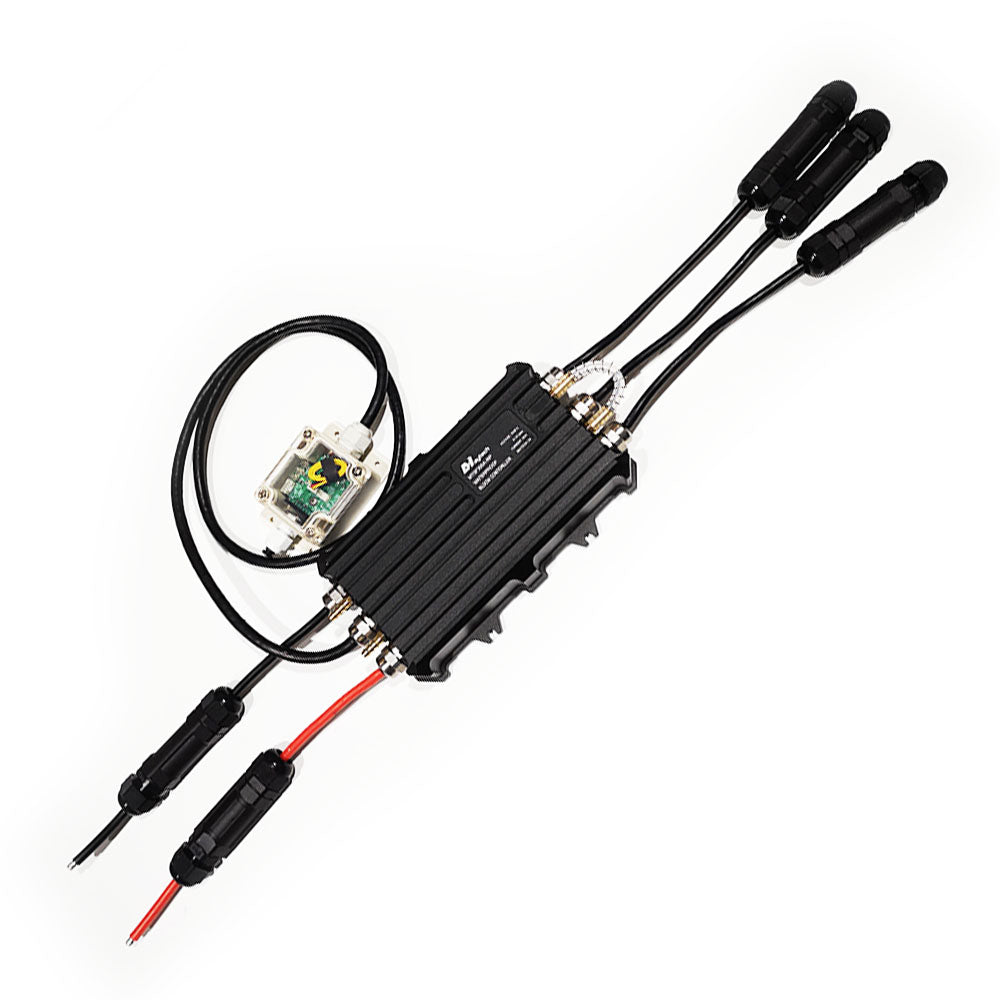

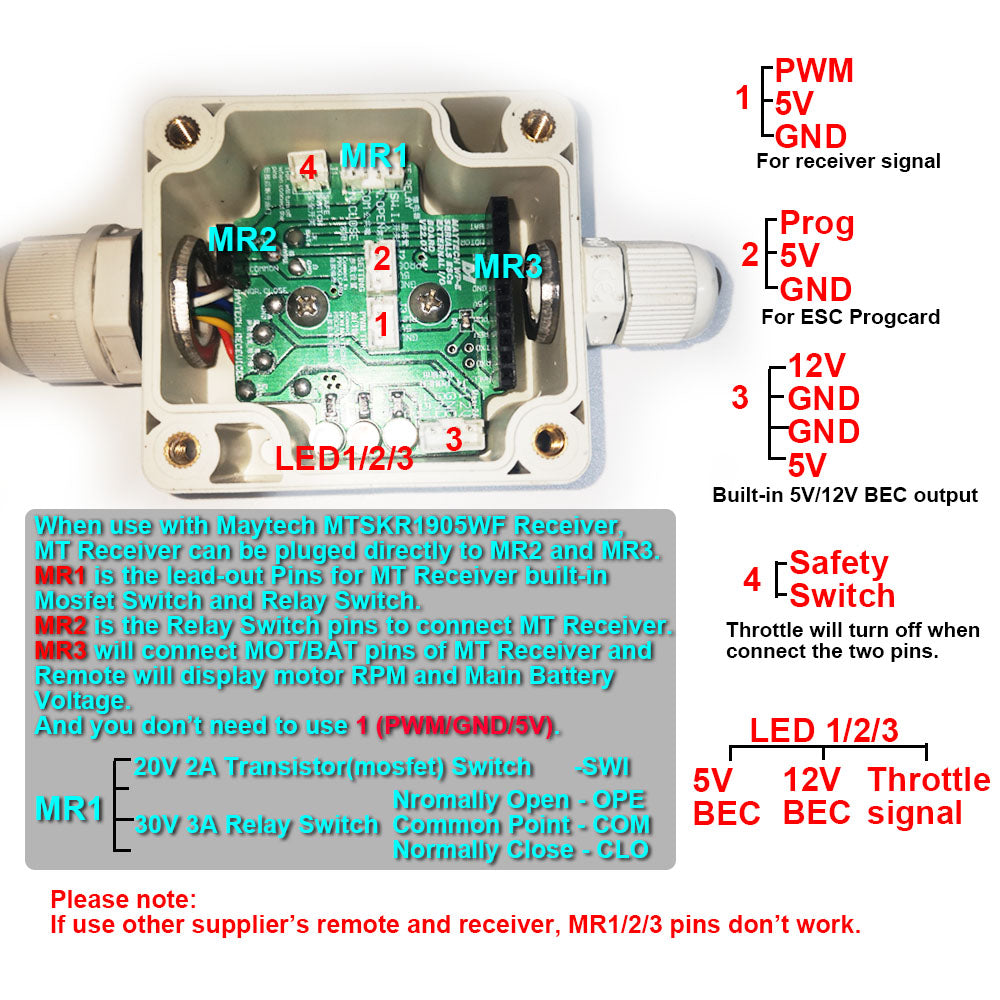

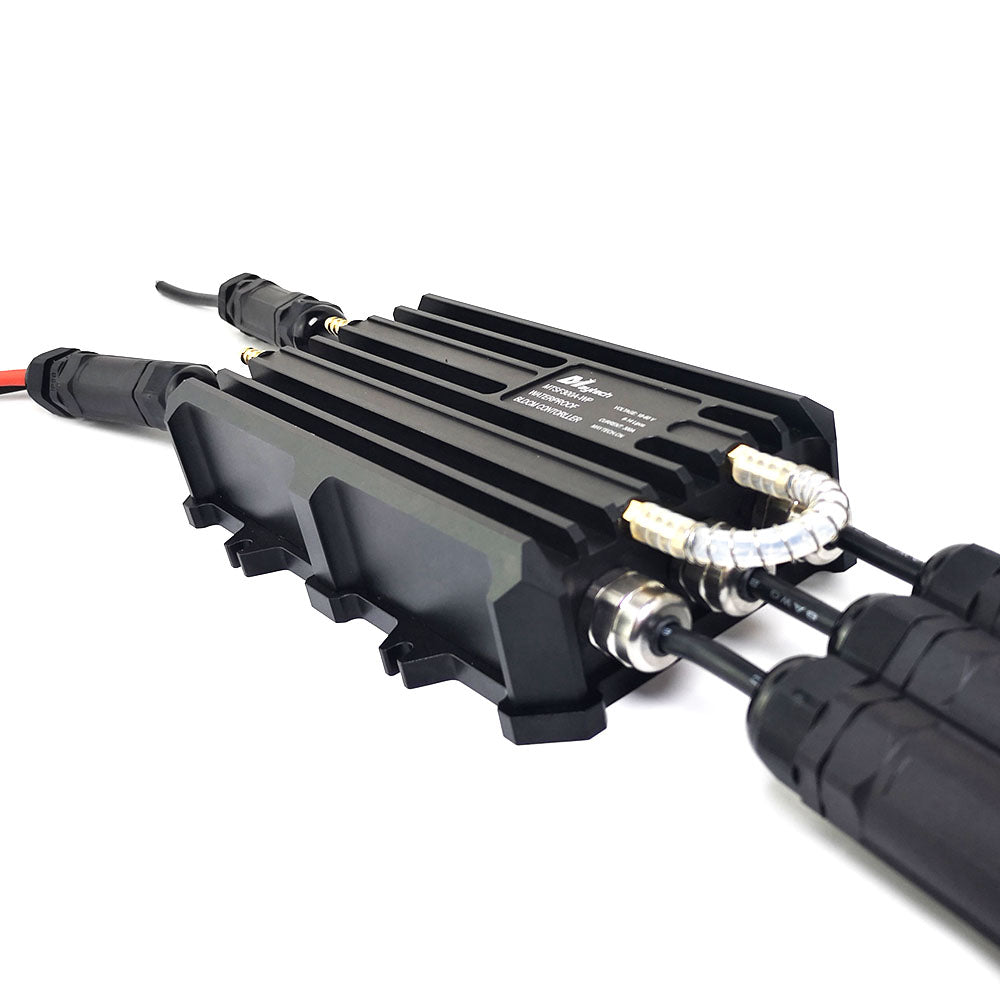

Item 2: 1pcs Maytech efoil motorized surfboard fully waterproof 300A ESC for electric jet board watercraft (New Updated versions are with junction box)
|
|||
Model no
|
MTSF300A-WP
|
Lipo
|
6-14Cells
|
Cont. Current
|
300A
|
Burst Current
|
1000A
|
BEC
|
Yes, with BEC in the waterproof case
|
Case
|
fully water-proof and watercooled aluminum case
|
Size
|

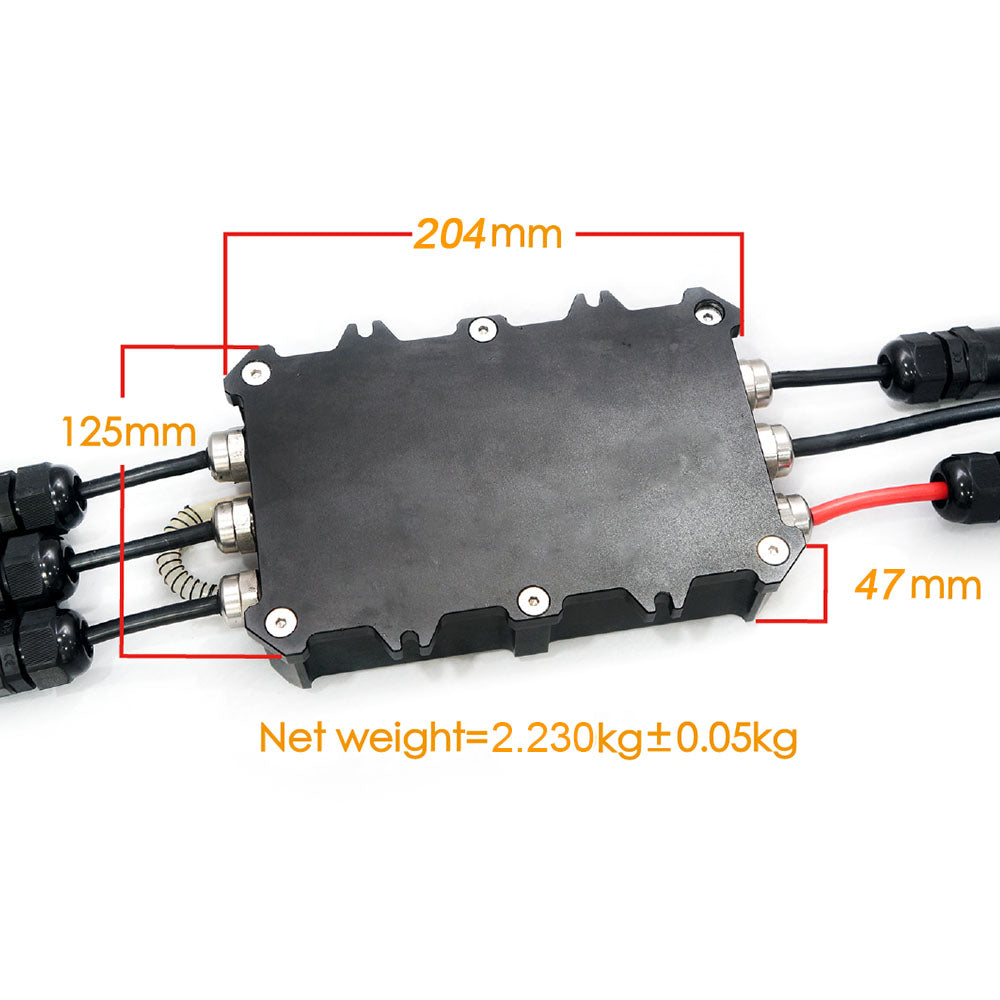

please check pictures |
Weight
|
about 2.4kg
|
Connectors
|
8mm with waterproof protectors
|
Progcard
|
Yes
|
Waterpcooling tube
|
Gold plating
|
Default parameters
|
suitable for Maytech motor and remote
|
Feature
|
Great start-up torque with sensorless motors
|
||
Receiver
|
Built-in or output cable for receiver
|

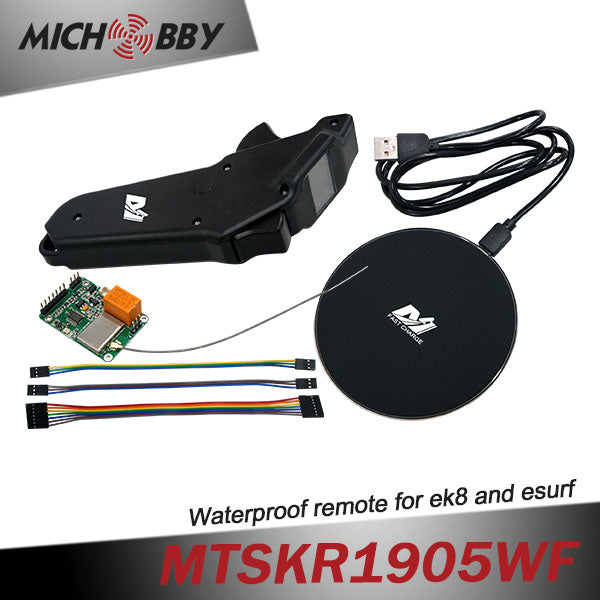

Item 3: 1PCS Maytech MTSKR1905WF New Updated version waterproof remote for efoil electric surfboard DIY skateboard longboard (Click for more remote details) | |||
Model no |
MTSKR1905WF updated version | Packing | cartons box |
Function | wireless charging |
Display screen |
Yes |
Accessory | receiver and charging pad | Signal type |
PWM |
FREE Accessory | Strip (color is random) | Esurf mode |
with cruise control |
Batt voltage display | 3-18S | Esk8 mode | with brake |
