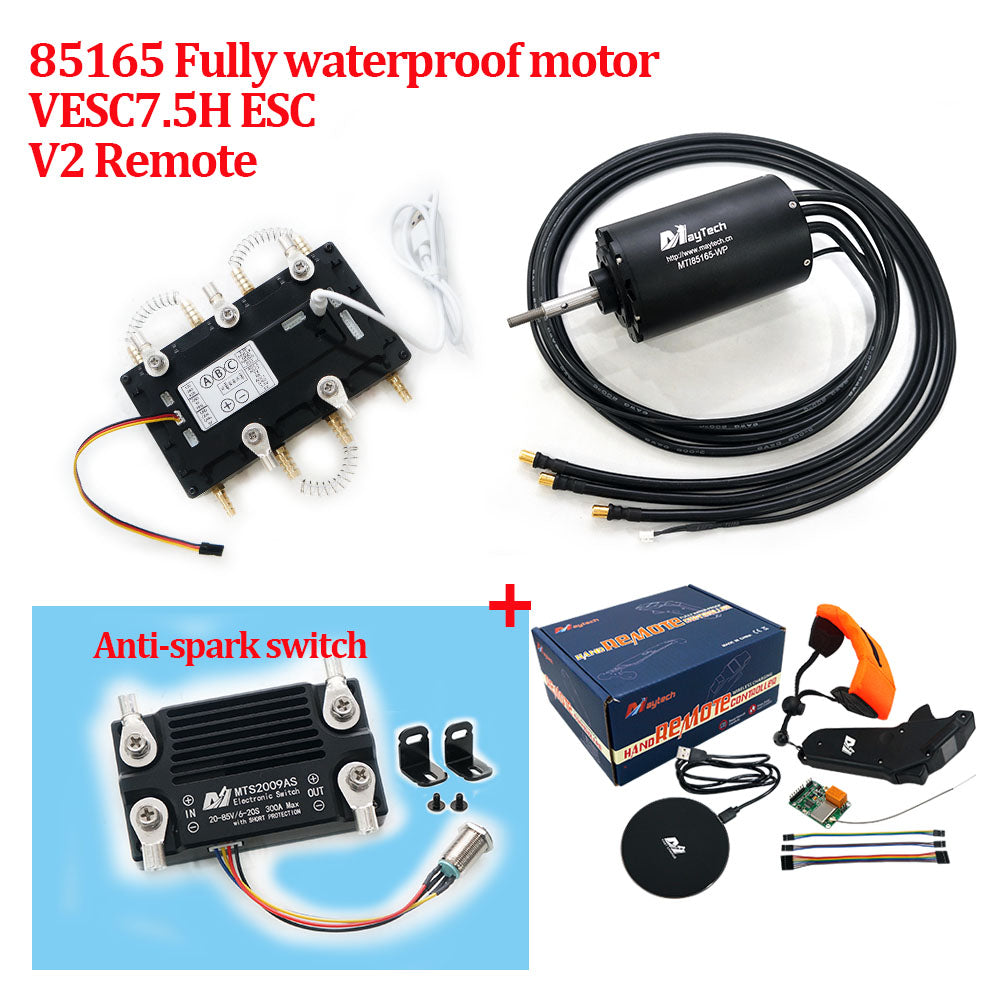

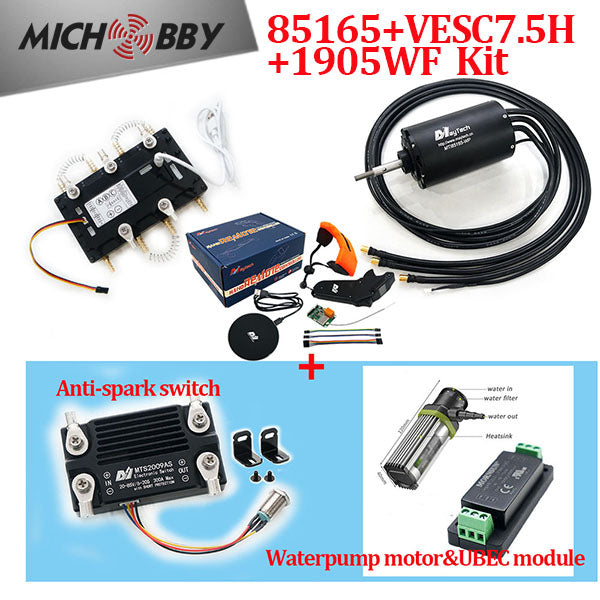

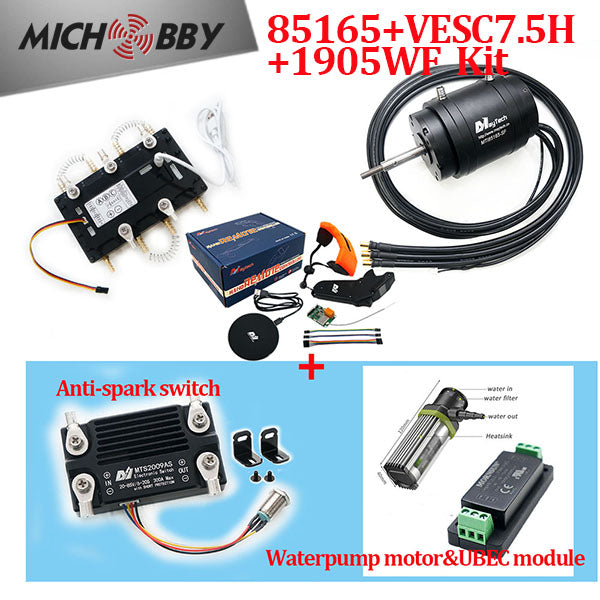

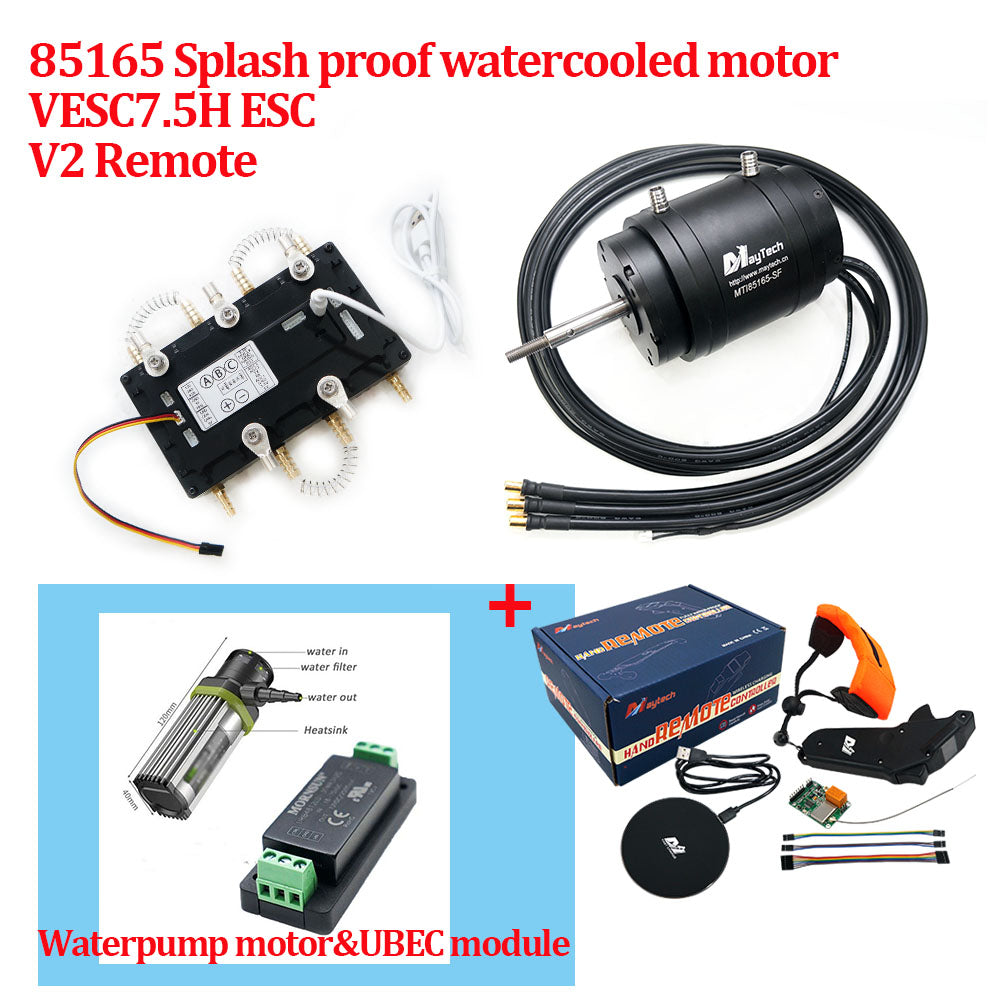

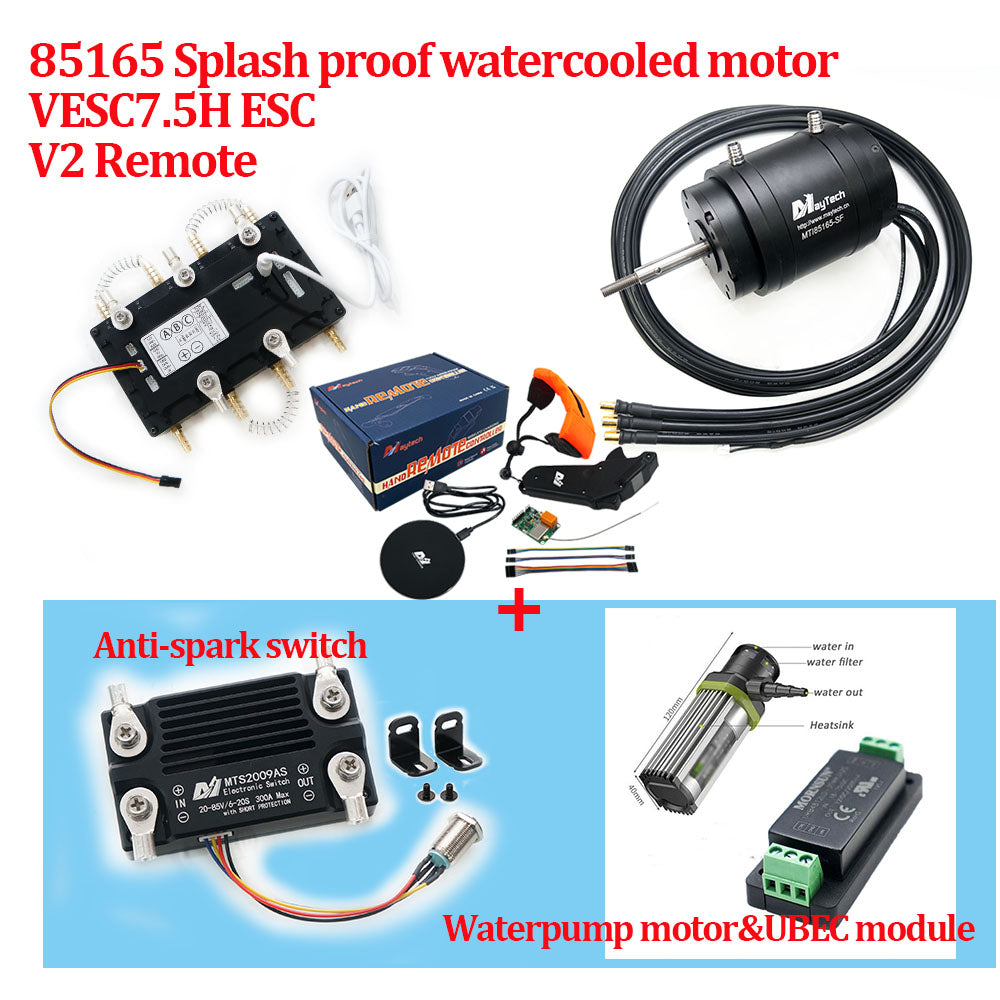

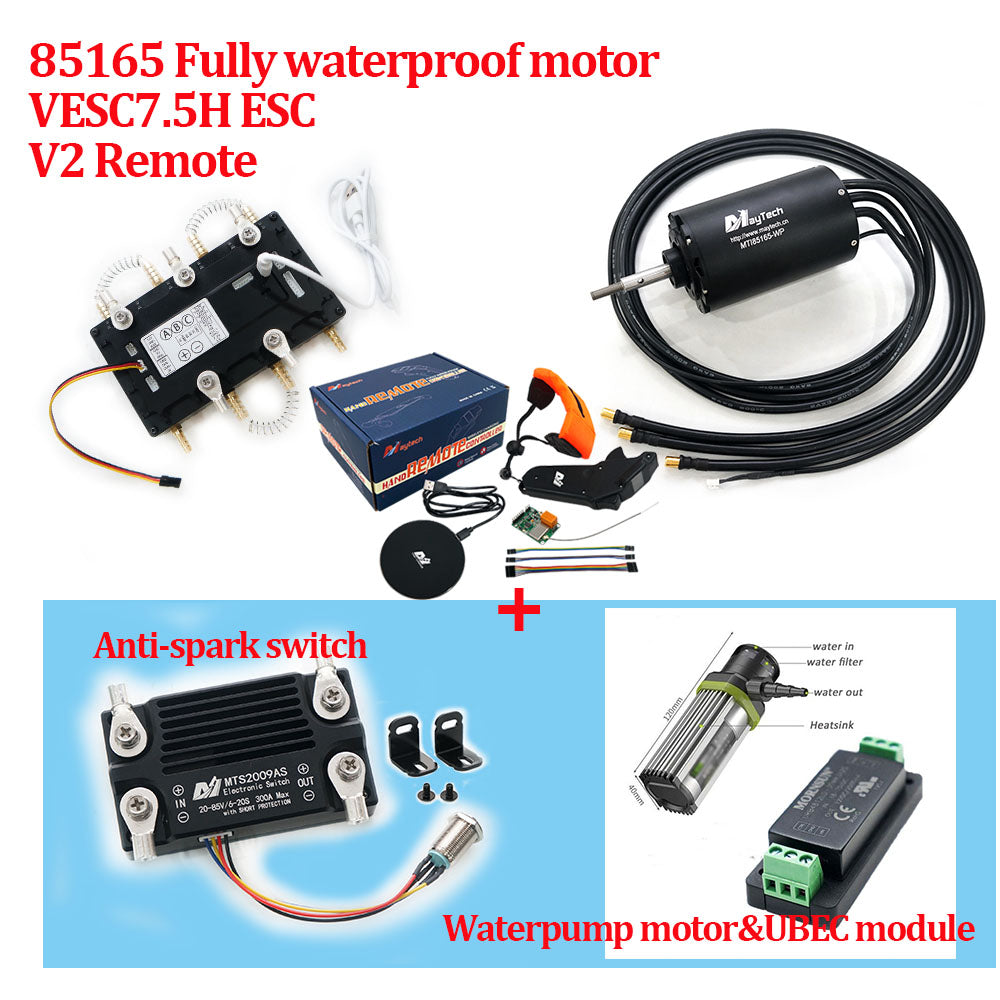

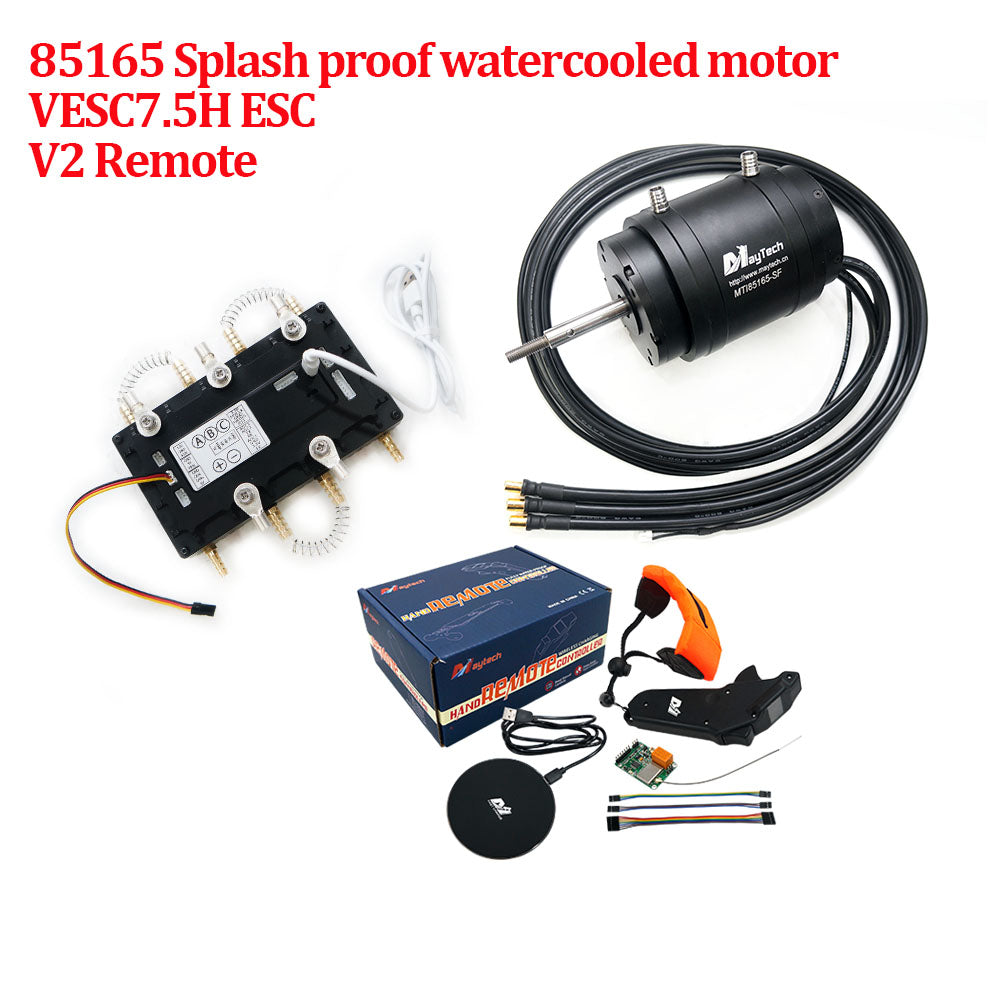

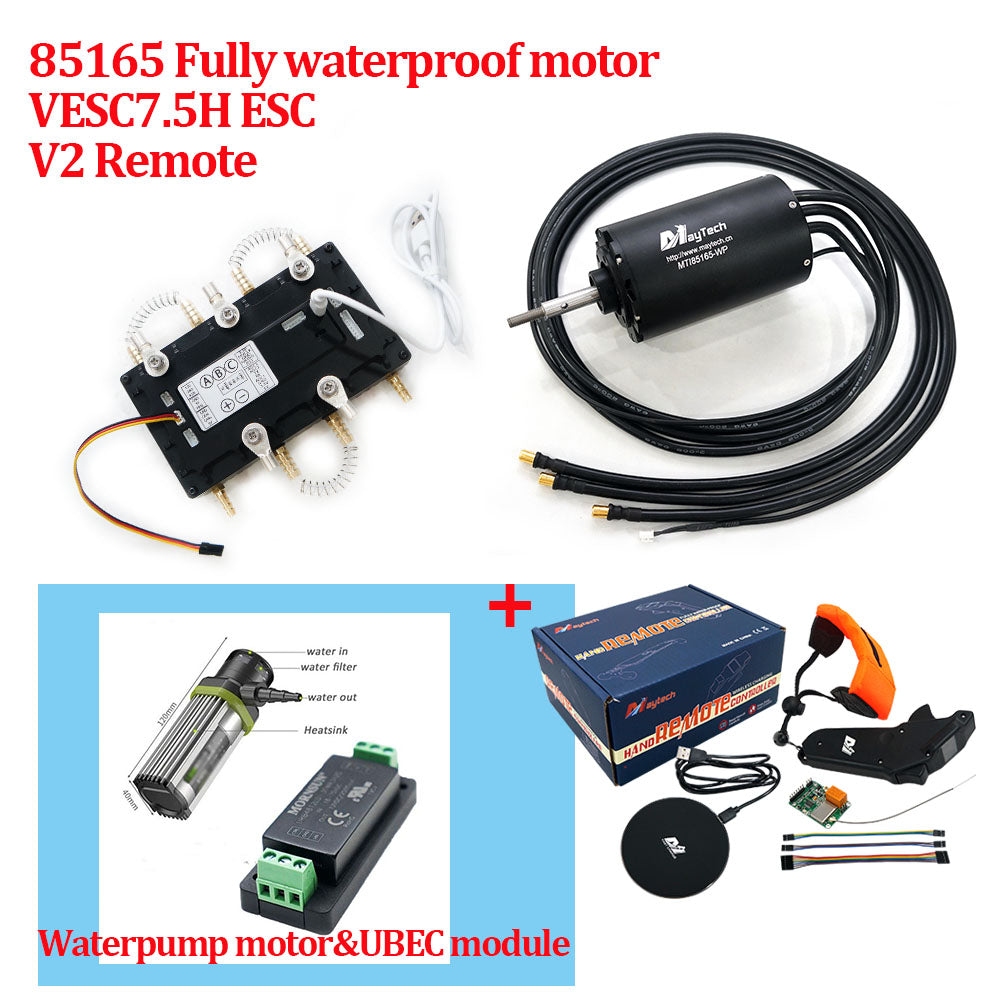

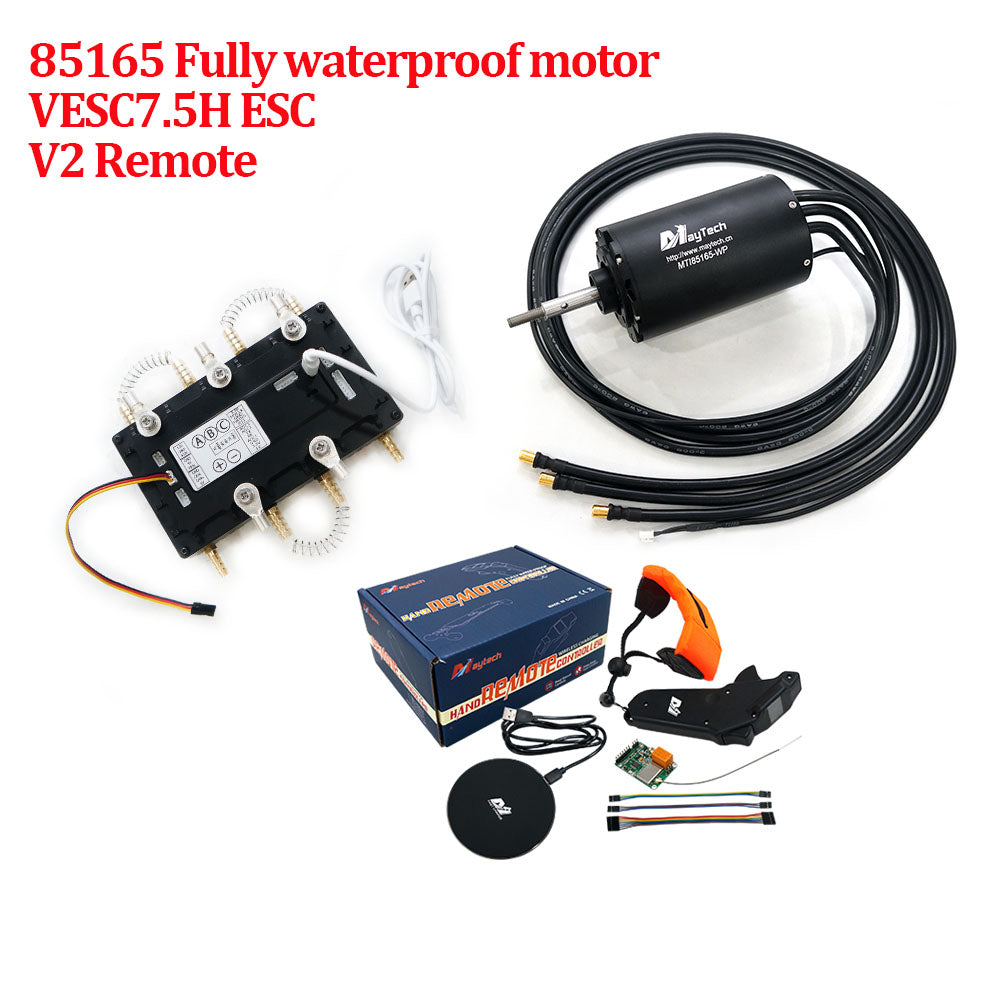

Maytech Efoil Surfboard Kits 85165 Motor + Watercooled 300A VESC based ESC + V3 Remote

Maytech Efoil Surfboard Kits 85165 Motor + Watercooled 300A VESC based ESC + V3 Remote

SKU:85165-200-sf+VESC7.5H+1905wf+s2009as+wp30w+ubec6.12

Prix habituel $1,133.00
Prix habituel Prix promotionnel $1,133.00
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Motor Type
Anti-spark Swith
Waterpump and UBEC

Have Doubts? Contact US!!

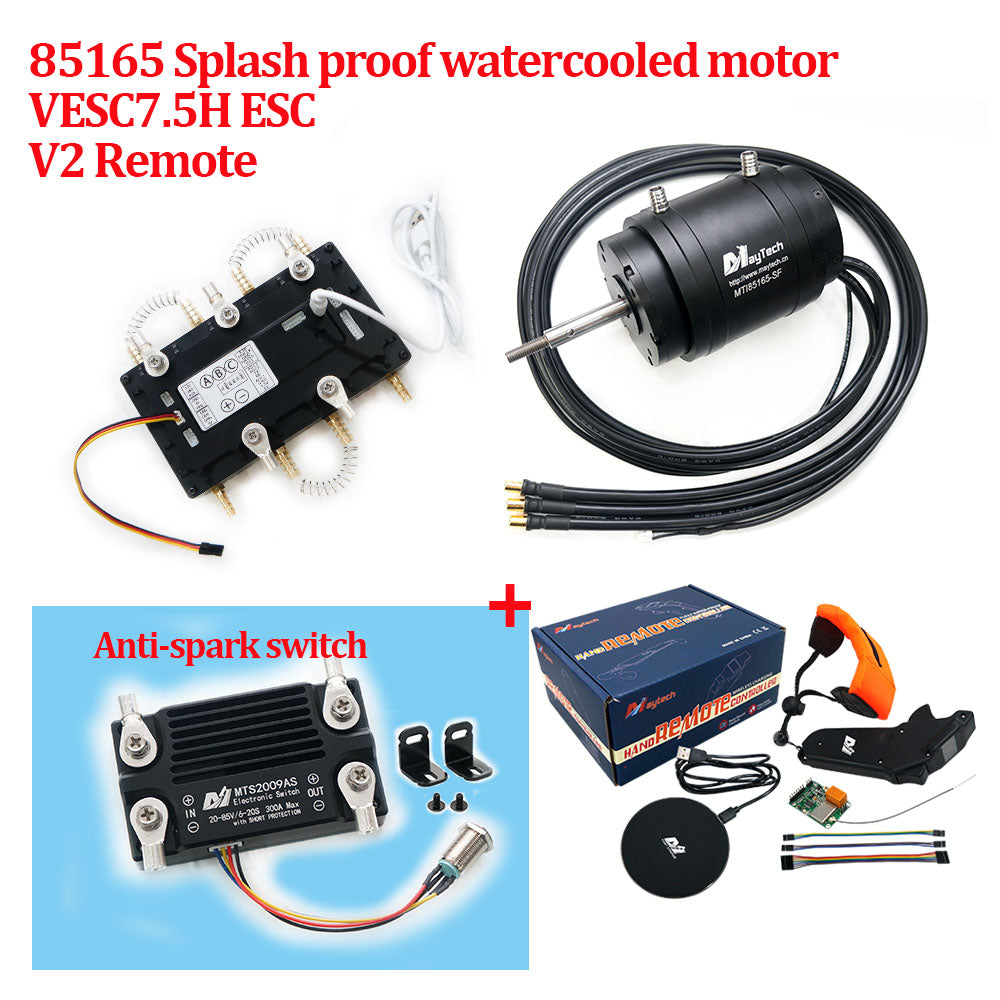

Maytech Efoil Surfboard Kits 85165 Motor + Watercooled 300A VESC based ESC + V3 Remote With optional Anti-spark swith and waterpump UBEC kit

Lead time is about 7-25days after payment. Please note.
If you need sensored motor or other KVs, please email us at support@michobby.com.



Model number
MTI85165-SF/WP
Avaiblable KV
200KV/Other KV can be customized
Shaft
12mm
Slots/Poles
12N10P
Motor type
Inrunner motor without hall sensor
Max Lipo Cell
200KV 10-16S (67V);
100KV 10-20S (80V).
Motor Weight
3.3kg
Max Current
300A
Max Power
10.5KW
Rated power
9KW
Max torque
15.5N.m
Motor cable/connectors
1.2 meter cable with 8mm connectors

Electric surfboard, efoil, electric power tools, hydrofoil board, waterboard, RC Boat,
Electric surfboard, efoil, electric power tools, hydrofoil board, waterboard, RC Boat,



Model no
MTSVESC7.5H
Current
300A
Voltage
25-75V
Set current in VESC_TOOL
Motor Current Max: ≤300A (According to your motor current)
Absolute Maximum Current: ≤350A (According to your motor current)
Battery Current Max: ≤150A (According to your battery discharge current)
Lipo
6-18S
Hardware version
based on VESC 75/300
Firmware
Upgradable
Capacitors
24pcs
BEC
Yes
Size
148.5*84*45mm
Application
electric skateboard, fighting robot, e-bike, electric motorcycle, efoil, electric surfboard, watercraft, electric boat, underwater ROV, etc
efoils, electric surfboard, underwater drone, electric hydrofoil, Underwater Propulsion Scooter, Underwater Propulsion Device, Diver propulsion vehicle, Electric jet board, electric wakeboard, electric SUP, Wakeboarding, Electric Hydrofoil Board, DIY Electric Hydrofoil Board, Electric Hydrofoil System, DIY VeFoil Kit, Electric Hydrofoil Boards, electric hydrofoil surfboard, motorized surfboard, eSurfScooter, electric watercraft, hydrofoilsurfing, Wakeboarding, Wakeskating, Wakesurfing, electric sportboats, electric outboard motors, sportboats, electric powered jet board, electric motorised jet board, electric powerd carbonfiber hydrofoil water craft, electric Yachts, electric hydrofoil board, electric flying surfboard, DIY electric hydrofoil, electric hydrofoil water taxi, Hydrofoil Bike, electric Hydrofoil Bike, water bike, DIY Electric Hydrofoil & Surfboard Remote Propulsion System, flying surfboard, all-electric hydrofoil speed boat,  E-surfboard, lightest motorized surfboard, Electric Foil Board, Water Sports, Electric kayak motors, Water jet propulsion devices, Electric SUP motors, Sea Scooter, stand up paddle board, Stand-Up PaddleBoards, WATER JET SYSTEM, jet-engine, powerful electric water sports gear, underwater thruster, Remote Operated Vehicle, ROV, ROV′s, ROV, Marine Outboard Engines, Underwater vehicle systems, Underwater vehicle components, underwater remotely operated vehicles, marine ROV, Submarine Propulsion Systems, Underwater Propulsion Device, Personal Propulsion System, Underwater Scooter, ROV thruster, Underwater Diving Scooter, hydrofoil boat, hydrofoling boat, hydrofoil ships, hydrofoiling ship, Electric water sports boats,  electrified jetboard,  Electric Jet-ski,  electric jetski,  water jetski,  underwater jetski,  jetski powered boats,  jetski elektro,  elektro jetski,  jetski electric,  Water Go-Kart,  high speed electric boat,  Electric Water Vehicles,  hydrofoil electric surfboard,  jet surfboard electric,  surfboard electric jet powered,  hydrofoil surfboard electric,  electric surfboard motor jet power,  electric surfboard jet,  electric motor surfboard,  surfboard electric jet,  water electric surfboard,  jetsurf surfboard electric,  electric powered surfboard,  remote control electric surfboard,  electric jet surfboard,  electric surfboard motorized,  electric water surfboard,  electric surfboard jet power,  electric surfboard powered,  electric power jet surfboard,  inflatable electric surfboard,  electric hydrofoil,  hydrofoil electric,  watercraft electric,  electric watercraft,  boats watercraft,  watercraft boat,  electric personal watercraft,  jetski watercraft,  jet ski watercraft,  motorized wakeboard,  jet powered wakeboard,  electric wakeboard,  marine electric propulsion,  powerski jetboard,  jetboard electric,  jetboard motorized surfboard,  electric jet board,  electric jet body board,  powerful jet board,  electric surf board jet,  jet surf power board,  jet ski rescue board,  jet powered surf board,  electric jet surf board,  inflatable power jet board,  electric outboard conversion kit,  electric motor boat inboard,  inboard boat,   jet propulsion electric motor,  boat+engine,  electric engine yacht,  rc jet engine kit,  Electric kayak motors,  Electric SUP motors,  jet-engine,  electric surfboard motor,  surfboard electric motor,  electric surfboard jet motor,  jetski engine,  electric marine engine,  marine electric motor,  electric marine motor,  marine electric motor 48v,  marine engine electric,  jetboard motor,  jet surf board motor,  jet board engine,  outboard boat engine,  electric outboard motor,  boat engine outboard motor,  electric inboard boat motor,  inboard electric boat motor,  inboard marine engines,  inboard jet engine,  waterproof brushless motor,  waterproof electric motor,
Model no
MTSKR1905WF updated version
Packing
cartons box
Function
wireless charging
Display screen
Yes
Accessory
receiver and charging pad
Signal type
PWM
FREE Accessory
Strip (color is random)
Esurf mode
with cruise control
Batt voltage display
3-18S
Esk8 mode
with brake
New remote updated  functions:
1. Display shows more:
Besides remote battery and main battery voltage, it can show motor RPM; if use it with VESC controllers, it can show current, speed(esk8 mode), temperature
2. Signal:
Remote and receiver signal strength is enhenced to avoid some signal interference nearby.
3. Waterproof function is updated:
Two layers of nanometer-coating are added to remote.
4. Remote can wirelessly control two switches:
Remote can control two switches, such as light, pump.
5. Receiver supports double-souce powersupply:
Receiver can accepts 5V/3.3V power
6. Firmware is wirelessly upgradable.



Item 4. 1pcs Maytech 300A 85V antispark switch battery cut off switch with short circuit protection for electric hydrofoil surfboard efoil (click for more switch details)

Brand
Maytech
Model Number
MTS2009AS
Application
Electric Skateboard, Efoil, surfboard, boat, motorcycle, etc
Connector
Ring Terminal
Max Current
300A
Brand
Maytech
Max voltage
85V (20S lipo)
Color
Black
Switch Type
Use NMOS to realize switching on/off Power positive
Size
about 97*56*25mm
Features
Switch comes with LED light indicator;
Shutdown current less than 1uA;
Suitable for load: three phase motor speed controller;
Boot soft start;
Automatic short circuit protection when boot;
Automatic short circuit protection when work.
Application : waterproof remote control eletric surfboard hydrofoil surfboard esc with surfboard battery.
Because the switch is electric switch. It has a Step-down circuit inside to convert high voltage to low voltage to power itself. This circuit must have capacitors. When connect and disconnect the switch from battery, it will have small spark. But after connection, when turn on or off switch button, it won't have spark. Please note this.
efoils, electric surfboard, underwater drone, electric hydrofoil, Underwater Propulsion Scooter, Underwater Propulsion Device, Diver propulsion vehicle, Electric jet board, electric wakeboard, electric SUP, Wakeboarding, Electric Hydrofoil Board, DIY Electric Hydrofoil Board, Electric Hydrofoil System, DIY VeFoil Kit, Electric Hydrofoil Boards, electric hydrofoil surfboard, motorized surfboard, eSurfScooter, electric watercraft, hydrofoilsurfing, Wakeboarding, Wakeskating, Wakesurfing, electric sportboats, electric outboard motors, sportboats, electric powered jet board, electric motorised jet board, electric powerd carbonfiber hydrofoil water craft, electric Yachts, electric hydrofoil board, electric flying surfboard, DIY electric hydrofoil, electric hydrofoil water taxi, Hydrofoil Bike, electric Hydrofoil Bike, water bike, DIY Electric Hydrofoil & Surfboard Remote Propulsion System, flying surfboard, all-electric hydrofoil speed boat,  E-surfboard, lightest motorized surfboard, Electric Foil Board, Water Sports, Electric kayak motors, Water jet propulsion devices, Electric SUP motors, Sea Scooter, stand up paddle board, Stand-Up PaddleBoards, WATER JET SYSTEM, jet-engine, powerful electric water sports gear, underwater thruster, Remote Operated Vehicle, ROV, ROV′s, ROV, Marine Outboard Engines, Underwater vehicle systems, Underwater vehicle components, underwater remotely operated vehicles, marine ROV, Submarine Propulsion Systems, Underwater Propulsion Device, Personal Propulsion System, Underwater Scooter, ROV thruster, Underwater Diving Scooter, hydrofoil boat, hydrofoling boat, hydrofoil ships, hydrofoiling ship, Electric water sports boats,  electrified jetboard,  Electric Jet-ski,  electric jetski,  water jetski,  underwater jetski,  jetski powered boats,  jetski elektro,  elektro jetski,  jetski electric,  Water Go-Kart,  high speed electric boat,  Electric Water Vehicles,  hydrofoil electric surfboard,  jet surfboard electric,  surfboard electric jet powered,  hydrofoil surfboard electric,  electric surfboard motor jet power,  electric surfboard jet,  electric motor surfboard,  surfboard electric jet,  water electric surfboard,  jetsurf surfboard electric,  electric powered surfboard,  remote control electric surfboard,  electric jet surfboard,  electric surfboard motorized,  electric water surfboard,  electric surfboard jet power,  electric surfboard powered,  electric power jet surfboard,  inflatable electric surfboard,  electric hydrofoil,  hydrofoil electric,  watercraft electric,  electric watercraft,  boats watercraft,  watercraft boat,  electric personal watercraft,  jetski watercraft,  jet ski watercraft,  motorized wakeboard,  jet powered wakeboard,  electric wakeboard,  marine electric propulsion,  powerski jetboard,  jetboard electric,  jetboard motorized surfboard,  electric jet board,  electric jet body board,  powerful jet board,  electric surf board jet,  jet surf power board,  jet ski rescue board,  jet powered surf board,  electric jet surf board,  inflatable power jet board,  electric outboard conversion kit,  electric motor boat inboard,  inboard boat,   jet propulsion electric motor,  boat+engine,  electric engine yacht,  rc jet engine kit,  Electric kayak motors,  Electric SUP motors,  jet-engine,  electric surfboard motor,  surfboard electric motor,  electric surfboard jet motor,  jetski engine,  electric marine engine,  marine electric motor,  electric marine motor,  marine electric motor 48v,  marine engine electric,  jetboard motor,  jet surf board motor,  jet board engine,  outboard boat engine,  electric outboard motor,  boat engine outboard motor,  electric inboard boat motor,  inboard electric boat motor,  inboard marine engines,  inboard jet engine,  waterproof brushless motor,  waterproof electric motor,

Notice: The pump cannot work continuously for a long time. It is best to stop it for about an hour; Long working hours will affect the life of the pump.

  • MTWP30W water pump motor

Power : 30W 12V

Maximum Flow : 8L/min

Outlet : 6mm / 8mm / 10mm

Water Intake : 35mm

  • MTUBEC6.12 DC-DC module:

Input: 18-75V DC

Output: 12V DC

Suitable for following watercooled ESCs and watercooled motors.
