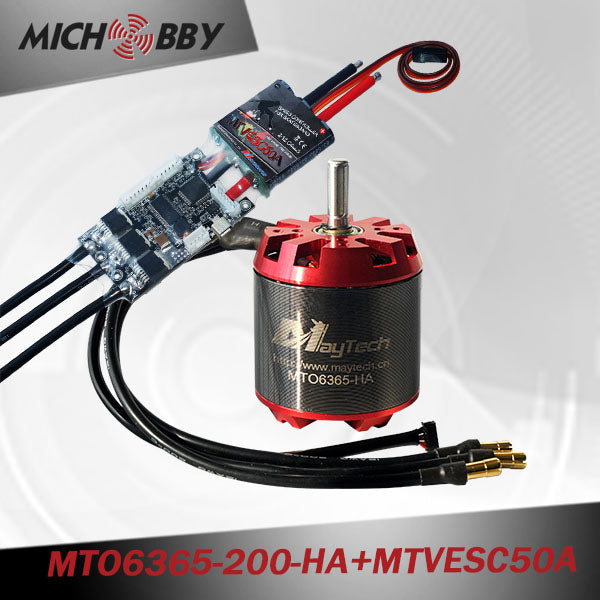

In Stock! Maytech hot combo 6365 brushless motor+VEDDER VESC for electric skateboard
In Stock! Maytech hot combo 6365 brushless motor+VEDDER VESC for electric skateboard
SKU:MTO6365-200-HA+MTVESC50A
Impossible de charger la disponibilité du service de retrait
Have Doubts? Contact US!!
Have Doubts? Contact US!!
1. Motor specification

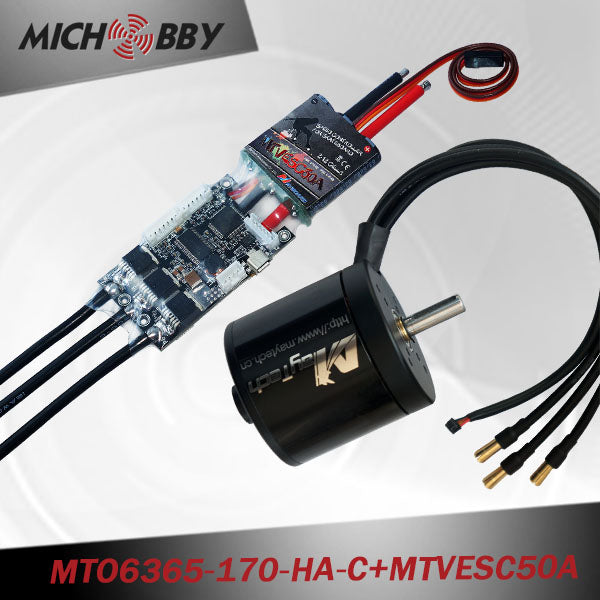

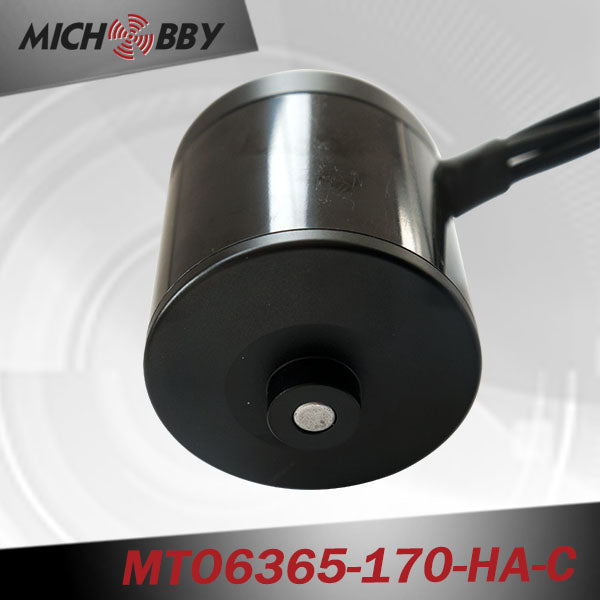

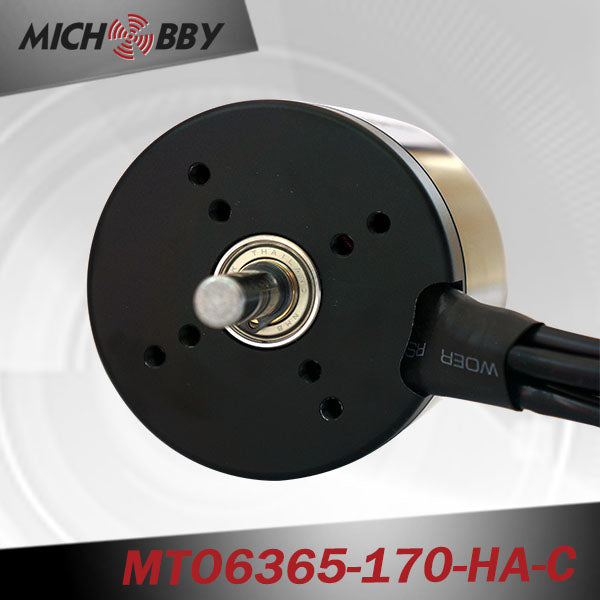

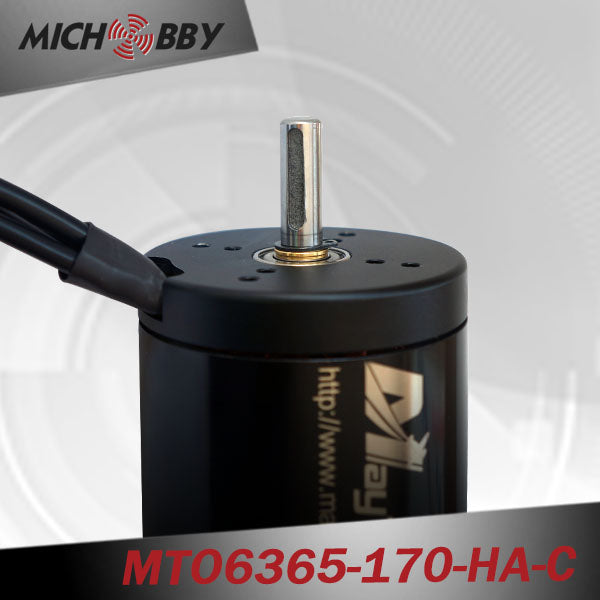

a) Maytech water-proof electric skateboards brushless motor 6365 170KV with hall sensor and closed cover
| Model NO | MTO6365-170-HA-C |
| Motor KV | 200(RPM/V) |
| Shaft | 8mm shaft with 3mm keyway |
| Idle Curren | 0.8A |
| Max. Current | 65A |
| Input Volt | 2-12Lipo cell |
| Max. Output Watt | 3520W |
| Max. Pull | 9700g |
| Net Weight | 668g |
| Motor Diameter | 63mm |
| Internal Resistance | 0.0402 |

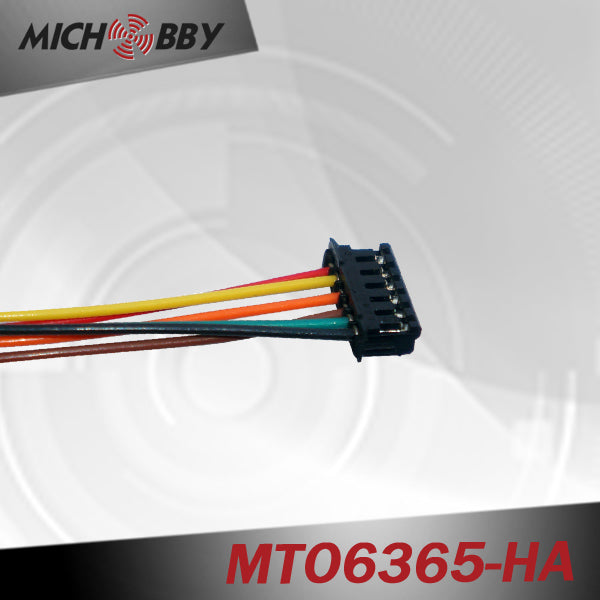

| Hall Sensor | sensored |
| Applicaition | For electric skateboards/e-bike |
| Features | Waterproof and dustproof function |

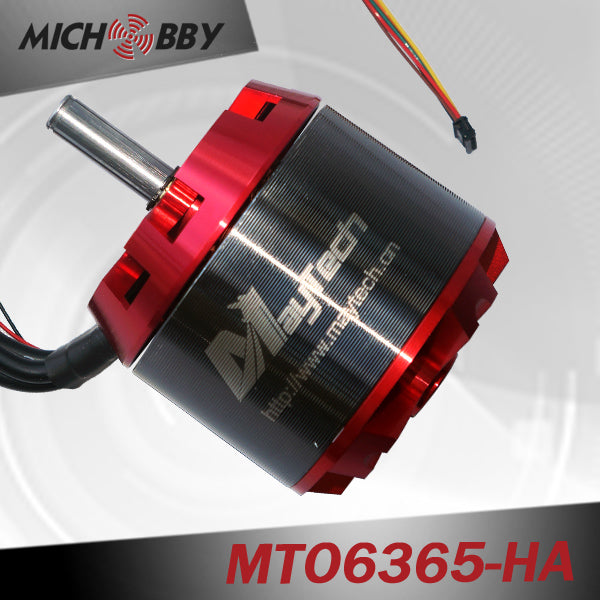

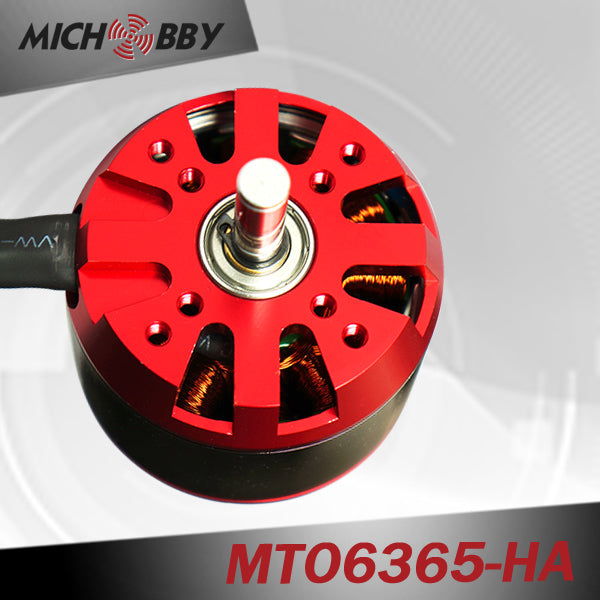

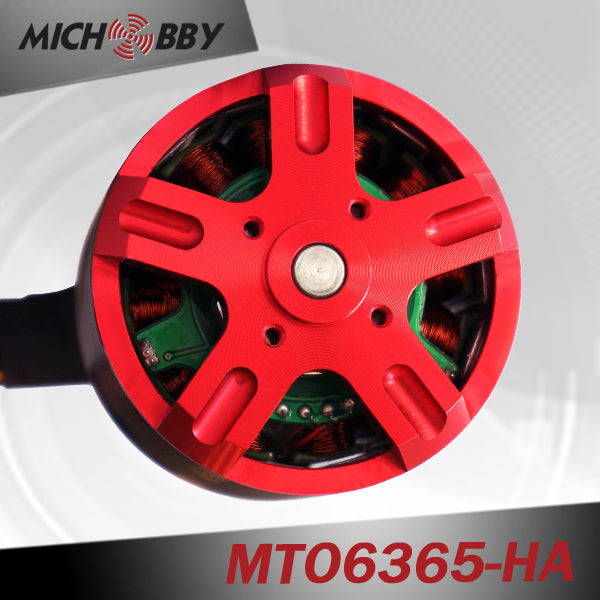

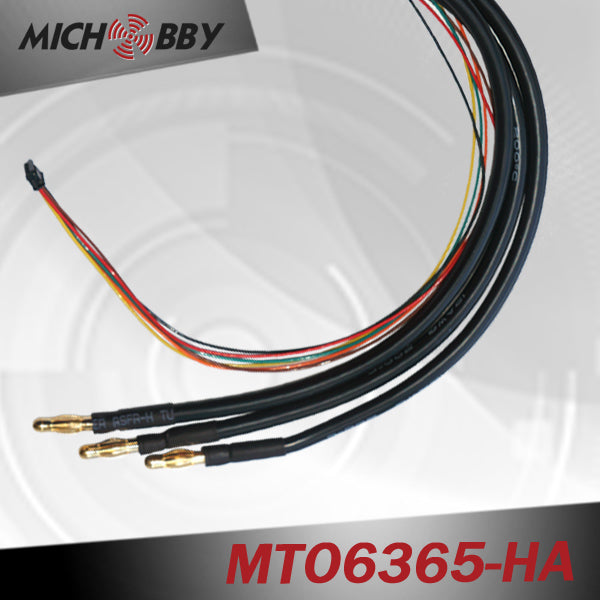

| Model NO | MTO6365-200-HA |
| Motor KV | 200(RPM/V) |
| Shaft | 8mm |
| Idle Curren | 0.8A |
| Max. Current | 65A |
| Input Volt | 2-12Lipo cell |
| Max. Output Watt | 3520W |
| Max. Pull | 9700g |
| Net Weight | 668g |
| Motor Diameter | 63mm |
| Internal Resistance | 0.0402 |
| Features | sensored |
| Applicaition | For electric skateboards/e-bike |

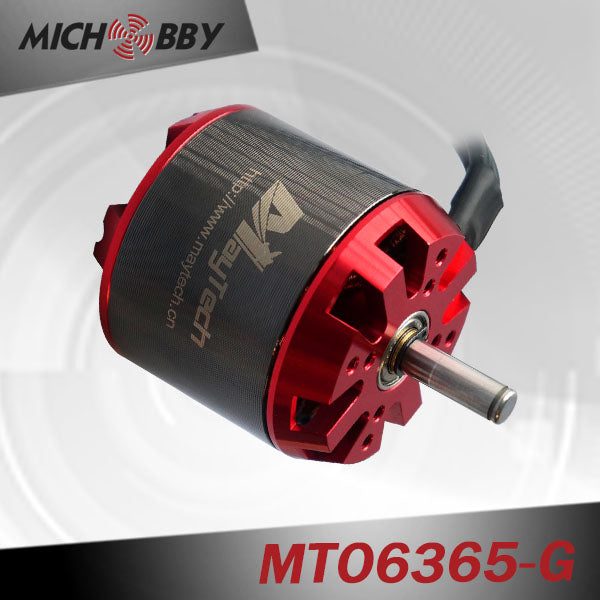

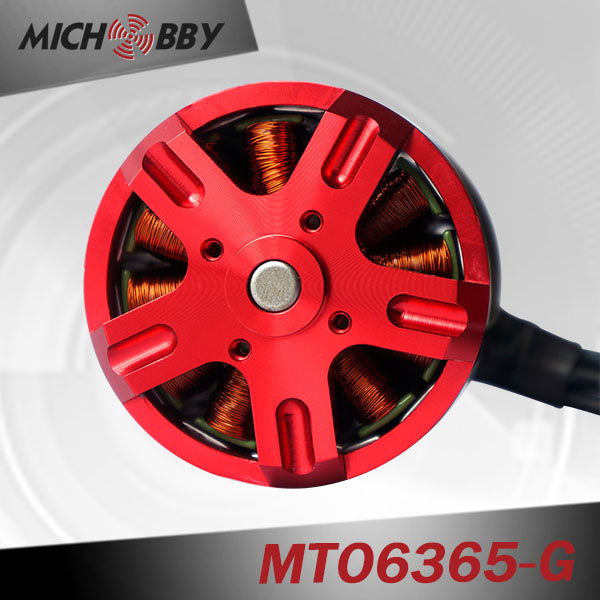

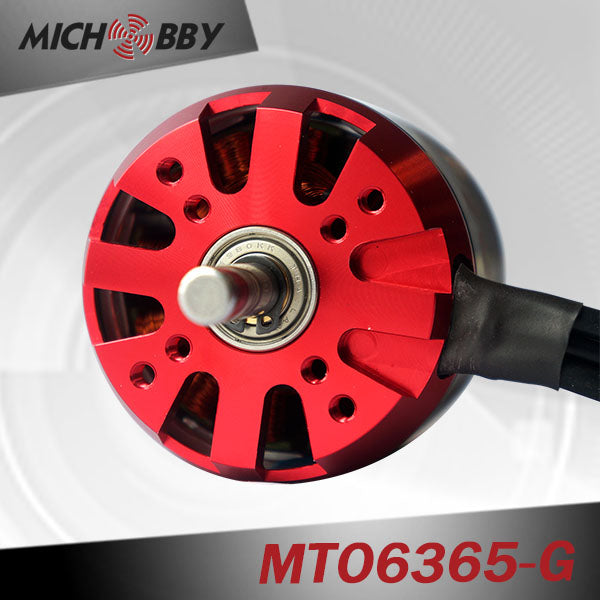

c)Maytech 6365 220kv brushless outrunner motor for eletric skateboads:
| Model NO | MTO6365-200-G |
| Motor KV | 200(RPM/V) |
| Shaft | 8mm |
| Idle Curren | 0.8A |
| Max. Current | 65A |
| Input Volt | 2-12Lipo cell |
| Max. Output Watt | 3520W |
| Max. Pull | 9700g |
| Net Weight | 668g |
| Motor Diameter | 63mm |
| Internal Resistance | 0.0402 |
| Features | sensorless |
| Application | For electric skateboard/ e-bike |

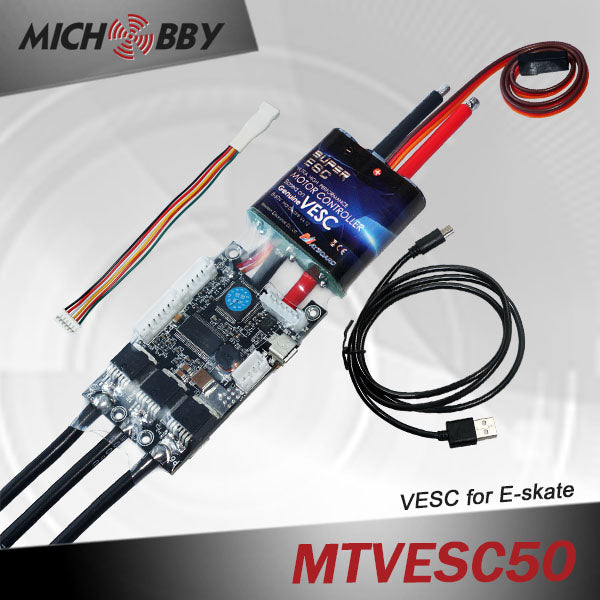

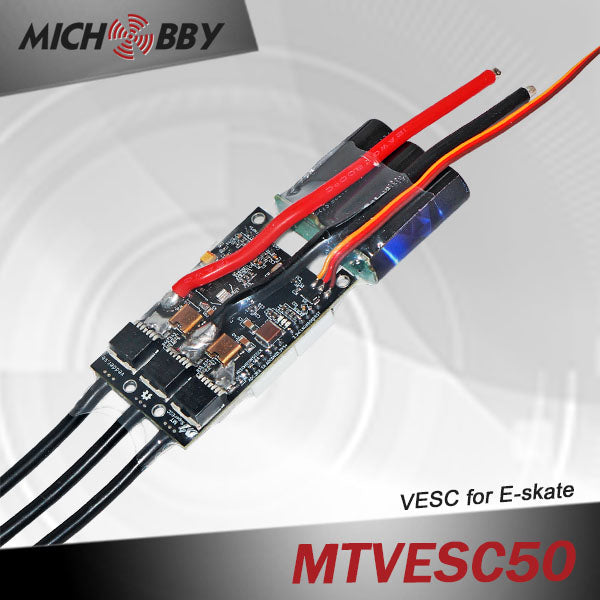

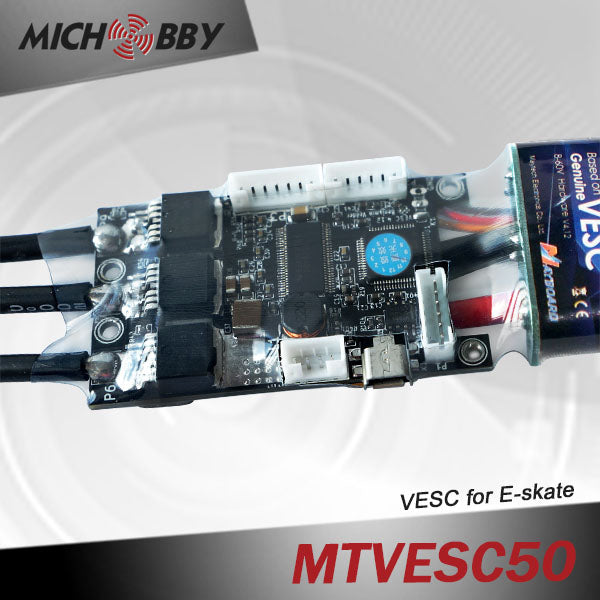

2. VESC Specification
| Application | e-skateboard/E-bike |
| BEC | 5V BEC |
| Lipo | 3-12Cells |
| Voltage | 8V-60V |
| Accessory | with USB cable |
| Package | W/ Box |
| Capacitors | 3pcs 680uf 63V |
| Dimension of VESC board | 60x40mm |
| Power wire | Silicon wire |

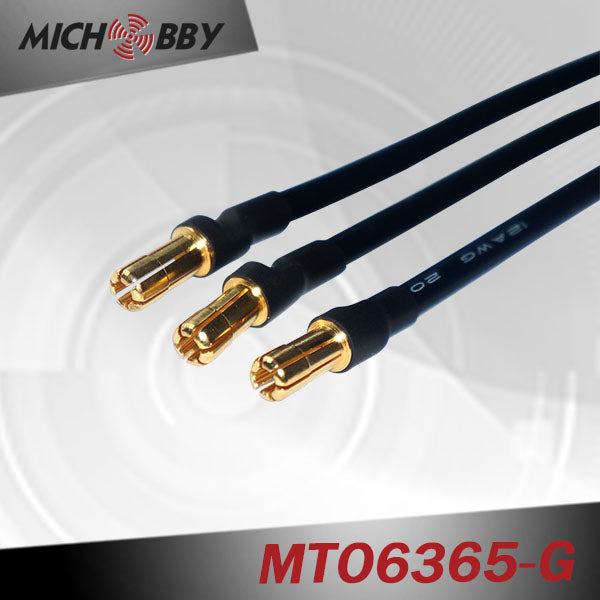

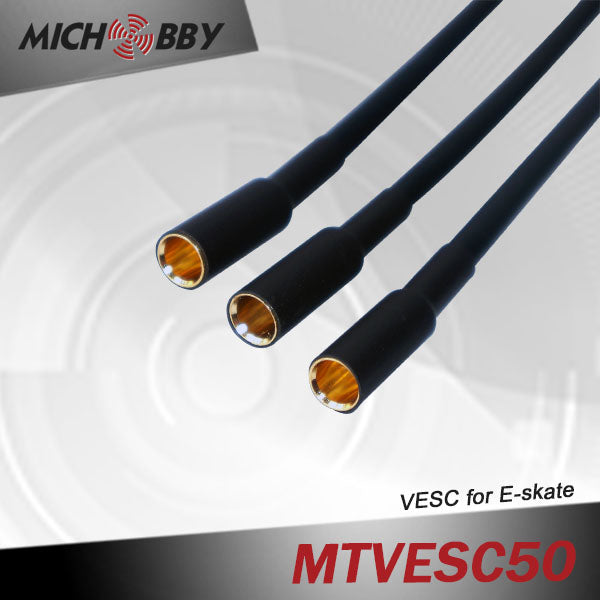

| Connectors | 5.5mm Golden Connectors |
Maytech VESC Advantages:
- The 5.5mm golden connectors are soldered on the VESCs. It costs extra expense and also extra soldering processing method.

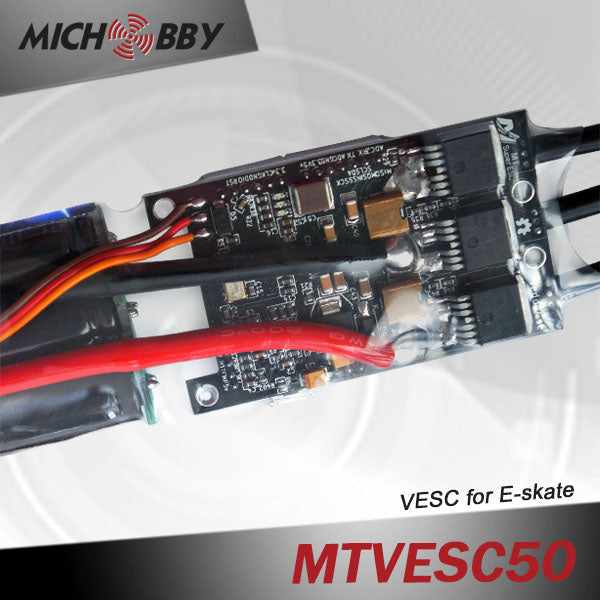

- Maytech VESCs come with 3pcs pf 680uf 63V capacitors which are soldered on the capacitor PCB. The capacitors are very important for every ESC. They can make sure the ESCs’stability when the ESCs speed up or slow down.
Why do we solder the capacitors on the capacitor PCB?
a)The capacitor PCB can stabilize the 3pcs 680uf 63V capacitors better than those are attached on the cables.
b)The capacitor PCB make the VESC look good and clean.

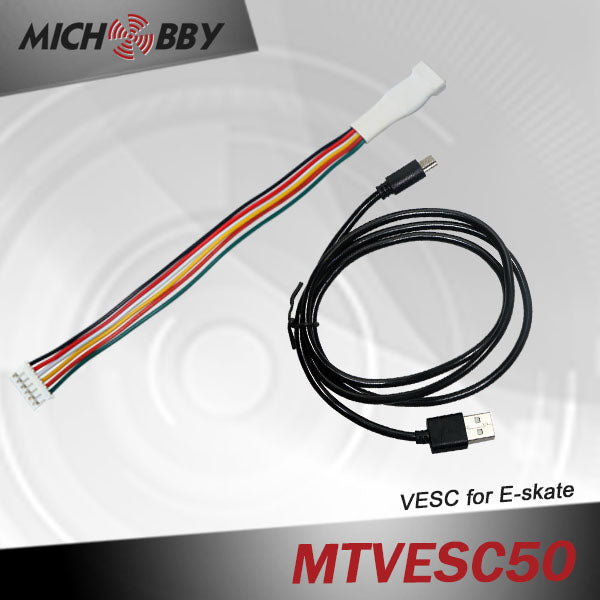

3. Maytech VESCs come with the USB cables and the sensor cables.
The USB cables are used for programming.
The sensor cables are used for the sensored motors when the original sensor cables on the motors are not compatible with the VESCs.
- Maytech uses the genuine Mosfets which come with circles and unclear writing.
However, the substituted Mosfets are with the clear writing and no circles. Many suppliers use the substituted Mosfets because of the lower cost.
