In Stock! 70mm Electric hub motor kit dual hub motors electric skateboard kit 50A VESC4/VESC6 controllers
In Stock! 70mm Electric hub motor kit dual hub motors electric skateboard kit 50A VESC4/VESC6 controllers
SKU:MTSKT1614B+MTSKT1614F+2xMTSKW7052+2xMTO7052HBM-60-HA+ 2xMTSPF50A+MTSKR2005WF+MTSKC120+4x608zz
Precio habitual
$478.20
Precio habitual
$503.40
Precio de oferta
$478.20
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Have Doubts? Contact US!!
Have Doubts? Contact US!!
Maytech 70mm Electric hub motor kit dual hub motors electric skateboard kit 50A VESC4/VESC6 controllers

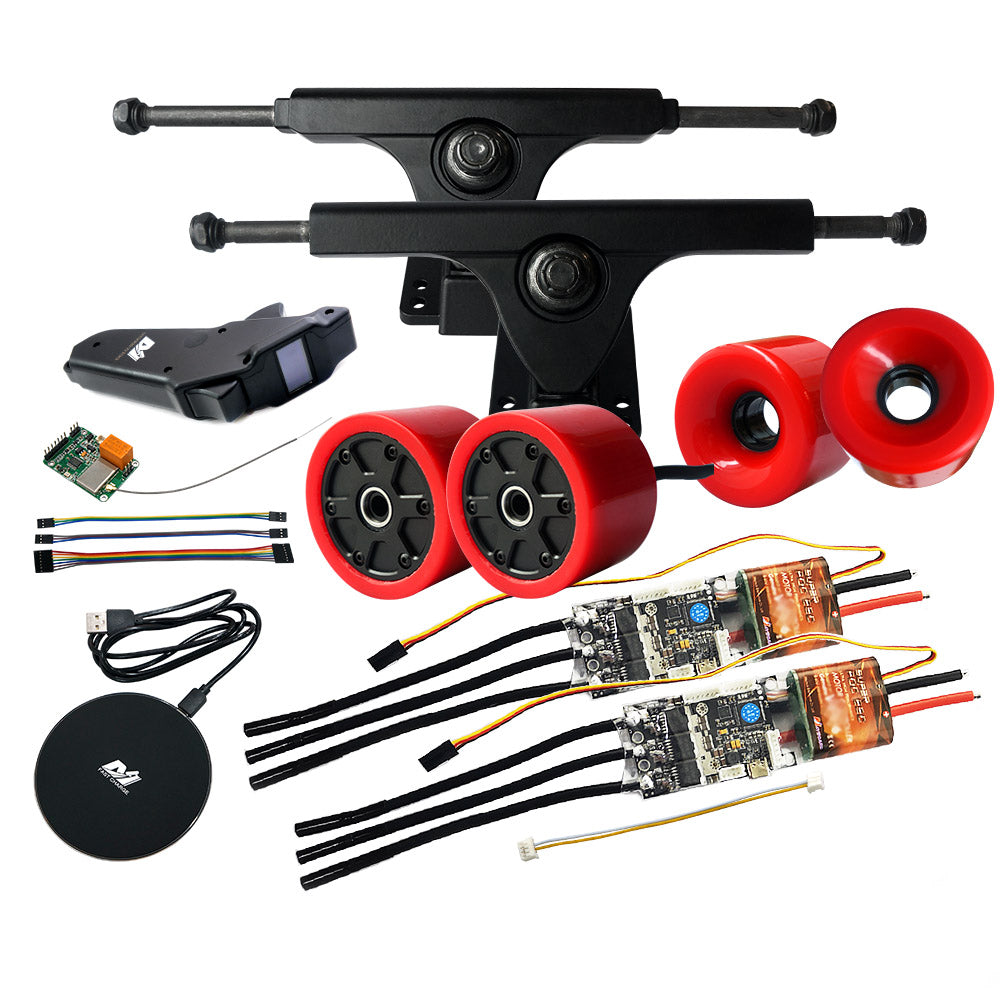

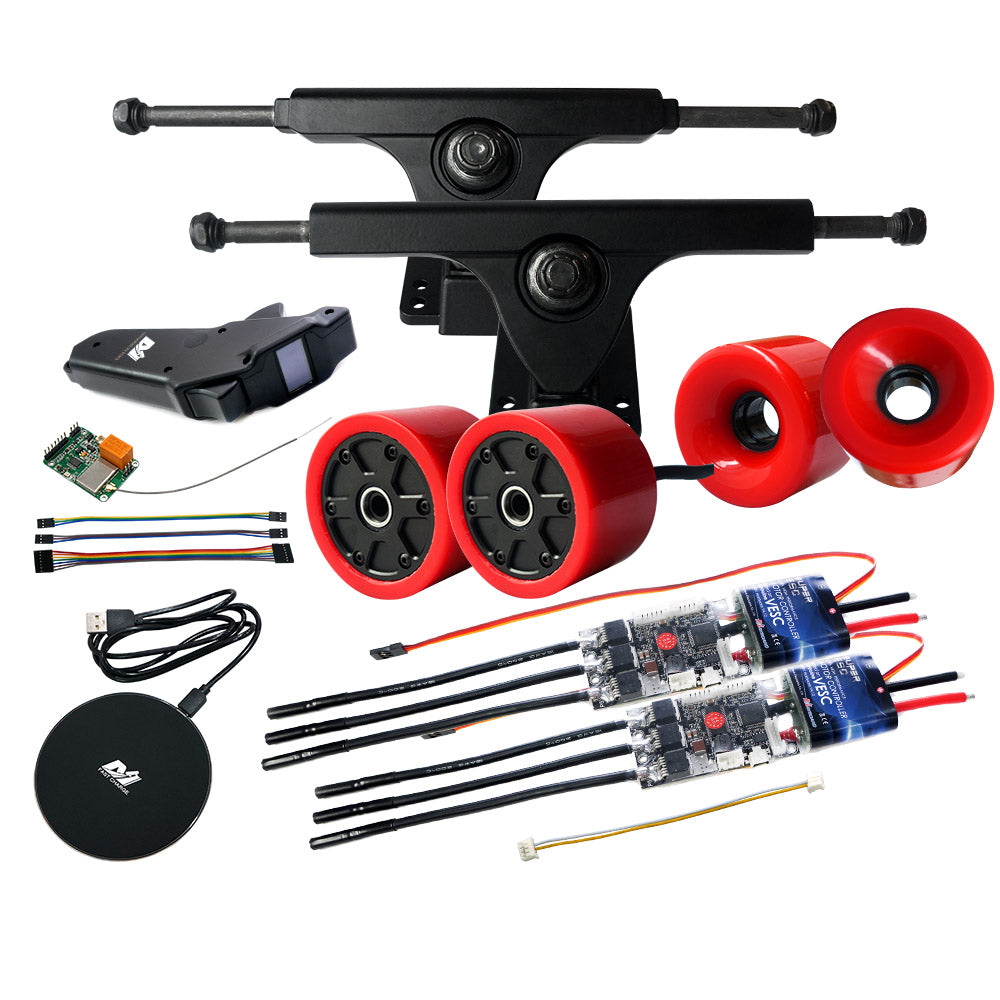

The kit includes:
- MTSPF50A VESC4 or MTSPF6.8 VESC6 based controller x2pcs with MTSKC120 canbus cable x 1pcs
- MTO7052HBM-60-HA hub motor x2pcs
- MTSKR2005WF Screen remote with receiver x1pcs
- MTSKPT7052 normal wheels x2pcs
- MTSKT1614B rear truck x1pcs
- MTSKT1614F front truck x1pcs
1. Maytech VESC50A ESC based on VESC4.12 or VESC6 (2pcs with 1pcs canbus cable)
Compatible with VESC_TOOL.
Model no
|
MTSPF50A V4 or MTSPF6.8 V6
|
Cont. Current
|
50A
|
Power wire
|
Silicon wire
|
Burst Current
|
240A
|
Lipo
|
3-12S
|
Hardware version
|
based on VESC4/VESC6
|
Firmware version
|
3.54
|
Capacitors
|
3pcs 680uf 63V
|
BEC
|
5V/1.5A
|
PCB size
|
40mm x 60mm
|
Application
|
electric skateboard, electric longboard, fighting robot, e-bike,etc
|
2 . Maytech electric skateboard part 70mm brushless hub motor (2pcs)
Model NO | MTO7052HBM-60-HA | Brand | Maytech |
KV | 60 |
Idle Current | 0.5A |
Max. Current | 12.5A | Input Volt | 24V‐42V |
Max. Output Watt | 500W | Temperature sensor | Yes |
Motor Weight | 525g | Hole Size | M8 |
Motor w/wheel dimension | Φ70*52mm | Internal Resistance |
0.67-0.75 |
Hall Sensor | Yes | PU color | Red |
3 Maytech electric skateboard kit remote control with receiver (1pcs)
Model NO | MTSKR2005WF | Brand | Maytech |
Power | Battery | Battery | 3.7V 420mAH |
Display screen | 128x64 OLED, yellow and blue | Working time |
>5 hours |
4 Maytech electric skateboard kit skateboard wheel (2pcs)
Model NO | MTSKW7052 | Brand | Maytech |
Dimension | 70x52mm | Hardness | 78A |
Color | Red | ball bearing | 2pcs |
Wheel Materials | 85% rebound PU wheels ensure | Cental Part | PP materials |
5 Maytech electric skateboard kit hub motor back truck (1pcs)
Model NO | MTSKT1614B | Brand | Maytech |
Type | Hub motor Truck | Color | Black |
Certification | CE | Frame materials | 356‐T6 alloy aluminum alloy |
Suit | Myatech 70mm and 90mm size hub motor | Suitable truck | Maytech front truck MTKT1614F |
6 Maytech electric skateboard kit front truck for Maytech 70/90mm wheels (1pcs)
Model NO | MTSKT1614F | Brand | Maytech |
Type | Hub motor Truck | Color | Black |
Certification | CE | Frame materials |
356‐T6 alloy aluminum alloy |
Suit | Myatech 70mm and 90mm size hub motor | Suitable truck | Maytech back truck MTKT1614B |
