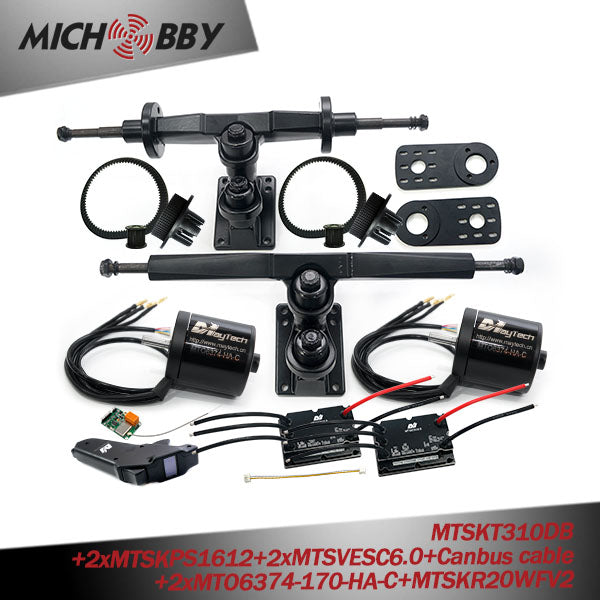

Double kingpin truck Dual 6374 sensored motors VESC6.0 200A VESC6 based ESC V2 Screen Remote electric skateboard longboard kit
Including: MTSKT310DB+2xMTSKPS1612+2xMTSVESC6.0+Canbus cable +2xMTO6374-170-HA-C+MTSKR20WFV2

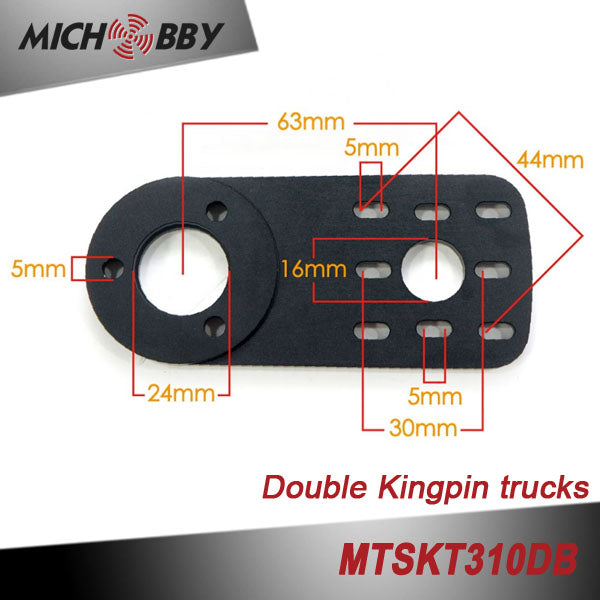

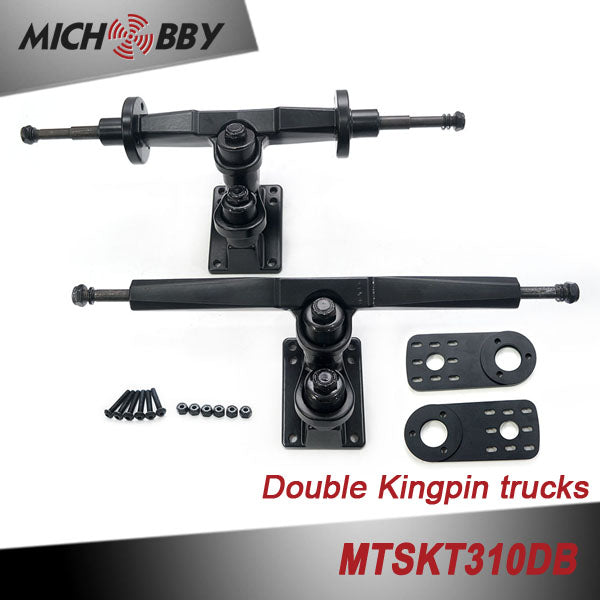

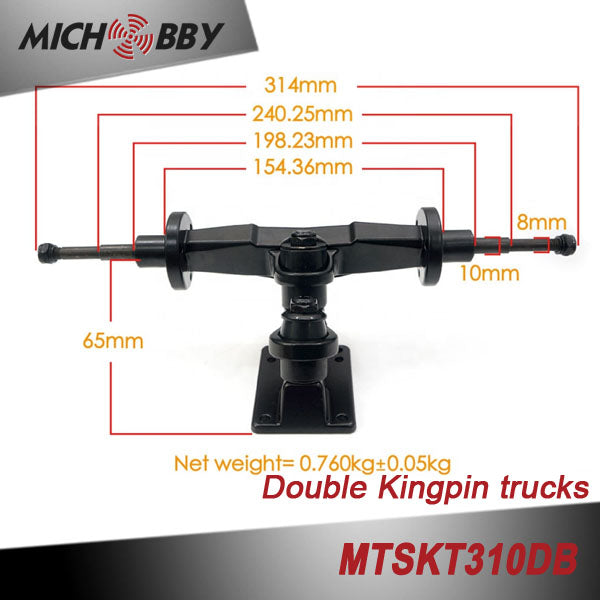

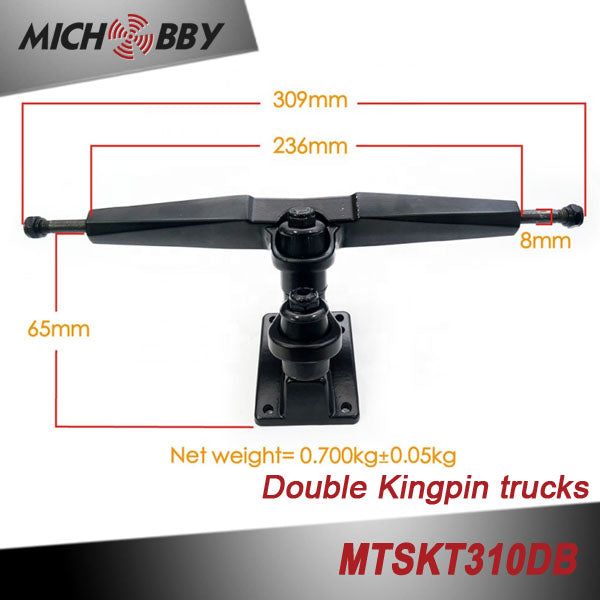

1. Specifications of dual belt driven electric skateboard truck MTSKT310DB for electric longboard (1Set):
MTSKT310DB
Dual‐belt‐driven Skateboard double kingpin Truck
Rear and Front trucks with two motor mounts
Truck size: 12inch
Frame materials: 356‐T6 alloy aluminum alloy
weight: 760g/pcs for back truck, 700g/pcs for front truck
Suitable for 5055/5065/6355/6365/6374 motors
New Gravity Casting Technology:
1. Aluminum liquid flow into truck mould by liquid's weight naturally, this way can delete mould's inside air clearly.
2. do heat treatment after demoulding (truck surface is a little rough because of heat treatment). Prouction time is longer than old die casting technology, and the production cost is twice than before.
3. Hardness reached out HRB65 around, which can stand over 150kg weight for professional skateboarders.

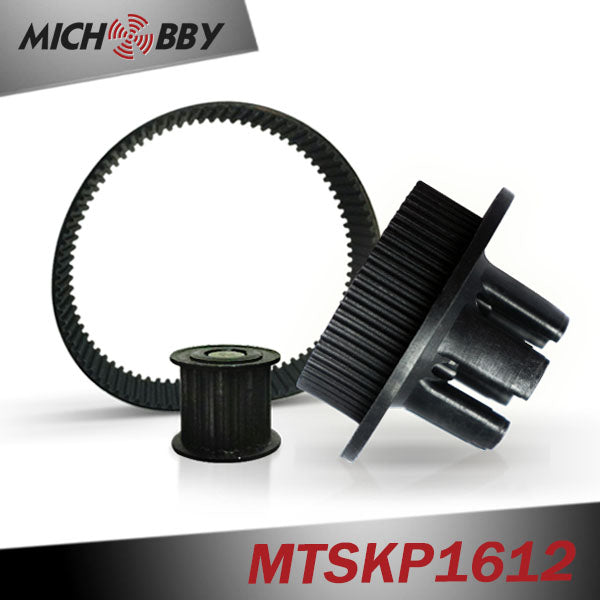

2. Specifications of MTSKPS1612 Pulley and belt combos (2Sets)
2x17mm wide nylon wheel pulley
2x16mm wide steel wheel pulley
2x15mm wide belt

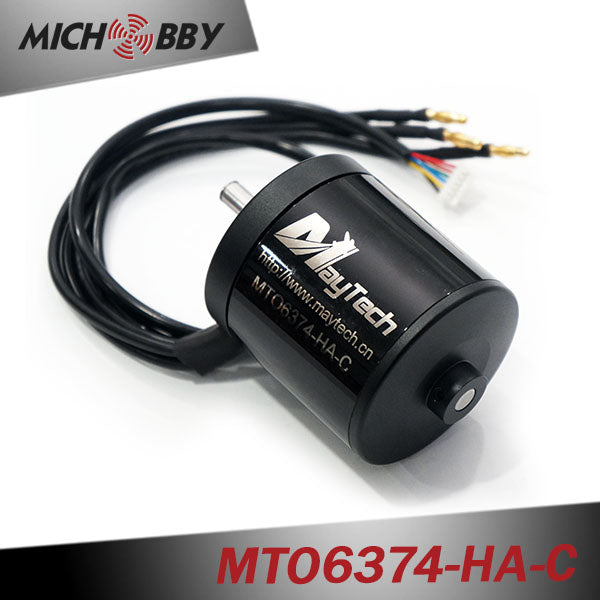

3. Specifications of MTO6374-170-HA-C 6374 170KV sealed cover motor (2pcs)
| Model NO | MTO6374-170-HA-C |
| Motor KV | 170(RPM/V) |
| Shaft | 8mm |
| Idle Current | 0.8A |
| Max. Current | 65A |
| Input Volt | 2-12Lipo cell |
| Max. Output Watt | 3550W |
| Max. Pull | 13000g |
| Net Weight | 830g |
| Motor Diameter | 63mm |
| Internal Resistance | 0.0402 |
| Features | sensored |
| Application | For electric skateboard/e-bike |
| Features | Waterproof and dustproof |

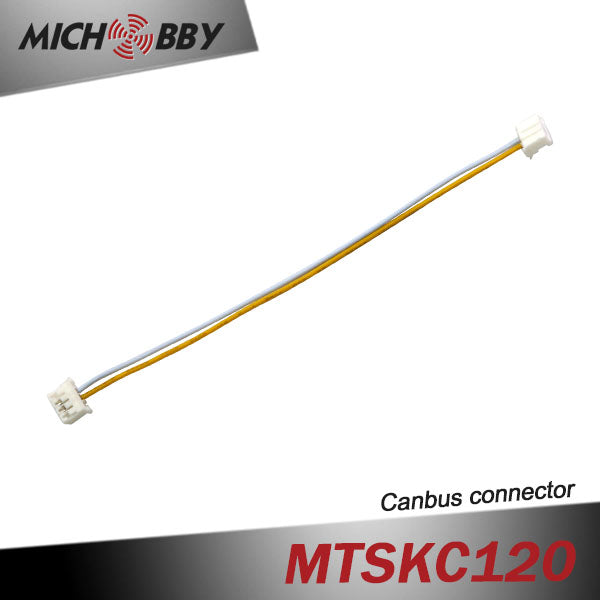

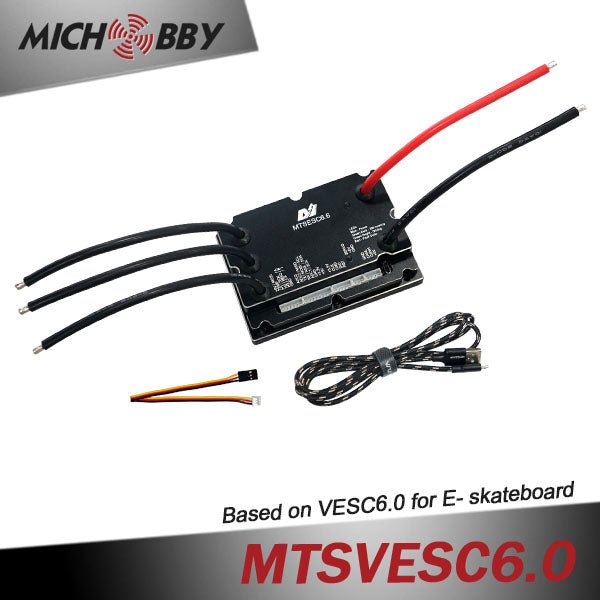

4. Specifications of MTSVESC6.0 (2pcs)(with 1pcs canbus cable)
| Application | electric skateboard longboard/fighting robots combat robots/elctric surfboard |
| BEC | 5V/1.5A |
| Lipo | 3-12Cells |
| Voltage | 8V-60V |
| Hardware version | based on VESC6.0 |
| Firmware version | updatable |
| Cont. Current | 200A |
| Burst Current | 280A |
| Capacitors | With high quality aluminum case, better heat dissipation |
| Case Size | 108mm(L)x75mm(W)x27mm(H) |
| Power wire | Silicon wire |

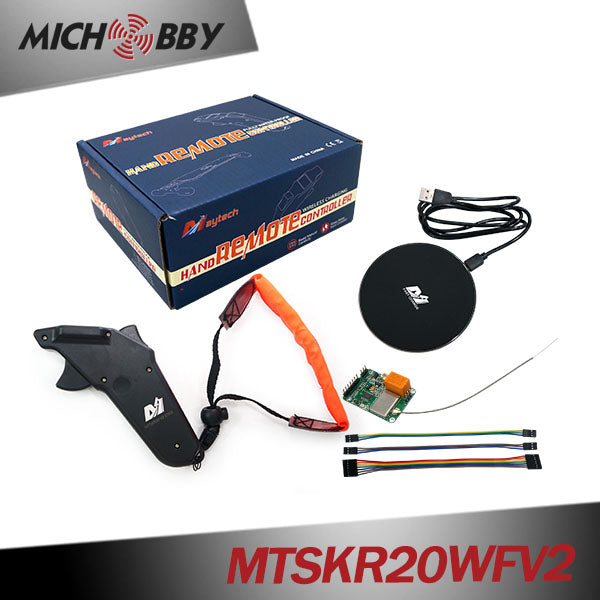

5. Specification of new MTSKR20WFV2 Remote controller with receiver (1pcs)
Manual for MTSKR20WFV2 （click and download)
MTSKR1905WF Esurf/Esk8 VS MTSKR20WFV2 ESK8 :
| MTSKR1905 V2 | MTSKR20WFV2 | ||
| Waterproof Class | IP67 double waterproof | IP66 | |
| Control mode | Esurf mode | Esk8 mode | NEW ESK8 mode |
| Throttle display | 0-100% | ±100% | ±100% |
| Speed mode | No | No |
Three speed modes; each mode with adjustable speed 1-100% |
| Cruise control | Yes | No | No |
| Speed display | No | Yes | Yes |
| Travel distance | No | Yes | Yes |
| Application: | Electric-surfboard/Efoil; Underwater control; |
E-skateboard | E-skateboard |
| Charger | QC 2.0 Wireless | ||
| Wireless frequency | 2.4GHz wireless with 40 Channel | ||
| Display screen | OLED Yellow and Blue screen | ||
| Voltage display | Remote and Main Battery Voltage Level（Lithium iron/lithium ion battery optional） | ||
| Triggers | 2 x High sensitivity triggers | ||
| Throttle output | PWM 1ms-2ms 100Hz | ||
| Telemeter Data by Recevicer | Motor RPM/Main Battery Voltage | ||
| Telemeter Data by VESC | ESC voltage/current/temperature/Motor temperature/RPM | ||
| Compatible ESCs | VESC4/VESC6/FOCBOX/Other PWM ESCs | ||
| VESC control mode | Duty Cycle / Current Mode | ||
| Receiver's built-in switches for esk8 lights, esurf water pump using, etc |
1 x 30V 3A mechanical relay switch | ||
| 1 x 20V 2A transistor electronics switch | |||
