In Stock! Electric Skateboard Comb 6355 170KV 10mm shaft Motor+VESC50A Speed Controller for Esk8/Robotics

In Stock! Electric Skateboard Comb 6355 170KV 10mm shaft Motor+VESC50A Speed Controller for Esk8/Robotics

SKU:MT06355-170-HA-C2+MTVESC50A

Precio habitual $235.70
Precio habitual $294.60 Precio de oferta $235.70
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
MTO6355+MTVESC50A

Have Doubts? Contact US!!



Electric Skateboard Comb 6355 170KV 10mm shaft Motor+VESC50A Speed Controller for Esk8/Robotics

The combs includes:

Kit 1:

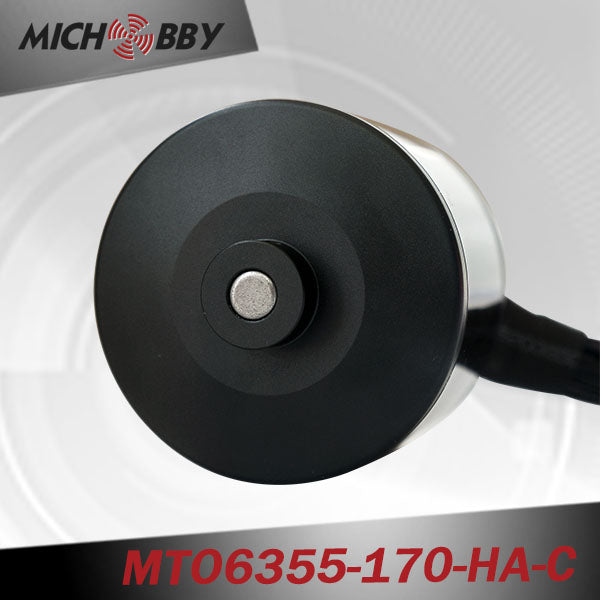

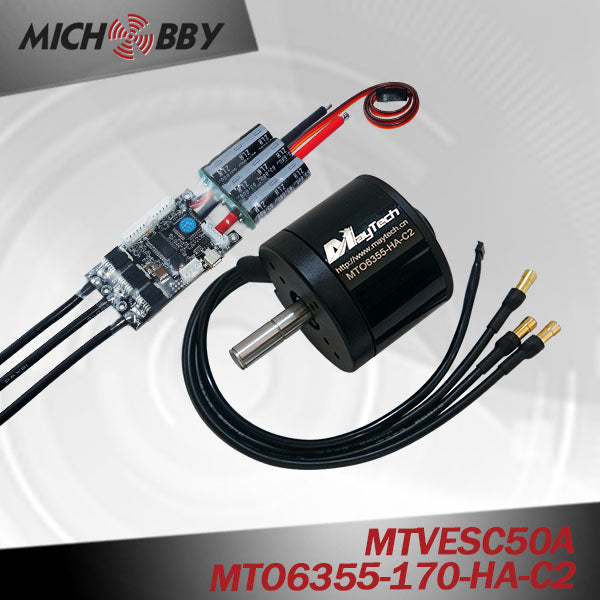

1x MTO6355-170-HA-C2 Brushless Outrunner Sensored Motor 10mm Shaft with Closed Cover Splash Waterproof + 1x MTVESC50A Electric Speed Controller

Kit 2:

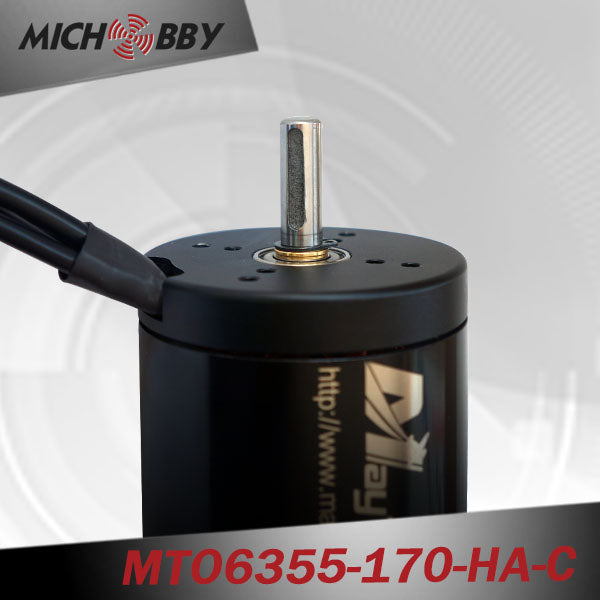

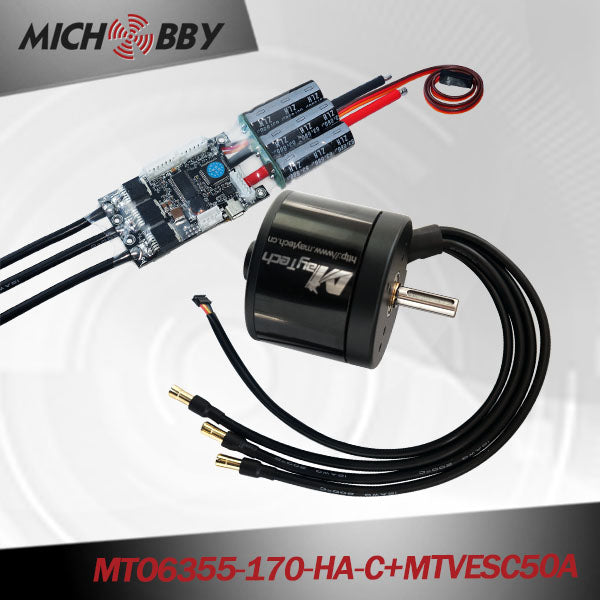

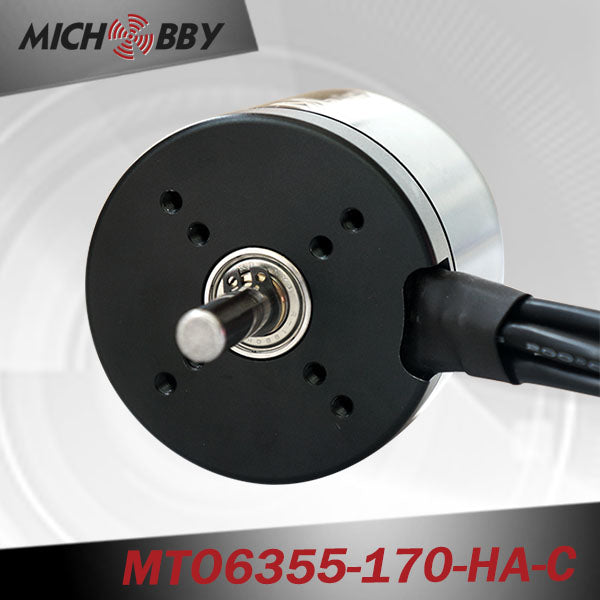

1x MTO6355-170-HA-C Brushless Outrunner Sensored Motor 8mm Shaft with Closed Cover Splash Waterproof + 1x MTVESC50A Electric Speed Controller

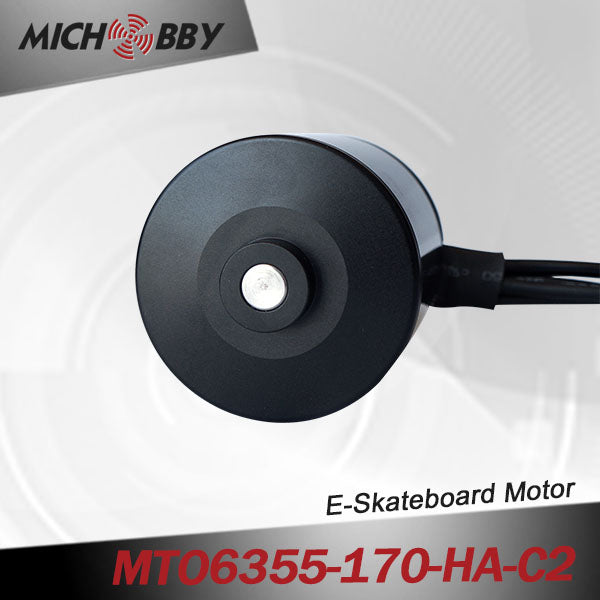

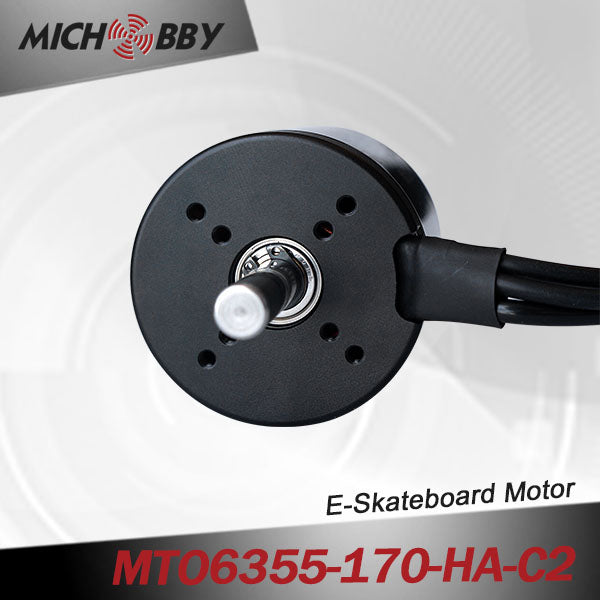

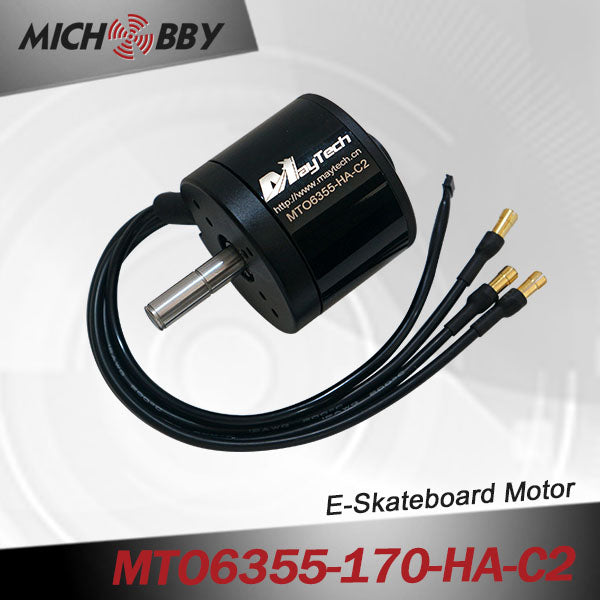

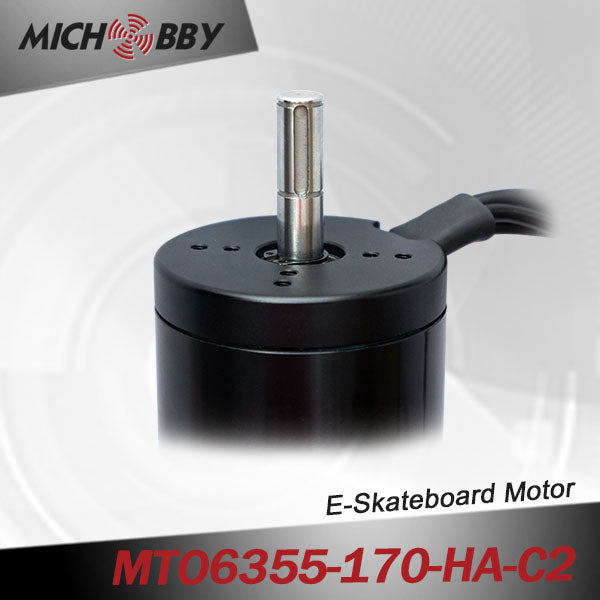

Model NO MTO6355-170-HA-C2
Motor KV 170(RPM/V)
Shaft 10mm
Idle Curren 1.0A
Max. Current 65A
Input Volt 2-12Lipo cell
Max. Output Watt 3510W
Max. Pull 12000g
Net Weight 522g
Motor Diameter 63mm
Internal Resistance 0.0441
Hall Sensor with hall sensor
Feature

with dustproof and waterproof function

maytech 6355 170KV motor for electric longboard motorized skateboard comb VESC+Motor

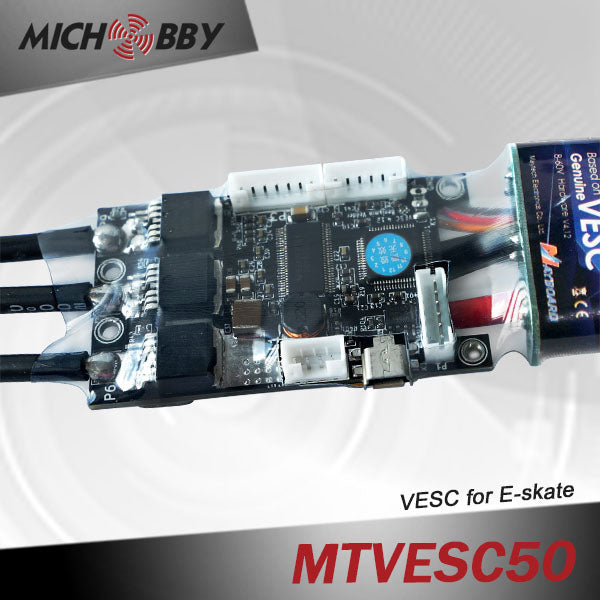

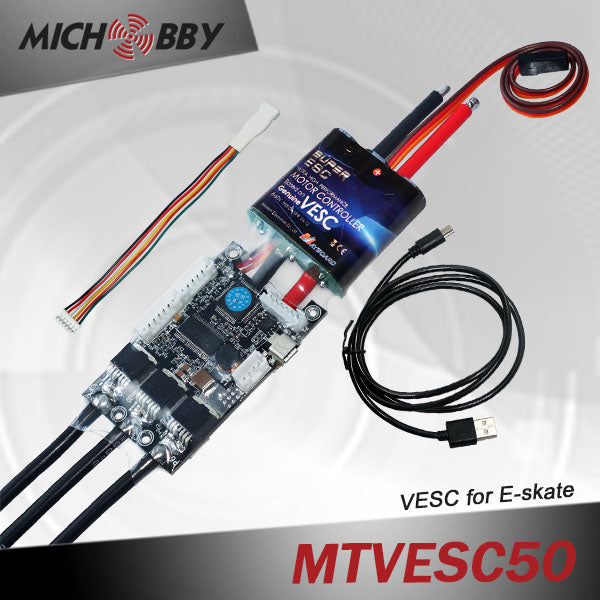

2. VESC Specification

Application e-skateboard/E-bike
BEC 5V BEC
Lipo 3-12Cells
Voltage 8V-60V
Accessory with USB cable
Package W/ Box
Capacitors 3pcs 680uf 63V
Dimension of VESC board 60x40mm
Power wire Silicon wire
Connectors 5.5mm Golden Connectors

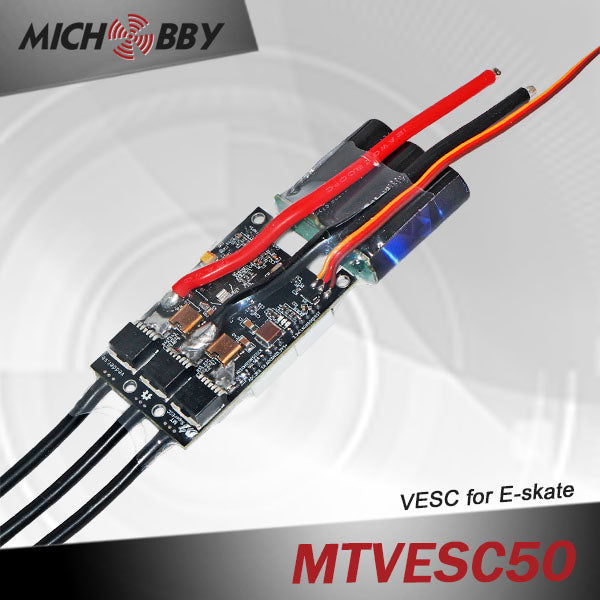

maytech VESC50A Electric speed controller vesc for Esk8 fighting robots combat robotics

Application: Electric skateboard, Esk8, longboard, mountainboard, offroad skateboard, city skateboard, street skateboard, motorized skateboard, electric longboard, electric surfboard, Esurf, Efoil, electric foil, foilsurf, foilsurfing, surffoil, surfjet, jetski, jetboard, electric hydrofoil, etc.,,

ROV/ROVEEE/remote
operated vehicle, underwater robot, Underwater Robotics/underwater remotely operated vehicles, subsea robots,cablecam, broadcast, IBC2019, Ultra drones,security monitoring robots,robots for security and safety monitoring in harsh terrain, agile robots, autonomous agile robots, security robots, autonomously monitor security, combat robots, fighting robots, etc.,

Maytech VESC Advantages:

  1. The 5.5mm golden connectors are soldered on the VESCs. It costs extra expense and also extra soldering processing method.
  2. Maytech VESCs come with 3pcs pf 680uf 63V capacitors which are soldered on the capacitor PCB. The capacitors are very important for every ESC. They can make sure the ESCs’stability when the ESCs speed up or slow down.

Why do we solder the capacitors on the capacitor PCB?

a)The capacitor PCB can stabilize the 3pcs 680uf 63V capacitors better than those are attached on the cables.

b)The capacitor PCB make the VESC look good and clean.

3. Maytech VESCs come with the USB cables and the sensor cables.

The USB cables are used for programming.

The sensor cables are used for the sensored motors when the original sensor cables on the motors are not compatible with the VESCs.

  1. Maytech uses the genuine Mosfets which come with circles and unclear writing.

However, the substituted Mosfets are with the clear writing and no circles. Many suppliers use the substituted Mosfets because of the lower cost.
