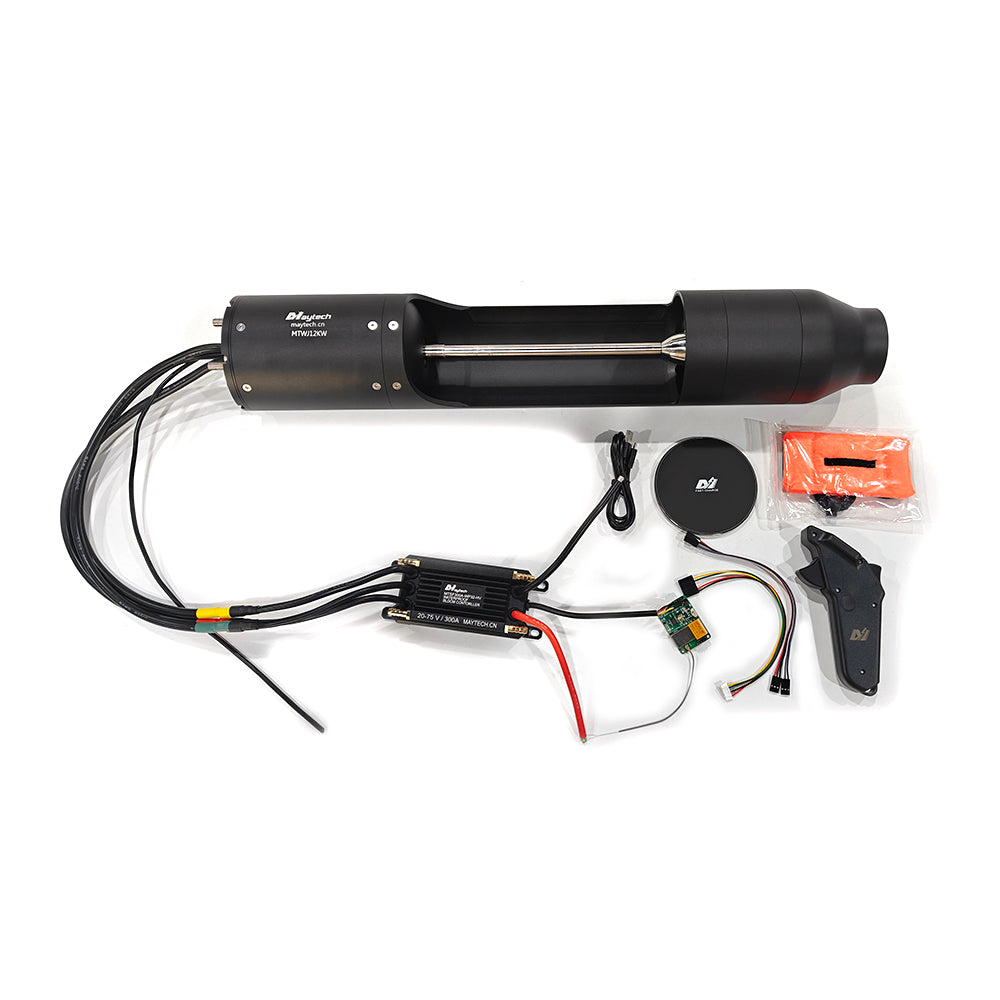

Max 72V Electric Jetsurf Kit Maytech Electric Water Jet Pump With Waterproof ESC Remote Kit For Electric JetSki Jet Kayak Jetboard
Max 72V Electric Jetsurf Kit Maytech Electric Water Jet Pump With Waterproof ESC Remote Kit For Electric JetSki Jet Kayak Jetboard
SKU:MTWJ12KW+MTSF300A-WP32+Progcard32+MTSKR1905WF
Precio habitual
$1,383.11
Precio habitual
$1,455.90
Precio de oferta
$1,383.11
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Have Doubts? Contact US!!
Have Doubts? Contact US!!

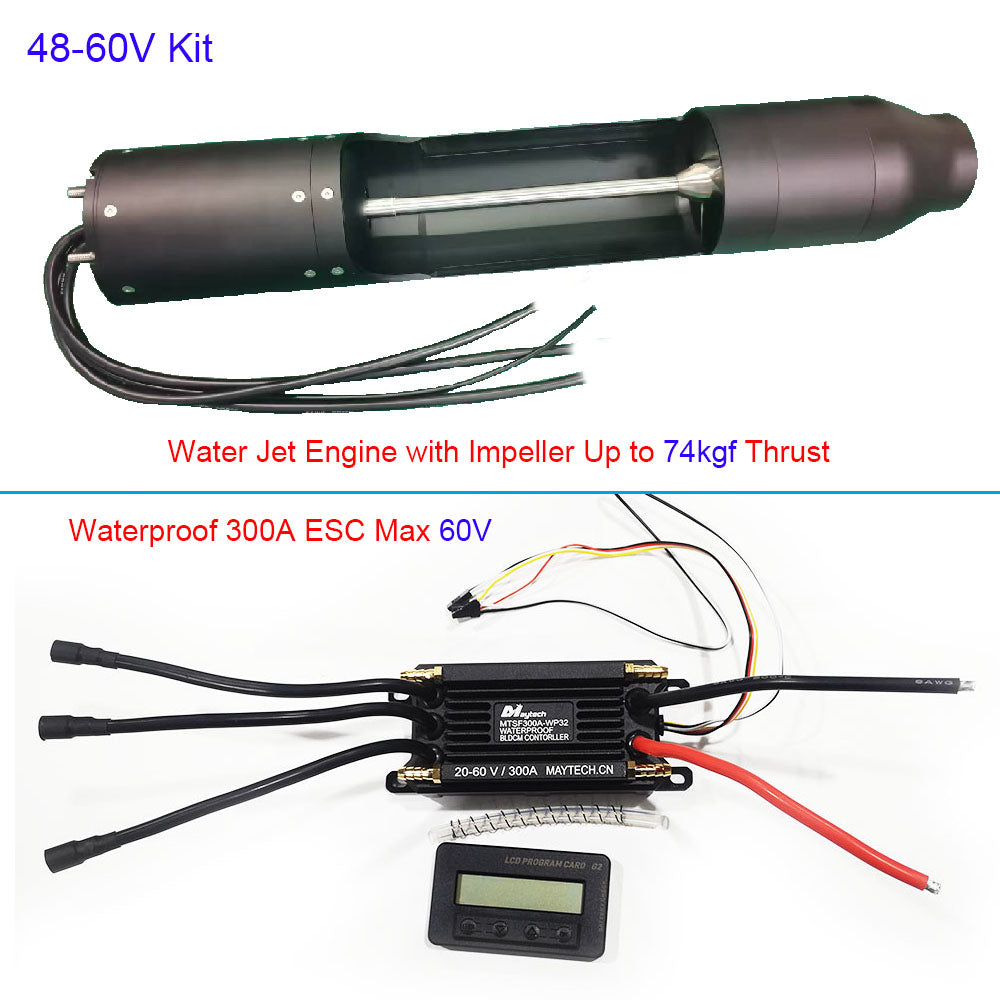

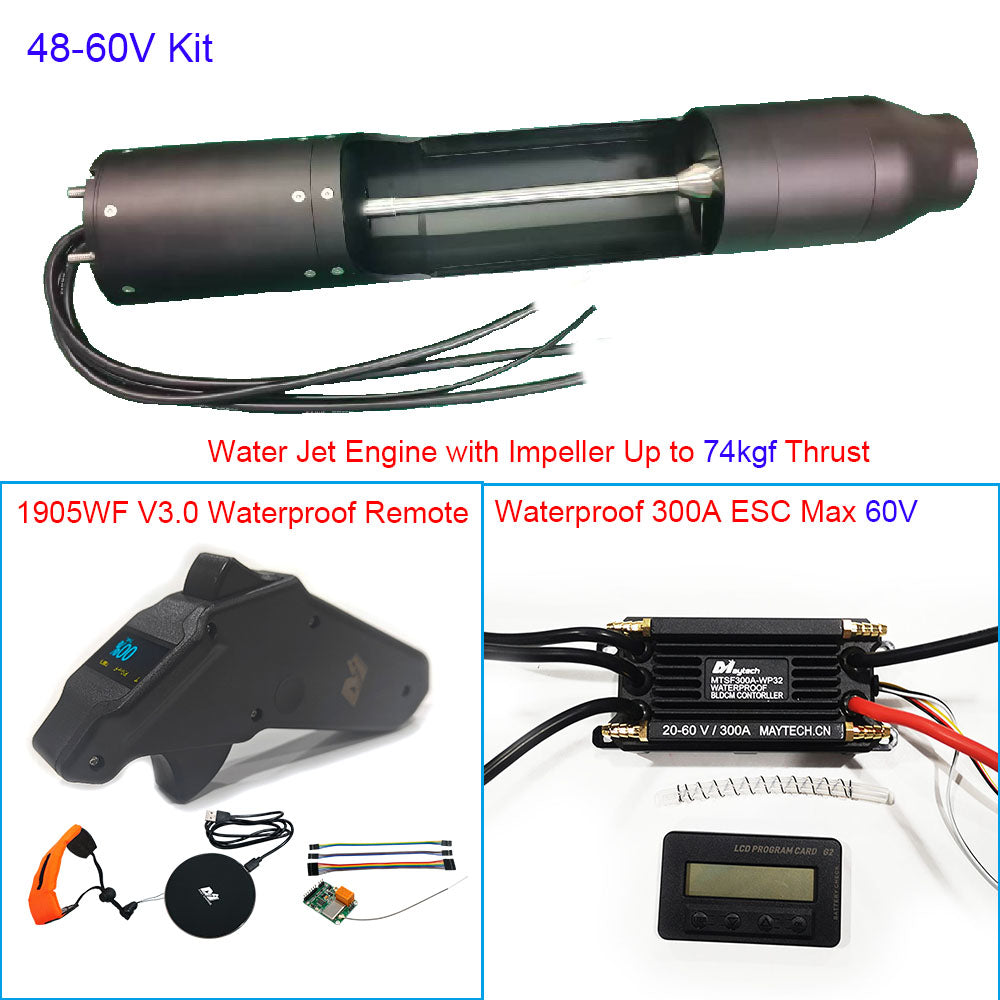

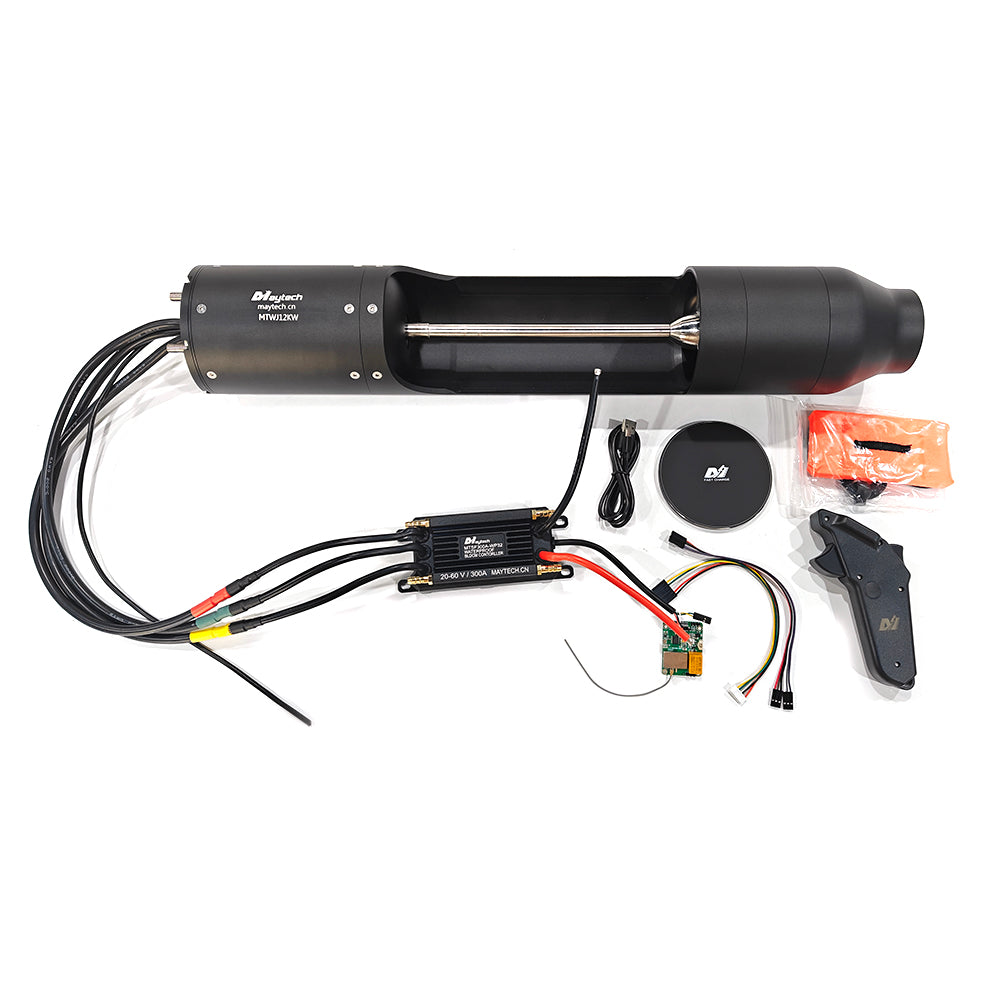

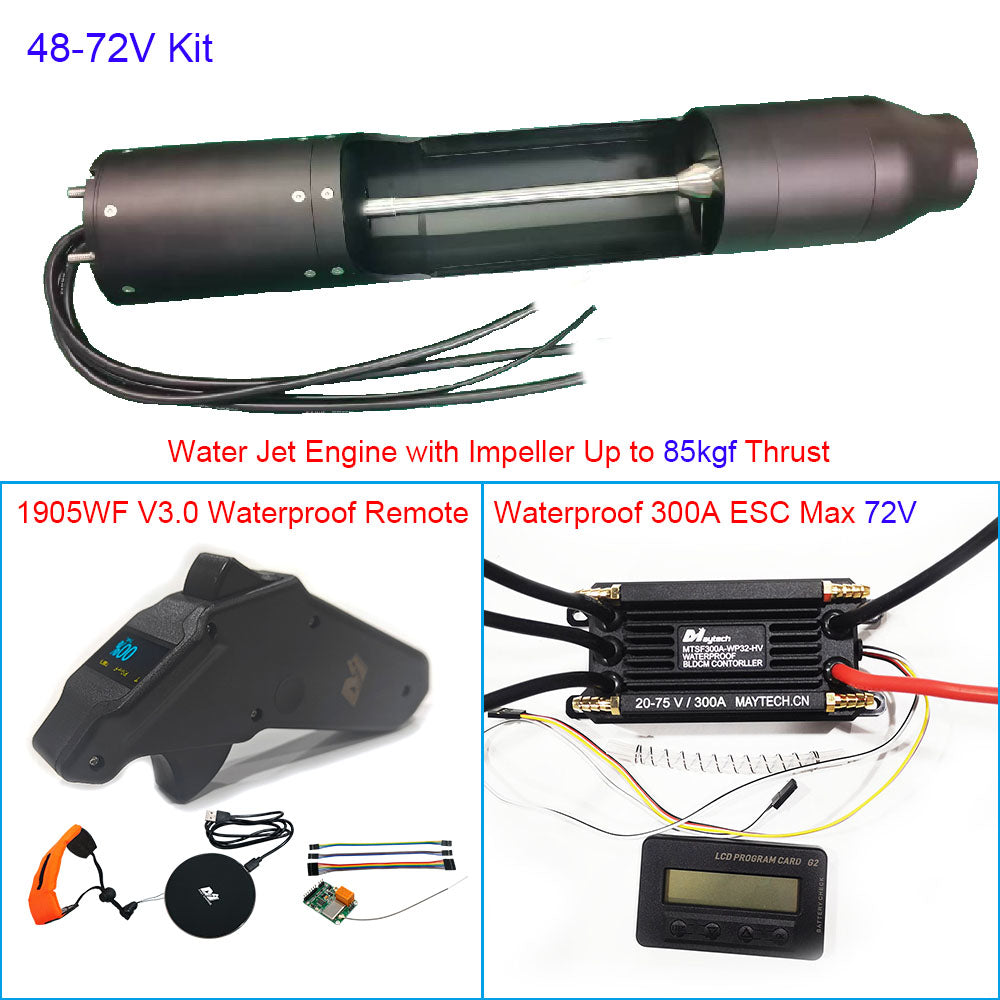

Max 60V or 72V Electric Jetsurf Kit Maytech Electric Water Jet Pump With Waterproof ESC Remote Kit For Electric JetSki Jet Kayak Jetboard
Specifications:

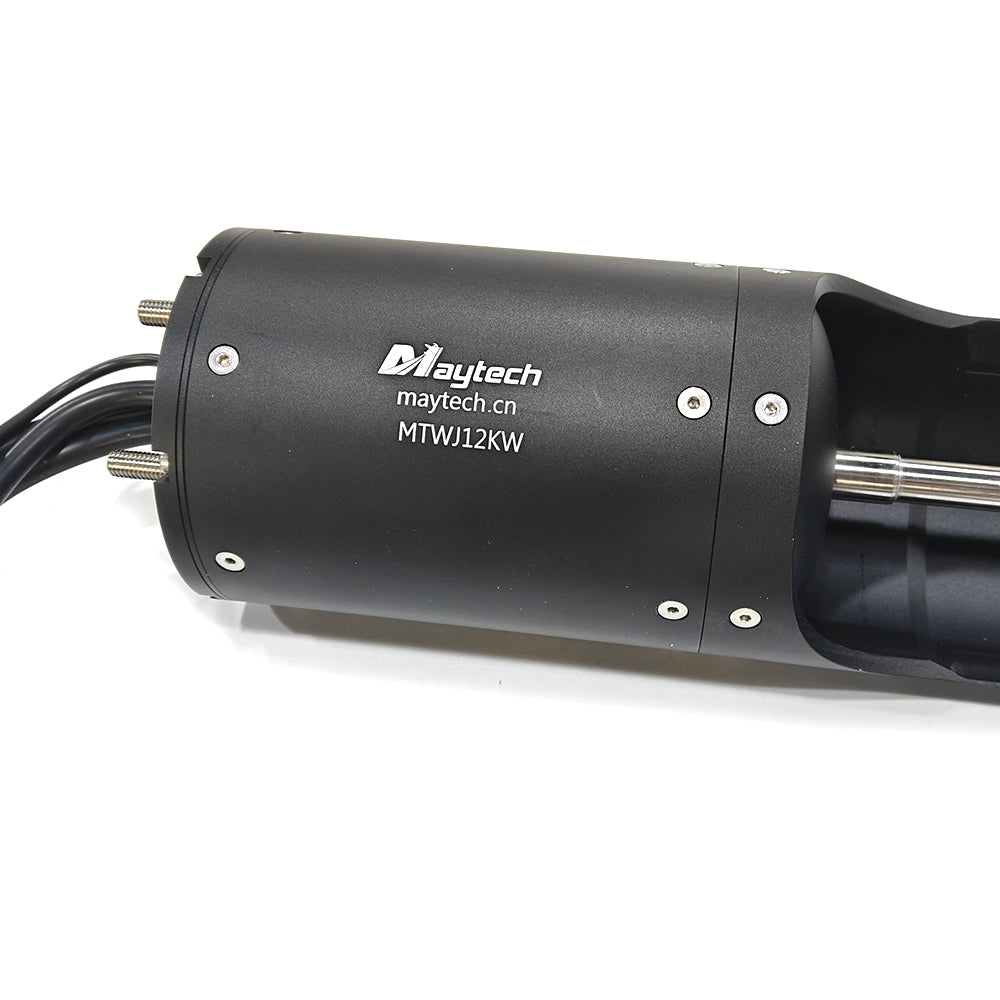

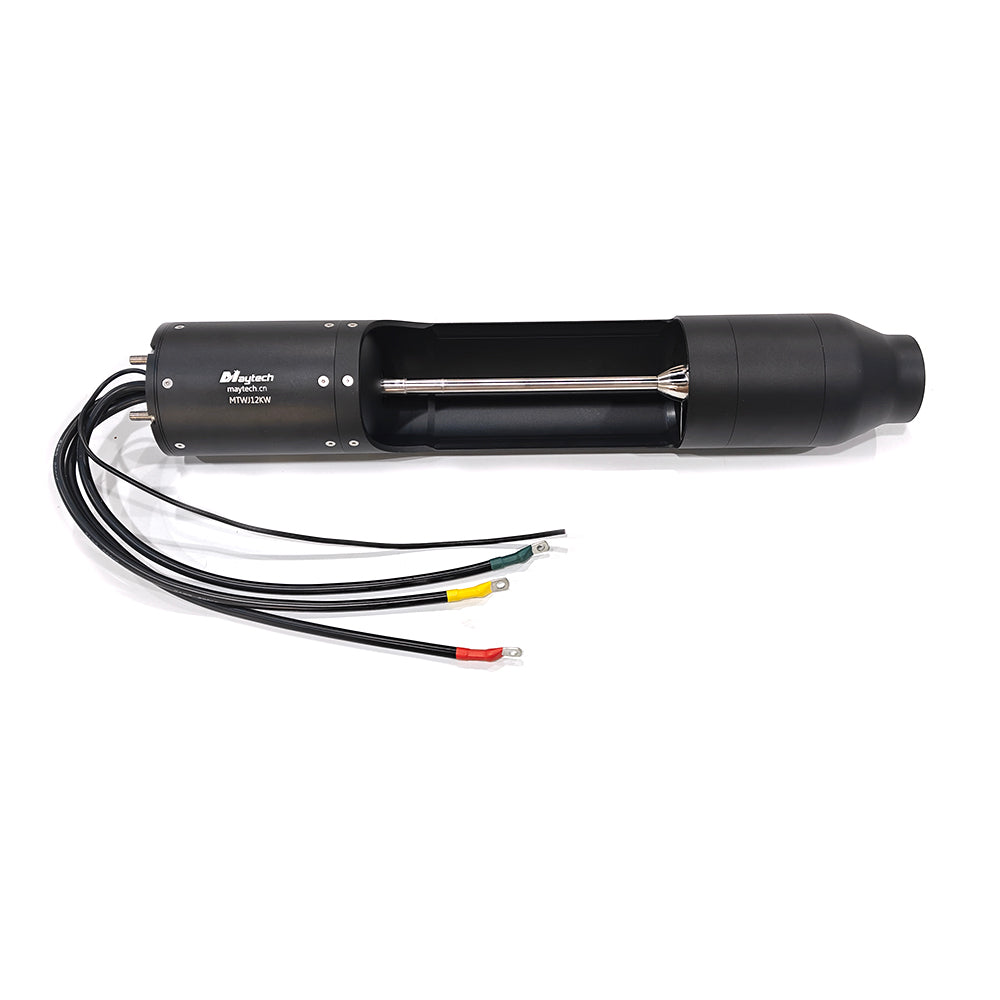

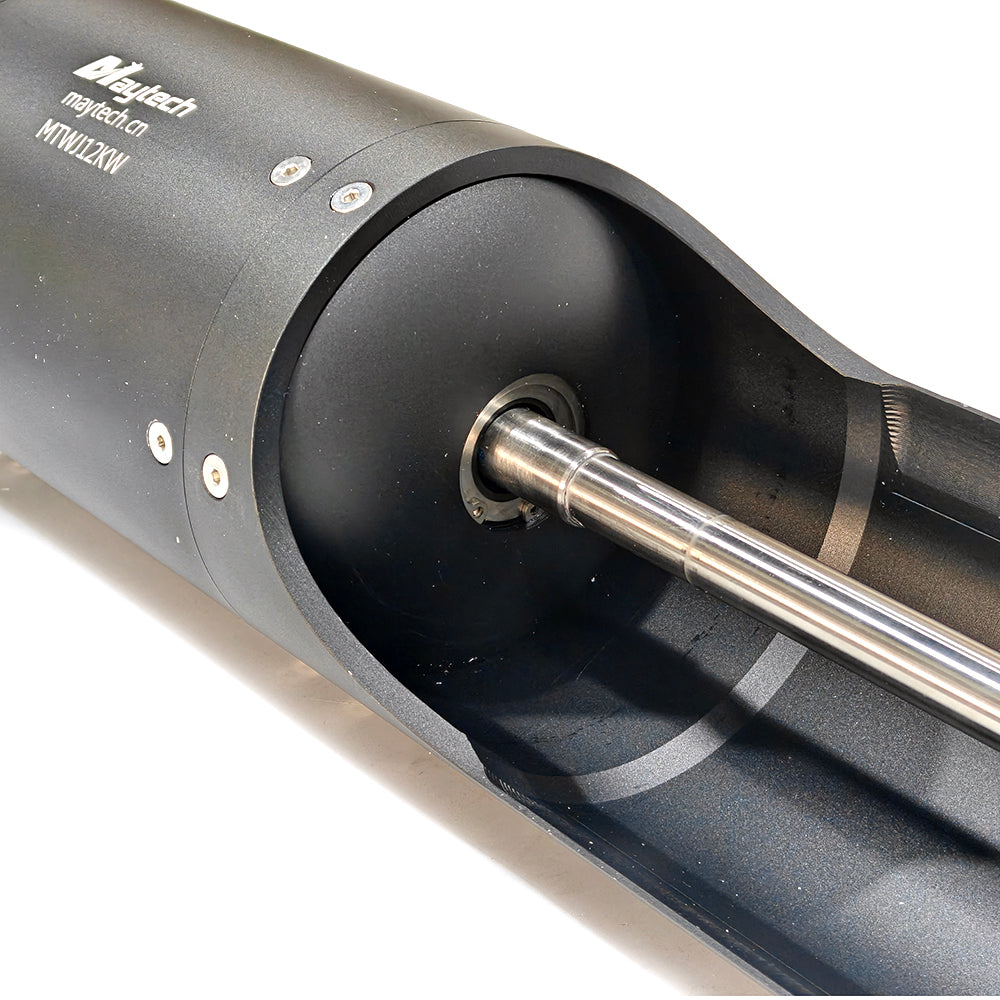

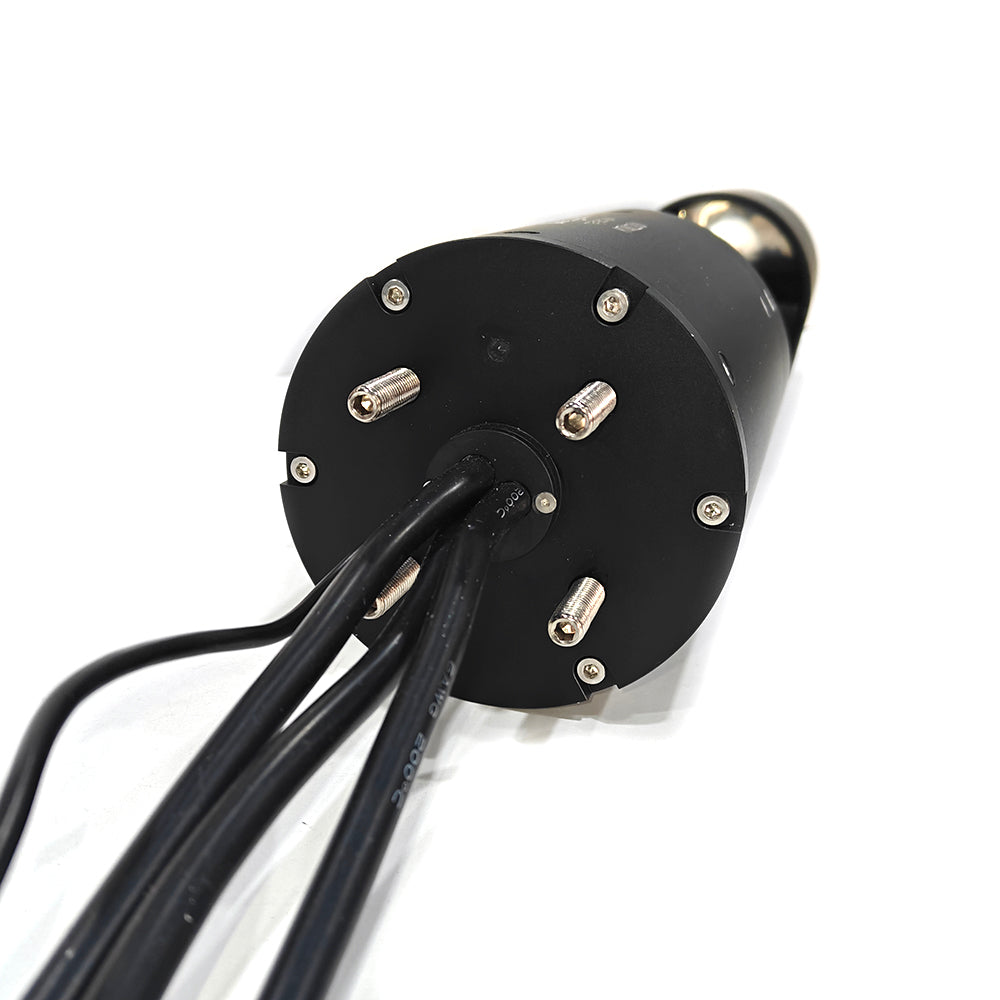

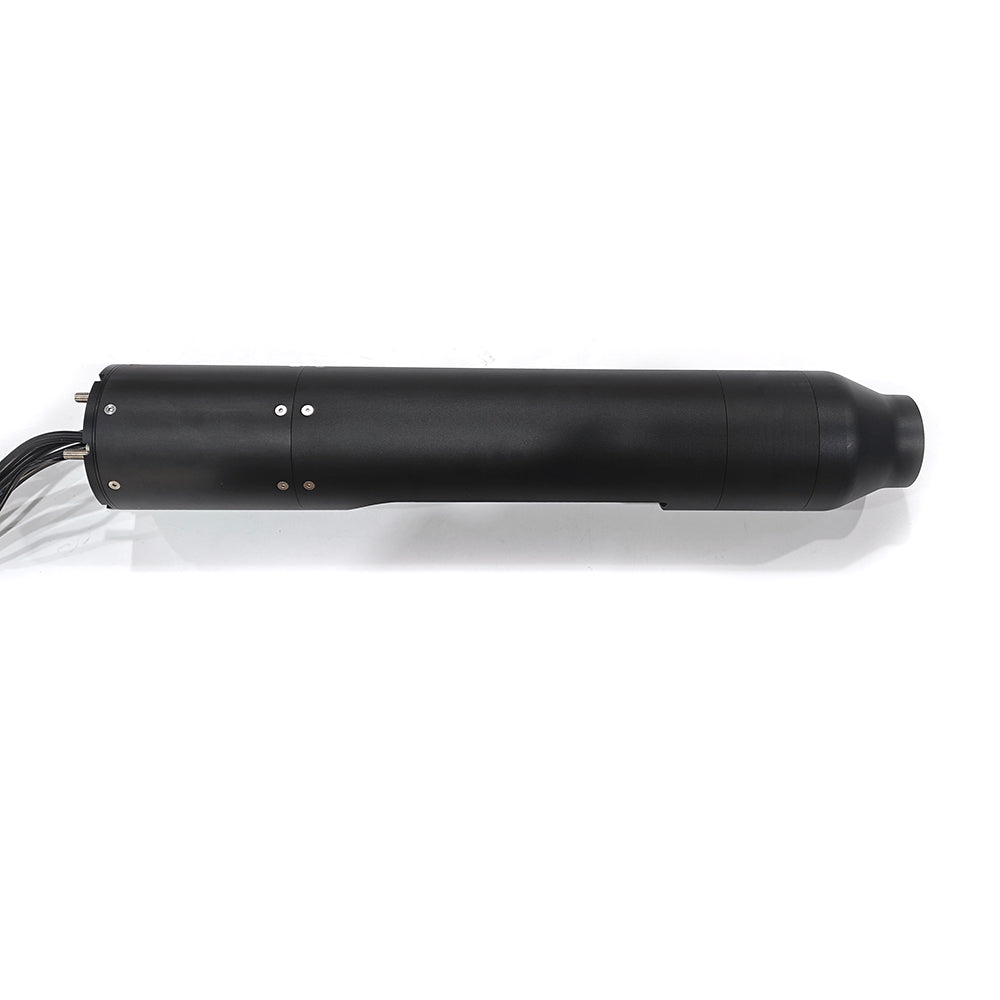

1. MTWJ12KW Electric Waterjet Including Motor + Jet pump
| Model No | MTWJ12KW-125 |
| Voltage range(LiPo) | 48-60V / 48-72V according to ESC option |
| Max Spin Speed(RPM) | 10500 |
| KV Speed Constance kV(RPM/V) | 125KV |
| A Torque Constance Kt(N*M/A) | 0.10082 |
| Current @8.4V without Loading(A) | 2.2A |
| Max Power（KW） | 15.8 |
| Peak current（A） | 300 |
| Max Effeciency | 94% |
| Max torque@60%(N*M) | 31.8 |
| Rating Power(KW) | 12.5 |
| Rating Torque (N*M) | 21 |
| Construction | 12N/10P |
| Max working temperature | 120︒C |
| Insulation voltage & leak current | AC500V/10MA/3S |
| Lead wires extension | 6AWGx300mm |
| Thermal resistor | TP1000 |
| Thermal resistor connector | Runlai RL-M12-2 |
| Plug | TM25-6 |

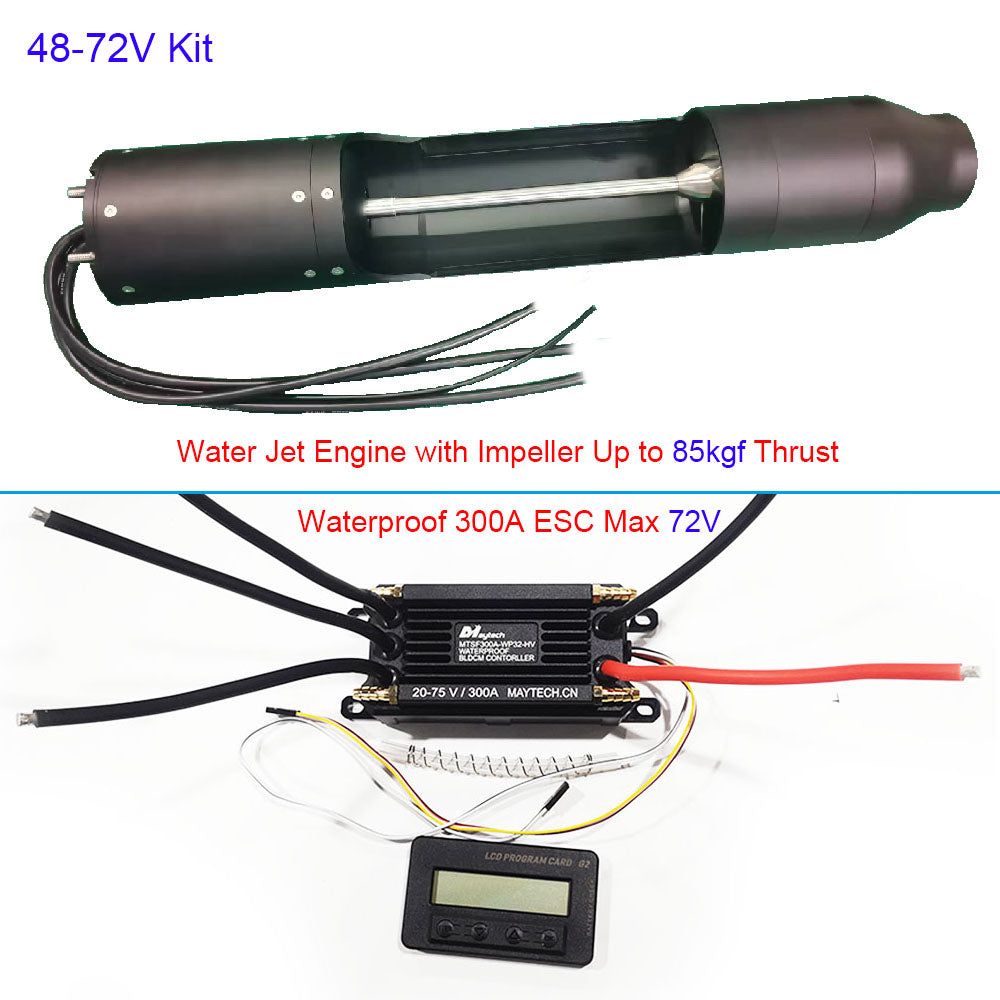

2. Maytech 32Bit 300A ESC Waterproof Electric Speed Controller with progcard32
Version 1:
Model No.: MTSF300A-WP32 with progcard32
Input Voltage: 48-60V in this kit
Version 2:
Model No.: MTSF300A-WP32-HV with progcard32
Input Voltage: 48-72V in this kit
Waterproof Rank: IP68
Cont Current: 300A
Peak Current (at 10S): 320A
With 5V BEC
Weight: 585g
Size: 122*62*40mm (150*62*40mm inlcuding mounting holes)
Cable Guage: 8AWG
Max ERPM: 100000
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.

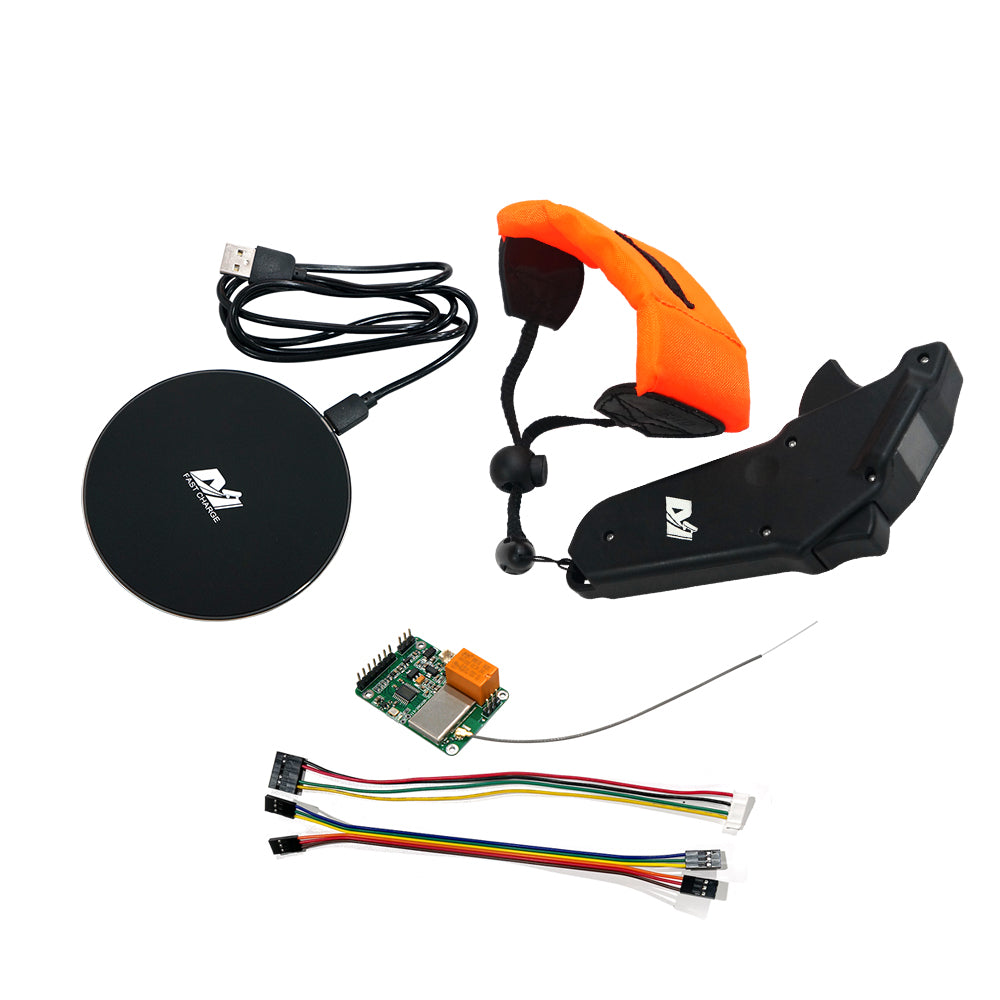

3: Maytech MTSKR1905WF New Updated version waterproof remote for efoil electric surfboard DIY skateboard longboard (Click for more remote details) |
|||
| Model no |
MTSKR1905WF updated version | Packing | cartons box |
| Function | wireless charging |
Display screen |
Yes |
| Accessory | receiver and charging pad | Signal type |
PWM |
| FREE Accessory | Strip (color is random) | Esurf mode |
with cruise control |
| Batt voltage display | 3-18S | Esk8 mode | with brake |
New remote updated functions:
1. New version updates from April 2024:
● with 3 adjustable speed modes;
● with throttle lock function for safety;
● with Eco and Pro modes for different signal strength;
● compatible to Maytech new 32bit MTSF300A-WP32/MTSF300A-WP32-HV ESC to ready current/votlage/rpm datas, etc;
● add a page to display main battery voltage percentage;
● This version contains functions of old firmware versions V1.32.1 (or V1.31.1) and V2.32.2(or V2.32.1). etc.
2. Display shows more:
Besides remote battery and main battery voltage, it can show motor RPM; if use it with VESC controllers, it can show current, speed(esk8 mode), temperature.
3. Signal:
Remote and receiver signal strength is enhenced to avoid some signal interference nearby.
4. Waterproof function is updated:
Two layers of nanometer-coating are added to remote.
5. Remote can wirelessly control two switches:
Remote can control two switches, such as light, pump.
6. Receiver supports double-souce powersupply:
Receiver can accepts 5V/3.3V power .
Drawing:
Test Curves:
Test Datas:
Test Video:
