New MTSPF4.6K 100A SUPERFOC ESC based on V4.12 VESC_TOOl Compatible speed controller

New MTSPF4.6K 100A SUPERFOC ESC based on V4.12 VESC_TOOl Compatible speed controller

SKU:MTSPF60100

Normaler Preis $137.50
Normaler Preis Verkaufspreis $137.50
Sale Ausverkauft
Versand wird beim Checkout berechnet
Style

Have Doubts? Contact US!!

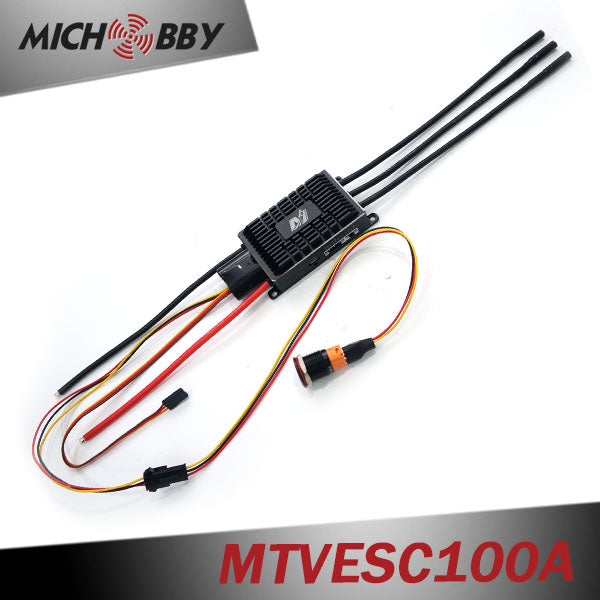

This ESC has been updated to 100A VESC6 based ESC, Please click to check new version:

New 100A VESC6 Based ESC for Efoil DIY Foil Assist ROV Electric SUP Board Esurf Assist Electric Skateboard Robots
-------------------------------------------------------------------------------
Specifications of MTSPF4.6K 100A 12S SUPERFOC ESC based on V4.12 speed controller:
Application electric skateboard longboard, fighting robots, combat robots, cablecam, etc
BEC 5V BEC
Lipo 3-12Cells
Voltage 12V-50.4V
Hardware version based on V4.12
Firmware version Updatable, VESC_TOOL Compatible
Cont. Current 100A
Burst Current 280A
Capacitors With high quality aluminum case, better heat dissipation

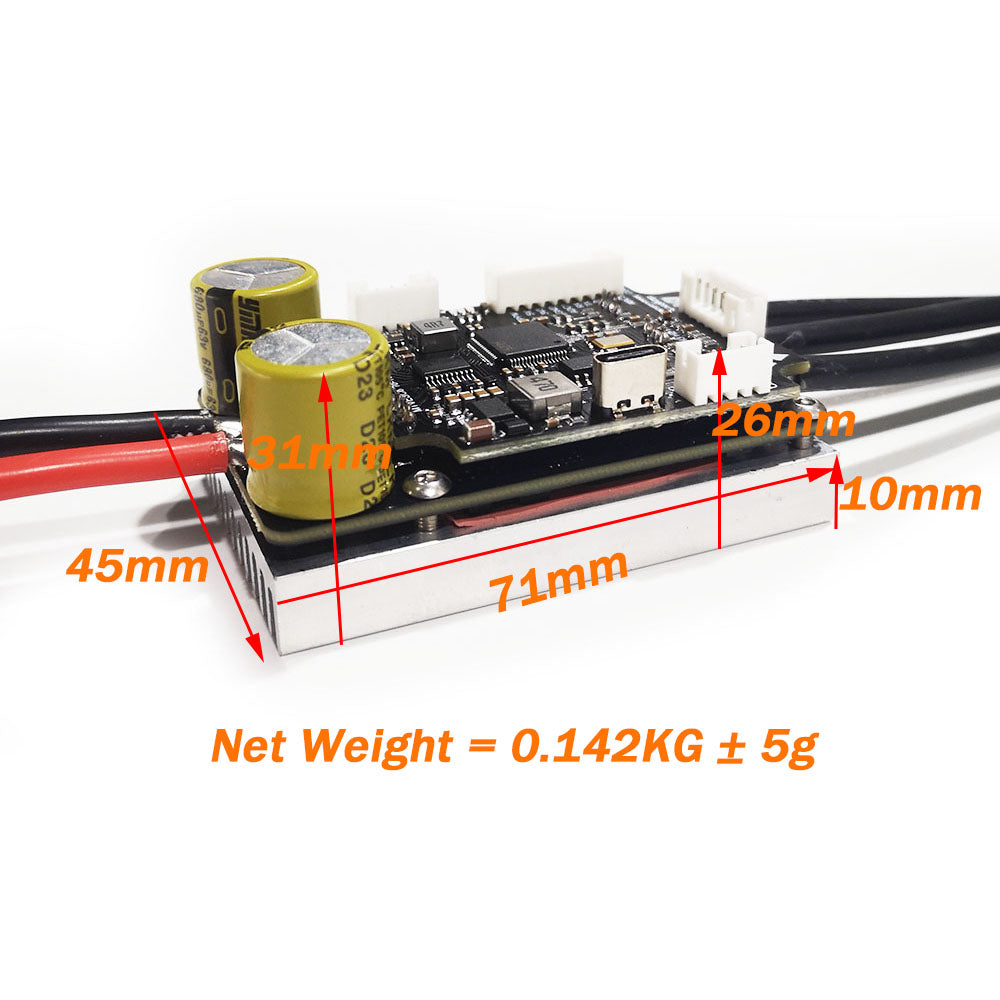

Case Size 71.5mm(L)x45.8mm(W)x18mm(H)
Power wire Silicon wire

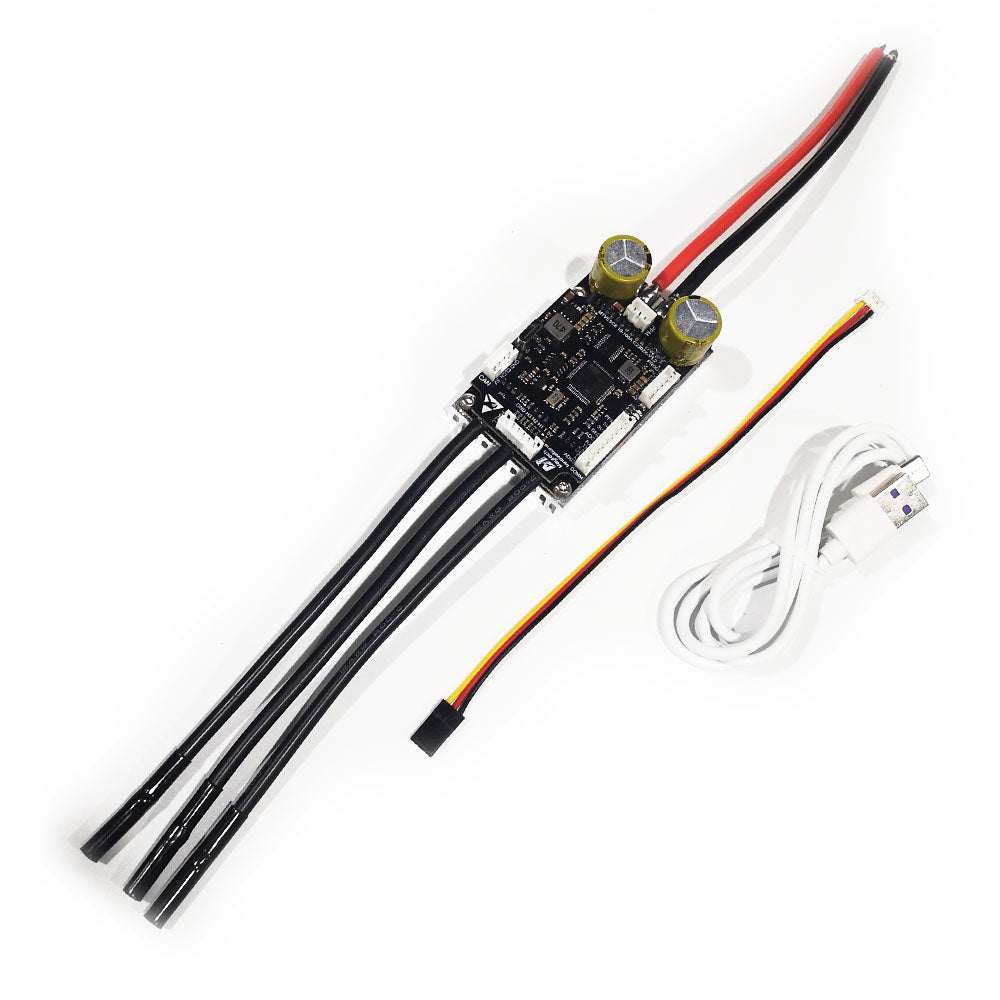

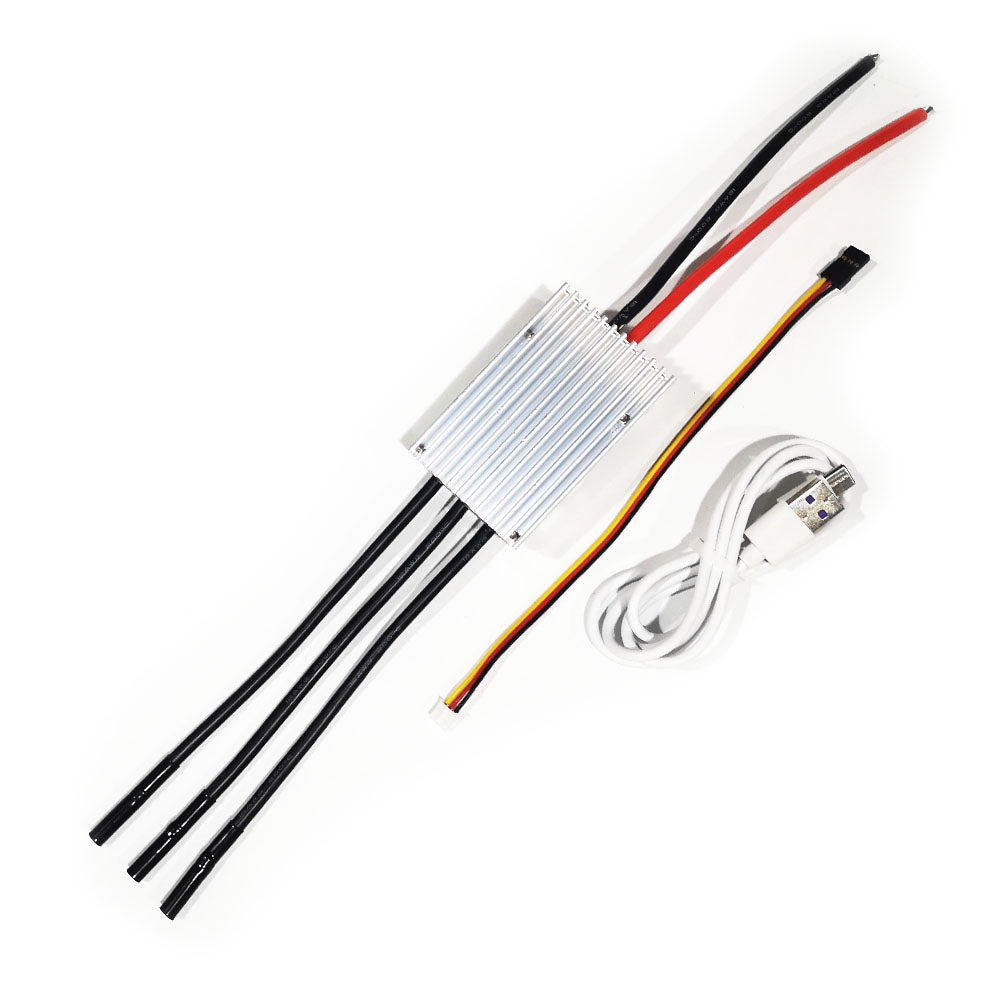

Accessory USB programming cable

Features:
With 4.0mm golden connectors for motors, without connector for battery.
With high quality aluminum case, better heat dissipation
Dust‐proof and splash‐proof
Compatible with sensor or sensorless motor
Sensored or Sensorless operation
Great start‐up torque with sensorless motors
Soft‐switching to reduce the losses in power electronic switches
Separation of low power electronics from the high power electronics, make it more reliable.
