In Stock! Esk8 Dual 5065 Motor Kit Electric longboard kit dual motor trucks with motor mounts and pulleys

In Stock! Esk8 Dual 5065 Motor Kit Electric longboard kit dual motor trucks with motor mounts and pulleys

MTSKT310DB+MTSKP2005*2+MTO5065-170-HA-C*2

$336.64
$420.80 $336.64
Sale Ausverkauft
Versand wird beim Checkout berechnet
Style

Have Doubts? Contact US!!

Contact US!!

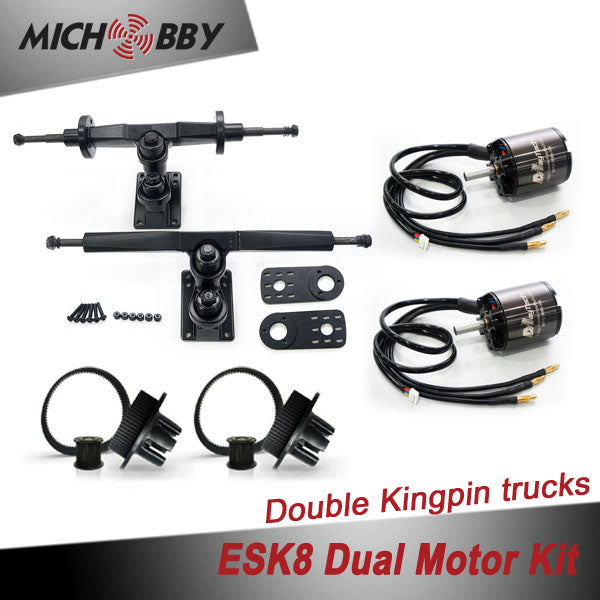

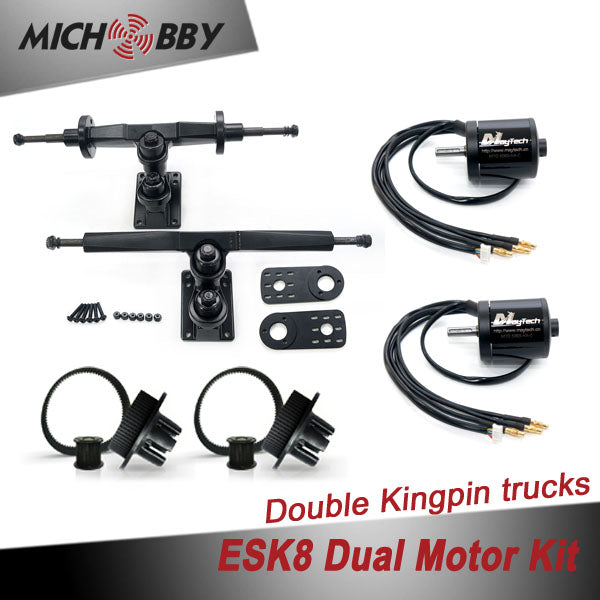

 Price includes:

  • 1pcs rear truck, 1pcs front truck, 2pcs motor motor mounts
  • 2pcs wheel pulleys, 2pcs motor pulleys, 2pcs belts
  • 2pcs motors (sealed motors MTO5065-170-HA-C or non-sealed motors MTO5065-220-HA)

Recommend suitable wheels: 4PCS Longboard Wheels Electric Skateboard Wheel 97mm/90mm/83mm

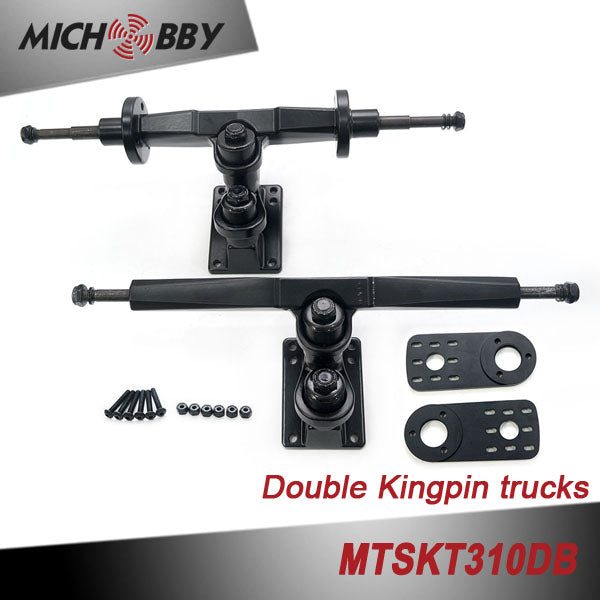

1. Specifications of dual belt driven electric skateboard truck MTSKT310DB for electric longboard (1Set):

MTSKT310DB
Dual‐belt‐driven Skateboard Truck

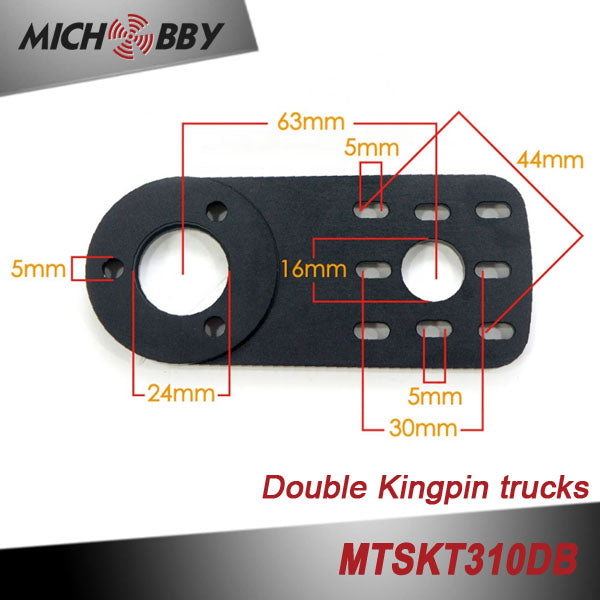

Rear and Front trucks with two motor mounts

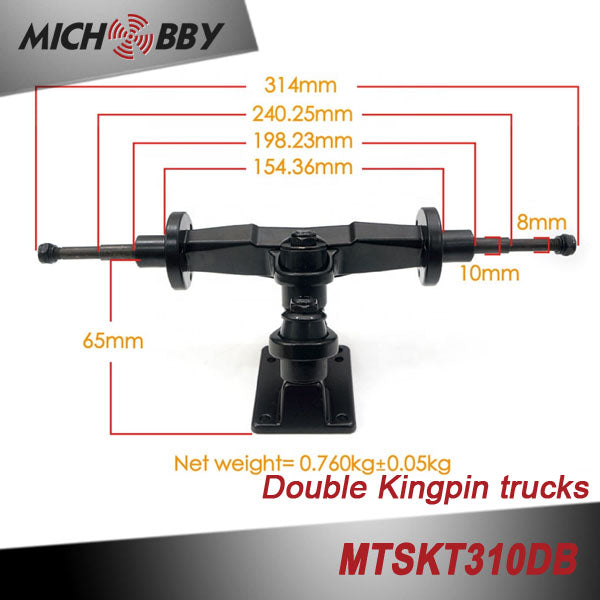

Truck size: 12inch

Frame materials: 356‐T6 alloy aluminum alloy

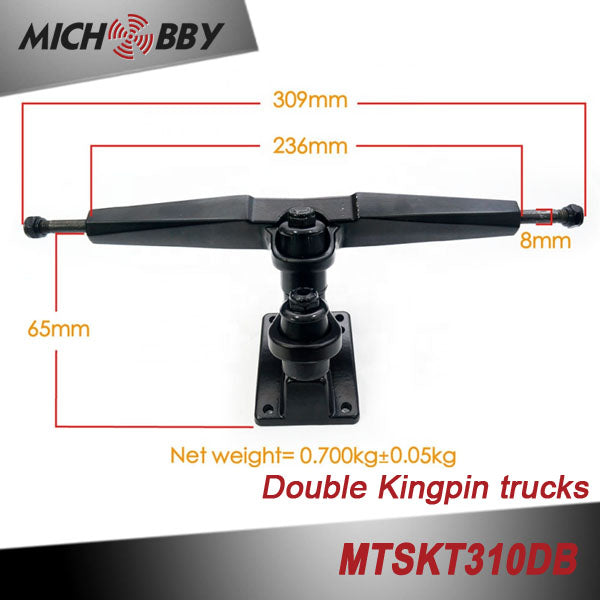

Weight: 760g/pcs for back truck, 700g/pcs for front truck

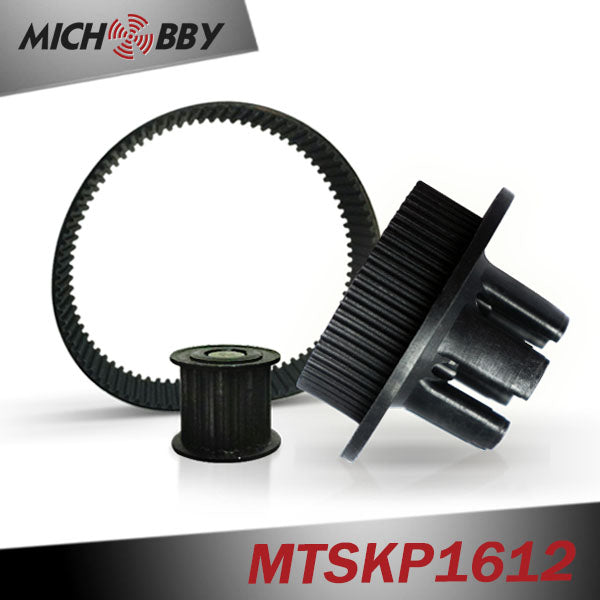

2. Specifications of MTSKPS1612 Pulley and belt combos (2Sets)

2x17mm wide nylon wheel pulley
2x16mm wide steel wheel pulley
2x15mm wide belt

3. MTO5065-170-HA-C or MTO5065-220-HA motors ( 2pcs )

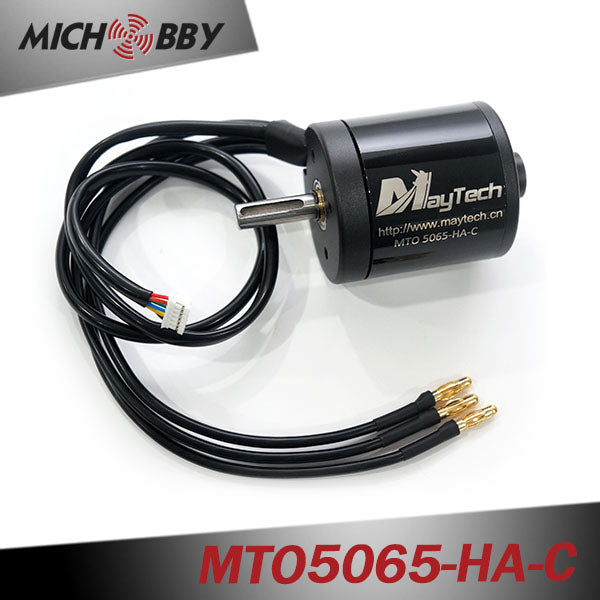

Specifications of MTO5065-170-HA-C 5065 170KV sealed cover motor for diy electric longboard:

Model NO MTO5065-170-HA-C
Motor KV 170(RPM/V)
Shaft 8mm shaft with 3mm keyway
Idle Curren 1.2A
Max. Current 50A
Input Volt 2-10Lipo cell
Max. Output Watt 1815W
Max. Pull 6700g
Net Weight 450g
Rated Current 42.5A
Internal Resistance 0.0361
Hall Sensor
 With hall sensor
Application For electric skateboard/e-bike/fighting robots
Feature Waterproof and dustproof function

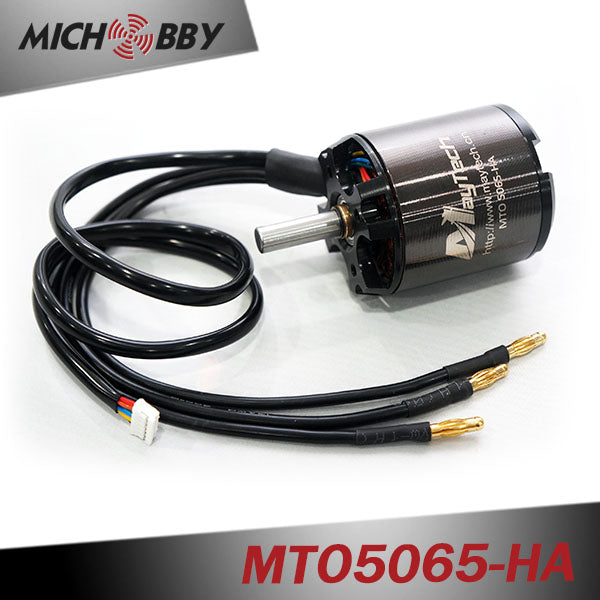

Specifications of MTO5065-220-HA 5065 220KV non-sealed motor:

Model NO MTO5065-220-HA
Motor KV 220(RPM/V)
Shaft 8mm
Idle Curren 1.2A
Max. Current 50A
Input Volt 2-10Lipo cell
Max. Output Watt 1815W
Max. Pull 6700g
Net Weight 435g
Rated Current 42.5A
Internal Resistance 0.0361
Hall Sensor
 With hall sensor
Application For electric skateboard/e-bike/marine robots


Features:

  • The up and bottom caps are made of aluminium alloy.
  • The motor case is made of steel.
  • The static balance is confirm.
  • NMB Japanese bearings
  • N45SH sintered ndfeb magnets
  • Stator is stacked with silicon steel
  • Use high temperature and oxygen-free copper wire
  • SUS 420 Stainless steel shaft
  • 0.2mm silicon sheet, less consumption
  • Amass golden connectors
  • High-temperature micro ball-bearing
