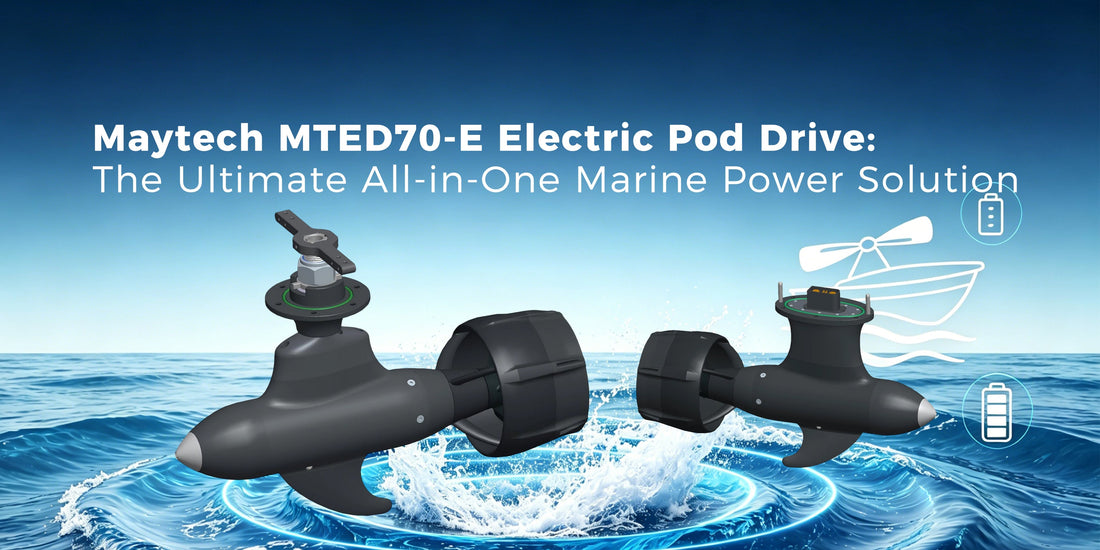

Building or upgrading an eFoil, underwater scooter, inflatable boat, or tow boogie? You need propulsion that’s compact, powerful, waterproof, and easy to install. The new Maytech MTED70‑E is engineered to check every box — a fully integrated pod drive motor with built‑in ESC, optional steering, and IP68 submersible durability.
This isn’t just a motor. It’s a complete, ready‑to‑run marine drive system designed to cut down assembly time and boost reliability.
Tired of sourcing, sealing, and wiring separate ESCs? The MTED70‑E solves it with an integrated electronic speed controller inside the pod.
- Voltage range: 30–60V
- Max current: 159A @48V
- Peak power: 7632W @48V
- True plug‑and‑play for DIY builders & OEMs
Pick the configuration that fits your project:
-
Steerable: Direct directional control for eFoils, boats, and scooters
-
Standard: Simple, strong thruster for fixed propulsion
Ideal for: eFoils, tow boogies, underwater scooters, inflatable boats, small watercraft.
Water damage is the top failure risk in marine motors. MTED70‑E carries IP68 waterproof rating for:
- Saltwater & freshwater
- Full submersion
- Long‑term durability
Tested under load at 20°C water temperature:
| Voltage |
Full Throttle Power |
Max Thrust |
| 36V |
4464W |
47.5 kgf |
| 48V |
7632W |
58.5 kgf |
At 48V and 100% throttle, this motor pushes 58.5 kg of thrust — enough to lift riders, move heavy inflatables, or deliver strong acceleration on an eFoil.
-
KV rating: 103 KV (optimized for marine propeller loads)
-
Propeller: Nylon alloy reinforced (PA66 + 30% carbon fiber)
-
Prop guard: Heavy‑duty plastic
- No hall sensor needed for reliable operation
- Fully customizable: KV, shaft, cable, logo, connectors — contact Maytech for custom builds
This versatile pod motor works across multiple applications:
- E‑Foils & Electric Surfboards
- Tow Boogies & Board Thrusters
- Underwater Scooters & Dive Gear
- Inflatable Boat & Kayak Propulsion
- Small Watercraft & Robotics Thrusters
Whether you’re a hobbyist building a one‑off eFoil or a manufacturer designing a commercial product, the MTED70‑E reduces assembly time, improves reliability, and boosts performance.
Related Products:
MTSKR1905WF Waterproof Remote:
MTTR26 Boat Throttle Lever:
The
Maytech MTED70‑E redefines convenience and power in a marine electric pod drive. With integrated ESC, optional steering, IP68 waterproofing, and nearly 8kW of peak power, it’s one of the most complete turnkey solutions on the market.
If you’re ready to simplify your build and upgrade your watercraft’s performance, the MTED70‑E is ready to perform.
Email: support@michobbycom for customization inquiries.
Stay tuned for more marine electric motor tech from MICHOBBY.COM!
