Maytech Fully Waterproof Efoil Kits 65162 Motor 300A ESC 1905WF Remote 300A Switch and Waterpump Motor
Maytech Fully Waterproof Efoil Kits 65162 Motor 300A ESC 1905WF Remote 300A Switch and Waterpump Motor
SKU:MTI65162-100-SF with MTSP72506+MTSF300A-WP Internal Receiver+MTSKR1905WF+MTWP30W+MTUBEC6.12+MTS2009AS
Couldn't load pickup availability
Have Doubts? Contact US!!
Have Doubts? Contact US!!
Maytech Fully Waterproof Efoil Kits with MTI65162 Motor + 300A ESC + 1905WF Remote + Progcard
( Please note the motor mounting holes are updated to 7 holes now.)
--------------------------------------------------------------------------------------
Frequently Asked Questions:
1. What KV do you recommend for efoil direct drive?
Recommend 100KV. (MTI65162-100-SF)
2. Is the controller V2 version?
Yes, it’s the latest V2 version with many updated functions. For more details, pls refer to: FAQ (frequently asked questions) about Maytech V2 remote contoller MTSKR1905WF
3. Will the system work "out of the box" once connected up properly?will the controller display board battery voltage and controller battery voltage ?
Yes, if select the ESC (Internal Receiver) with built-in receiver and UBEC. And battery voltage detection is connected inside.
4. Will I have to update firmware and set timing etc ? I have read horror stories of burn motors that have been set up wrongly.
ESC will be set for our motor and remote before shipping. When you receive it, you just need to pair remote to the receiver.
5. What battery do you recommend please for this kit for efoil?
Recommend 12s12p or 14s12p 18650 battery pack.

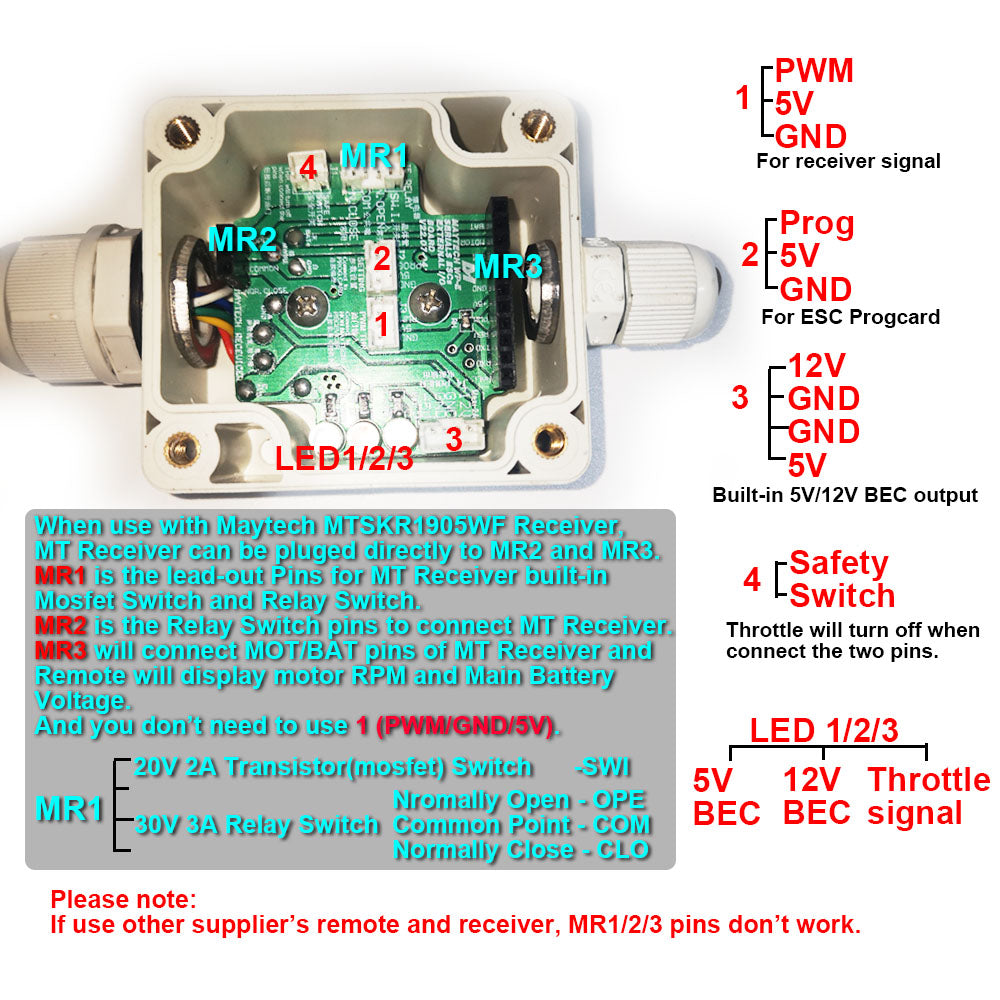

2).the ESC without built-in receiver: the cable is lead out single cable for receiver and also a programing cable inside the waterproof protector.
--------------------------------------------------------------------------------------
Self Test Video: 65162 100KV Motor + 300A ESC + 1905WF + Propeller

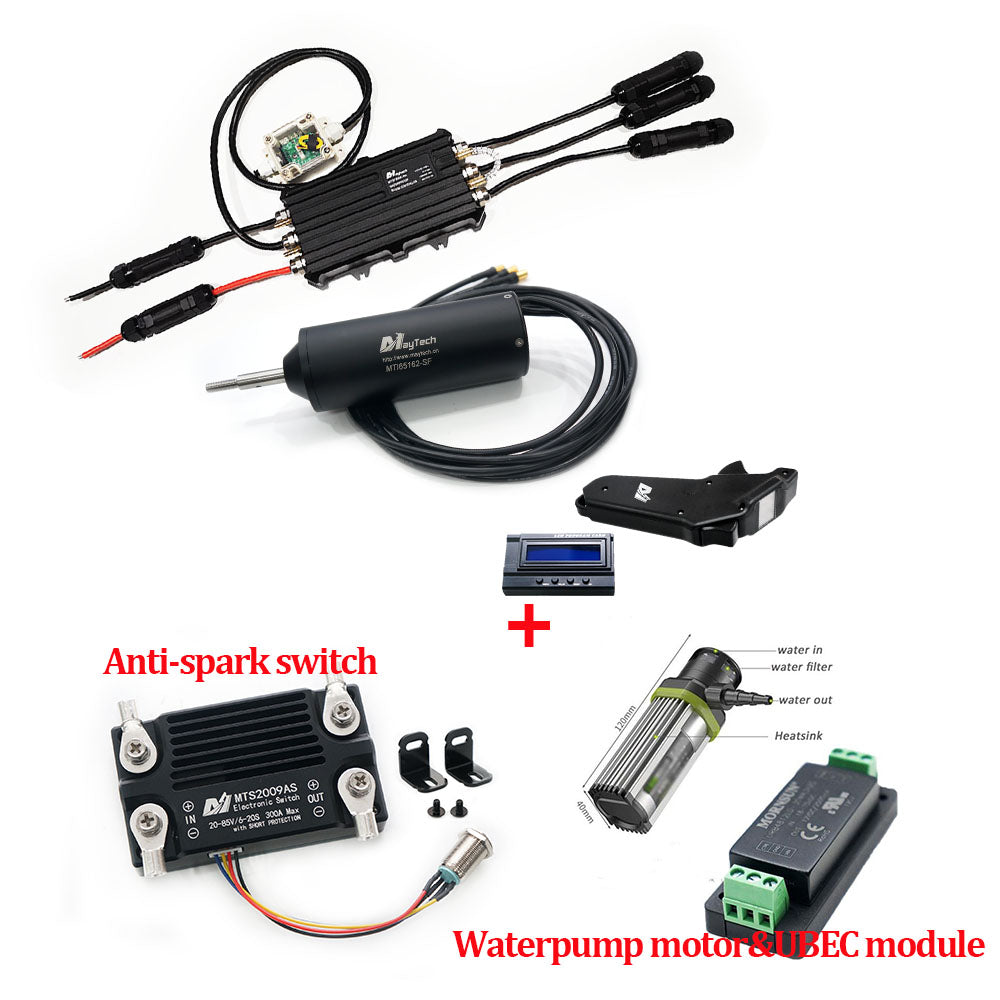

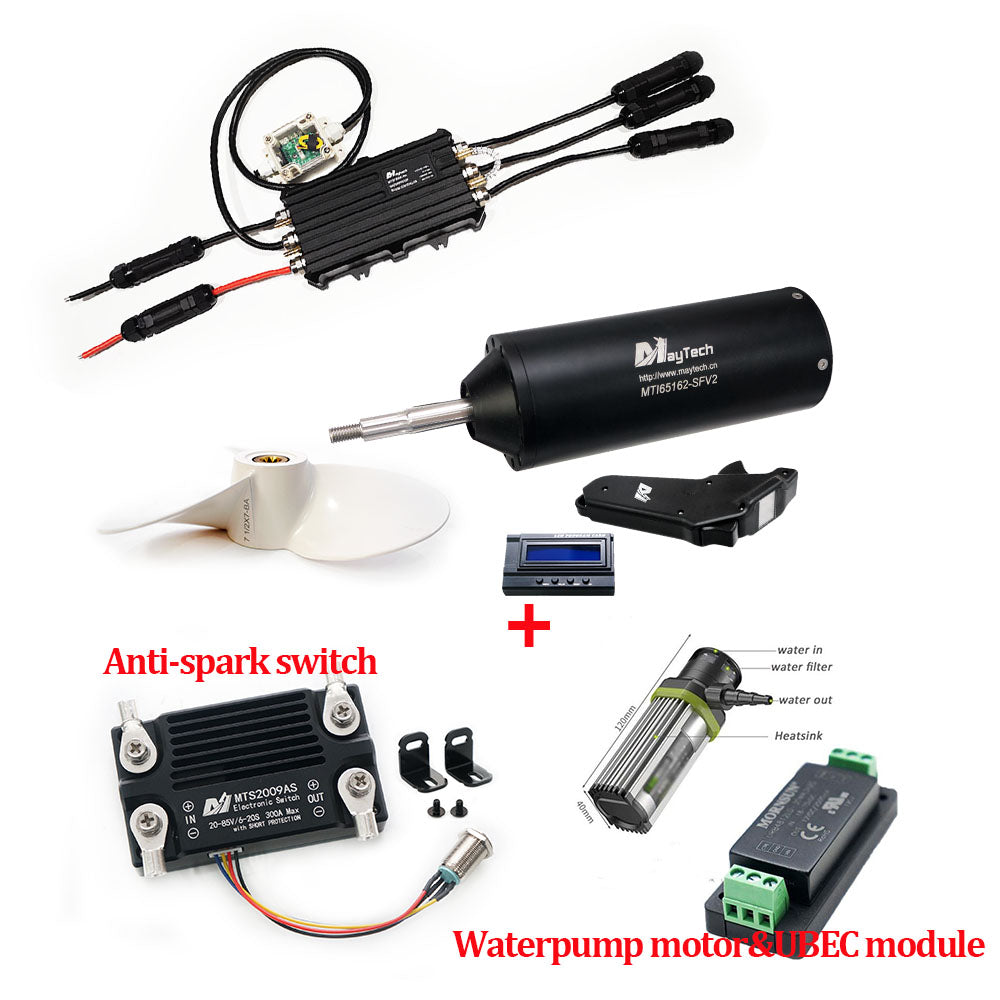

The kit includes:
1x MTI65162 100KV motor + 300A ESC + MTSKR1905WF Remote + Progcard + Free Propeller + MTWP30W Water pump+MTUBEC6.12 DC-DC module+Anti-spark switch MTS2009AS
(Only splined shaft motor with free propeller, screw shaft motor is without propeller. Please note.)
|

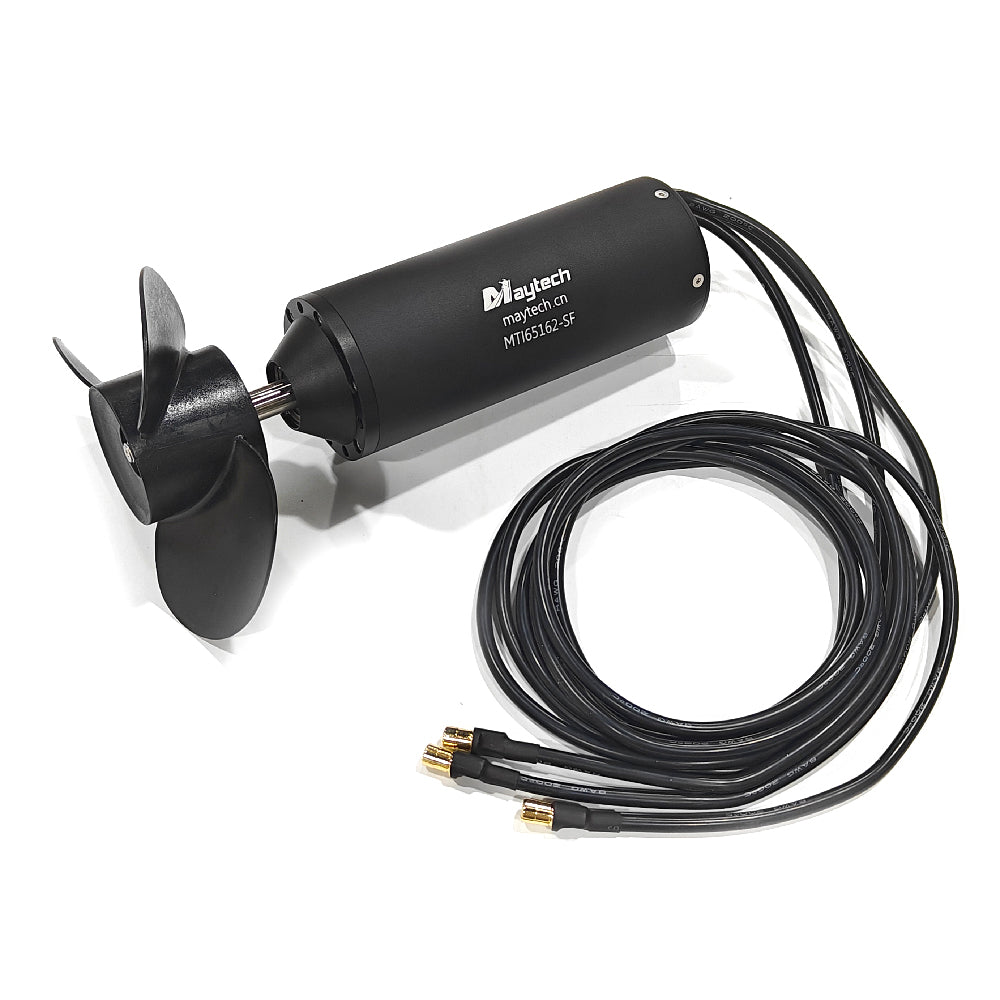

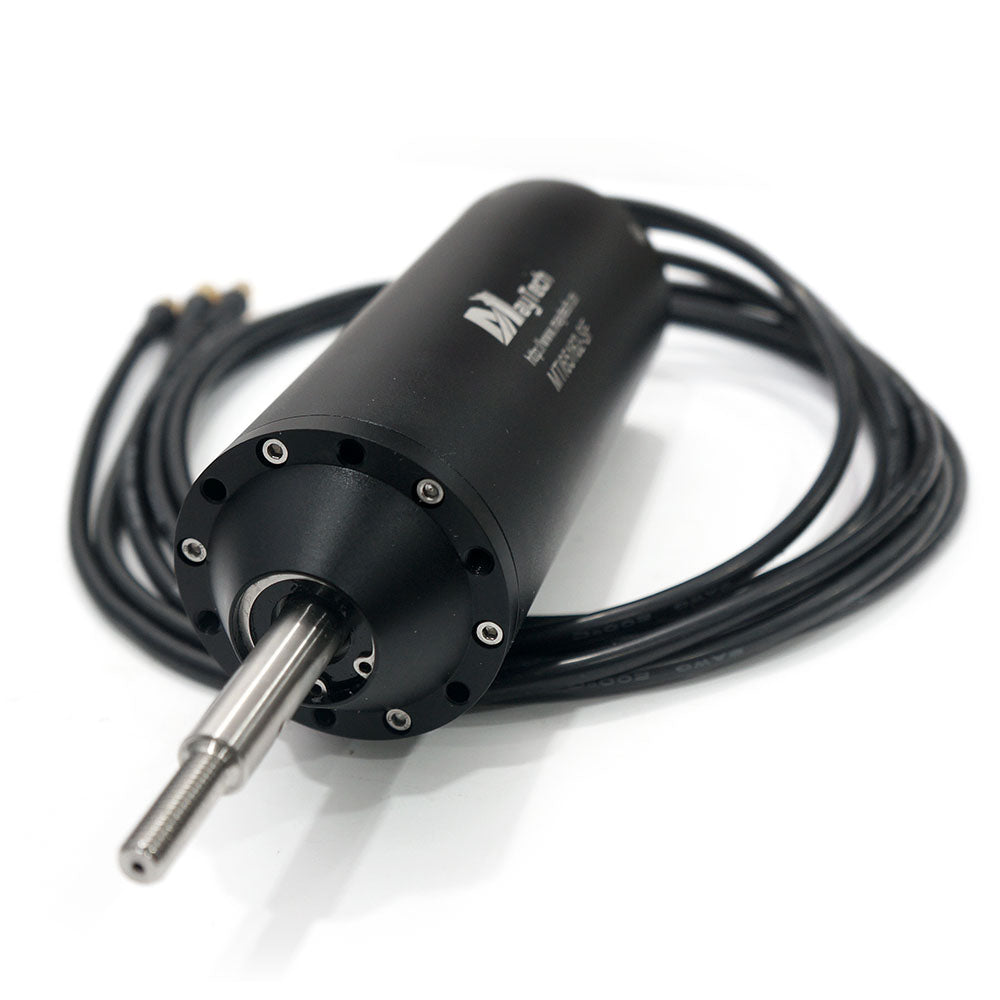

Item 1: 1PCS Maytech Fully waterproof motor 65162 for efoil electric surfboard SUP with Free propeller
|
|||
|
Model number
|
MTI65162-100-SF
|
Avaiblable KV
|
100KV
|
|
Shaft
|
12mm Customized for the propeller
|
Size
|
Φ65x 161.5mm
|
|
Motor type
|
Inrunner motor without hall sensor
|
Max Lipo Cell
|
6-20S
|
|
Motor Weight
|
2.5kg
|
Max Current
|
310A
|
|
Max Power
|
9100W
|
Rated power
|
8100W
|
|
Max torque
|
9 N.m
|
Motor cable/connectors
|
1.2meter cable with 8mm connectors
|
|
Free propeller
|
7.25*6inch Aluminium
|
||
|

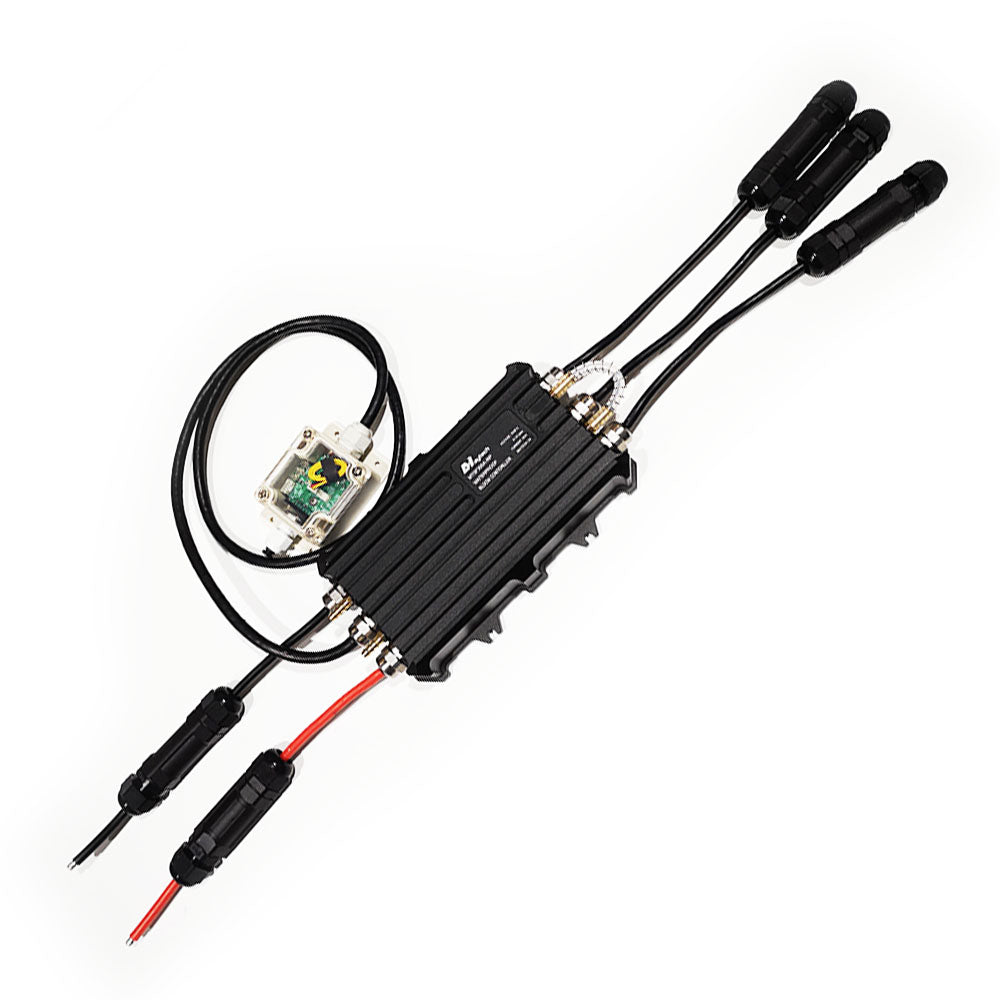

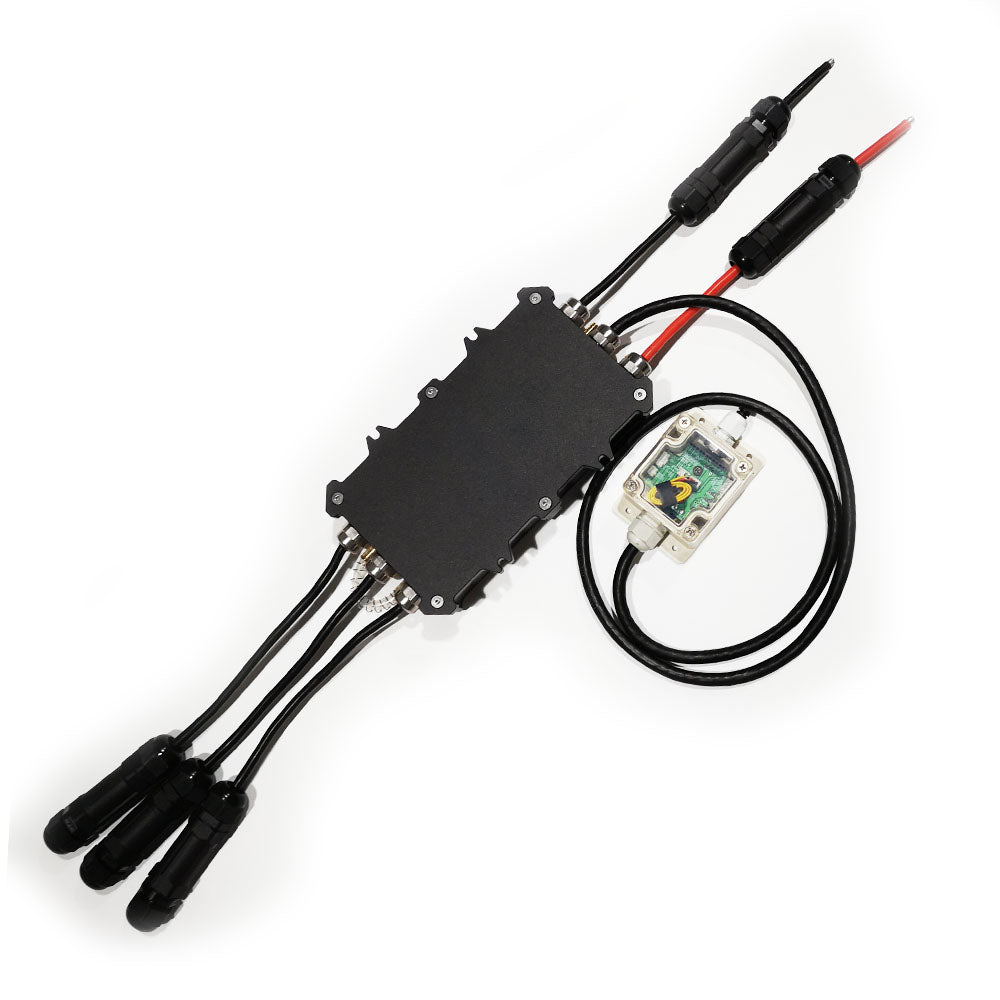

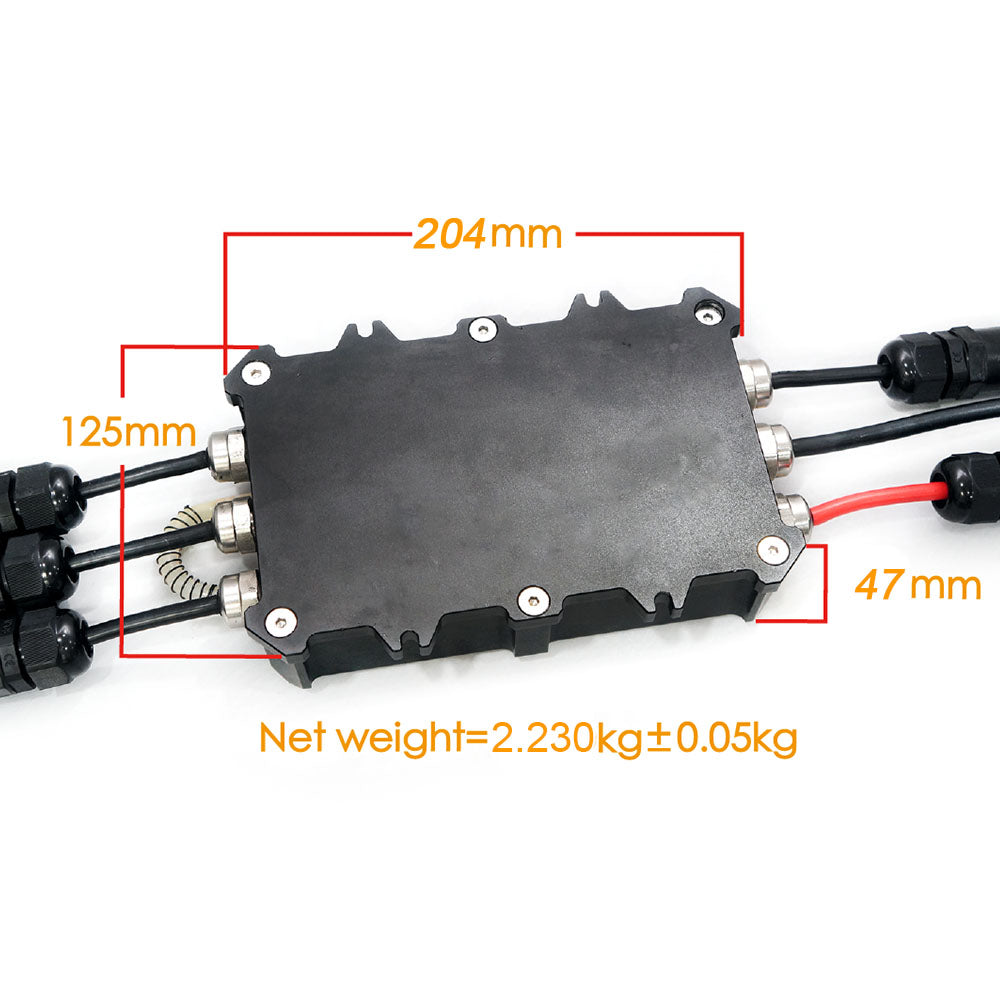

Item 2: 1pcs Maytech efoil motorized surfboard fully waterproof 300A ESC for electric jet board watercraft (Color radom)
|
|||
|
Model no
|
MTSF300A-OPTO-WP
|
Lipo
|
6-14Cells
|
|
Cont. Current
|
300A
|
Burst Current
|
1000A
|
|
BEC
|
Yes, with BEC in the waterproof case
|
Case
|
fully water-proof and watercooled aluminum case
|
|
Size
|
216*126*44mm
|
Weight
|
about 2.4kg
|
|
Connectors
|
8mm with waterproof protectors
|
Progcard
|
Yes
|
|
Waterpcooling tube
|
Gold plating
|
Default parameters
|
suitable for Maytech motor and remote
|
|
Feature
|
Great start-up torque with sensorless motors
|
||
|
Receiver
|
Built-in or output cable for receiver
|
||
|
Item 3: 1PCS Maytech MTSKR1905WF New Updated version waterproof remote for efoil electric surfboard DIY skateboard longboard
|
|||
|
Model no
|
MTSKR1905WF updated version
|
Packing
|
cartons box
|
|
Function
|
wireless charging
|
Display screen
|
Yes
|
|
Accessory
|
receiver and charging pad
|
Signal type
|
PWM
|
|
FREE Accessory
|
Strip (color is random)
|
Esurf mode
|
with cruise control
|
|
Batt voltage display
|
3-18S
|
Esk8 mode
|
with brake
|

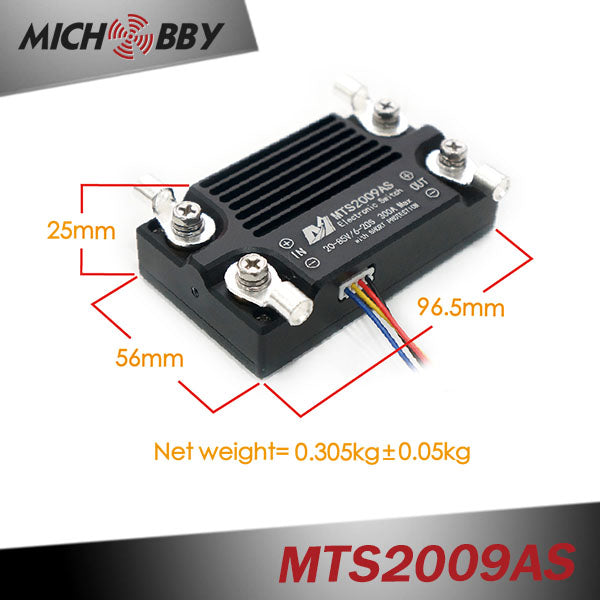

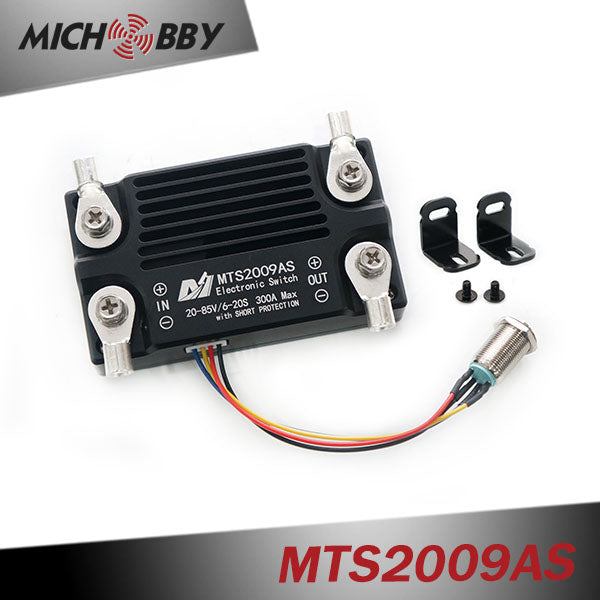

Item 4. 1pcs MTS2009AS anti-spark switch
Model Number: MTS2009AS
Application: Electric Skateboard, Efoil, surfboard, boat, motorcycle, etc
Connector: Ring Terminal
Max Current: 300A
Max voltage: 85V (20S lipo)
Switch Type: Use NMOS to realize switching on/off Power positive
Size: about 97*56*25mm
Features:
Switch comes with LED light indicator;
Shutdown current less than 1uA;
Suitable for load: three phase motor speed controller;
Boot soft start;
Automatic short circuit protection when boot; Automatic short circuit protection when work.

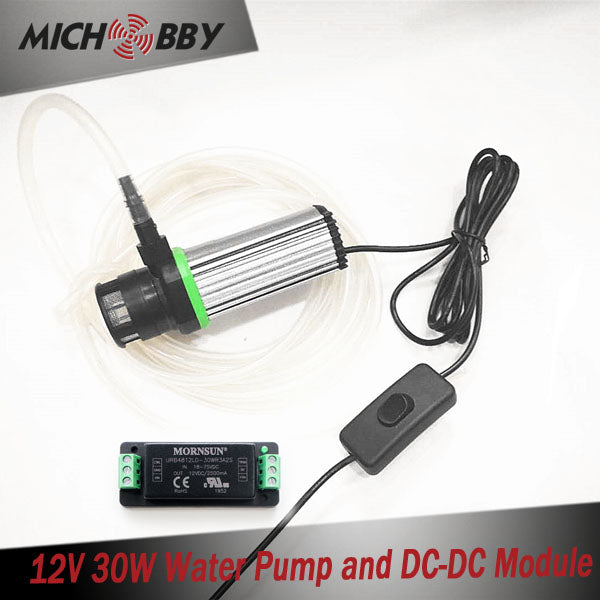

MTWP30W Water pump specification:
Notice: The pump cannot work continuously for a long time. It is best to stop it for about an hour; Long working hours will affect the life of the pump.
Power : 30W 12V
Maximum Flow : 8L/min Outlet : 6mm / 8mm / 10mm
Water Intake : 35mm
MTUBEC6.12 DC-DC module (also called UBEC) specification:
Input: 18-75V DC
Output: 12V DC
Convert main battery high votlage to 12V output for waterpump motor.
