Maytech waterproof Efoil electric hydrofoiling Boat Jetski surfboard 85165 motor + 300A ESC with progcard + waterproof remote
The kit includes: 1x MTI85165 motor + 300A ESC with progcard + MTSKR1905WF Remote
|

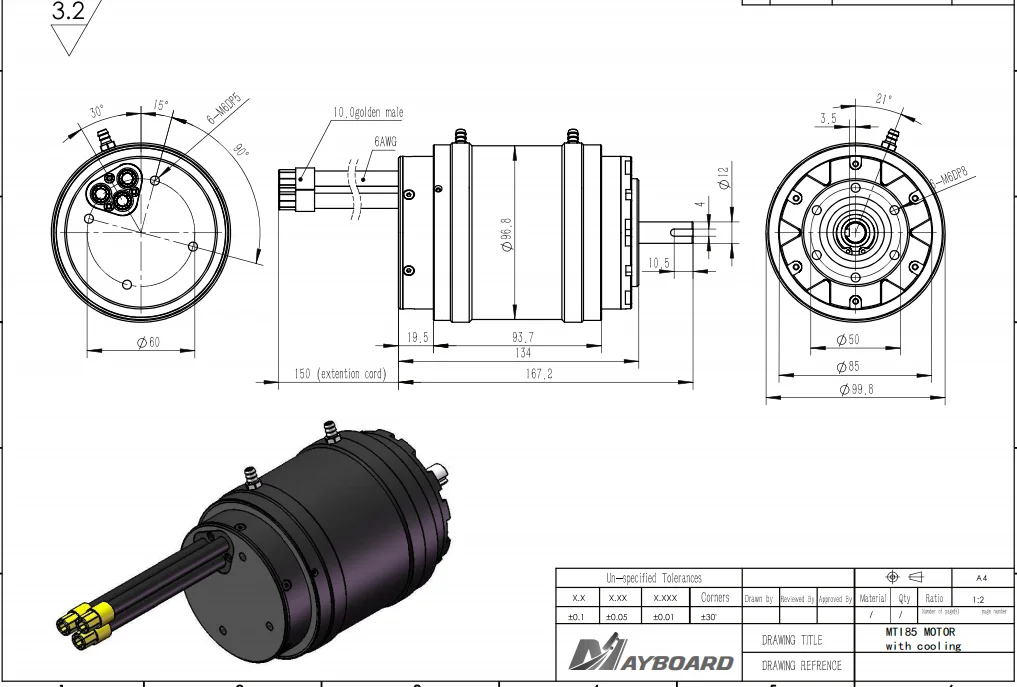

Item 1: 1PCS Maytech Fully waterproof Or Watercooled motor 85165 for efoil electric surfboard hydrofoil boat jetski watercraft
|
|||
|
Model number
|
MTI85165-SF/WP
|
Avaiblable KV
|
200KV/Other KV can be customized
|
|
Shaft
|
12mm
|
Slots/Poles
|
12N10P
|
|
Motor type
|
Inrunner motor without hall sensor
|
Max Lipo Cell
|
10-16S
|
|
Motor Weight
|
3.3kg
|
Max Current
|
300A
|
|
Max Power
|
10.5KW
|
Rated power
|
9KW
|
|
Max torque
|
15.5N.m
|
Motor cable/connectors
|
1.2 meter cable with 8mm connectors
|
|
Item 2: 1pcs Maytech efoil/esurf motorized surfboard fully waterproof 300A ESC for electric jet board watercraft
|
|||
|
Model no
|
MTSF300A-WP
|
Lipo
|
6-14Cells
|
|
Cont. Current
|
300A
|
Burst Current
|
1000A
|
|
BEC
|
Yes, with BEC in the waterproof case
|
Case
|
fully water-proof and watercooled aluminum case
|
|
Size
|
204x125x47 mm
|
Weight
|
about 2.2kg
|
|
Connectors
|
8mm with waterproof protectors
|
Progcard
|
Yes
|
|
Waterpcooling tube
|
Gold plating
|
Default parameters
|
suitable for Maytech motor and remote
|
|
Feature
|
Great start-up torque with sensorless motors
|
||
|
Connection
|
With Junction Box for connecting Receiver
|
||
|
Model no
|
MTSKR1905WF updated version
|
Packing
|
cartons box
|
|
Function
|
wireless charging
|
Display screen
|
Yes
|
|
Accessory
|
receiver and charging pad
|
Signal type
|
PWM
|
|
FREE Accessory
|
Strip (color is random)
|
Esurf mode
|
with cruise control
|
|
Batt voltage display
|
3-18S
|
Esk8 mode
|
with brake
|
New remote updated functions:
1. Display shows more:
Besides remote battery and main battery voltage, it can show motor RPM; if use it with VESC controllers, it can show current, speed(esk8 mode), temperature.
2. Signal:
Remote and receiver signal strength is enhenced to avoid some signal interference nearby.
3. Waterproof function is updated:
Two layers of nanometer-coating are added to remote.
4. Remote can wirelessly control two switches:
Remote can control two switches, such as light, pump.
5. Receiver supports double-souce powersupply:
Receiver can accepts 5V/3.3V power .
6. Firmware is wirelessly upgradable.
